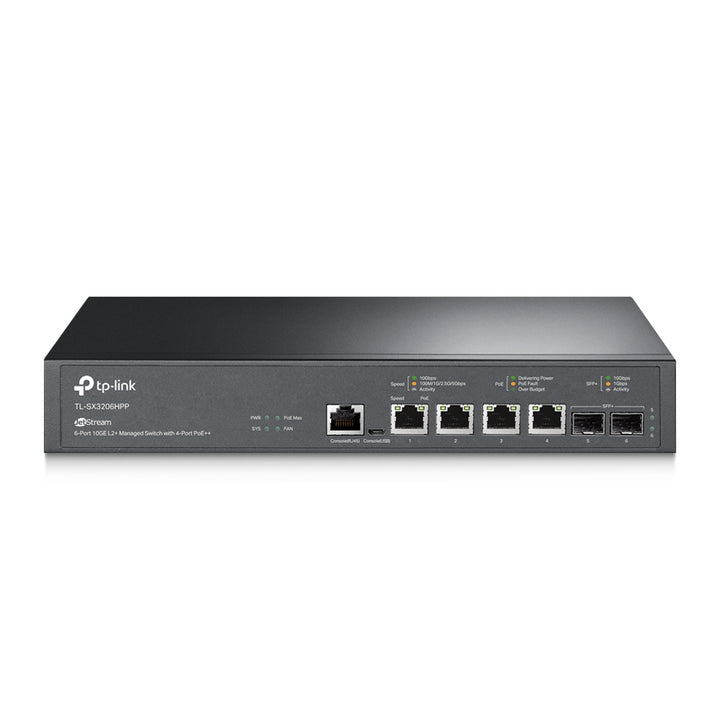

TP-Link Omada JetStream 6-Port 10GE L2+ Managed Switch with 4-Port PoE++ 200W

TP-Link JetStream 6-Port 10GE L2+ Managed Switch with 4-Port PoE++ (TL-SX3206HPP) - 5 Years Local Warranty

The TL-SX3206HPP is a compact six-port switch where every port runs at 10 Gigabit: four multi-gig RJ45 ports that also deliver 60 W of 802.3bt PoE++, plus two 10G SFP+ uplinks. At 294 mm wide it is a half-width unit built for the handful of devices that genuinely need both 10G and high-power PoE in one place.

Four 10G Multi-Gig Ports With 60 W PoE++

The four RJ45 ports auto-negotiate 100 Mbps, 1G, 2.5G, 5G and 10G, and all four are 802.3bt/at/af compliant at up to 60 W each from a 200 W system budget. That combination — 10 Gbps of data and 60 W of power on the same cable — is what Wi-Fi 7 access points, high-end PTZ cameras, conferencing hardware and PoE displays increasingly ask for, and it is delivered over the Cat 6/6A cabling already installed.

Two 10G SFP+ Uplinks and a 120 Gbps Fabric

Two 10 Gbps SFP+ slots carry backhaul, with the option to aggregate them or split them across two upstream switches for a redundant path, and to run fibre where distance demands it. The 120 Gbps switching capacity covers all six ports at full duplex with margin, and an 89.28 Mpps forwarding rate holds line rate at minimum frame sizes. A 32 K MAC address table is unusually large for a six-port unit, and 9 KB jumbo frames suit storage traffic.

Half-Width Chassis, Rack or Desktop

At 294 x 180 x 44 mm the switch takes roughly half a rack width and can equally sit on a desk or shelf. Two fans handle the PoE stage; draw is 27.29 W with no powered devices attached and 244.90 W with the full 200 W committed. An operating range up to 50 °C gives useful headroom for a cabinet or ceiling void in Singapore's climate.

L3 Static Routing and DHCP Services

Despite its size the switch carries 16 IPv4/IPv6 interfaces, 48 static routes and 128 static ARP entries, with Proxy ARP, Gratuitous ARP, a DHCP Server, DHCP Relay and DHCP L2 Relay. That lets a small high-performance segment — a production suite, a lab, a camera cluster — address and route its own VLANs locally rather than sending every packet to the core and back.

4K VLANs, QinQ, Full ACLs and 802.1X

Up to 4K 802.1Q VLAN groups are supported, with MAC VLAN, Protocol VLAN, Private VLAN, GVRP, QinQ and Voice VLAN. ACLs cover time-based, MAC, IP, combined, packet-content and IPv6 rules with mirroring, redirect, rate-limit and QoS-remark actions. Security includes IP-MAC-Port and IPv6-MAC-Port Binding at 512 entries each, DoS Defend, Port Security, Storm Control and 802.1X with RADIUS and TACACS+. QoS runs eight priority queues with SP, WRR or SP+WRR scheduling.

Managed Centrally Through Omada SDN

The switch is adopted by an Omada Hardware, Software or Cloud-Based Controller and managed alongside the rest of the network, with automatic device discovery, batch configuration, batch firmware upgrading, intelligent network monitoring and Zero-Touch Provisioning. Local and NMS access is covered by a web GUI, CLI over console, Telnet or SSH, SNMP v1/v2c/v3, RMON, LLDP/LLDP-MED, DHCP AutoInstall, dual image and configuration, password recovery and SNTP.

Ideal For

Singapore sites with a small cluster of high-bandwidth, high-power endpoints — Wi-Fi 7 access points, PTZ cameras, conferencing rooms, production or lab equipment — that need 10G and PoE++ without a full-size chassis. Supplied by SourceIT with local Singapore warranty, GST invoice and project pricing on request.
