TP-Link Omada Multi-Gigabit VPN Router with 2× 2.5G and 4 Gigabit Ports

TP-Link Omada Multi-Gigabit VPN Router (ER707-M2) - 5 Years Local Warranty

The ER707-M2 is the desktop multi-gigabit member of Omada's gateway line: a 2.5G WAN port, a second 2.5G WAN/LAN port, a Gigabit SFP slot and four Gigabit RJ45 ports in a fanless 226 mm steel case. It shares its official product name with the rack-mount ER7412-M2 but is the smaller unit — half the copper ports, one SFP slot, no console port, and no PoE output.

A 2.5G WAN Port for Faster-Than-Gigabit Circuits

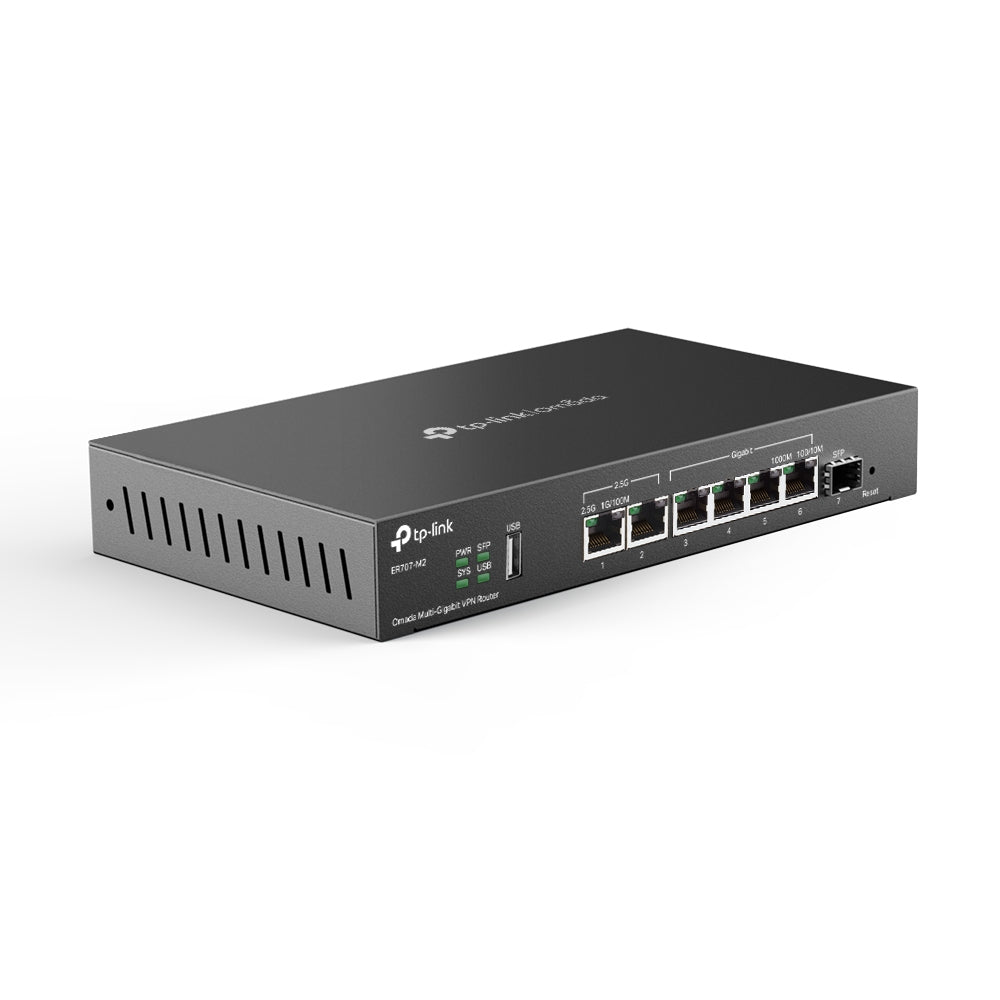

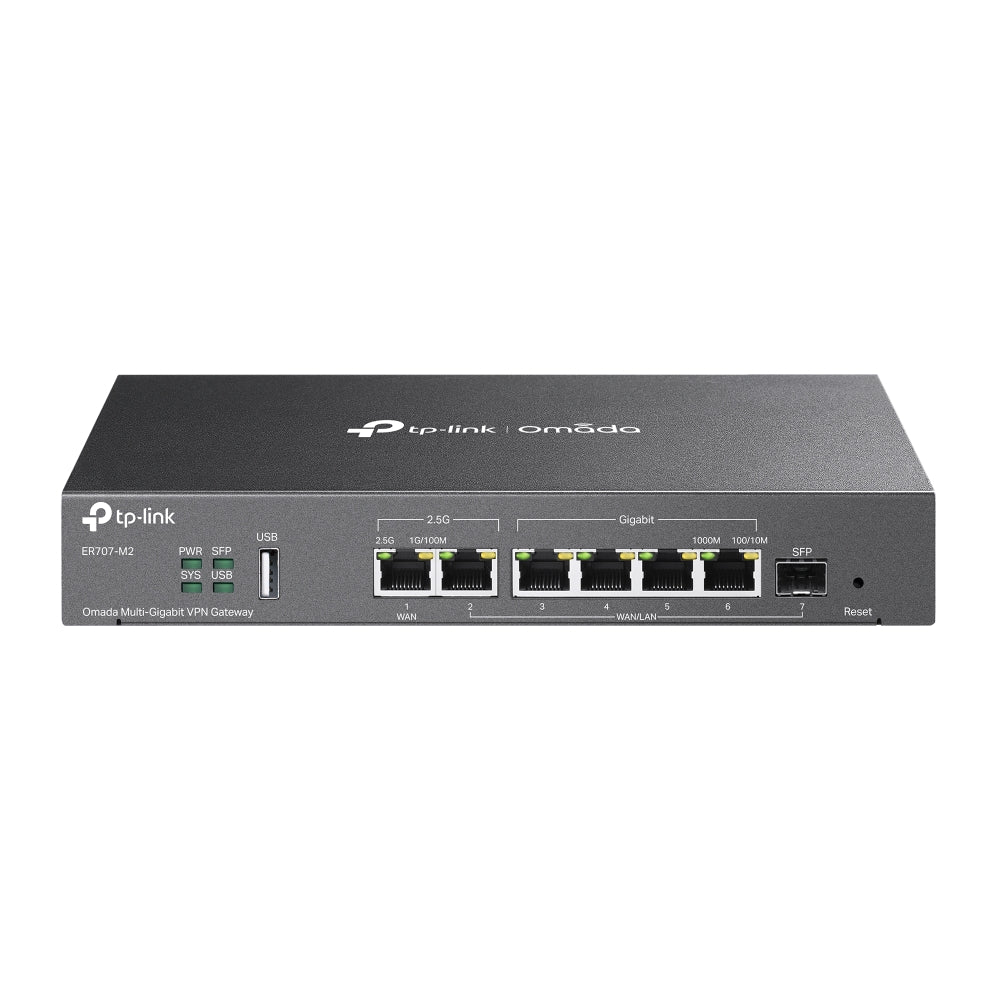

The ER707-M2 provides 1× 2.5G RJ45 WAN port, 1× 2.5G RJ45 WAN/LAN port, 1× Gigabit SFP WAN/LAN port, 4× Gigabit RJ45 WAN/LAN ports and a USB 2.0 port. That layout is aimed squarely at the Singapore office whose fibre plan has moved past 1 Gbps: the 2.5G WAN terminates the circuit, the second 2.5G port feeds a multi-gigabit core switch, and the Gigabit ports handle secondary links or segmented internal networks.

2.36 Gbps NAT Throughput and a Half-Million Sessions

Static-IP NAT runs at 2365.17/2364.45 Mbps, DHCP at 2364.45/2366.04 Mbps and PPPoE at 2347.14/2348.29 Mbps, so the gateway passes a 2 Gbps service at close to line rate regardless of handover type. The session table holds 500,000 concurrent sessions with 6,000 new sessions per second — comfortable for a busy office or a guest-Wi-Fi tier where session count, not raw bandwidth, is the usual bottleneck.

673 Mbps IPsec Across 100 Tunnels, Plus WireGuard

IPsec throughput is 673.3 Mbps with ESP-SHA1-AES256 and stays between 629 and 651 Mbps across the SHA256, SHA384 and SHA512 variants, over up to 100 IPsec tunnels in LAN-to-LAN or client-to-LAN mode with IKEv1/v2, NAT-T, DPD and PFS. WireGuard adds 343.8 Mbps across 20 tunnels, SSL VPN runs at 132.24 Mbps, and the router supports 60 PPTP and 60 L2TP tunnels plus 66 OpenVPN tunnels. SD-WAN is available in controller mode.

DPI at 1.8 Gbps With Signature-Based IPS

Deep packet inspection sustains 1823 Mbps on TCP and 1272 Mbps on UDP, while intrusion prevention runs at 208 Mbps TCP and 161 Mbps UDP — figures worth reading before enabling IPS on a fully loaded 2.5G link. The rest of the security set covers source and destination IP access control, web group and URL filtering, web security, ARP inspection with IP-MAC binding, and flood, scan and ping-from-WAN defences.

OSPF and RIP on a Desktop Gateway

The ER707-M2 runs static routing, policy routing, RIP and OSPF, which is unusual at this size and lets the unit slot into a routed network rather than only terminating one. Load balancing covers intelligent load balance, application-optimised routing, link backup and online detection. The USB 2.0 port accepts a 4G/3G modem for WAN backup, and DHCP support includes a DHCPv6 PD server, option customisation and multi-net DHCP.

Fanless, Wall-Mountable and Under 15 W

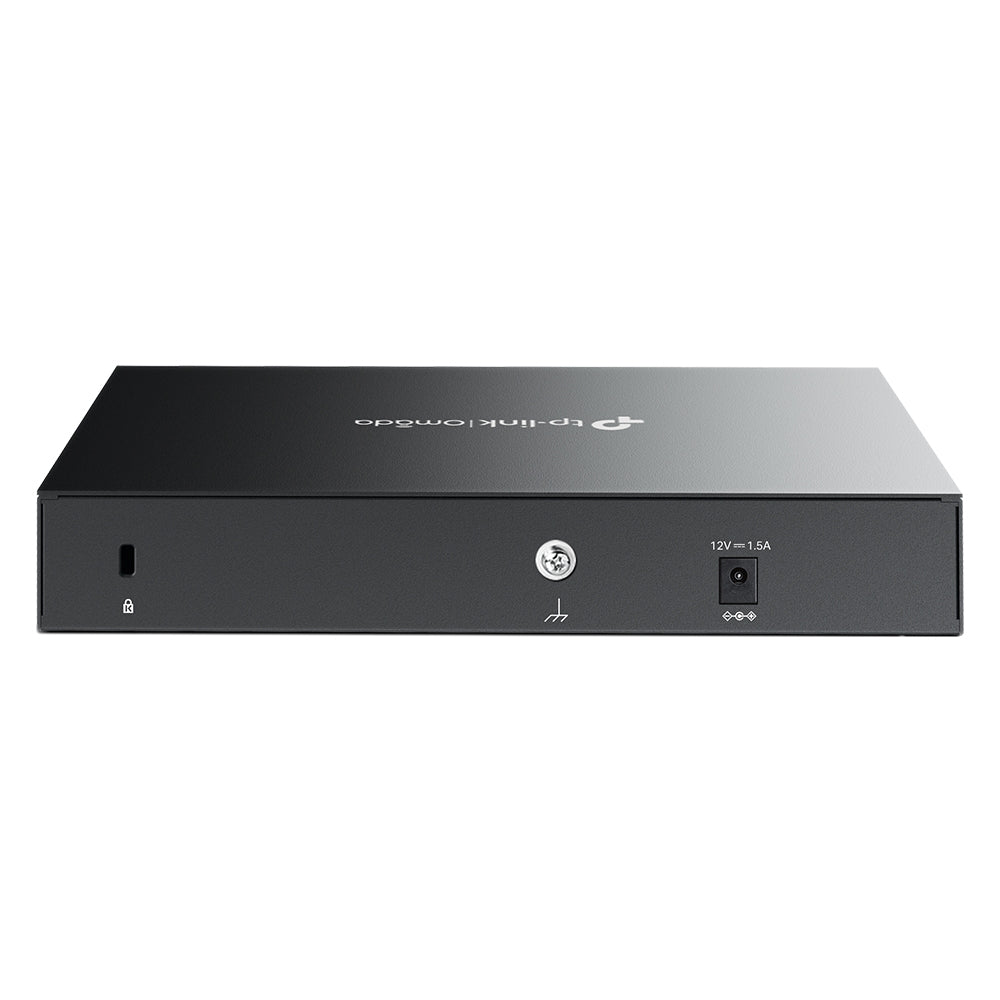

At 226 × 131 × 35 mm in a fanless steel enclosure, the ER707-M2 is silent and can be mounted on a wall or sat on a desk, so it suits a small comms cupboard or an office without a rack. Maximum power consumption is 14.2 W with USB 2.0 connected and 7.1 W without, from a 12V/1.5A adapter. It carries 4 kV surge protection and operates from 0 to 40 °C.

Ideal For

Singapore businesses, schools, hotels and managed-service providers building on Omada, and IT teams that want a gateway they can adopt, monitor and update centrally rather than box by box. Supplied by SourceIT with local Singapore warranty, GST invoice and project pricing on request.
