TP-Link Omada Fusion G+ Gateway
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
TP-Link Omada Fusion G+ Gateway (Fusion G+) - 5 Years Local Warranty

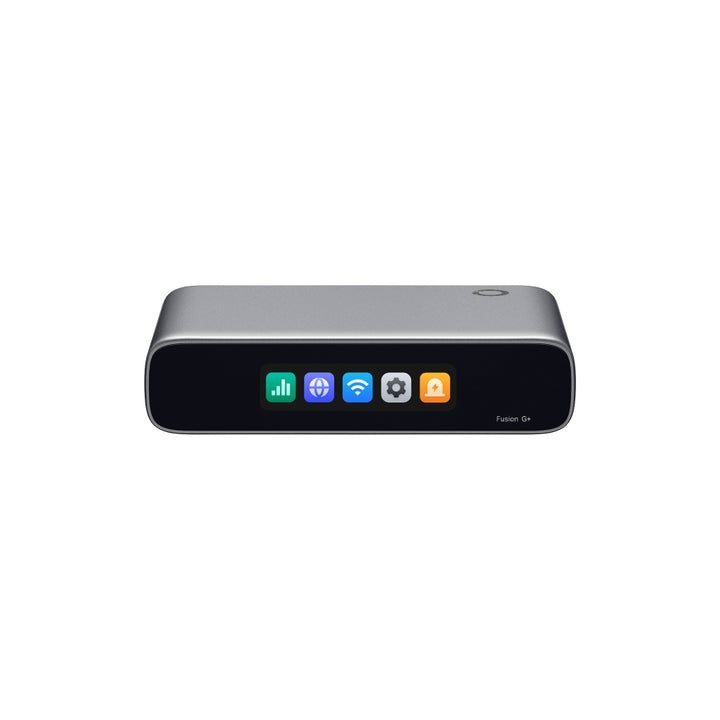

The Omada Fusion G+ is a compact, fanless gateway with the Omada controller built in: one 2.5G WAN port, four Gigabit LAN/WAN ports, a quad-core CPU and a 2.51-inch colour touchscreen, with license-free cloud management for easy and secure remote access.
License-Free Cloud Management with a Built-in Controller
The built-in controller means no device licence, centralised multi-site visibility and remote cloud control via web or app. Omada recommends the Fusion G+ for up to 30 managed Omada devices and up to 300 connected clients.
App-Guided Bluetooth Setup and One-Tap Bulk Adoption
Set up the Fusion G+ over Bluetooth using the Omada App, then automatically discover and batch adopt all the other Omada networking devices at once, saving time and simplifying deployment.
2.5G WAN, Four Gigabit LAN/WAN Ports and Multi-WAN Failover
A quad-core CPU provides fast processing for stable gateway and controller performance. The 2.5G WAN port removes the internet uplink bottleneck on faster fibre plans, while four Gigabit LAN/WAN ports handle everyday devices and allow up to four WANs with load balancing and automatic failover.
Touchscreen Troubleshooting and One-Click LightLink VPN
The 2.51-inch touchscreen gives quick troubleshooting with direct on-device monitoring, reducing on-site work. Omada LightLink VPN provides secure remote access in one click, with Smart Split Tunneling sending only essential traffic through the VPN to keep the user experience smooth.
App-Based ACL, Auto QoS, Full Mesh SD-WAN and Filtering
Full mesh SD-WAN connects up to 20 sites with direct inter-site links. Content filtering and ad blocking keep browsing cleaner and safer, app-based access control manages access by app and category, and one-click Auto QoS keeps critical traffic prioritised with presets or full customisation.
Ideal For
Small offices, shops, clinics and branch sites in Singapore that want a fanless Omada gateway and controller in one box with a 2.5G internet uplink and no controller licences. Supplied by SourceIT with local Singapore warranty and GST invoice.
Fusion G+ Datasheet — Technical Specifications
General
| Model | Fusion G+ |
| Official Product Name | Omada Fusion G+ Gateway |
| EAN | 1210002633253 |
| Brand | TP-Link Omada |
| Warranty | 5 Years Local Warranty (Singapore) |
Overview
| Built-In Omada Applications | Network Application |
| Managed Omada Devices | Recommended for up to 30 devices |
| Client Capacity | Recommended for up to 300 connected clients |
| Interface | 1x 2.5G RJ45 WAN port; 4x Gigabit RJ45 LAN/WAN ports; up to 4 simultaneous WAN ports |
| IPS Throughput | 1 Gbps (specification table) — see note below |
| Site-to-Site VPN Throughput | 1,023 Mbps (based on IPsec VPN) |
| Management | Cloud, local and Omada App management |
| Mounting | Desktop; wall-mount (magnetic-mount plate sold separately); rack-mount (rackmount kit sold separately) |
| Dimensions | 5.12 x 3.74 x 1.18 in (130 x 95 x 30 mm) |
Omada's Singapore page contradicts itself on IPS throughput: a feature heading reads "IPS/IDS at 2.1 Gbps" (with the footnote "The value is calculated based on laboratory testing with 1 WAN port and 3 LAN ports. Performance is subject to traffic conditions, enabled features, and network environment."), while the specification table lists IPS Throughput as 1 Gbps. Both are reproduced here; please ask us to confirm before relying on either figure.
Built-in Omada Controller
| Access and Management | Cloud Access, Local Management, Omada App; Multi-Site Management via the Omada Cloud Management Platform |
| Controller Features | Restore & Backup, Automatic Device Discovery, Network Topology, Dashboard, Device List / Client List, Logs / Alerts / Events, Batch Firmware Upgrade, Health Monitoring, Internet Activity, Captive Portal, RADIUS / LDAP Authentication, 802.1X Authentication, OUI-Based VLAN |
| Diagnostics Tools | Ping Test, Packet Capture, Terminal, Cable Test, Interference Detection, Remote Access, IntelliRecover, Port Mirroring |
| SNMP | v1/v2c/v3 |
Security
| Security Features | IDS/IPS, DPI, Application-Based ACL, Content Filtering, Ad Blocker, Safe Search, DNS Security, Firewall, Attack Defense, ARP Inspection |
VPN & SD-WAN
| Omada LightLink VPN | Supported |
| Site-to-Site VPN | WireGuard VPN / IPsec VPN |
| VPN Server | WireGuard VPN / OpenVPN / IPsec VPN / SSL VPN / L2TP VPN / PPTP VPN |
| VPN Client | WireGuard VPN / OpenVPN / L2TP VPN / PPTP VPN |
| SD-WAN | Full Mesh Mode (feature text: up to 20 sites) |
| VPN Throughput | Omada LightLink VPN: 527 Mbps; IPsec VPN: 1,023 Mbps; WireGuard VPN: 605 Mbps; OpenVPN: 223 Mbps; L2TP VPN: 892 Mbps; PPTP VPN: 193 Mbps; SSL VPN: 250 Mbps |
Networking
| WAN Connection | Static IP / Dynamic IP / PPPoE / PPTP / L2TP / MAP-E / DS-Lite |
| Routing and Traffic | Multi-WAN Failover & Load Balancing, DHCP Server, VLAN Segmentation, Bandwidth Control, QoS, Static Routing, Policy Routing |
| NAT | Port Forwarding / Virtual Server / DMZ / ALG / UPnP / One-to-One NAT / Disable NAT |
| Dynamic DNS | TP-Link DDNS, 3rd-party DDNS, custom DDNS |
| IPv6 | Static IP / SLAAC / DHCPv6 / PPPoE / 6to4 Tunnel / Pass-Through / Non-Address Mode |
| Multicast and Discovery | Bonjour / mDNS, IGMP v2/v3 Proxy |
Hardware
| Touchscreen | 2.51-inch color LCM touchscreen |
| Button | Reset button |
| Memory | 2 GB DDR4 |
| Power Supply | USB-C power adapter, 100-240 V AC, 50/60 Hz input, 5 V DC / 3 A output |
| Max Power Consumption | 6.18 W, with power adapter |
| Enclosure | Polycarbonate |
| LED | Ethernet |
| Fan | Fanless |
| Net Weight | 0.77 lb (351 g) |
| Surge Protection | 4 kV |
| ESD Protection | +/-8 kV (Air), +/-4 kV (Contact) |
| Onboarding | Bluetooth or Ethernet |
| Certifications | CE, FCC, RoHS |
| Operating Temperature | 14 °F to 104 °F (-10 °C to 40 °C) |
| Storage Temperature | -22 °F to 158 °F (-30 °C to 70 °C) |
| Operating Humidity | 10% to 90% RH, non-condensing |
| Storage Humidity | 5% to 90% RH, non-condensing |
Omada's notes: site-to-site VPN performance is based on IPsec VPN; the magnetic-mount plate and rack-mount kit are sold separately; controller and management features may vary depending on connected Omada devices, software versions and deployment modes. The Singapore page describes a quad-core CPU but publishes no CPU model or clock speed and no flash/storage specification; those rows are omitted rather than taken from another model. The images and datasheet on Omada's site are for hardware version 2.0 (UN).
Compatibility & Software Support
The Fusion G+ runs the Omada Network Application on board, so it acts as the site's controller as well as its gateway. Omada access points, switches and other Omada devices behind it are discovered and batch adopted from the built-in controller and managed under one set of policies.
| Built-in Omada Controller | Supported — no separate controller hardware, software host or device licence needed |
| Omada App | Supported — Bluetooth onboarding, one-tap bulk adoption and remote management |
| Omada Cloud Access | Supported — license-free cloud management; multi-site management via the Omada Cloud Management Platform |
| Local Management | Supported |
| SNMP | v1/v2c/v3 |
Omada states that controller and management features may vary depending on connected Omada devices, software versions and deployment modes.
Package Contents & Ordering Information
Package Contents
| In the Box | Omada's Singapore page publishes no package-contents list for the Fusion G+. Ask us and we will confirm the current carton contents before you order. The magnetic-mount plate and rack-mount kit are sold separately. |
Ordering Information
| Model | Fusion G+ |
| SKU | Fusion G+ |
| EAN | 1210002633253 |
| Warranty | 5 Years Local Warranty (Singapore) |
Datasheet & Downloads
Frequently Asked Questions — Fusion G+
Do I need a separate Omada controller or licence?
No. The controller is built in and Omada states there is no device licence for cloud management. It is recommended for up to 30 managed Omada devices and 300 connected clients.
Are all the ports 2.5G?
No. The WAN port is 2.5G; the four LAN/WAN ports are Gigabit. Up to four WANs can run at once with load balancing and failover.
Is it silent?
Yes. Omada lists the Fusion G+ as fanless, with a maximum power consumption of 6.18 W from its USB-C adapter.
What warranty does SourceIT provide?
Five years local Singapore warranty, with a GST invoice.
Can SourceIT quote this for an office or a project?
Yes. Send us the quantity or bill of materials and we will quote the gateway together with Omada switches and access points, with local warranty, delivery and support.
