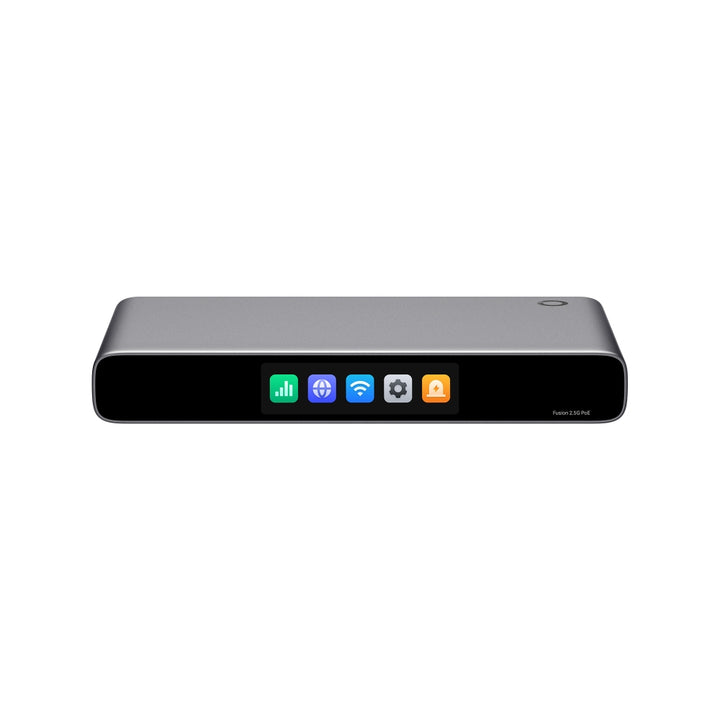

TP-Link Omada Fusion 2.5G PoE Gateway
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
TP-Link Omada Fusion 2.5G PoE Gateway (Fusion 2.5G PoE) - 5 Years Local Warranty
The Omada Fusion 2.5G PoE is a gateway with the Omada controller built in, nine 2.5G RJ45 ports, eight PoE+ ports sharing a 110W budget and a 3.69-inch colour touchscreen. Omada sums it up as "Fast Deployment. Cloud Management. Subscription-Free."
Gateway and Controller in One, License-Free
Gateway and controller functions sit in a single device, so the unit that routes the site also adopts and manages the Omada devices behind it. The built-in controller needs no device licence and gives centralised multi-site visibility with remote cloud control through web or app. Omada recommends it for up to 30 managed Omada devices and up to 300 connected clients.
Nine 2.5G Ports with Up to Eight WANs
One 2.5G RJ45 WAN port and eight 2.5G RJ45 LAN/WAN ports allow up to eight simultaneous WAN links with load balancing and automatic failover, so several internet services can be combined at one site.
Eight PoE+ Ports with a 110W Total Budget
Eight of the ports are PoE+, sharing a 110W total budget, so access points, cameras or other PoE devices can be powered straight from the gateway, simplifying cabling and deployment on small sites.
Quad-Core CPU and 2.1 Gbps-Class IPS/IDS
A quad-core CPU provides the processing for stable gateway and controller performance. Omada rates IPS throughput at 2,183 Mbps and site-to-site VPN at 1,023 Mbps (IPsec), so intrusion prevention can stay on while performance is maintained.
Bluetooth Setup, Touchscreen Troubleshooting and LightLink VPN
App-guided onboarding via Bluetooth and one-tap bulk device adoption speed up deployment. The 3.69-inch touchscreen enables quick troubleshooting with direct on-device monitoring, reducing on-site visits. Omada LightLink VPN gives secure remote access in one click, with Smart Split Tunneling sending only essential traffic through the VPN. App-based ACL, one-click Auto QoS and full mesh SD-WAN (Omada states up to 20 sites) complete the feature set.
Ideal For
Small and mid-sized Singapore offices, shops, clinics and branches on Omada that want gateway, controller and PoE power for access points or cameras in one box, without controller licences. Supplied by SourceIT with local Singapore warranty and GST invoice.
Fusion 2.5G PoE Datasheet — Technical Specifications
General
| Model | Fusion 2.5G PoE |
| Official Product Name | Omada Fusion 2.5G PoE Gateway |
| EAN | 1210002636056 |
| Brand | TP-Link Omada |
| Warranty | 5 Years Local Warranty (Singapore) |
Overview
| Built-In Omada Applications | Network Application |
| Managed Omada Devices | Recommended for up to 30 devices |
| Client Capacity | Recommended for up to 300 connected clients |
| Interface | 1x 2.5G RJ45 WAN port; 8x 2.5G RJ45 LAN/WAN ports; 8x PoE+ ports, 110W total budget; up to 8 simultaneous WAN ports |
| IPS Throughput | 2,183 Mbps |
| Site-to-Site VPN Throughput | 1,023 Mbps (based on IPsec VPN) |
| Management | Cloud, local and Omada App management |
| Mounting | Desktop; wall-mount (magnetic-mount plate sold separately); rack-mount (rackmount kit sold separately) |
| Dimensions | 8.90 x 5.31 x 1.24 in (226 x 135 x 31.5 mm) |
Built-in Omada Controller
| Access and Management | Cloud Access, Local Management, Omada App; Multi-Site Management via the Omada Cloud Management Platform |
| Controller Features | Restore & Backup, Automatic Device Discovery, Network Topology, Dashboard, Device List / Client List, Logs / Alerts / Events, Batch Firmware Upgrade, Health Monitoring, Internet Activity, Captive Portal, RADIUS / LDAP Authentication, 802.1X Authentication, OUI-Based VLAN |
| Diagnostics Tools | Ping Test, Packet Capture, Terminal, Cable Test, Interference Detection, Remote Access, IntelliRecover, Port Mirroring |
| SNMP | v1/v2c/v3 |
Security
| Security Features | IDS/IPS, DPI, Application-Based ACL, Content Filtering, Ad Blocker, Safe Search, DNS Security, Firewall, Attack Defense, ARP Inspection |
VPN & SD-WAN
| Omada LightLink VPN | Supported |
| Site-to-Site VPN | WireGuard VPN / IPsec VPN |
| VPN Server | WireGuard VPN / OpenVPN / IPsec VPN / SSL VPN / L2TP VPN / PPTP VPN |
| VPN Client | WireGuard VPN / OpenVPN / L2TP VPN / PPTP VPN |
| SD-WAN | Full Mesh Mode |
| VPN Throughput | Omada LightLink VPN: 527 Mbps; IPsec VPN: 1,023 Mbps; WireGuard VPN: 605 Mbps; OpenVPN: 223 Mbps; L2TP VPN: 892 Mbps; PPTP VPN: 193 Mbps; SSL VPN: 250 Mbps |
Networking
| WAN Connection | Static IP / Dynamic IP / PPPoE / PPTP / L2TP / MAP-E / DS-Lite |
| Routing and Traffic | Multi-WAN Failover & Load Balancing, DHCP Server, VLAN Segmentation, Bandwidth Control, QoS, Static Routing, Policy Routing |
| NAT | Port Forwarding / Virtual Server / DMZ / ALG / UPnP / One-to-One NAT / Disable NAT |
| Dynamic DNS | TP-Link DDNS, 3rd-party DDNS, custom DDNS |
| IPv6 | Static IP / SLAAC / DHCPv6 / PPPoE / 6to4 Tunnel / Pass-Through / Non-Address Mode |
| Multicast and Discovery | Bonjour / mDNS, IGMP v2/v3 Proxy |
Network Management
| Monitoring | Dashboard (Overview / Wi-Fi / Clients / Traffic), Network Topology, Health Monitoring, Reports, Logs (Alerts / Events / Audit Logs) |
| Devices and Clients | Automatic Device Discovery, Switch Ports, Client Management |
| Wireless and Access | SSID, PPSK, WLAN Optimization, Portal |
| Maintenance Tools | Ping Test, Packet Capture, Terminal, Cable Test, Interference Detection, Remote Access, IntelliRecover, Port Mirroring |
| Bluetooth | Supported |
Hardware
| Touchscreen | 3.69-inch color LCM touchscreen |
| Button | Reset button |
| Memory | 2 GB DDR4 |
| Power Supply | 54V DC / 2.43A adapter |
| PoE Budget | 110W |
| Max Power Consumption | 131 W, with power adapter |
| Enclosure | Polycarbonate |
| LED | Ethernet |
| Fan | Yes (fan listed) |
| Net Weight | 1.60 lb (728 g) |
| Surge Protection | 4 kV |
| ESD Protection | +/-8 kV (Air), +/-4 kV (Contact) |
| Onboarding | Bluetooth or Ethernet |
| Certifications | CE, FCC, RoHS |
| Operating Temperature | 14 °F to 104 °F (-10 °C to 40 °C) |
| Storage Temperature | -22 °F to 158 °F (-30 °C to 70 °C) |
| Operating Humidity | 10% to 90% RH, non-condensing |
| Storage Humidity | 5% to 90% RH, non-condensing |
Omada's notes: actual throughput may vary depending on traffic conditions, enabled features and network environment; site-to-site VPN performance is based on IPsec VPN; PoE budget calculations are based on laboratory testing, and actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors; controller and management features may vary depending on connected Omada devices, software versions and deployment modes. The Singapore page describes a quad-core CPU but publishes no CPU model or clock speed, and publishes no flash/storage specification; those rows are omitted rather than taken from another model. The 20-site SD-WAN figure appears in the page's feature text, not in the specification table.
Compatibility & Software Support
The Fusion 2.5G PoE runs the Omada Network Application on board, so it acts as the site's controller as well as its gateway. Omada access points, switches and other Omada devices behind it are discovered and adopted from the built-in controller and managed under one set of policies.
| Built-in Omada Controller | Supported — no separate controller hardware, software host or device licence needed |
| Omada App | Supported — Bluetooth onboarding, one-tap bulk adoption and remote management |
| Omada Cloud Access | Supported — license-free cloud management; multi-site management via the Omada Cloud Management Platform |
| Local Management | Supported |
| SNMP | v1/v2c/v3 |
Omada states that controller and management features may vary depending on connected Omada devices, software versions and deployment modes.
Package Contents & Ordering Information
Package Contents
| In the Box | The Omada Singapore page shows an "In the Box" picture but publishes no package-contents list in text. Ask us and we will confirm the current carton contents before you order. The magnetic-mount plate and rack-mount kit are sold separately. |
Ordering Information
| Model | Fusion 2.5G PoE |
| SKU | Fusion 2.5G PoE |
| EAN | 1210002636056 |
| Warranty | 5 Years Local Warranty (Singapore) |
Datasheet & Downloads
Frequently Asked Questions — Fusion 2.5G PoE
Do I need a separate Omada controller or licence?
No. The controller is built in and Omada states there is no device licence for cloud management. It is recommended for up to 30 managed Omada devices and 300 connected clients.
How much PoE power is available?
Eight PoE+ ports share a 110W total budget. Omada notes the budget is based on laboratory testing and actual available power varies with the connected devices and environment.
How is it different from the Fusion 2.5G?
The PoE model has nine 2.5G ports (1 WAN plus 8 LAN/WAN, up to 8 WANs), eight PoE+ ports and a larger 3.69-inch touchscreen, and is powered by a 54V adapter. See each model's own page for its full specification.
What warranty does SourceIT provide?
Five years local Singapore warranty, with a GST invoice.
Can SourceIT quote this for an office or a project?
Yes. Send us the quantity or bill of materials and we will quote the gateway together with Omada switches and access points, with local warranty, delivery and support.
