TP-Link Omada Fusion 2.5G Gateway

TP-Link Omada Fusion 2.5G Gateway (Fusion 2.5G) - 5 Years Local Warranty

The Omada Fusion 2.5G is a desktop multi-WAN gateway that also runs the Omada controller on board, so a site needs no separate controller hardware or software host and no controller licence. Five 2.5 Gbps RJ45 ports and a quad-core 2.0 GHz CPU put it above the Gigabit gateways in the range, and a built-in colour touchscreen sets it apart from headless Omada gateways.

Gateway and Omada Controller in a Single Licence-Free Box

Fusion 2.5G folds the Omada controller into the gateway itself, so the appliance that routes your traffic is also the appliance that adopts, provisions and monitors the access points, switches and other Omada devices behind it. There is no separate controller to buy, no server or PC left running as a software controller host, and no controller licensing to renew. For a single-site business or a branch that cannot justify dedicated controller hardware, this collapses the usual two-box Omada design into one fanless unit while keeping the full SDN management model intact.

Five 2.5G Ports and Up to Four Simultaneous WANs

Every one of the five RJ45 ports runs at 2.5 Gbps: one is a fixed WAN and the remaining four are configurable as LAN or WAN. That lets you run up to four WAN links at once, so a site can combine fibre, a second broadband service and a backup circuit for load balancing and failover rather than accepting a single point of failure. Because the LAN-side ports are also 2.5G, the uplink to a multi-gigabit switch or a Wi-Fi 7 access point is not throttled to Gigabit the way it would be on an older gateway.

Quad-Core Silicon That Keeps IPS/IDS and VPN Switched On

A quad-core ARM Cortex-A53 running at 2.0 GHz gives the gateway the headroom to inspect traffic rather than simply forward it. Omada rates it at 2,183 Mbps of IPS/IDS throughput and 1,023 Mbps of site-to-site VPN throughput. Those numbers matter because intrusion prevention and encrypted tunnels are exactly the features that collapse performance on underpowered gateways, leaving administrators to disable them. Here the security engine and the VPN concentrator can stay enabled at multi-hundred-megabit speeds on a fanless, 8.18 W chassis.

Full Mesh SD-WAN Across Up to Twenty Sites

For organisations running more than one location, Fusion 2.5G supports full mesh SD-WAN linking up to 20 sites, so branches reach each other directly instead of hair-pinning every packet through a head office. It also speaks a wide range of VPN protocols — WireGuard, IPsec, OpenVPN, SSL, L2TP and PPTP — which means it can terminate remote-worker tunnels and interoperate with existing third-party VPN endpoints without forcing a single-vendor design across the whole estate.

Deep Packet Inspection Driving ACLs, Filtering and Auto QoS

Deep packet inspection identifies traffic by application rather than by port number, and the gateway then acts on that identification. Application-based ACLs let you permit or block named services, content filtering and ad blocking apply policy at the web layer, and one-click Auto QoS prioritises latency-sensitive traffic without hand-building queue rules. The practical result for an administrator is that shaping voice and video, or stopping a category of traffic, becomes a policy decision in the Omada interface instead of a port-and-protocol exercise.

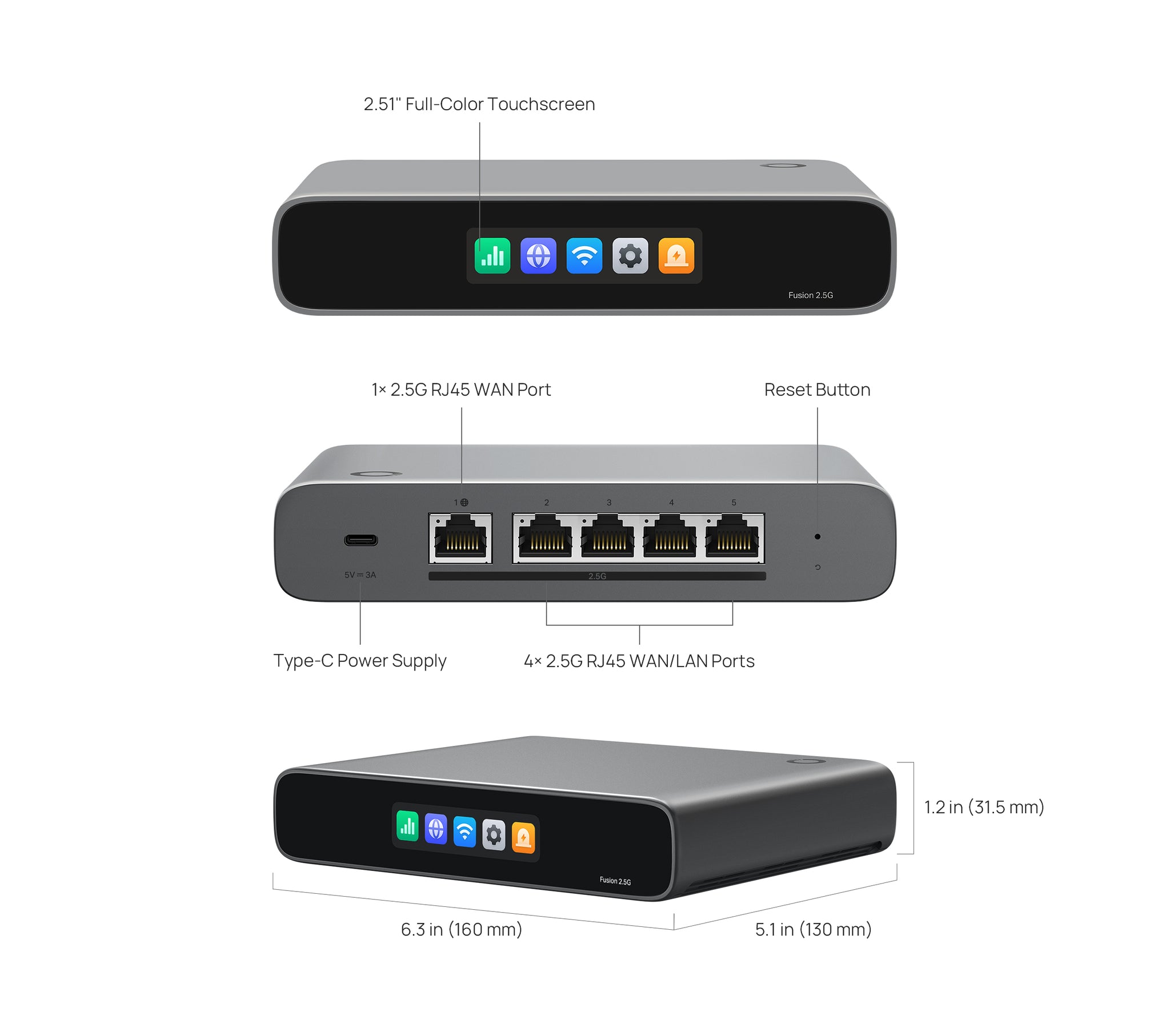

Bluetooth Setup and a 2.51-Inch Touchscreen for On-Site Work

Commissioning starts over Bluetooth from the Omada app, which discovers the gateway and then batch-adopts the Omada devices connected behind it, so a new site can be brought up without a console cable or a laptop on the LAN. Once running, a 2.51-inch colour touchscreen on the unit itself shows status and supports on-device troubleshooting — useful when the network is the thing that is broken and the web UI is unreachable. The fanless chassis mounts on a desktop, a wall, or a rack with accessories sold separately.

Ideal For

Singapore businesses, schools, hotels and managed-service providers building on Omada, and IT teams that want a router they can adopt, monitor and update centrally rather than box by box. Supplied by SourceIT with local Singapore warranty, GST invoice and project pricing on request.
