TP-Link Omada DeltaStream 8-Port Pizza-Box GPON Optical Line Terminal
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
TP-Link Omada DeltaStream 8-Port Pizza-Box GPON Optical Line Terminal (DS-P7001-08) - 5 Years Local Warranty

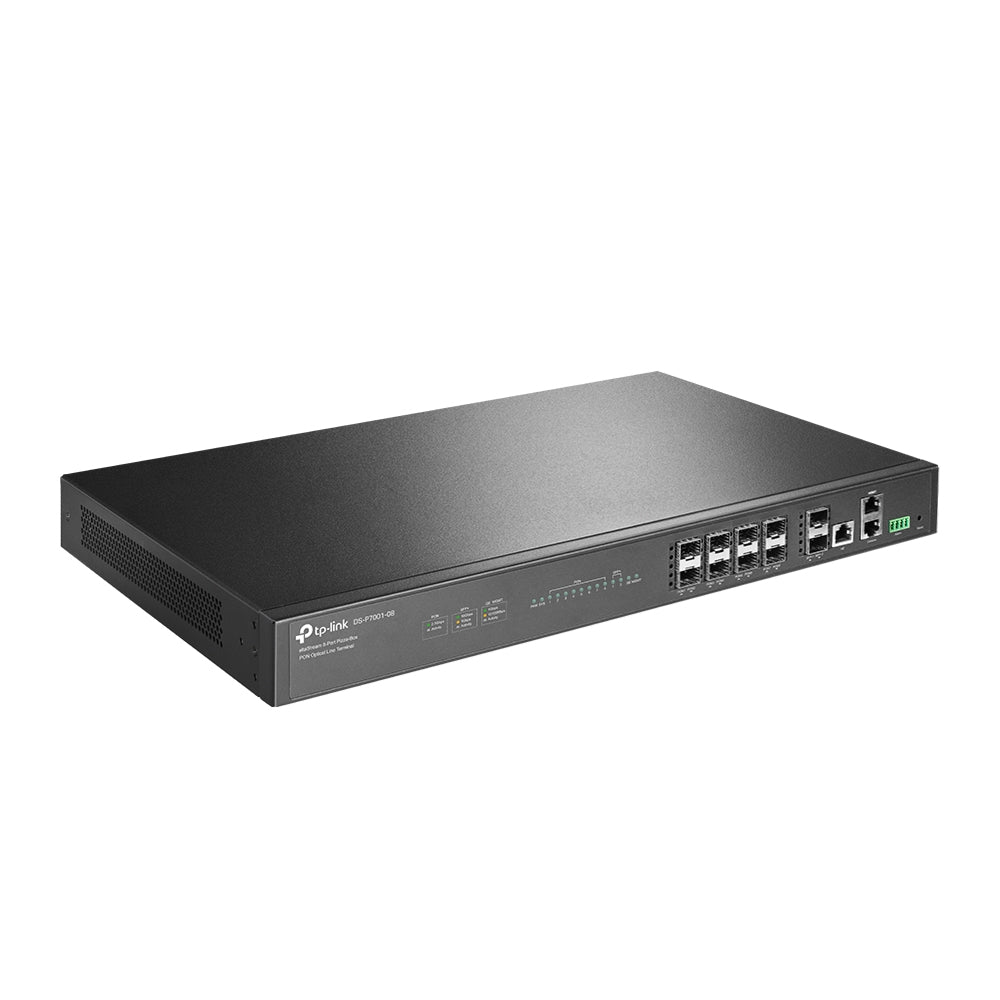

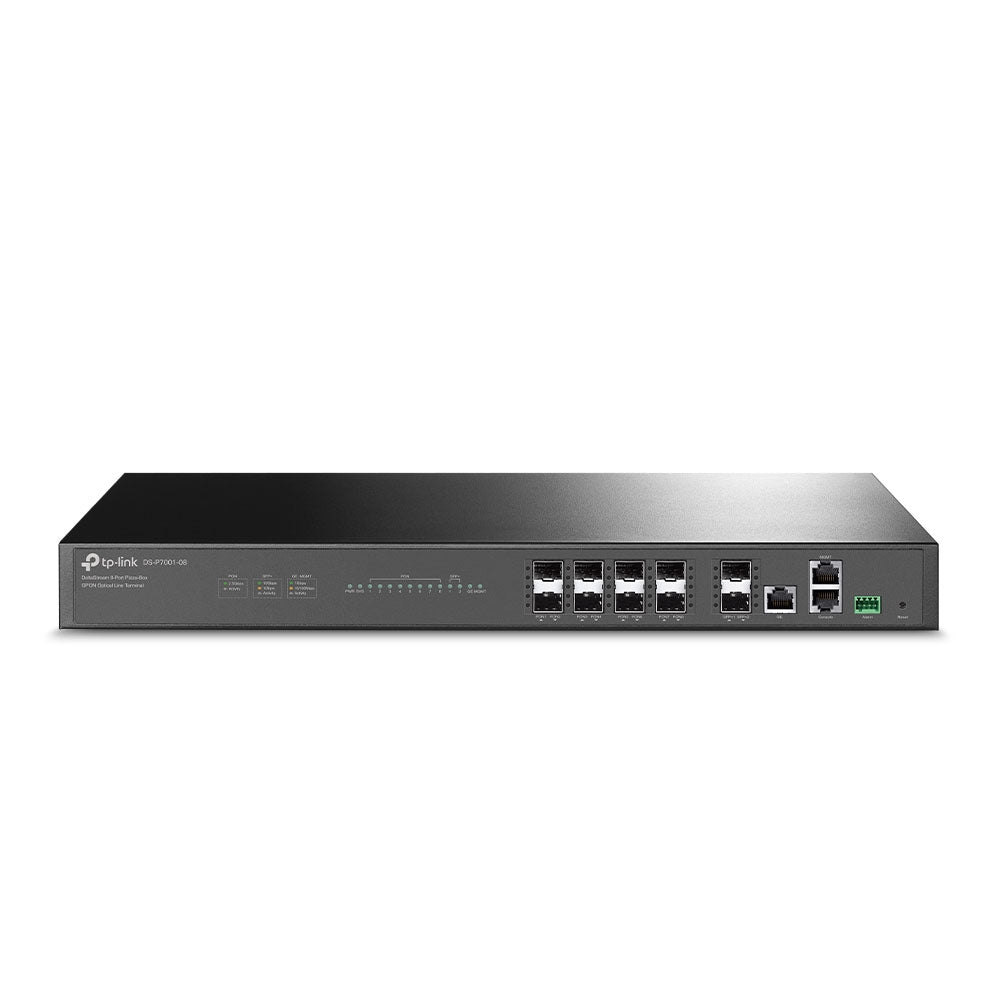

The DS-P7001-08 is TP-Link's 8-port DeltaStream GPON OLT in a 1U pizza-box chassis. It doubles the 4-port model's PON capacity to up to 1,024 ONTs, adds a second 10G SFP+ uplink, and moves to hot-swappable dual power supplies in any combination of 2 AC, 2 DC or AC+DC — the step up for larger estates, campuses and service-provider deployments.
Eight GPON Ports Serving Up to 1,024 ONTs
Each GPON port delivers 2.5 Gbps downstream and 1.25 Gbps upstream on 1490/1310 nm wavelengths, with Class C+ optics, SC/UPC interfaces on single-mode fibre and a rated reach of 20 km. A maximum 1:128 split per port lets one unit address up to 1,024 ONTs, so a single rack unit can head-end a large residential development, hotel or multi-building campus.
Two 10G SFP+ Uplinks for Bandwidth and Redundancy
Upstream capacity comes from 2× 10 Gbps SFP+ uplink ports plus a 10/100/1000 Mbps RJ45 uplink, giving room to aggregate eight PON trees or to dual-home the OLT to two core switches. RJ45 console and RJ45 management ports keep administration out-of-band, and a reserved alarm port is provided.

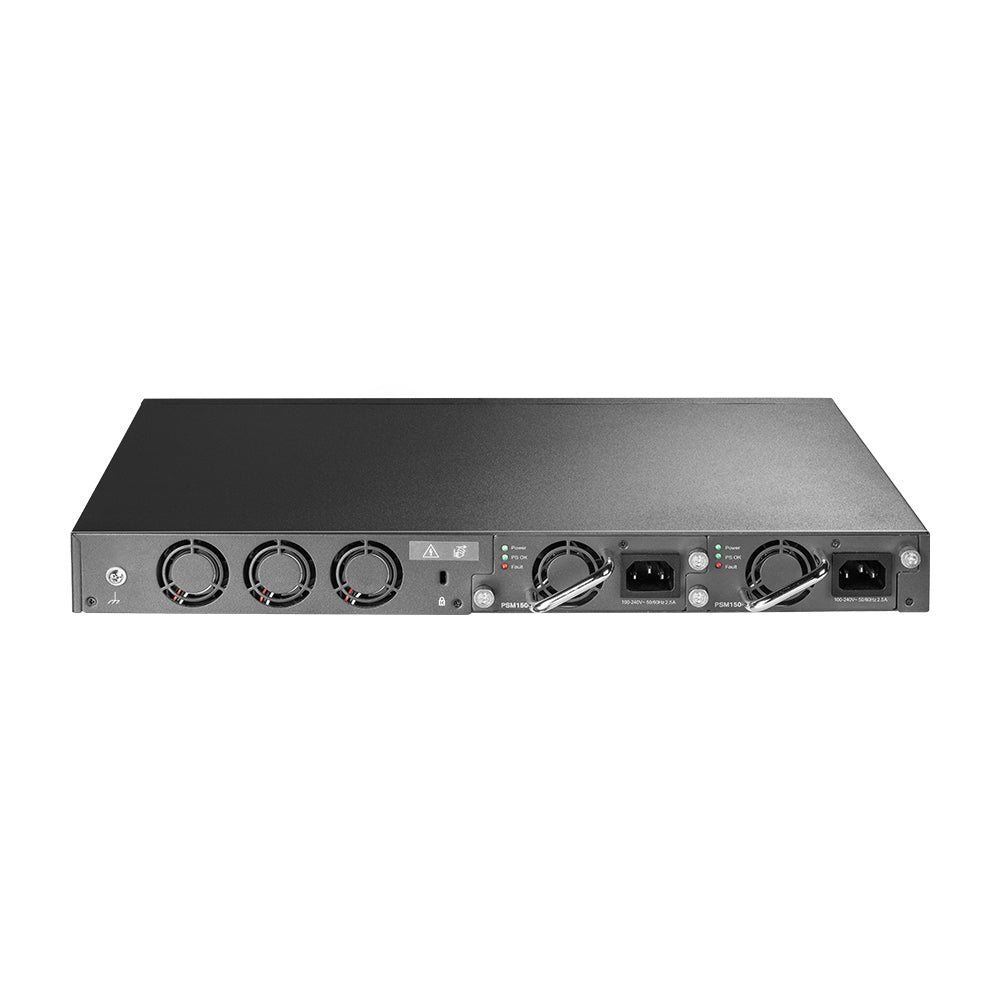

Hot-Swappable Dual Power — 2 AC, 2 DC or AC+DC
The DS-P7001-08 takes two hot-swappable power supplies in any mix of AC (100–240 V, 50/60 Hz) and DC (-38.4 V to -72 V). A failed supply can be replaced without taking subscribers offline, and the OLT can be fed from two independent mains circuits, two DC plants, or one of each. Maximum power consumption is 70 W.
ONU Security, Multi-Service QoS and L2/L2+ Features
Standard OMCI management, ONU auto authentication, rogue ONU detection and isolation, and uplink/downlink data encryption secure the optical network. Switching features include ACL, 802.1X, ARP inspection, IP Source Guard, DHCP server and relay, 802.1p/DSCP QoS with Voice VLAN and Auto VoIP, multi-service traffic identification and rate limiting, static routing, and IGMP/MLD snooping for IPTV and multicast.
Central Management via DPMS, SNMP, CLI, Web — and Omada Controller
TP-Link specifies management through the DeltaStream PON Management System (DPMS), SNMP, CLI and Web UI, with large-scale device management, batch configure/upgrade/reboot, multi-site management and real-time monitoring. TP-Link's V1.10 firmware (1.1.0 Build 20250716) release notes add support for the OLT being adopted by Omada Controller, with WEB and SNMP management still available after adoption and System Interfaces manageable under Central Management through Omada Controller.
Ideal For
Singapore system integrators, property developers, hospitality groups, campuses and service providers deploying GPON at scale who need dual 10G uplinks and field-replaceable power. Supplied by SourceIT with local Singapore warranty, GST invoice and project pricing on request.
DS-P7001-08 Datasheet — Technical Specifications
General
| Model | DS-P7001-08 |
| Official Product Name | DeltaStream 8-port Pizza-box GPON Optical Line Terminal |
| Brand | TP-Link Omada |
| Warranty | 5 Years Local Warranty (Singapore) |
Hardware Features
| Interface | 8× 2.5G PON Ports, 2× 10 Gbps SFP+ Uplink Ports, 1× 10/100/1000 Mbps RJ45 Uplink Port, 1× RJ45 Console Port, 1× RJ45 MGMT Port, 1× Alarm Port (Reserved) |
| Button | Reset Button |
| Power Supply | Dual hot-swappable Power Supplies: 2 AC, 2 DC or AC+DC — AC: 100–240 V, 50/60 Hz; DC: -38.4 V to -72 V |
| Max. Power Consumption | 70 W |
| Dimensions (W × D × H) | 17.3 × 10.2 × 1.7 in (440 × 260 × 44 mm) |
GPON Port Attributes
| Max. Splitting Ratio | 1:128 (up to 1,024 ONTs per device) |
| Transmission Distance | 20 km |
| Data Rate | Downstream: 2.5 Gbps; Upstream: 1.25 Gbps |
| Wavelength | Tx: 1490 nm; Rx: 1310 nm |
| Interface Type | SC/UPC |
| Fiber Type | 9/125 μm SMF (Single Mode Fiber) |
| Tx Power | Class C+ |
Software Features
| Security | ACL, 802.1x Authentication, ARP Inspection, IP Source Guard |
| DHCP | DHCP Server, DHCP Relay |
| OMCI | Standard OMCI Management Supported |
| ONU Authentication | ONU Auto Authentication |
| ONU Security | Rogue ONU Detection and Isolation, Uplink and Downlink Data Encryption |
| Multi-Service | Multi-Service Traffic Identify and Rate Limit |
| QoS | IEEE 802.1p/DSCP QoS, Voice VLAN, Auto VoIP |
| Routing | Static Routing |
| Multicast | IGMP Snooping, MLD Snooping |
| Centralized Management | Large-Scale Devices Management; OLT Batch Configure, Upgrade, Reboot; Multi-Site Management; Intelligent Network Monitoring; Real-time Network Overview |
| Management Interfaces | DeltaStream PON Management System (DPMS), SNMP, CLI, Web UI |
Others
| Certification | CE, FCC |
| Operating Temperature | 0 °C to 50 °C (32 °F to 122 °F) |
| Storage Temperature | -40 °C to 70 °C (-40 °F to 158 °F) |
| Package Contents | OLT Device, Power Cord and Console Cable, Installation Guide, Mounting Brackets, Screws and Rubber Feet |
Compatibility & Software Support
The DS-P7001-08 manages ONTs/ONUs over standard OMCI and can be run on its own or centrally. Omada Controller adoption is added by TP-Link's V1.10 firmware (1.1.0 Build 20250716).
| Omada Controller | Supported from firmware V1.10 — OLT can be adopted by Omada Controller; WEB and SNMP management remain available after adoption; System Interfaces manageable under Central Management |
| DeltaStream PON Management System (DPMS) | Supported — large-scale, multi-site OLT management |
| Standalone Management | Supported — Web UI, CLI (console) and SNMP |
| ONU Management | Standard OMCI; ONU auto authentication |
Package Contents & Ordering Information
What’s in the Box
| Package Contents | OLT Device, Power Cord and Console Cable, Installation Guide, Mounting Brackets, Screws and Rubber Feet |
Ordering Information
| Model | DS-P7001-08 |
| Recommended Retail Price (incl. GST) | S$3,099.00 |
Datasheet & Downloads
Frequently Asked Questions — DS-P7001-08
Does the DS-P7001-08 need an Omada Controller?
No. The OLT can be managed through its Web UI, CLI and SNMP, or at scale through DPMS. From firmware V1.10 it can also be adopted by Omada Controller, which suits sites already running an Omada network.
How does it differ from the 4-port DS-P7001-04?
Eight GPON ports instead of four (up to 1,024 ONTs instead of 512), two 10G SFP+ uplinks instead of one, and hot-swappable dual power supplies in 2 AC, 2 DC or AC+DC combinations instead of built-in AC+DC.
What warranty does SourceIT provide?
Five years local Singapore warranty. Every DS-P7001-08 sold by SourceIT comes with a GST invoice.
Is stock held locally?
SourceIT holds fast-moving Omada lines in Singapore. Anything not in local stock is brought in on indent — ask us for the current lead time before committing to a project date.
Is this model available for project orders?
Yes. TP-Link supplies this model for project deployments; contact SourceIT with your bill of materials for pricing and lead time.
