TP-Link Omada DeltaStream 4-Port Pizza-Box GPON Optical Line Terminal

TP-Link Omada DeltaStream 4-Port Pizza-Box GPON Optical Line Terminal (DS-P7001-04) - 5 Years Local Warranty

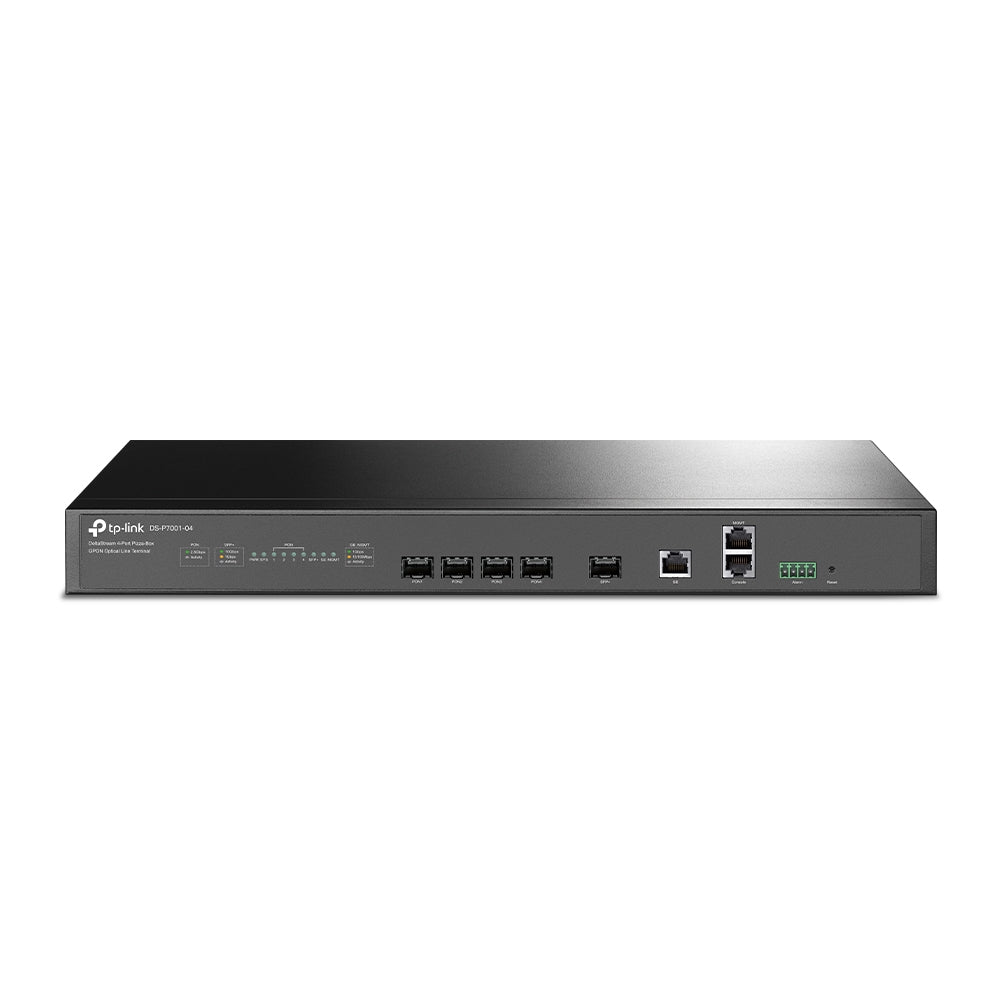

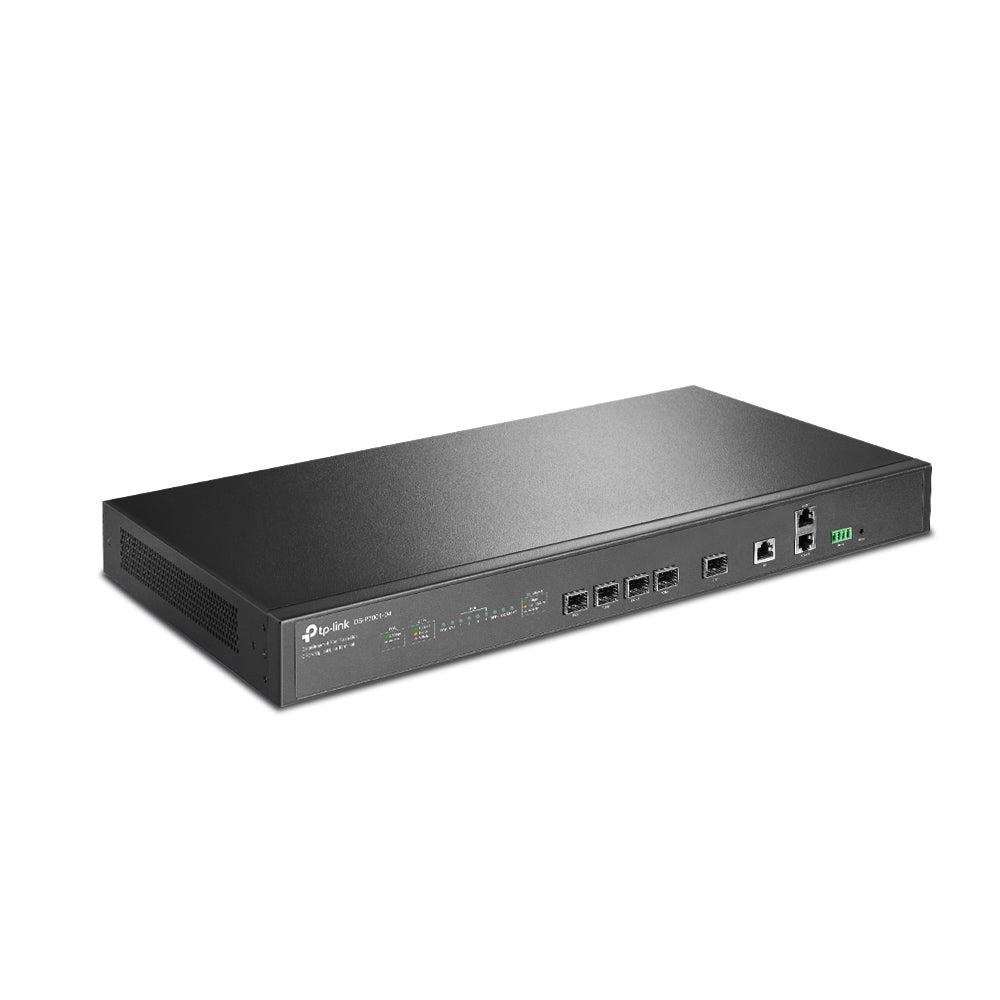

The DS-P7001-04 is TP-Link's 4-port DeltaStream GPON OLT in a 1U pizza-box chassis — the head-end of a passive optical network for a campus, hotel, condominium, industrial estate or small service provider. Each of its four GPON ports supports a 1:128 split, so one unit can serve up to 512 ONTs, uplinked over a 10G SFP+ port and powered by built-in dual AC+DC supplies.

Four GPON Ports Serving Up to 512 ONTs

Every GPON port delivers 2.5 Gbps downstream and 1.25 Gbps upstream on 1490/1310 nm wavelengths, with Class C+ optics, SC/UPC interfaces on single-mode fibre and a rated reach of 20 km. With a maximum 1:128 splitting ratio per port, the four ports address up to 512 ONTs from a single 1U unit — enough to fibre an entire building or estate from one rack position.

10G SFP+ Uplink Plus a Gigabit RJ45 Uplink

Upstream traffic leaves through 1× 10 Gbps SFP+ uplink, with a 10/100/1000 Mbps RJ45 uplink alongside. Separate RJ45 console and RJ45 management ports keep out-of-band administration off the service path, and a reserved alarm port is provided on the chassis.

Carrier-Class Reliability With Built-In AC+DC Power

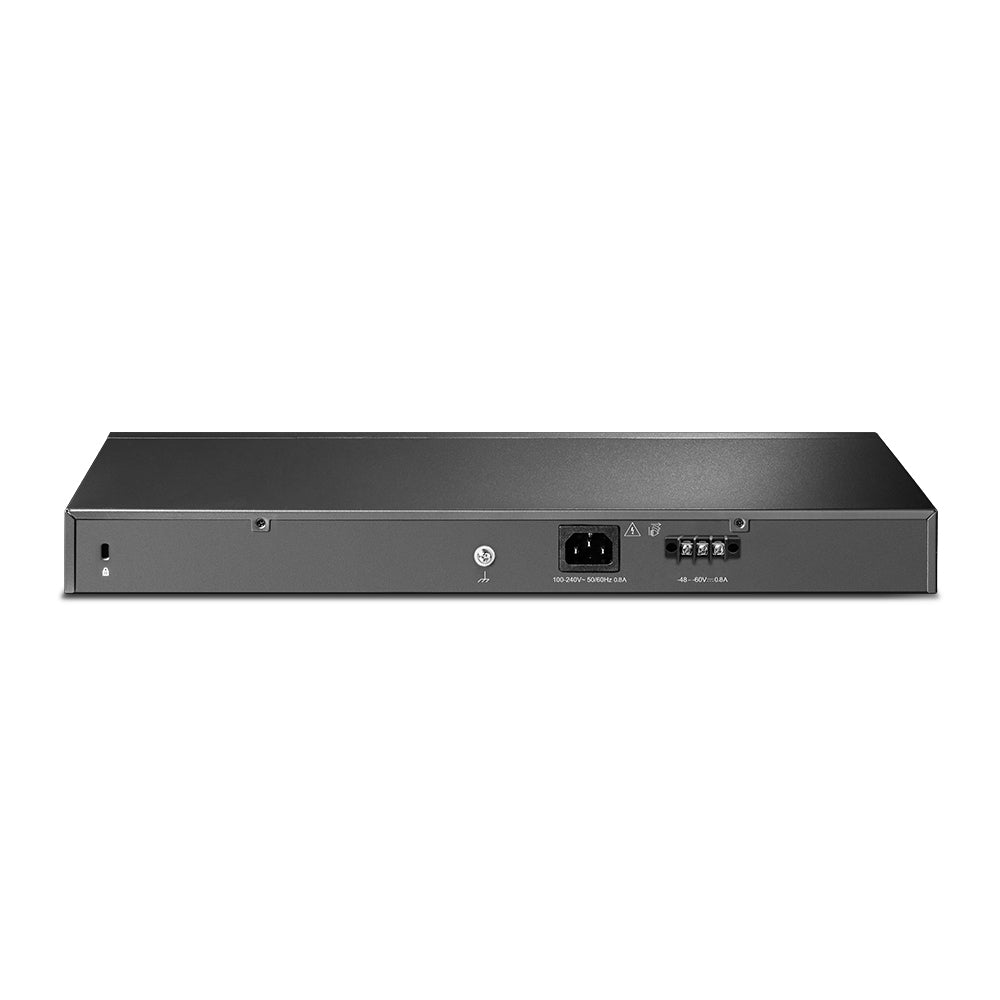

The DS-P7001-04 has dual built-in power supplies — AC (100–240 V, 50/60 Hz) and DC (-38.4 V to -72 V) — so the OLT can run from mains and a telecom DC plant at the same time, and keep serving subscribers if one feed is lost. Maximum power consumption is 58 W.

ONU Security, Multi-Service QoS and L2/L2+ Features

Standard OMCI management, ONU auto authentication, rogue ONU detection and isolation, and uplink/downlink data encryption protect the optical network itself. On the switching side the OLT provides ACL, 802.1X, ARP inspection, IP Source Guard, DHCP server and relay, 802.1p/DSCP QoS with Voice VLAN and Auto VoIP, multi-service traffic identification and rate limiting, static routing, and IGMP/MLD snooping for IPTV and multicast services.

Central Management via DPMS, SNMP, CLI, Web — and Omada Controller

TP-Link specifies management through the DeltaStream PON Management System (DPMS), SNMP, CLI and Web UI, with large-scale device management, batch OLT configuration, upgrade and reboot, multi-site management and real-time network monitoring. TP-Link's V1.10 firmware (1.1.0 Build 20250716) release notes add support for the OLT being adopted by Omada Controller, with WEB and SNMP management still available after adoption and System Interfaces manageable under Central Management through Omada Controller.

Ideal For

Singapore system integrators, building operators, hospitality groups, campuses and smaller service providers deploying GPON fibre-to-the-room or fibre-to-the-unit, who want a compact OLT that can sit in the same management plane as their Omada network. Supplied by SourceIT with local Singapore warranty, GST invoice and project pricing on request.
