TP-Link Omada BE5000 4-Stream Ceiling Mount Dual-Band Wi-Fi 7 Access Point with Power Adapter Included
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
TP-Link Omada BE5000 4-Stream Ceiling Mount Dual-Band Wi-Fi 7 Access Point with Power Adapter Included (EAP720) - 5 Years Local Warranty
The EAP720 is Omada's BE5000 4-stream dual-band Wi-Fi 7 ceiling access point. It brings Multi-Link Operation, Multi-RUs and 4K-QAM to the 2.4 GHz and 5 GHz bands on a single 2.5G port, and TP-Link includes a power adapter in the box, so it can be powered by 802.3at PoE+ or from a local 12V DC supply.
4-Stream Wi-Fi 7 up to 5.0 Gbps
The EAP720 delivers 4324 Mbps on 5 GHz plus 688 Mbps on 2.4 GHz. As a dual-band design it skips the 6 GHz radio of tri-band models and concentrates capacity where most current laptops and phones already connect. TP-Link lists 240 MHz bandwidth on the 5 GHz band, alongside 160 MHz, for higher peak throughput where regulations permit.
Low Latency with MLO, Multi-RUs and 4K-QAM
Multi-Link Operation lets a Wi-Fi 7 client hold the 5 GHz and 2.4 GHz links together and shift traffic away from a congested one. Multi-RUs let the AP assign more than one resource unit to a client for more efficient spectrum use, and 4K-QAM carries 12 bits per symbol — about 20% more data than Wi-Fi 6's 1024-QAM — for clients with a strong signal.
2.5G Port with 802.3at PoE or DC Power
One 2.5G Ethernet port gives a multi-gig uplink that a busy 5 GHz radio will not saturate on Gigabit. Maximum draw is 17.83 W on PoE or 13.99 W on 12V/1.5A DC, within a standard PoE+ switch port's budget. The 160 × 160 × 36.7 mm unit includes ceiling, wall and junction-box mounting kits.
250+ Clients, Mesh and Seamless Roaming
Omada rates the EAP720 for 250+ concurrent clients over about 140 m² (1500 ft²) — mainstream office, classroom and hospitality density. With an Omada controller, Omada Mesh links APs wirelessly where cabling is impractical and seamless roaming hands clients between APs mid-session.
16 SSIDs, WPA3 and Central Omada SDN Management
Up to 16 SSIDs (8 per band), captive portal authentication, a 4,000-entry MAC filter, client isolation, VLANs, rogue AP detection and WPA3-Personal/Enterprise cover guest and corporate segmentation. The EAP720 is managed from Omada Central (cloud), an Omada hardware controller or the software controller alongside Omada gateways and switches.
Ideal For
Singapore offices, classrooms, clinics and retail sites upgrading to dual-band Wi-Fi 7 on 2.5G switching, including locations where a PoE switch port is not available and the included DC adapter is useful. Supplied by SourceIT with local Singapore warranty, GST invoice and project pricing on request.
EAP720 Datasheet — Technical Specifications
General
| Model | EAP720 |
| Official Product Name | BE5000 Ceiling Mount Wi-Fi 7 Access Point |
| Brand | TP-Link Omada |
| Warranty | 5 Years Local Warranty (Singapore) |
Hardware Features
| Interface | 1× 2.5G Ethernet Port |
| Button | Reset |
| Power Supply | 802.3at PoE or 12V/1.5A DC (Power Adapter Included) |
| Max. Power Consumption | 17.83 W (PoE); 13.99 W (DC) |
| Dimensions (W × D × H) | 6.3 × 6.3 × 1.4 in (160 × 160 × 36.7 mm) |
| Antenna | 2.4 GHz: 2× 4.0 dBi; 5 GHz: 2× 5.0 dBi |

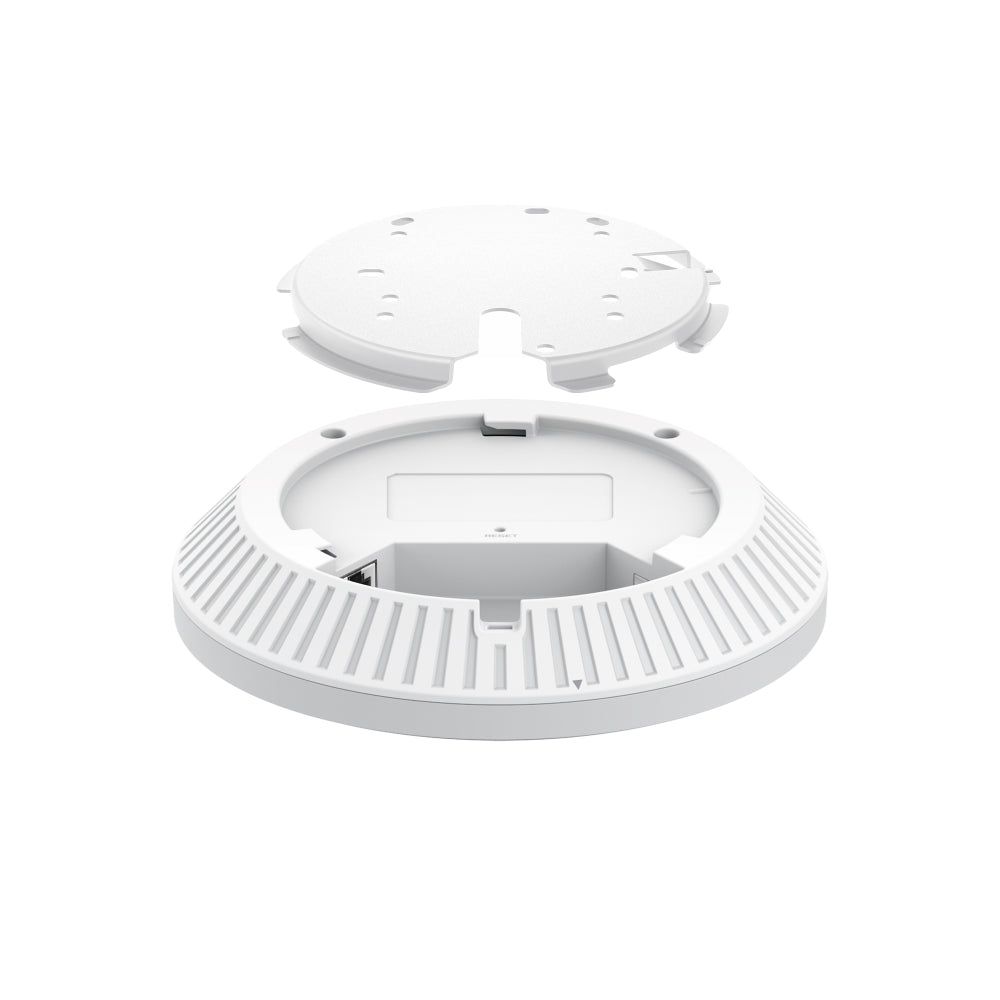

| Mounting | Ceiling / Wall / Junction Box Mounting (Kits Included) |
Wireless Features
| Coverage | 1500 ft² (140 m²) |
| Concurrent Clients | 250+ |
| Wireless Standards | IEEE 802.11 a/b/g/n/ac/ax/be |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | 688 Mbps (2.4 GHz) + 4324 Mbps (5 GHz) |
| Wireless Functions | MLO, 4K-QAM, Seamless Roaming, 240 MHz Bandwidth, Mesh, OFDMA, Load Balance, Band Steering, Beamforming, Airtime Fairness, Multiple SSIDs: 16 (8 on each band), Wireless Schedule, Reboot Schedule, QoS (WMM), Rate Limit, Static IP/Dynamic IP, RADIUS Accounting, MAC Authentication |
| Wireless Security | Captive Portal Authentication, Access Control, MAC Filter (max 4,000), Wireless Isolation, VLAN, Rogue AP Detection, WPA/WPA2/WPA3-Personal and Enterprise |
| Transmission Power | <25 dBm (2.4 GHz); <25 dBm (5 GHz, UNII-1 & UNII-4); <24 dBm (5 GHz, UNII-2 & UNII-3) |
The 240 MHz and 160 MHz bandwidths are available on the 5 GHz band only and may be unavailable in some regions due to regulatory restrictions.
Management Features
| Omada App | Yes |
| Centralized Management | Omada Central (Cloud-Based), Omada Hardware Controller, Omada Software Controller |
| Cloud Access | Yes (requires Omada Controller) |
| Other | Email Alerts, LED On/Off Control, Management MAC Access Control, SNMP v1/v2c/v3, Local/Remote Syslog, Web-based Management |
Environment & Certification
| Operating Temperature | 0 °C–40 °C (32 °F–104 °F) |
| Storage Temperature | -40 °C–70 °C (-40 °F–158 °F) |
| Operating Humidity | 10%–90% non-condensing |
| Storage Humidity | 5%–90% non-condensing |
| Certification | CE, FCC, IC |
Compatibility & Software Support
The EAP720 is part of the Omada ecosystem: gateways, switches and access points are managed together from one controller, under one set of policies, with one view of the network. Omada Mesh, Seamless Roaming, Captive Portal and Cloud Access require the device to be adopted into an Omada controller.
| Omada SDN Controller | Supported — Omada Central (Cloud-Based), Omada Hardware Controller or Omada Software Controller |
| Omada App | Supported — remote management from iOS and Android |
| Omada Cloud Access | Supported — requires an Omada controller |
| Standalone Mode | Supported — web-based management |
| Client Requirements | MLO, 240 MHz, 4K-QAM, Multi-RUs and OFDMA require clients that also support them |
Package Contents & Ordering Information
What’s in the Box
| Package Contents | Omada Wi-Fi 7 Ceiling Mount Access Point EAP720, Installation Guide, Ceiling/Wall/Junction Box Mounting Kit, Power Adapter |
Ordering Information
| Model | EAP720 |
| Recommended Retail Price (incl. GST) | S$349.00 |
Datasheet & Downloads
Frequently Asked Questions — EAP720
Does the EAP720 need an Omada Controller?
No. It can be managed standalone through its web interface. Adopting it into Omada Central, a hardware controller or the software controller unlocks central configuration, monitoring, firmware management, Mesh, Seamless Roaming, Captive Portal and cloud/app access.
Is a power adapter included?
Yes. TP-Link lists a power adapter in the EAP720 package; the AP can also be powered by an 802.3at PoE+ switch port.
What warranty does SourceIT provide?
Five years local Singapore warranty. Every EAP720 sold by SourceIT comes with a GST invoice.
Is stock held locally?
SourceIT holds fast-moving Omada lines in Singapore. Anything not in local stock is brought in on indent — ask us for the current lead time before committing to a project date.
Is this model available for project orders?
Yes. TP-Link supplies this model for project deployments; contact SourceIT with your bill of materials for pricing and lead time.
