TP-Link Omada BE11000 Wall Plate Tri-Band Wi-Fi 7 Access Point with PoE Out

TP-Link Omada BE11000 Wall Plate Tri-Band Wi-Fi 7 Access Point with PoE Out (EAP775-Wall) - 5 Years Local Warranty

The EAP775-Wall is Omada's BE11000 tri-band Wi-Fi 7 wall-plate access point. It mounts flush over a standard wall box, delivers 6-stream Wi-Fi 7 across 6 GHz, 5 GHz and 2.4 GHz, and adds four wired downlinks — one 2.5G and three Gigabit — with PoE out, so a hotel room, dormitory or classroom gets in-room Wi-Fi 7 plus wired ports for a TV, IP phone or camera from a single cable.

6-Stream Tri-Band Wi-Fi 7

TP-Link rates the EAP775-Wall at 5765 Mbps on 6 GHz, 4324 Mbps on 5 GHz and 688 Mbps on 2.4 GHz. The 6 GHz radio supports 320 MHz channels and gives Wi-Fi 7 and 6E clients clean spectrum away from legacy devices, while MLO, Multi-RUs and 4K-QAM reduce latency and interference. Omada rates it for 380+ concurrent clients over about 100 m² (1050 ft²) — sized for a room or small suite rather than an open floor.

Five Ethernet Ports with Flexible PoE Out

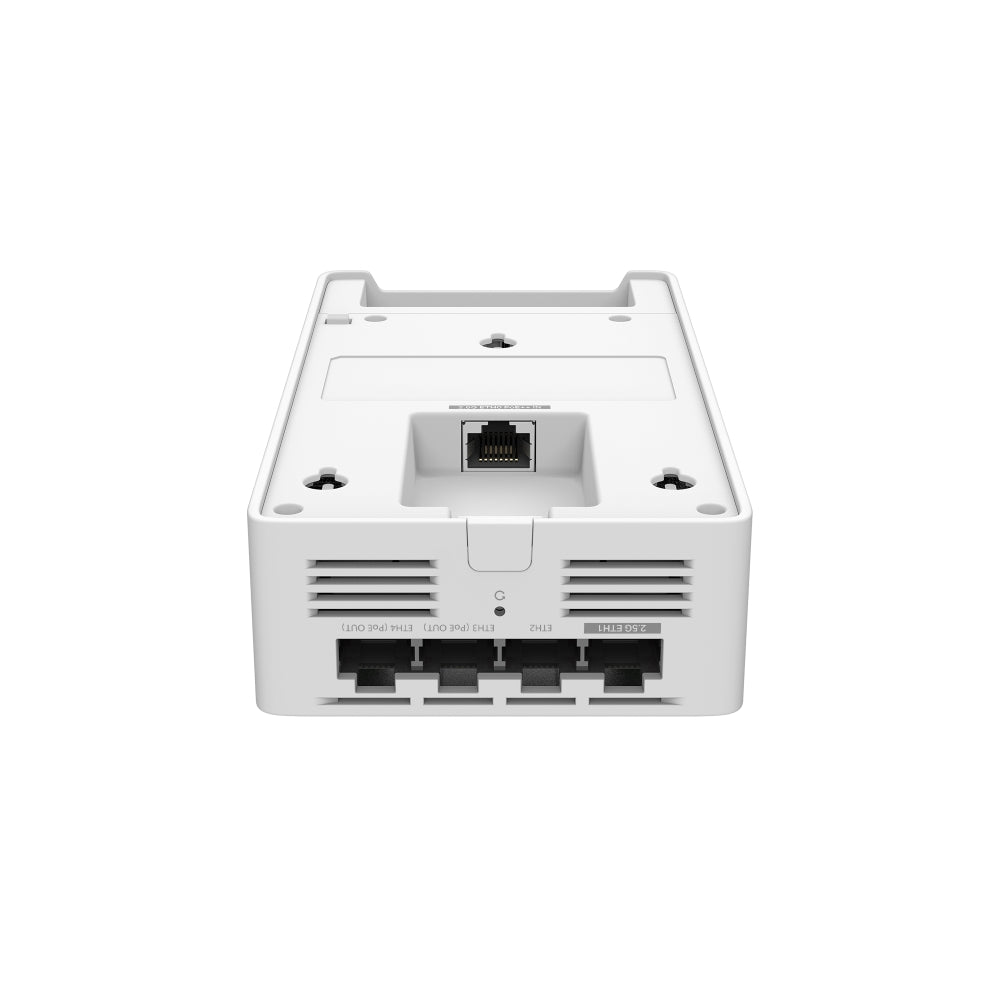

The uplink is a 2.5G Ethernet port; on the room side there is a 2.5G downlink plus three Gigabit ports. Downlink PoE is flexible — dual PoE or a single PoE+ output, up to 25 W — and requires an 802.3bt input. The datasheet specifies the output as one 802.3at PoE+ port at 25.4 W or two 802.3af ports, which is enough to power an IP phone or a small camera without a separate injector.

Slim Wall-Mounted Design with Paintable Cover

The 172.9 × 91.2 × 41.3 mm unit sits flush on the wall, and TP-Link includes a paintable cover so it can be finished to match the room. TP-Link notes that painted covers cannot be returned or repaired.

Concealed Anti-Theft Lock

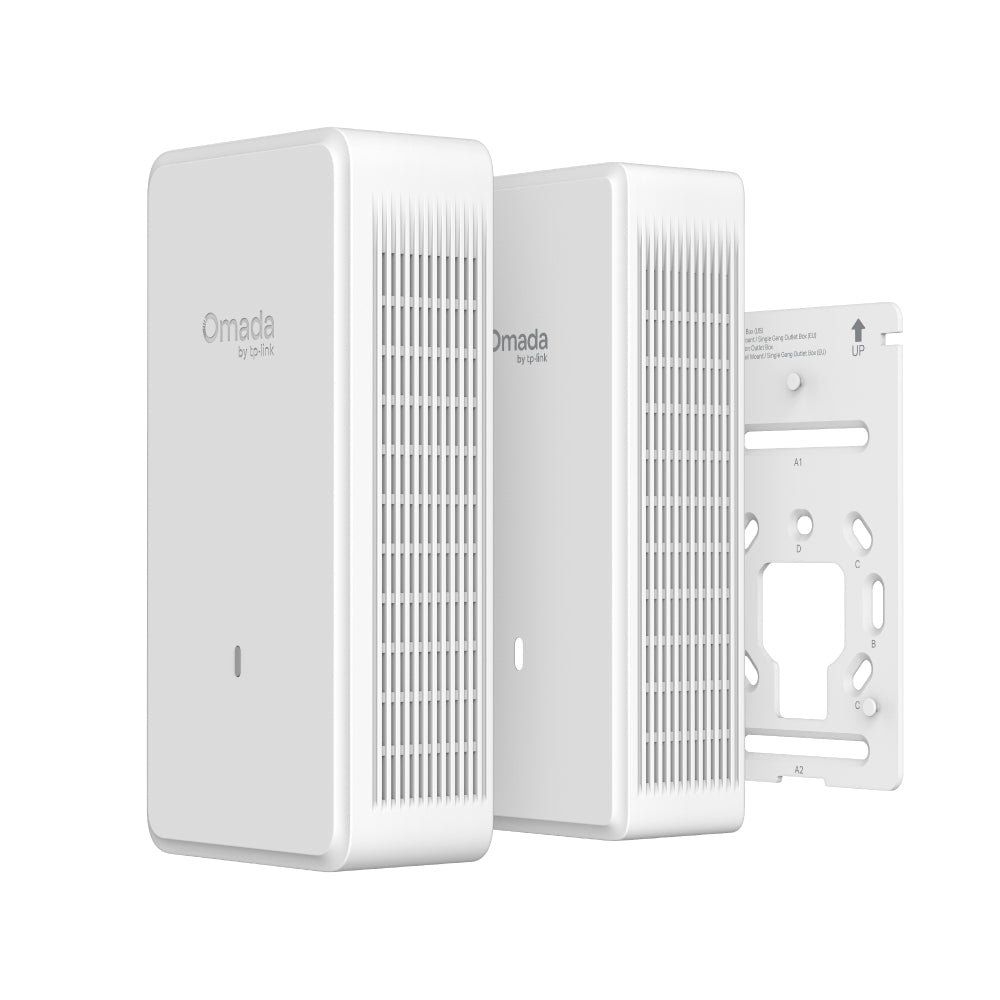

A concealed physical security lock secures the AP flush to its mount — useful in hotel rooms, student accommodation and public areas where wall-mounted equipment is within reach.

One-Click Setup with Omada SDN

Adopted into Omada Central (cloud), a hardware controller or the software controller, the EAP775-Wall supports zero-touch provisioning, multi-site management, captive portals and seamless roaming, and is managed alongside Omada switches and gateways. 24 SSIDs, WPA3-Personal/Enterprise, MAC filtering and rogue AP detection handle guest and staff segmentation.

Ideal For

Singapore hotels, serviced apartments, student hostels, hospital wards and classrooms that need in-room tri-band Wi-Fi 7 plus wired ports for TVs, phones or cameras over one existing cable run. Supplied by SourceIT with local Singapore warranty, GST invoice and project pricing on request.
