TP-Link Omada BE11000 Ceiling Mount Tri-Band Wi-Fi 7 Access Point with 2.5G PoE+ Uplink
PRODUCT DESCRIPTION
TP-Link Omada BE11000 Ceiling Mount Tri-Band Wi-Fi 7 Access Point (EAP772) - 5 Years Local Warranty
The EAP772 is Omada's BE11000 tri-band Wi-Fi 7 ceiling access point on a 2.5G uplink. It brings 6 GHz spectrum, Multi-Link Operation and 320 MHz channels to sites where the switching is multi-gigabit rather than 10G — the practical Wi-Fi 7 upgrade for an office or school already running 2.5G PoE+ ports.
Three Radios, 11 Gbps of Combined Capacity
The EAP772 serves 5765 Mbps on 6 GHz, 4324 Mbps on 5 GHz and 688 Mbps on 2.4 GHz simultaneously. The 6 GHz radio is what makes this a genuine Wi-Fi 7 upgrade rather than a refresh: it opens spectrum that older clients cannot occupy and supports 320 MHz channels for peak throughput, while 2.4 GHz continues to carry legacy laptops, printers, sensors and building-services devices. Omada rates the unit for 380+ concurrent clients across roughly 140 m² (1500 ft²).
2.5G PoE+ Uplink on a Single Cable
One 2.5G Ethernet port carries both the uplink and 802.3at PoE power, so installation is a single cable to a PoE+ switch port. Maximum draw is 25.44 W over PoE, or 22.57 W on 12V/2.5A DC if you prefer a local supply — the adapter is not included. For most Singapore fit-outs, a 2.5G port is the sweet spot: enough headroom for tri-band Wi-Fi 7 in real use, without the cost of 10G switching at every AP location.
MLO and 4K-QAM for Steadier Real-World Performance
Multi-Link Operation lets a Wi-Fi 7 client use the 6 GHz, 5 GHz and 2.4 GHz links at the same time and shift traffic off whichever has become congested, rather than staying stuck on one band. 4K-QAM lifts the modulation ceiling to 12 bits per symbol for clients with a strong signal. Together with EHT320, OFDMA, BSS Coloring, band steering, load balancing and airtime fairness, the result is lower latency and less jitter for voice and video conferencing under load.
24 SSIDs, VLAN Mapping and WPA3
The EAP772 supports up to 24 SSIDs — eight per band — which is enough to separate corporate, guest, IoT and voice traffic on a single AP, each mapped to its own VLAN. Captive portal authentication handles guest onboarding, WPA3-Personal and Enterprise protect the wireless edge, a MAC filter holds up to 4,000 entries, wireless client isolation stops guests seeing each other, and rogue AP detection flags unauthorised transmitters on site.
Central Management Under Omada SDN
The EAP772 is adopted into the Omada Cloud-Based Controller, an OC300 or OC200 hardware controller, or the Omada Software Controller, and from there is configured, monitored and updated alongside every other Omada gateway, switch and AP on site — with no licence fee for cloud access. Adoption is also what enables Omada Mesh and 802.11k/v/r seamless roaming. SNMP v1/v2c/v3, local and remote syslog and the Omada app are all supported, and the AP will run standalone if you prefer.
Ideal For
Singapore offices, schools, clinics, retail and hospitality sites upgrading to tri-band Wi-Fi 7 on 2.5G PoE+ switching, and IT teams or MSPs standardising on Omada so the whole network is managed from one controller. Supplied by SourceIT with local Singapore warranty, GST invoice and project pricing on request.
EAP772 Datasheet — Technical Specifications
General
| Model | EAP772 |
| Official Product Name | BE11000 Ceiling Mount Tri-Band Wi-Fi 7 Access Point |
| Brand | TP-Link Omada |
| Warranty | 5 Years Local Warranty (Singapore) |
Specifications
| Wireless Standards | IEEE 802.11 a/b/g/n/ac/ax/be |
| Frequency | 6 GHz, 5 GHz, 2.4 GHz |
| Signal Rate | 5765 Mbps (6 GHz) + 4324 Mbps (5 GHz) + 688 Mbps (2.4 GHz) |

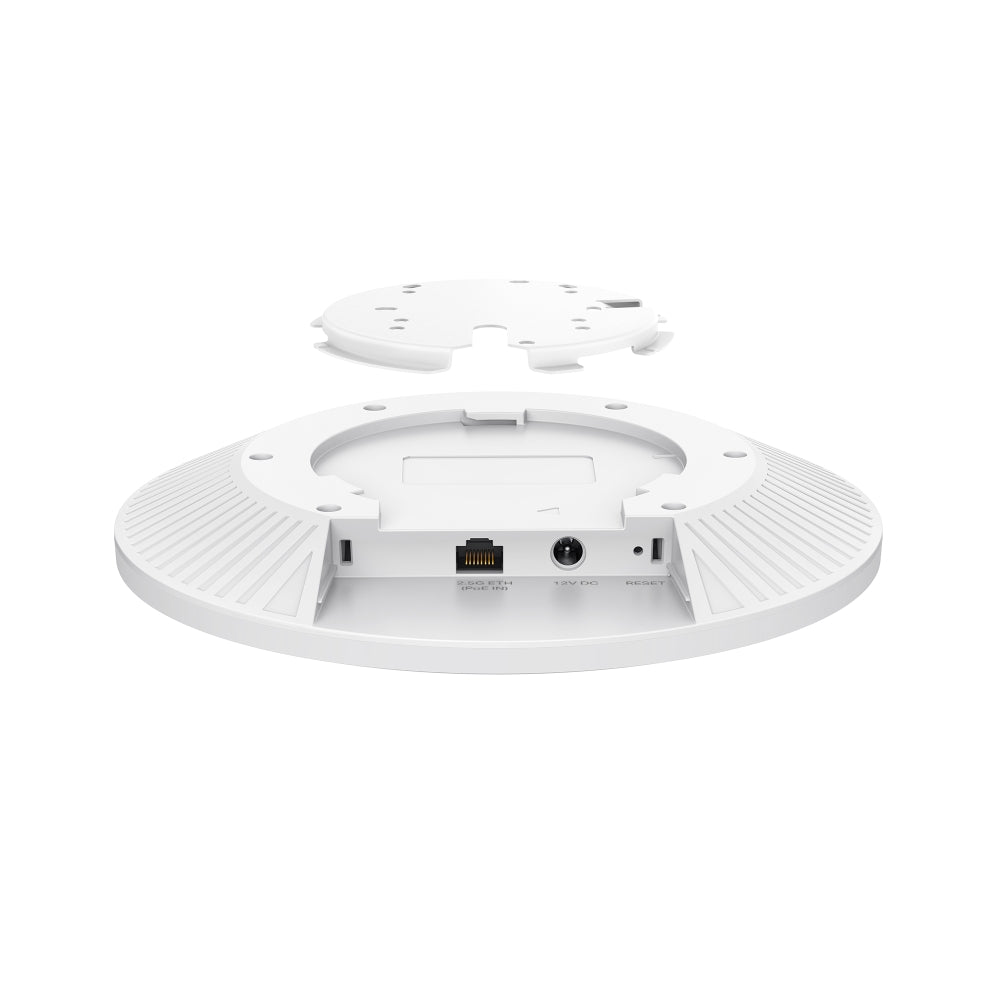

| Interface | 1x 2.5G Ethernet Port |
| Button | Reset |
| Antenna | 2.4 GHz: 2x 4.0 dBi; 5 GHz: 2x 5.0 dBi; 6 GHz: 2x 5.0 dBi |
| Bluetooth | 1x 4.0 dBi, Bluetooth 5.2 |
| Power Supply | 802.3at PoE or 12V/2.5A DC |
| Max Power Consumption | 25.44 W (PoE) / 22.57 W (DC) |

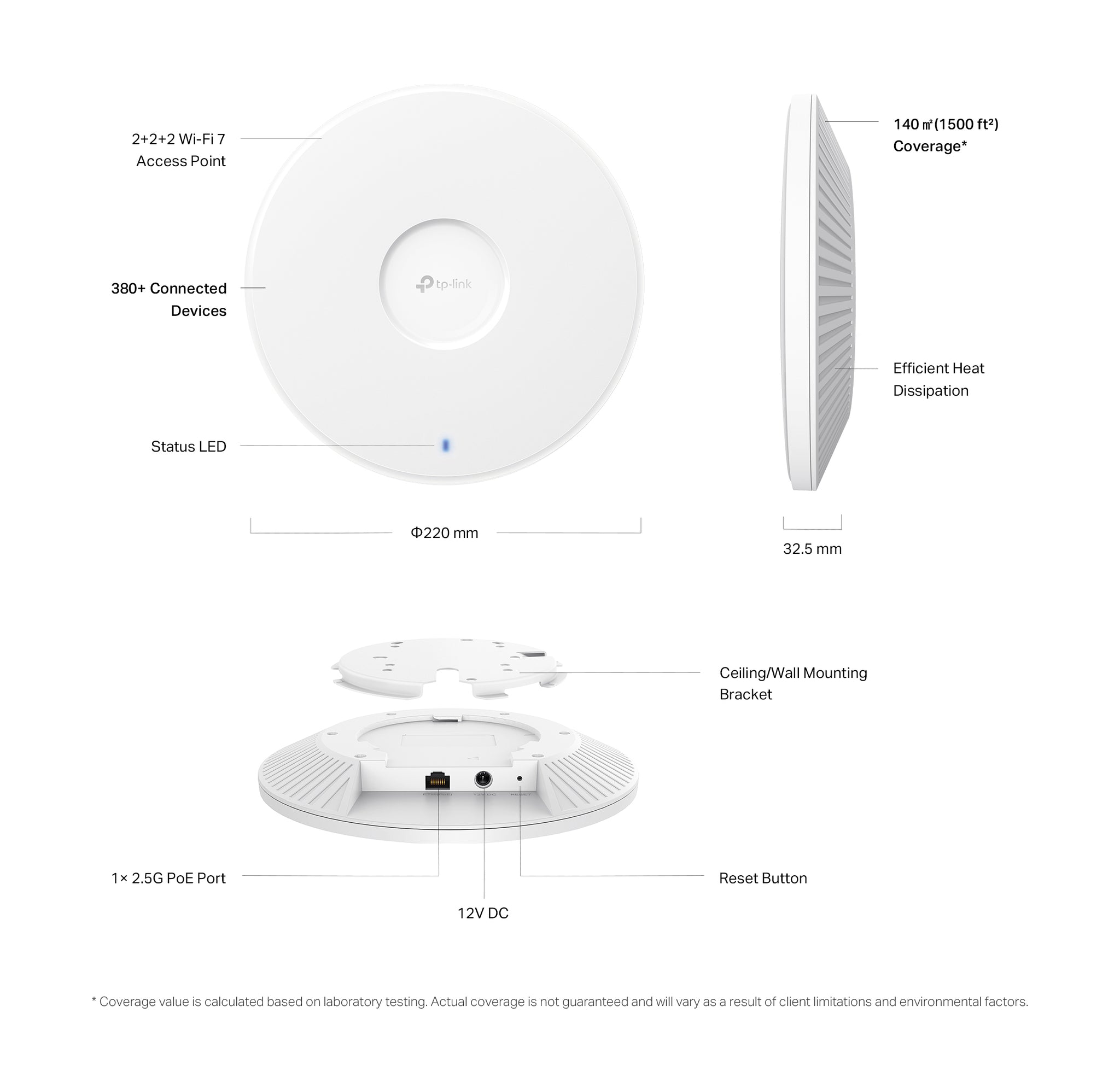

| Dimensions (W x D x H) | 8.7 x 8.7 x 1.3 in (220 x 220 x 32.5 mm) |
| Mounting | Ceiling / wall (kits included) |
| Coverage | 140 m2 (1500 ft2) |
| Concurrent Clients | 380+ |
| Wireless Functions | MLO, 4K-QAM, seamless roaming (802.11k/v/r), MU-MIMO, EHT320, Mesh, BSS Coloring, OFDMA, load balance, band steering, beamforming, airtime fairness, 24 SSIDs (8 per band), wireless schedule, reboot schedule, QoS (WMM), rate limit, static/dynamic IP, RADIUS accounting, MAC authentication |
| Wireless Security | Captive portal authentication, access control, MAC filter (4,000 max), wireless client isolation, VLAN, rogue AP detection, WPA/WPA2/WPA3-Personal and Enterprise |
| Transmission Power | <25 dBm (2.4 GHz); <25 dBm (5 GHz); <23 dBm (6 GHz) |
| Management | Omada app; centralised management via Omada Cloud-Based Controller, OC300, OC200 and Omada Software Controller; cloud access; email alerts; LED on/off control; management MAC access control; SNMP v1/v2c/v3; local/remote syslog; web-based management |
| Operating Temperature | 0 C to 40 C (32 F to 104 F) |
| Storage Temperature | -40 C to 70 C (-40 F to 158 F) |
| Operating Humidity | 10% to 90% non-condensing |
| Storage Humidity | 5% to 90% non-condensing |
| Certification | CE, FCC, RoHS, IC |

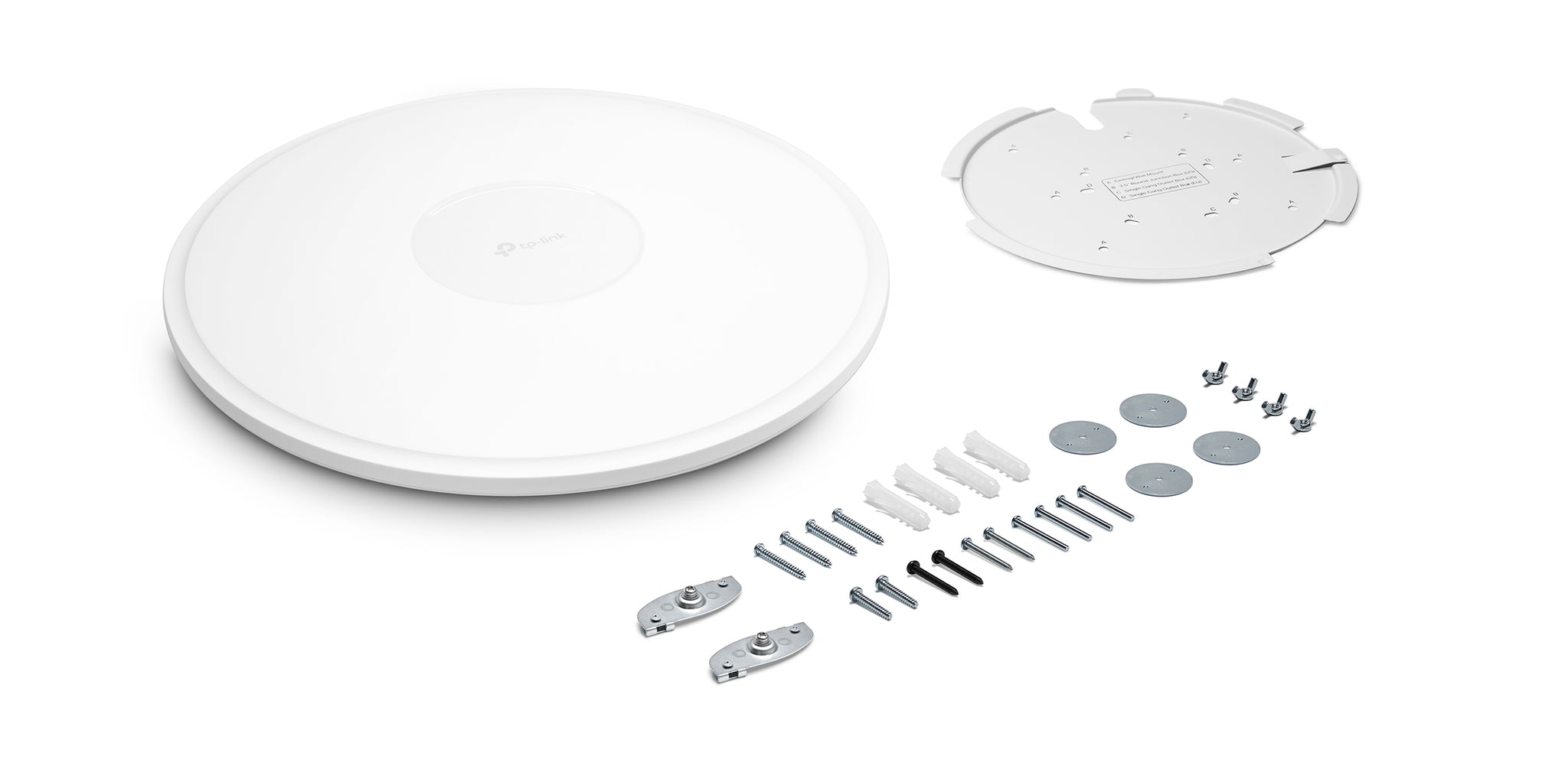

| Package Contents | EAP772, installation guide, ceiling/wall mounting kit (power adapter NOT included) |
Compatibility & Software Support
The EAP772 is part of the Omada ecosystem: gateways, switches and access points are managed together from one controller, under one set of policies, with one view of the network. Cloud and app features listed below require the device to be adopted into an Omada Controller.
| Omada SDN Controller | Supported — Omada Cloud-Based Controller, OC300, OC200, or Omada Software Controller |
| Omada App | Supported — remote management from iOS and Android |
| Omada Cloud Access | Supported — requires an Omada controller; no licence fee for cloud management |
| Standalone Mode | Supported — the device can also be configured on its own via its web interface |
| Omada Mesh | Supported |
| Seamless Roaming | Supported — 802.11k/v/r |
Package Contents & Ordering Information
What's in the Box
| Package Contents | EAP772, installation guide, ceiling/wall mounting kit |
| Power Adapter | Not included — the EAP772 is designed to run on 802.3at PoE |
Ordering Information
| Model | EAP772 |
| Brand | TP-Link Omada |
| Warranty | 5 Years Local Warranty (Singapore) |
| Project Pricing | Available on request — contact SourceIT with your bill of materials |
Datasheet & Downloads
Frequently Asked Questions — EAP772
How is the EAP772 different from the EAP773?
Both are BE11000 tri-band Wi-Fi 7 ceiling access points in the same 220 x 220 x 32.5 mm chassis. The EAP772 has a 2.5G Ethernet port; the EAP773 has a 10G port. The EAP773 also adds junction-box mounting. Choose the EAP772 where your switching is 2.5G.
What PoE does it need?
802.3at (PoE+). Maximum draw is 25.44 W over PoE. A 12V/2.5A DC input is also provided, but the power adapter is not supplied in the box.
Does the EAP772 need an Omada Controller?
No. It runs standalone through its own web interface. Adopting it into an Omada Software, Hardware or Cloud-Based Controller is what unlocks central configuration, monitoring, firmware management and cloud/app access across every Omada device on site — at no licence cost.
What warranty does SourceIT provide?
Five years local Singapore warranty, in line with TP-Link Singapore's 5-year replacement warranty for the Omada Series. Every EAP772 sold by SourceIT comes with a GST invoice.
Can SourceIT quote this for a project or tender?
Yes. Send the bill of materials and we will quote the whole Omada build — controller, gateway, switching, access points and optics — with local warranty and support.
