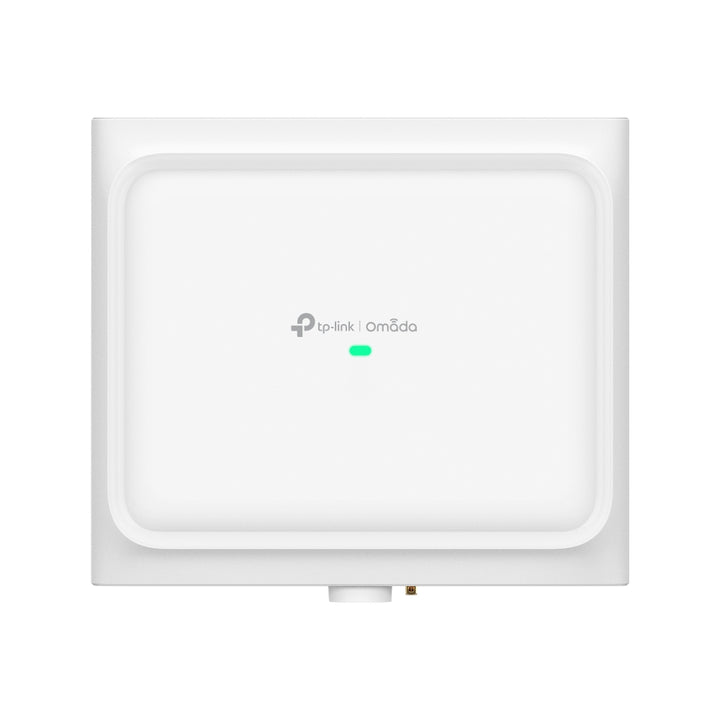

TP-Link Omada AX3000 Indoor/Outdoor Wi-Fi 6 Access Point, 120° Directional Antennas
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
TP-Link Omada AX3000 Indoor/Outdoor Wi-Fi 6 Access Point, 120° Directional Antennas (EAP650 D120-Outdoor) - 5 Years Local Warranty
The EAP650 D120-Outdoor is Omada's AX3000 Wi-Fi 6 access point with built-in directional antennas set to a 120° horizontal by 30° vertical beam. It is designed for warehouses and outdoor scenes where coverage needs to be pushed across a wide sector rather than radiated in all directions, with TP-Link publishing reach of up to 500 m on 5 GHz.
Directional Ultra-Range Coverage
TP-Link equips this model with built-in high-gain directional antennas — 2 × 8 dBi on 2.4 GHz and 2 × 10 dBi on 5 GHz — with a 120° horizontal / 30° vertical beamwidth, to deliver precise and extended coverage. TP-Link publishes directional range of up to 240 m (787 ft) on 2.4 GHz and up to 500 m (1640 ft) on 5 GHz. The wide 120° horizontal beam suits covering a whole warehouse bay, yard or façade from one mounting point.
Wi-Fi 6 at 2402 Mbps + 574 Mbps
The dual-band radios deliver 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz with 1024-QAM, DL/UL OFDMA and 2 × 2 DL/UL MU-MIMO, and TP-Link rates the AP for 250+ concurrent clients — enough for dense handheld-scanner and AGV fleets in a single aisle or yard.
Ideal for Warehouses and Outdoor Scenes
The IP68 waterproof enclosure is rated for -30 °C to +70 °C operation, so the same AP works in cold-room logistics, open yards and covered loading bays.
802.11k/v/r Seamless Roaming for AGVs and Scanners
With an Omada controller, 802.11k/v/r seamless roaming ensures uninterrupted connectivity for AGVs and handheld scanners as they move between access points.
Flexible PoE Deployment and Omada Mesh
A single Gigabit port takes 802.3at PoE or 48V Passive PoE (12.5 W EU / 14.7 W US maximum), and Omada Mesh lets an AP be added where cabling is impractical. Management is via the Omada App, web UI, or Omada Cloud-Based, Hardware and Software Controllers, with Zero-Touch Provisioning on the cloud controller.
Ideal For
Singapore warehouses, logistics hubs, ports, factories, open yards and outdoor venues that need wide-sector Wi-Fi 6 coverage for scanners, AGVs and staff devices, managed within an Omada network. Supplied by SourceIT with local Singapore warranty, GST invoice and project pricing on request.
EAP650 D120-Outdoor Datasheet — Technical Specifications
General
| Model | EAP650 D120-Outdoor |
| Official Product Name | Omada AX3000 Indoor/Outdoor WiFi 6 Access Point |
| Brand | TP-Link Omada |
| Warranty | 5 Years Local Warranty (Singapore) |
Hardware
| Interface | 1× Gigabit Ethernet Port (supports 802.3at PoE or 48V Passive PoE) |
| Button | Reset |
| Power Supply | 802.3at PoE; 48V Passive PoE |
| Max. Power Consumption | EU: 12.5W (802.3at PoE or Passive PoE); US: 14.7W (802.3at PoE or Passive PoE) |
| Dimensions (W x D x H) | 8.2 × 2.3 × 9.1 in (207.5 × 58 × 230 mm) |
| Antenna | Built-in Directional Antennas: 2.4 GHz: 2× 8 dBi; 5 GHz: 2× 10 dBi; Beamwidth: 120° Horizontal; 30° Vertical |
| Bluetooth | Yes |
| Weatherproof Enclosure | IP68 |
| Mounting | Optional bracket accessory APM-100: supports vertical ±45°, horizontal ±45° adjustment. Note: optional bracket accessories need to be purchased separately |
Wireless
| Concurrent Clients | 250+ |
| Wireless Standards | IEEE 802.11 a/b/g/n/ac/ax |
| Frequency | 2.4 GHz, 5 GHz |
| Signal Rate | 574 Mbps (2.4 GHz) + 2402 Mbps (5 GHz) |
| Directional Range (published) | 2.4 GHz up to 787 ft / 240 m; 5 GHz up to 1640 ft / 500 m |
| Wireless Functions | 1024-QAM; DL/UL OFDMA; Multiple SSIDs (up to 16 SSIDs, 8 on each band); Enable/Disable Wireless Radio; Enable/Disable SSID Broadcast; Guest Network; Automatic Channel Assignment; Transmit Power Control (adjust transmit power on dBm); QoS (WMM); 2 × 2 (2.4 GHz & 5 GHz) DL/UL MU-MIMO; Omada Mesh; Seamless Roaming (802.11k/v/r); Band Steering; Load Balance; Airtime Fairness; Beamforming; RADIUS Accounting; MAC Authentication; Reboot Schedule; Wireless Schedule; Wireless Statistics; Static IP/Dynamic IP |
| Wireless Security | Captive Portal Authentication; Access Control; Wireless MAC Address Filtering; Wireless Isolation Between Clients; SSID to VLAN Mapping; Rogue AP Detection; 802.1X Support; WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Transmission Power | CE/EU: < 20 dBm (2.4 GHz, EIRP); < 23 dBm (5 GHz, band 1 & band 2, EIRP); < 30 dBm (5 GHz, band 3, EIRP). FCC/US: < 30 dBm (2.4 GHz); < 30 dBm (5 GHz) |
Management
| Omada App | Yes |
| Restore & Backup | Yes |
| NTP | Yes |
| Centralized Management | Omada Hardware Controller, Omada Software Controller, Omada Cloud-Based Controller, Omada App |
| Cloud Access | Yes (requires an Omada controller) |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Web-based Management | Yes |
| Multi-site Management | Yes |
| Zero-Touch Provisioning | Yes (requires the Omada Cloud-Based Controller) |
Environment & Certification
| Operating Temperature | -30–70 ℃ (-22–158 ℉) |
| Storage Temperature | -40–70 ℃ (-40–158 ℉) |
| Operating Humidity | 10–90% RH non-condensing |
| Storage Humidity | 5–90% RH non-condensing |
| Certification | CE, FCC |
Maximum wireless signal rates are physical rates derived from IEEE 802.11; coverage and range figures are TP-Link laboratory results and will vary with environment and clients. TP-Link does not publish a weight row for this model, so none is claimed here.
Compatibility & Software Support
The EAP650 D120-Outdoor is part of the Omada ecosystem: gateways, switches and access points are managed together from one controller, under one set of policies, with one view of the network. TP-Link notes that Omada Mesh, Seamless Roaming, Captive Portal and Cloud Access require an Omada controller.
| Omada SDN Controller | Supported — Omada Cloud-Based Controller, Omada Hardware Controller, Omada Software Controller |
| Omada App | Supported |
| Cloud Access | Supported (requires an Omada controller) |
| Zero-Touch Provisioning | Supported (requires the Omada Cloud-Based Controller) |
| Standalone Mode | Supported — web-based management |
Package Contents & Ordering Information
What’s in the Box
| Package Contents | Access Point EAP650 D120-Outdoor, Mounting Kits, Installation Guide |
TP-Link's EAP650 D120-Outdoor page lists "Mounting Kits" in the package contents, while its Mounting row reads "Optional bracket accessory APM-100 … Optional bracket accessories need to be purchased separately". Both are reproduced as published; ask SourceIT if you need the adjustable APM-100 bracket.
Ordering Information
| Model | EAP650 D120-Outdoor |
| Recommended Retail Price (incl. GST) | S$309.00 |
Datasheet & Downloads
Frequently Asked Questions — EAP650 D120-Outdoor
Does the EAP650 D120-Outdoor need an Omada Controller?
No. The EAP650 D120-Outdoor can be managed on its own through its web interface or the Omada App. Adopting it into an Omada Software, Hardware or Cloud-Based Controller adds central configuration, Omada Mesh, 802.11k/v/r seamless roaming, captive portal and cloud access alongside the rest of your Omada network.
What warranty does SourceIT provide?
Five years local Singapore warranty. Every EAP650 D120-Outdoor sold by SourceIT comes with a GST invoice.
Is stock held locally?
SourceIT holds fast-moving Omada lines in Singapore. Anything not in local stock is brought in on indent — ask us for the current lead time before committing to a project date.
Is this model available for project orders?
Yes. TP-Link supplies this model for project deployments; contact SourceIT with your bill of materials for pricing and lead time.
