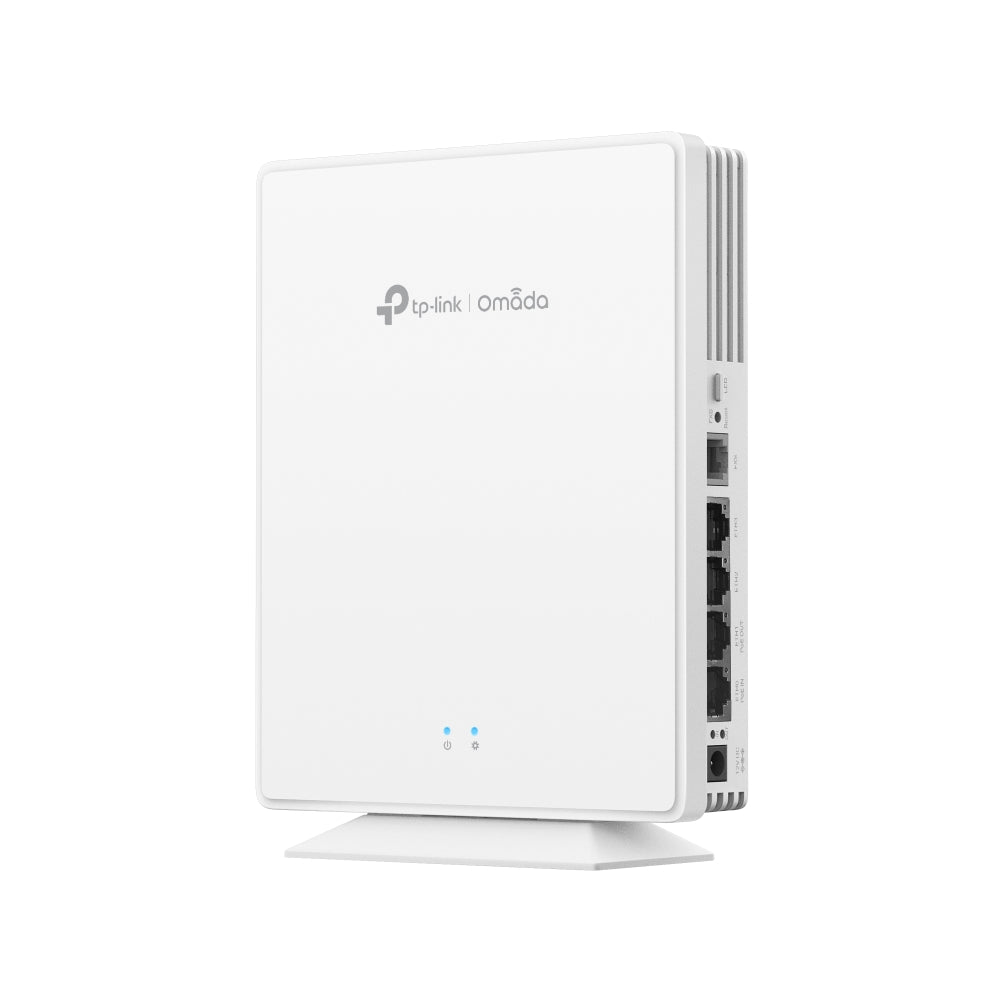

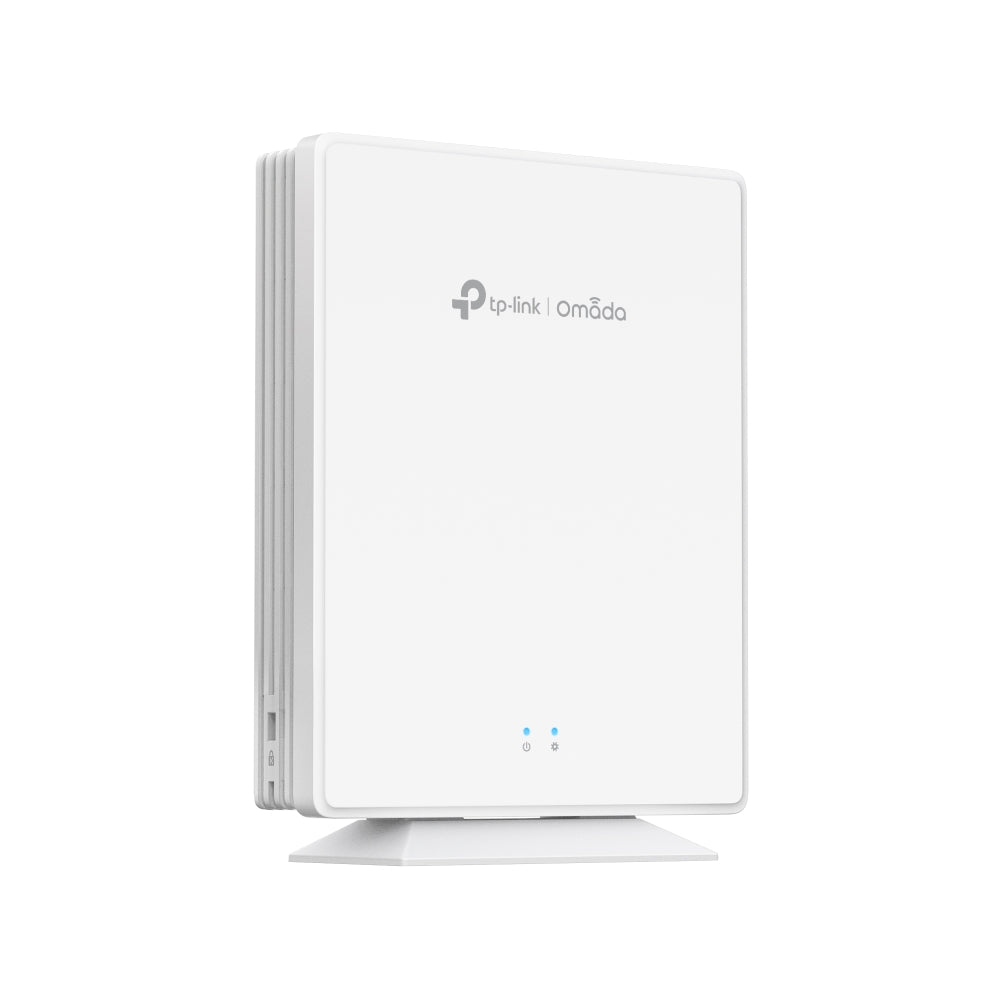

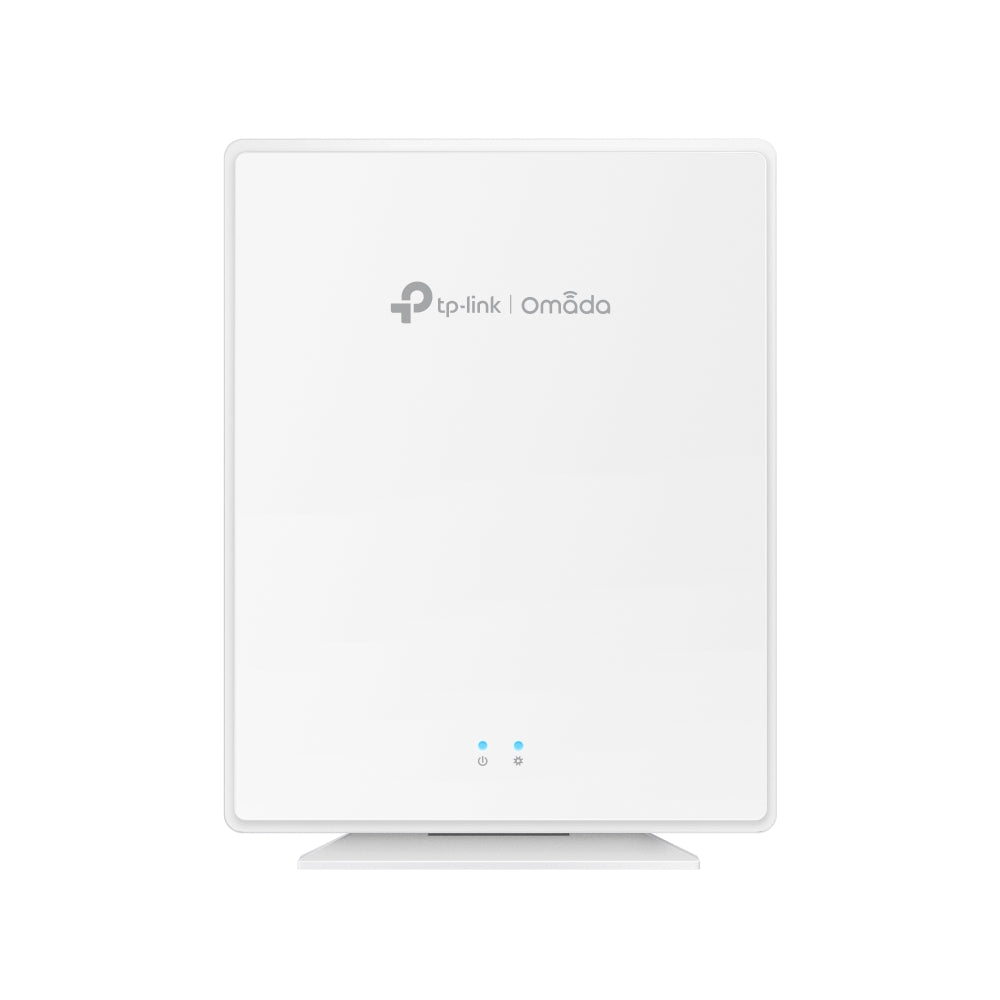

TP-Link Omada AX3000 Desktop Wi-Fi 6 Access Point

TP-Link Omada AX3000 Desktop Wi-Fi 6 Access Point (EAP650-Desktop) - 5 Years Local Warranty

The EAP650-Desktop is Omada's AX3000 desktop-form Wi-Fi 6 access point, sitting alongside the EAP650 ceiling and EAP650-Wall models in the same AX3000 tier. What separates it is packaging and ports: it needs no ceiling or wall plate to work, and it carries four Gigabit RJ45 ports plus an FXS port, so a single drop can feed wired devices, a PoE camera and a VoIP handset from one desktop unit.

AX3000 Dual-Band Wi-Fi 6 Rated at 2976 Mbps Combined

The EAP650-Desktop runs 2x2 MIMO on both bands, delivering 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz for a combined AX3000 rating of 2976 Mbps. The 5 GHz radio supports HE160, using a 160 MHz channel where the regulatory environment and the client both allow it, and 1024-QAM lifts the bits carried per symbol over 802.11ac's 256-QAM. Antenna gain is 2x5 dBi on 2.4 GHz and 3x4.7 dBi on 5 GHz. In practice that means laptops and phones with Wi-Fi 6 radios finish large transfers faster and hold higher rates further from the unit.

OFDMA and MU-MIMO Hold Up Past 250 Concurrent Clients

Omada rates the EAP650-Desktop for 250+ concurrent clients, and the mechanisms behind that figure matter more than the number. OFDMA subdivides each channel into resource units so the AP can service several small transmissions inside one airtime slot instead of queuing them one behind another, which is exactly the traffic pattern of a room full of phones and handhelds. Uplink and downlink MU-MIMO let the radio talk to multiple spatial streams at once, and transmit beamforming focuses energy toward each associated client rather than radiating evenly in all directions.

Four Gigabit Ports and an FXS Port From One Uplink

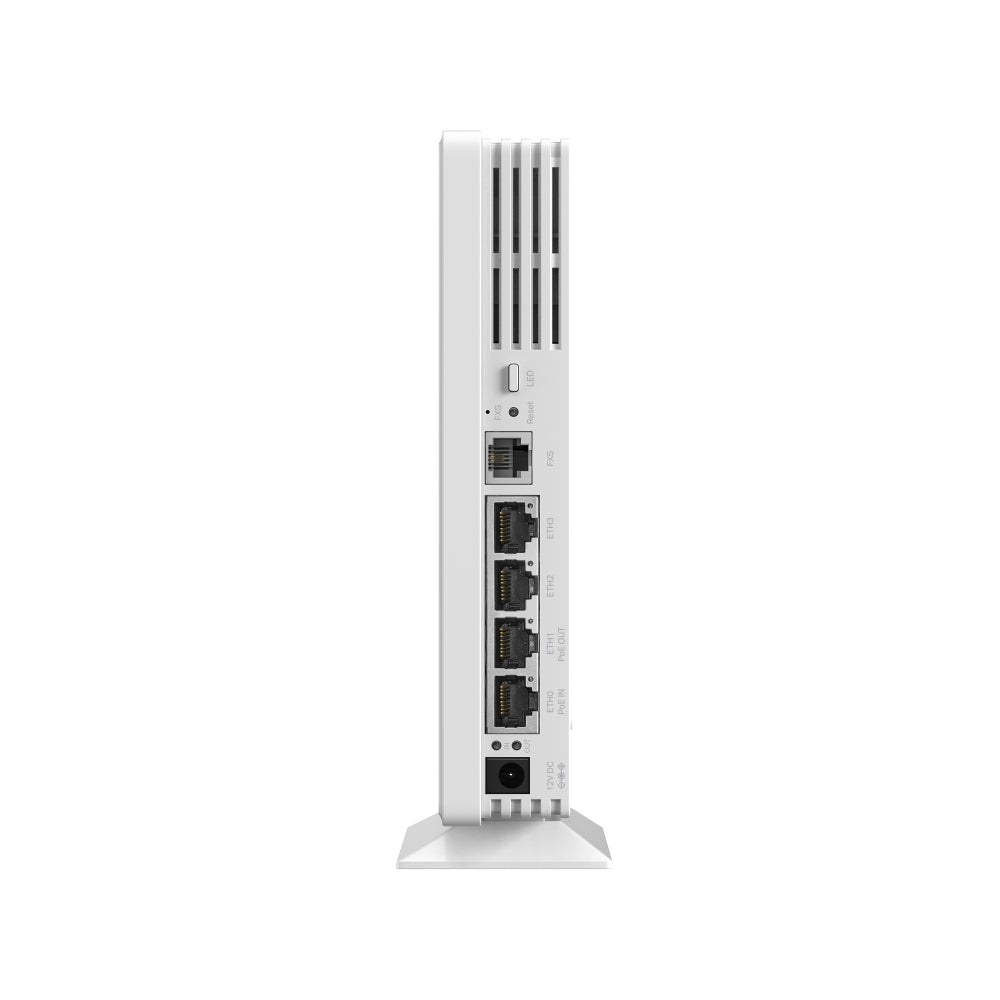

Rather than the single uplink typical of a ceiling AP, this unit carries four 10/100/1000 Mbps RJ45 ports. One takes PoE input and another provides PoE output, so a downstream camera or second AP can be powered through the same unit. There is also an FXS port for an analogue VoIP handset. For a hotel room, a small office or an MDU unit, that turns one cable run into wired data, wireless coverage, a powered device and voice, which is the practical reason to choose the desktop model over a wall or ceiling sibling.

802.3af/at/bt PoE or 12 V DC, Desktop or Wall Mount

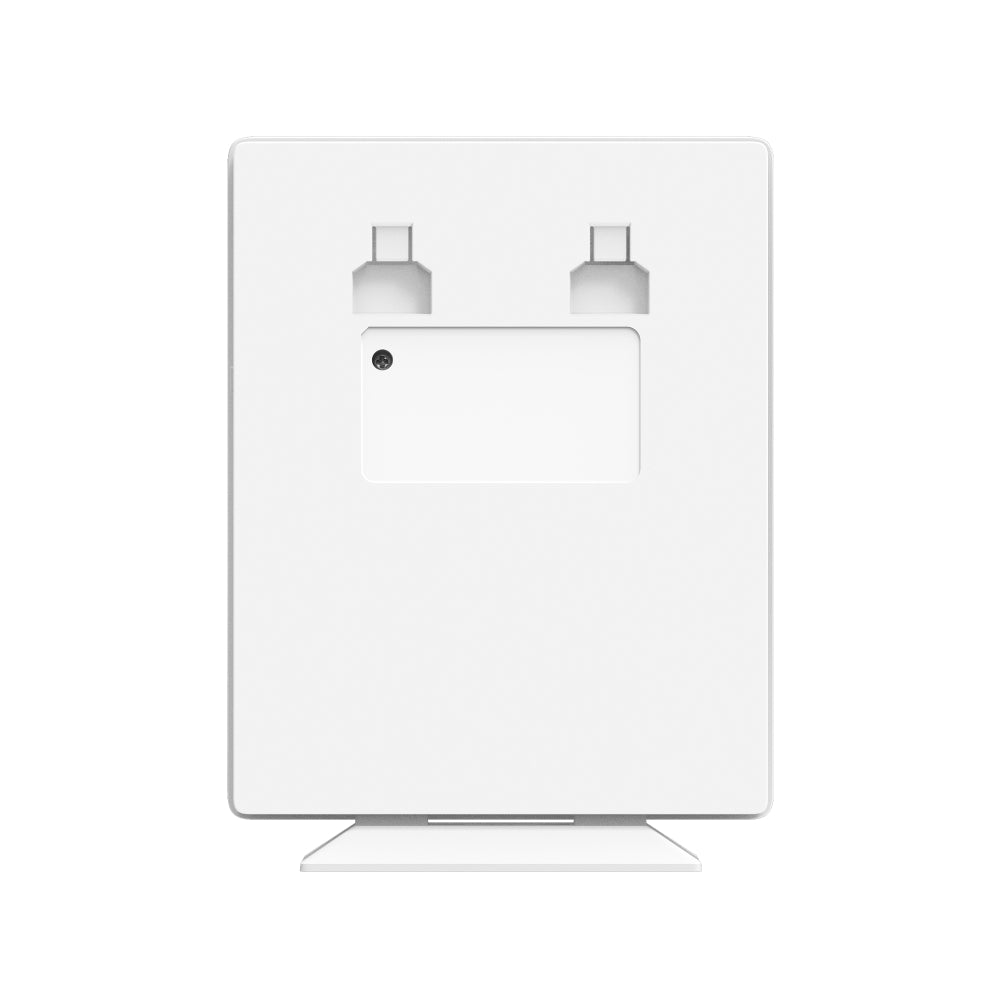

Power is deliberately flexible: the EAP650-Desktop accepts 802.3af, 802.3at or 802.3bt PoE, or the bundled 12 V/1.5 A DC adapter. Consumption is around 12 W on 802.3af, 16.8 W on DC and 19.9 W when PoE passthrough is in use, with roughly 5.4 W at idle — note that PoE output requires an 802.3at or bt source upstream. The chassis measures 175 x 140 x 33 mm and ships with both desktop feet and a wall-mount kit, so it can sit on a desk, a shelf or a wall without extra hardware.

PPSK, WPA3 and Captive Portal for Multi-Tenant Sites

Security is where this model earns its place in hotels and shared offices. PPSK issues each user or room its own pre-shared key on a single SSID, with or without RADIUS, so credentials can be revoked individually without re-keying everyone. WPA3-Personal and WPA3-Enterprise are both supported, and the captive portal handles voucher, SMS and RADIUS authentication for guest access. The AP advertises up to 16 BSSIDs, eight per band, so separate staff, guest and device networks can coexist on the same hardware with their own VLAN tags.

Omada SDN Management With Mesh and 802.11k/v/r Roaming

The EAP650-Desktop is managed through Omada SDN by the Omada Hardware Controller, Software Controller or Cloud-Based Controller, with browser and Omada App access, and zero-touch provisioning when the cloud controller is used. Seamless roaming implements 802.11k, 802.11v and 802.11r so clients hand off between APs without dropping calls. Band steering pushes dual-band clients to 5 GHz, airtime fairness stops slow legacy clients monopolising the channel, and load balancing by client count or RSSI threshold spreads sessions across neighbouring APs. Omada Mesh links APs wirelessly where cabling is impractical.

Ideal For

Singapore businesses, schools, hotels and managed-service providers building on Omada, and IT teams that want a router they can adopt, monitor and update centrally rather than box by box. Supplied by SourceIT with local Singapore warranty, GST invoice and project pricing on request.
