TP-Link Omada AX3000 Ceiling Mount Wi-Fi 6 Access Point with 2,000 sq ft Coverage

TP-Link Omada AX3000 Ceiling Mount WiFi 6 Access Point (EAP653 UR) - 5 Years Local Warranty

The EAP653 UR is the extended-range member of the EAP653 family. It keeps the AX3000 radio budget and the compact 160 mm ceiling chassis, but uses higher-gain antennas — 2x 5 dBi on 2.4 GHz and three on 5 GHz — to cover 185 m² (2000 ft²) per unit instead of 140 m². Fewer APs, fewer cable drops, the same Omada management.

2,000 sq ft of Coverage From a Single Ceiling AP

Coverage is where the UR earns its place in the range. TP-Link rates it at 185 m² (2000 ft²), roughly a third more than the standard EAP653's 140 m² (1500 ft²), and the antenna specification explains why: 2x 5 dBi on 2.4 GHz and 3x 5 dBi on 5 GHz, against 2x 4 dBi and 2x 5 dBi on the standard model. Transmission power is also higher under CE rules, up to 29 dBm EIRP on 5 GHz Band 3. In a warehouse mezzanine, a large open-plan floor or a hall with high ceilings, that difference can remove an access point and its cable run from the design.

AX3000 Dual-Band With HE160 and 2x2 MU-MIMO

The radios deliver 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz. HE160 support means a capable client can use a 160 MHz channel and reach the full 5 GHz rate rather than half of it. 1024-QAM and the 4x longer OFDM symbol raise efficiency, particularly at the edge of the cell where the UR is designed to still be usable. OFDMA and 2x2 MU-MIMO in both uplink and downlink let the access point serve several clients inside one transmission opportunity, which is what holds throughput up as the client count rises.

250+ Concurrent Clients With Roaming, Steering and Fairness

Each unit is rated for 250+ concurrent clients and supports up to 16 SSIDs, 8 per band. Seamless roaming under 802.11k/v/r keeps voice and video sessions alive as staff move between APs. Band steering pushes dual-band devices to 5 GHz, load balancing spreads clients away from an overloaded unit, and airtime fairness prevents an old 802.11n device from monopolising the channel. Rate limiting per SSID keeps guest traffic from crowding out business traffic.

802.3at PoE, 48V Passive PoE or 12V DC

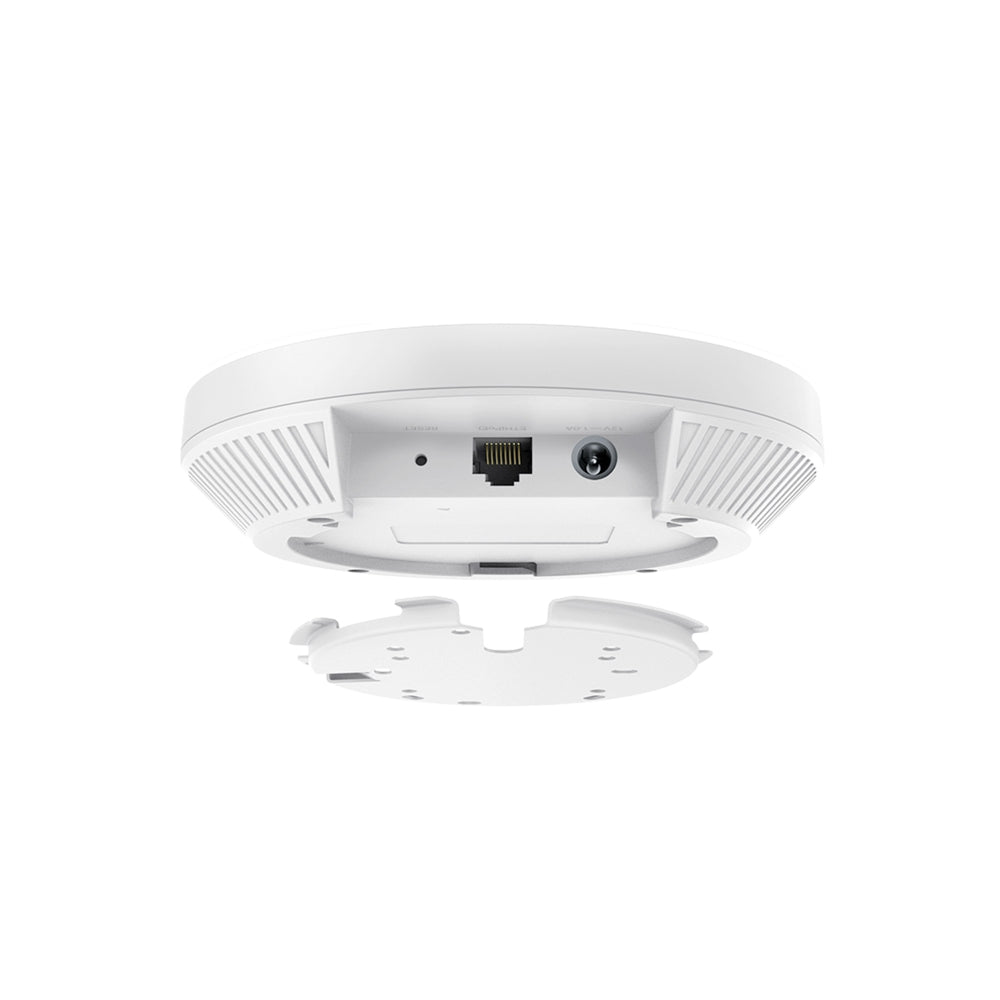

Power arrives over the single Gigabit PoE+ port from an 802.3at switch, from a 48V passive PoE injector, or from a 12V/1.5A DC adapter sold separately. Maximum consumption is 14.2 W on EU units and 15.5 W on US units — slightly above the standard EAP653, consistent with the higher transmit power. The 160 x 160 x 33.6 mm housing mounts to ceiling, wall or junction box with the kits supplied in the box.

Central Management and WPA3 Under Omada SDN

Adopted into an Omada Controller — Cloud-Based, Hardware (OC300/OC200) or Software — the EAP653 UR is configured, monitored and updated alongside every other Omada device on site. Security features include WPA3-Personal and WPA3-Enterprise, 802.1X, captive portal authentication, SSID-to-VLAN mapping, client isolation and rogue AP detection. Zero-Touch Provisioning through the Cloud-Based Controller lets a unit be shipped to site and configured without an engineer on the ground.

Ideal For

Singapore warehouses, workshops, halls, showrooms and large open-plan offices where a standard ceiling AP leaves gaps, and any site where reducing the number of cable drops matters. Supplied by SourceIT with local Singapore warranty, GST invoice and project pricing on request.
