TP-Link Omada AX1800 Indoor/Outdoor Wi-Fi 6 Access Point

TP-Link Omada AX1800 Indoor/Outdoor Wi-Fi 6 Access Point (EAP603-Outdoor) - 5 Years Local Warranty

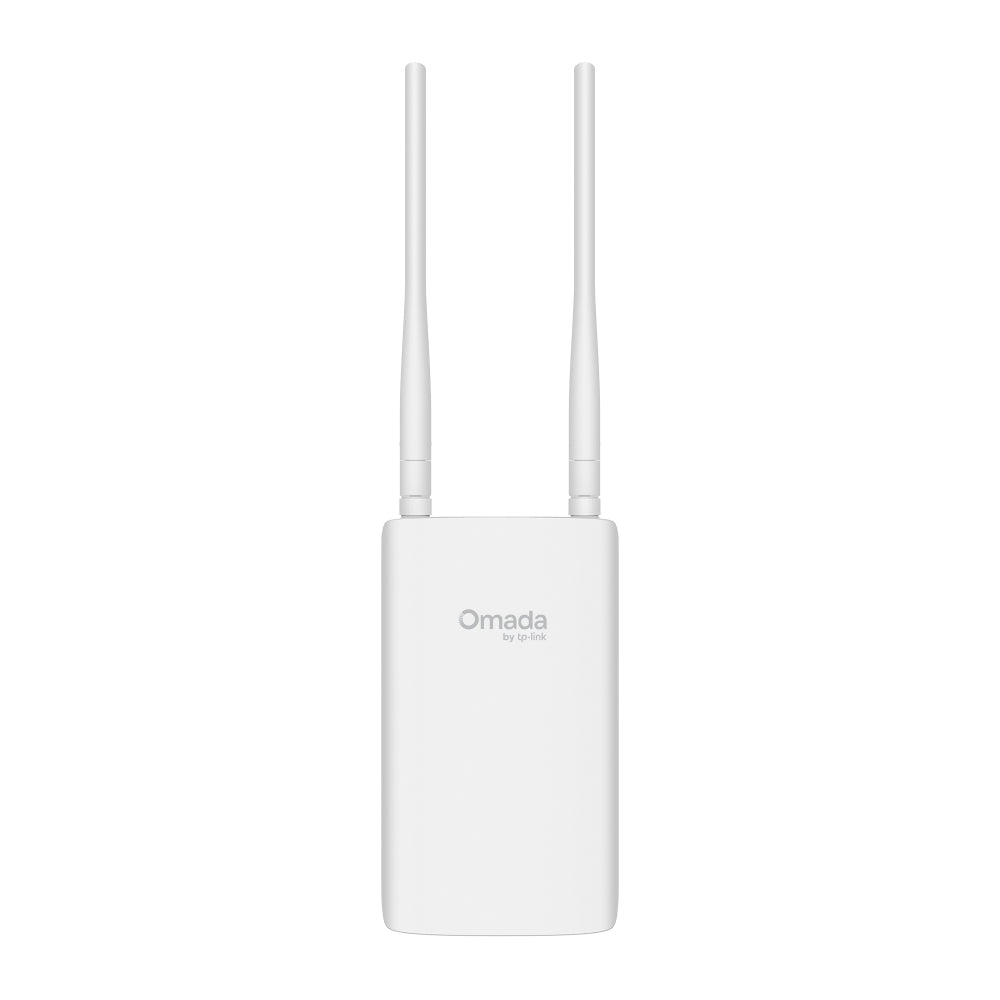

The EAP603-Outdoor is Omada's AX1800 dual-band Wi-Fi 6 access point built for indoor or outdoor mounting. It sits below the AX3000 outdoor models in raw throughput but adds the environmental hardening they share: an IP65/IP66 enclosure, 6 kV lightning protection and a -30 to +70 degrees C operating range, driven from a single 802.3at PoE+ cable with external omnidirectional antennas for broad area coverage.

AX1800 Wi-Fi 6 Across Two Bands at 1775 Mbps Combined

The EAP603-Outdoor pairs a 1201 Mbps 5 GHz radio with a 574 Mbps 2.4 GHz radio for a combined 1775 Mbps AX1800 rating. The 5 GHz radio runs HE80, an 80 MHz channel width, and 1024-QAM raises throughput per symbol against older 802.11ac gear. OFDMA and MU-MIMO are both implemented, so the AP can pack several clients' small frames into one transmission opportunity and serve multiple spatial streams simultaneously. Omada rates the unit for 250+ associated devices, which suits a busy courtyard, car park or warehouse yard rather than a handful of users.

External Omnidirectional Antennas for 300 m of Coverage

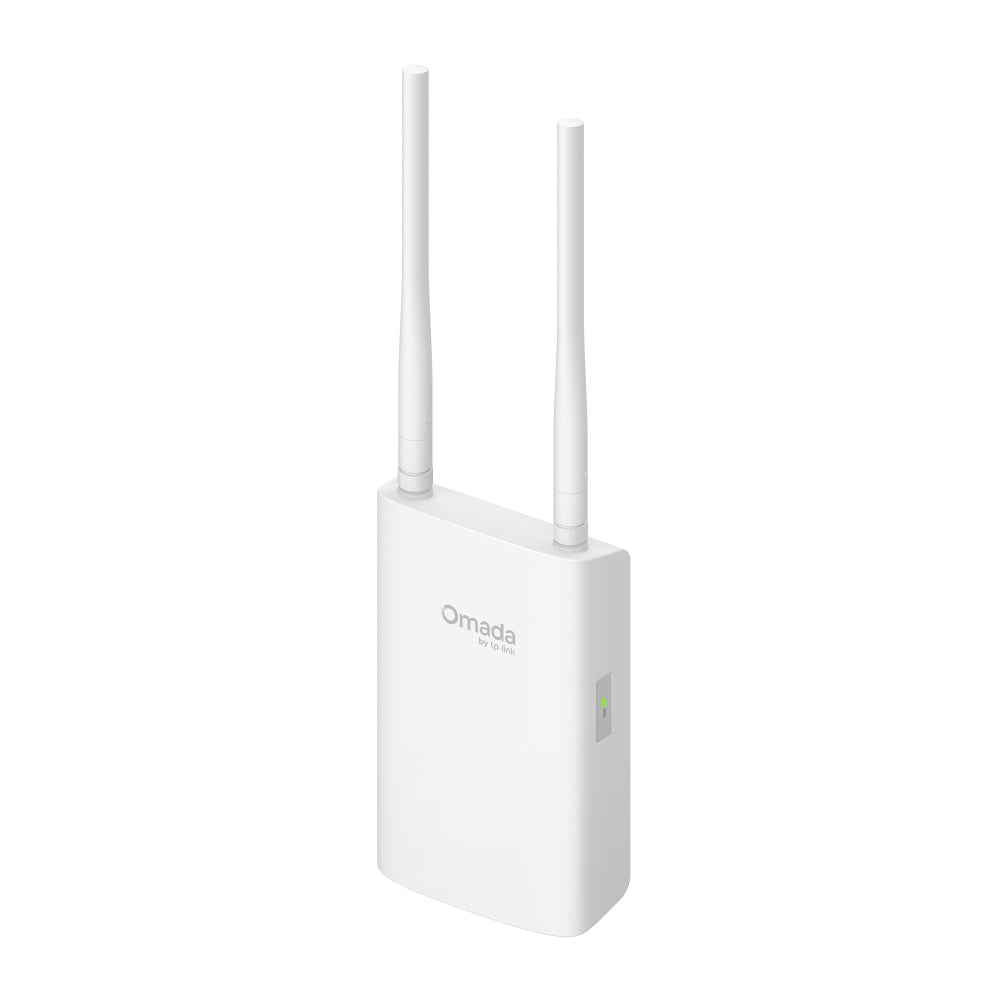

Two external omnidirectional antennas per band give 4 dBi peak gain on 2.4 GHz and 5 dBi on 5 GHz, with a further 4 dBi internal antenna for Bluetooth. Omada quotes coverage of up to 200 m on 2.4 GHz and 300 m on 5 GHz in clear conditions. Because the pattern is omnidirectional rather than sectoral, a single unit on a pole radiates in all directions, which is why it suits open outdoor areas where clients move unpredictably. Beamforming then concentrates transmission toward each associated device.

IP65/IP66 Enclosure With 6 kV Lightning Protection

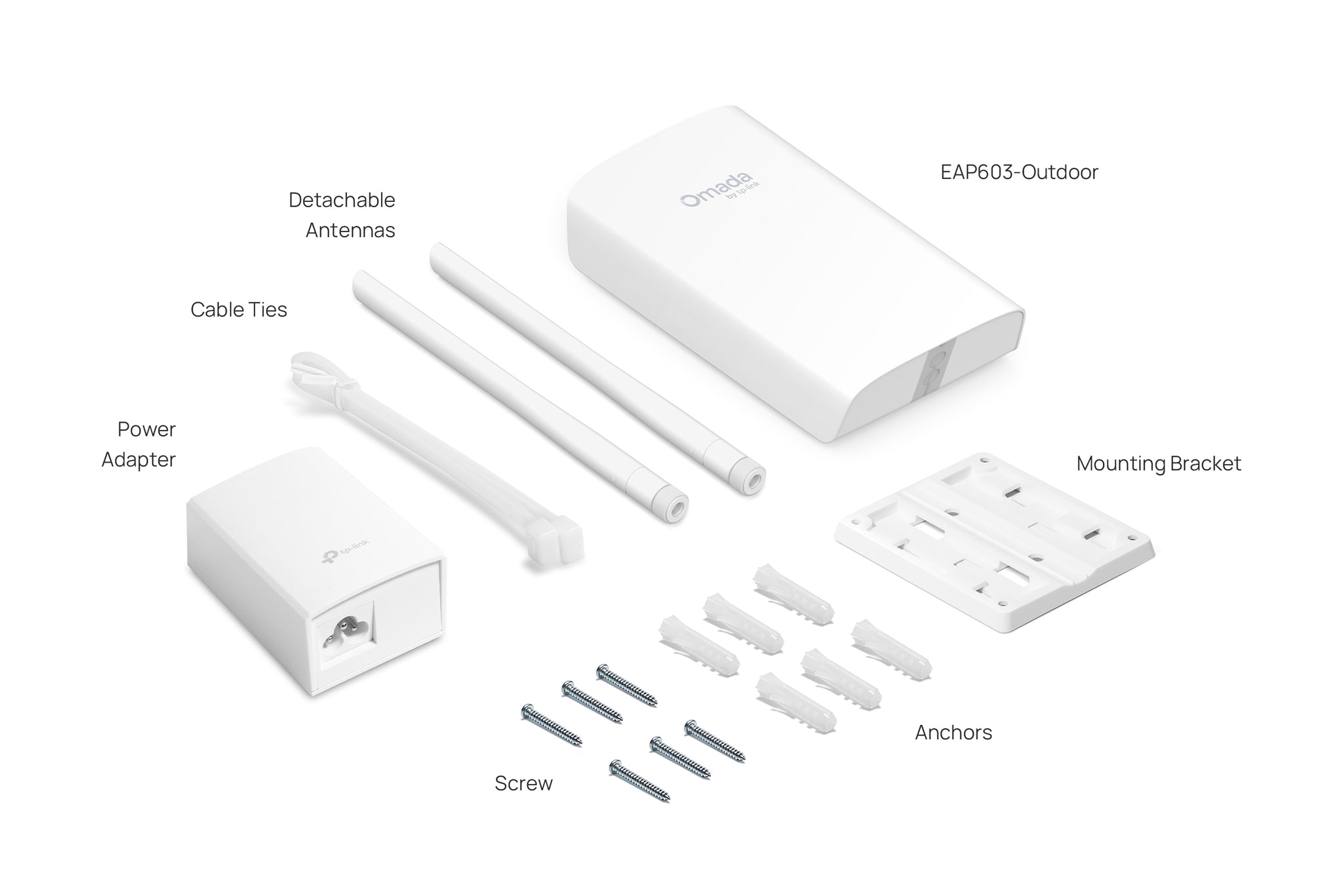

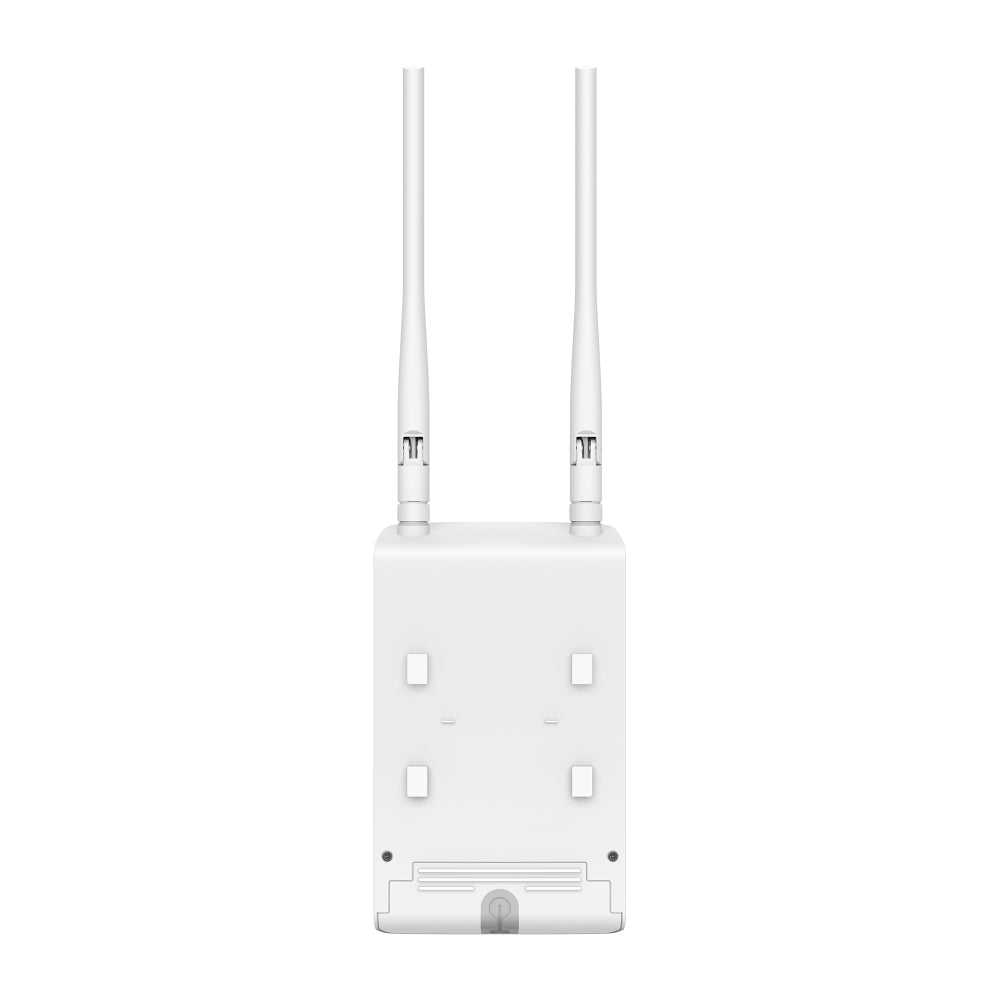

The chassis is rated IP65 when pole mounted and IP66 when wall mounted, and carries 6 kV lightning protection on its Ethernet path along with a dedicated grounding terminal. Operating range is -30 to +70 degrees C, so it stays in service through tropical heat and cold-store or high-altitude installations alike. The unit measures 230 x 207.5 x 69.7 mm and ships with both pole and wall mounting hardware. Together these ratings are what let the same access point be deployed on an exterior wall or mast without an additional weatherproof housing.

Single PoE+ Cable Carries Power and Data

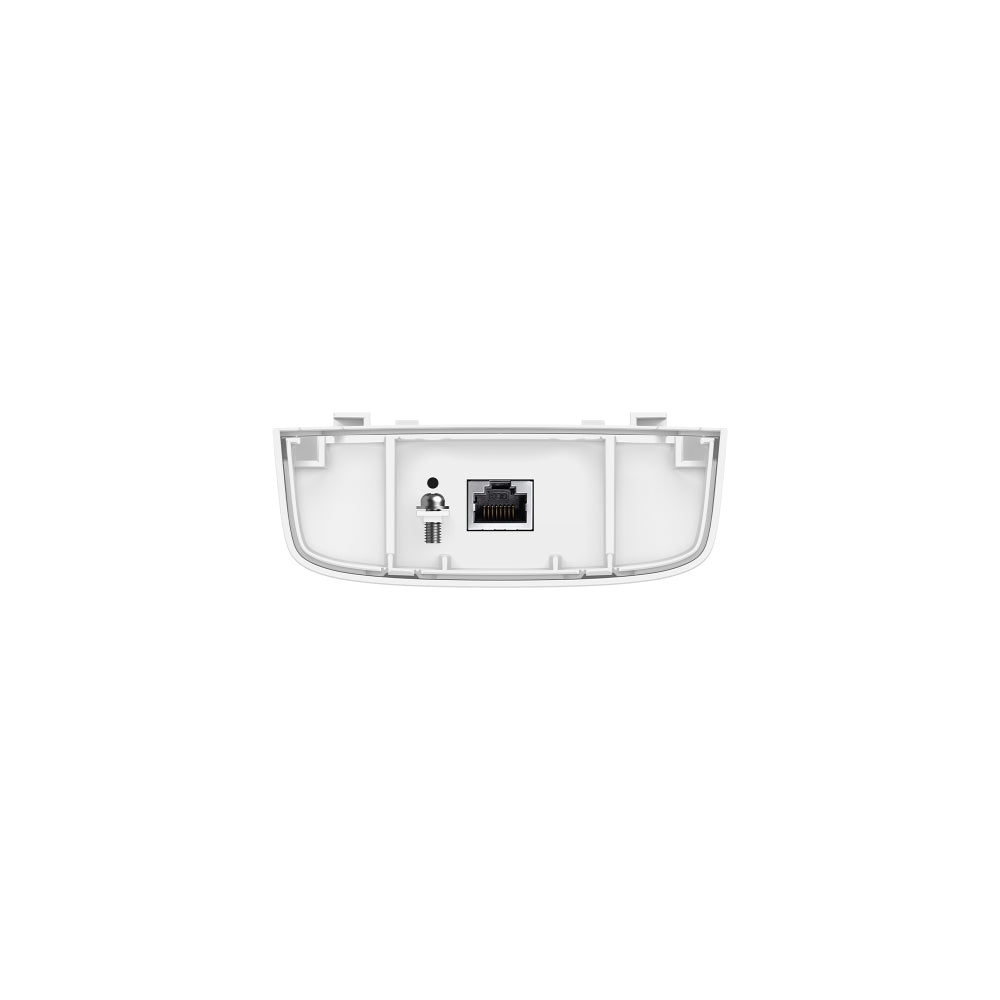

There is one Gigabit RJ45 port and it doubles as the PoE+ input, so a single cable run delivers both the network uplink and the power. The AP accepts 802.3at PoE+ at 42.5-57 V and 0.36 A, and a passive PoE adapter is included in the box for sites without a PoE switch. Maximum consumption is 15.8 W, dropping to around 4.8 W at idle. For an outdoor mast or a wall high above ground this matters practically: there is no need to run mains power or fit an external socket at the mounting point.

PPSK, WPA3 and 16 BSSIDs for Segmented Public Networks

The EAP603-Outdoor supports WPA3-Personal and WPA3-Enterprise, and PPSK with or without RADIUS so individual users or tenants get their own key on a shared SSID. A captive portal handles guest onboarding with vouchers, SMS or RADIUS. The AP advertises up to 16 BSSIDs, eight per band, which allows separate staff, guest, camera and IoT networks to run from one outdoor unit with their own VLAN assignments. SSH and SNMP v1/v2c/v3 are available for sites integrating the AP into existing monitoring.

Omada SDN With Mesh and 802.11k/v/r Roaming

Management runs through Omada SDN via the hardware, software or cloud-based controller, with web browser and Omada App access and one-click setup for new units. Seamless roaming uses 802.11k, 802.11v and 802.11r so a client crossing between an indoor AP and this outdoor unit hands off without dropping a session. Band steering moves capable clients to 5 GHz. Omada Mesh is supported, which matters outdoors: a second EAP603 can extend coverage to a gatehouse or far fence line over a wireless backhaul where trenching a cable is impractical.

Ideal For

Singapore businesses, schools, hotels and managed-service providers building on Omada, and IT teams that want a router they can adopt, monitor and update centrally rather than box by box. Supplied by SourceIT with local Singapore warranty, GST invoice and project pricing on request.
