TP-Link Omada AX1800 High-Density Indoor/Outdoor Wi-Fi 6 Access Point with Detachable Antennas

TP-Link Omada AX1800 Indoor/Outdoor Wi-Fi 6 Access Point (EAP625-Outdoor HD) - 5 Years Local Warranty

The EAP625-Outdoor HD is the high-density outdoor model: AX1800 radios, an IP67 enclosure, and a rating of 1,020+ concurrent clients — four times the standard outdoor AP. Two detachable external dual-band antennas let the radiation pattern be changed for the site rather than accepted as built, which is what makes it suitable for event spaces and crowded forecourts.

1,020+ Concurrent Clients in One Outdoor Cell

This is the number that defines the model. A standard outdoor access point is rated for 250+ clients; the EAP625-Outdoor HD is rated for 1,020+. The difference matters wherever people concentrate outdoors — a stadium concourse, a graduation ceremony on a field, an F&B terrace at peak, a construction site muster point, a night market. Associations are only part of the story, so the AP also carries a 4,000-entry MAC filter table, load balancing, band steering and airtime fairness to keep a large client population moving rather than merely connected.

Detachable External Antennas Tune the Cell to the Site

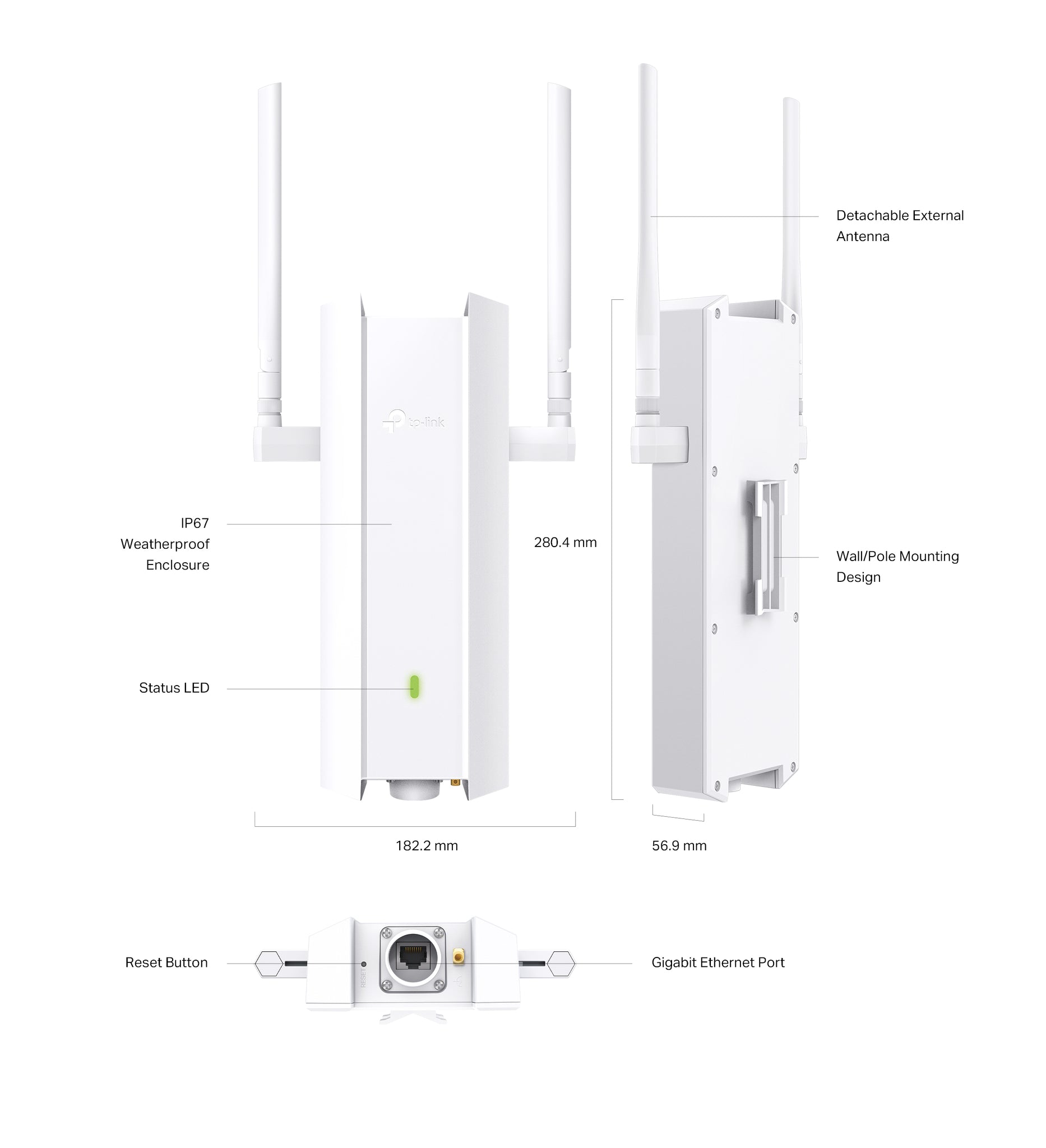

The EAP625-Outdoor HD ships with two detachable dual-band omnidirectional antennas at 3.0 dBi on 2.4 GHz and 5.0 dBi on 5 GHz. Being detachable, they can be replaced with directional antennas where the coverage needs to be thrown along a walkway or across a car park rather than radiated equally in all directions — something the internally-antennaed EAP623-Outdoor HD cannot do. The trade-off is a wider body at 280.4 x 182.2 x 56.9 mm.

IP67 Rated From -30 to 70 °C

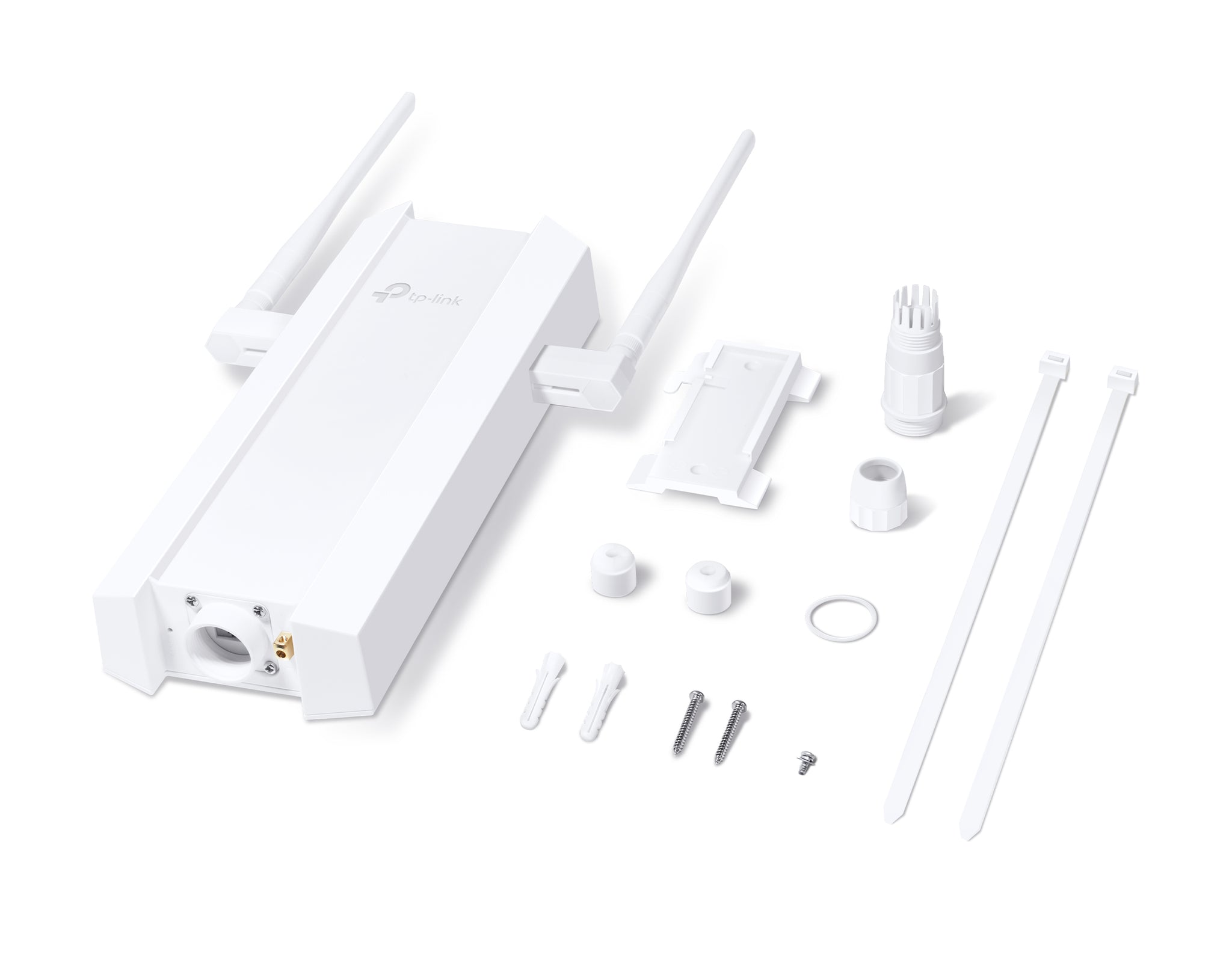

The enclosure is IP67: fully dust-tight and able to withstand temporary immersion, with an operating range of -30 to 70 °C and 10-90% non-condensing humidity tolerance. Pole and wall mounting kits plus a waterproof kit are included. In Singapore the governing conditions are sustained heat, driving rain and constant humidity, all of which sit inside that envelope for permanent outdoor mounting.

AX1800 Dual-Band With Bluetooth and Omada Mesh

The radios deliver 1201 Mbps on 5 GHz and 574 Mbps on 2.4 GHz across up to 16 SSIDs, 8 per band. A Bluetooth radio is present for on-site provisioning through the Omada App. Omada Mesh is supported, which outdoors is often the deciding feature: a node at the far end of a site can take its uplink wirelessly from a wired neighbour instead of requiring trenching. Seamless roaming, automatic channel assignment and beamforming operate across the estate as they do indoors.

WPA3, Captive Portal and Central Management

Security covers WPA3-Personal and WPA3-Enterprise, WPA2, 802.1X, captive portal authentication, VLAN separation, access control, wireless isolation, a 4,000-entry MAC filter and rogue AP detection. Adopted into an Omada Controller — Cloud-Based, OC300, OC200 or Software — the unit is configured, monitored, backed up and firmware-updated centrally, with email alerts, SNMP v1/v2c/v3 and SSH available for integration with existing monitoring.

Ideal For

Singapore event spaces, stadium concourses, school fields, large car parks, F&B terraces and worksites where hundreds of people connect outdoors at once and the coverage pattern needs tailoring. Supplied by SourceIT with local Singapore warranty, GST invoice and project pricing on request.
