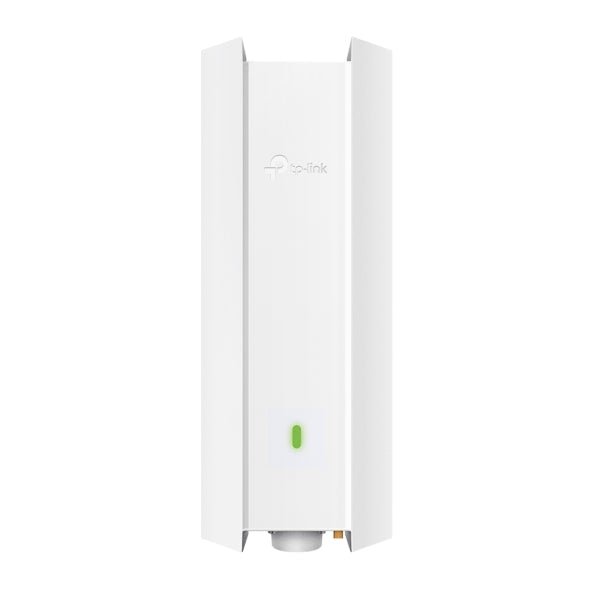

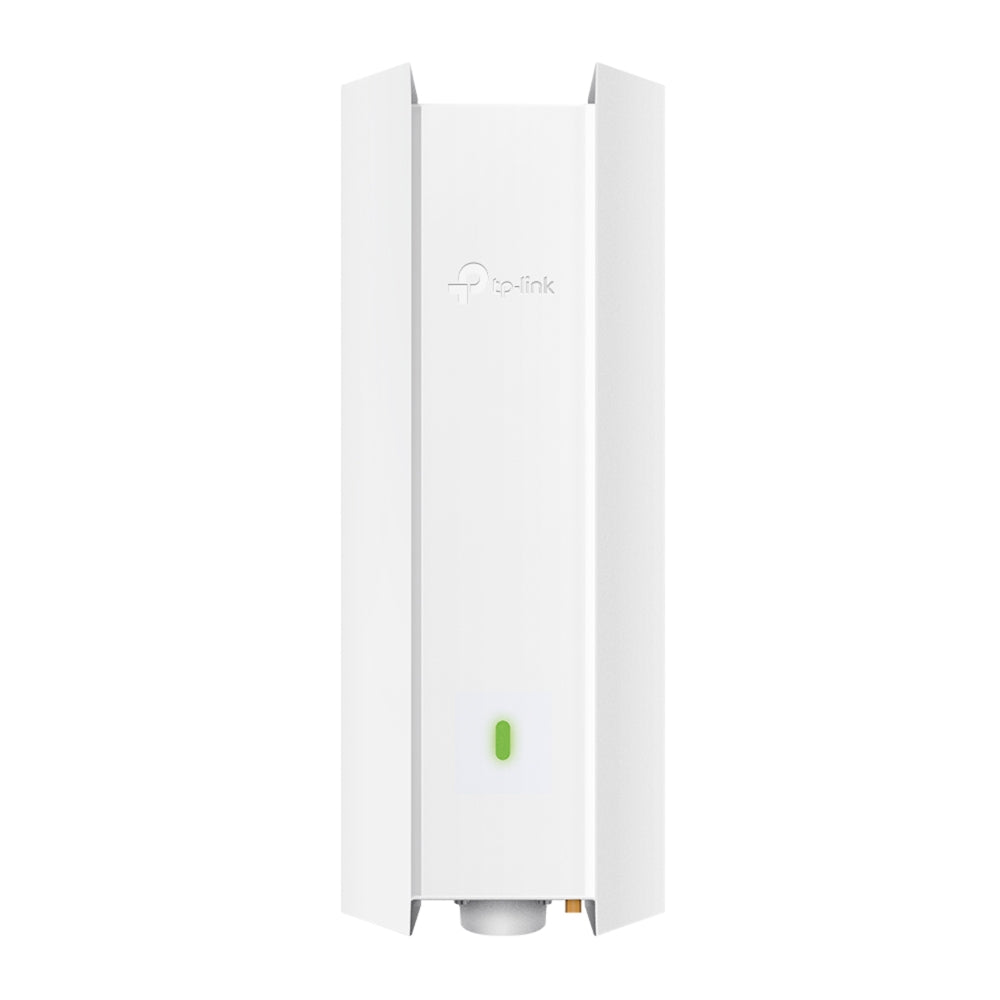

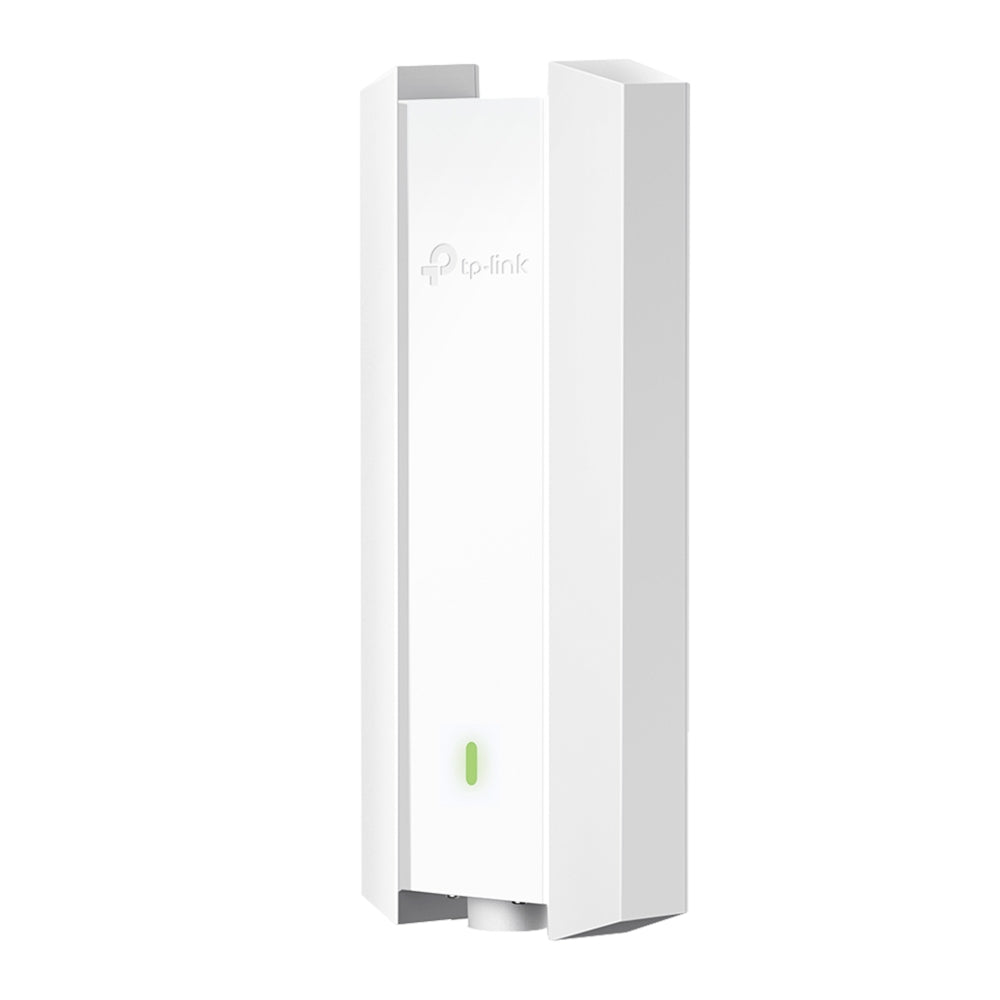

TP-Link Omada AX1800 Indoor/Outdoor Wi-Fi 6 Access Point with Included PoE Adapter

TP-Link Omada AX1800 Indoor/Outdoor WiFi 6 Access Point (EAP610-Outdoor) - 5 Years Local Warranty

The EAP610-Outdoor is the practical entry point to weatherproof Omada Wi-Fi 6: AX1800 radios, an IP67 enclosure rated from -30 to 70 °C, and a box that includes the passive PoE adapter, power cord, waterproof kits and a waterproof antenna. For a car park, terrace or yard that needs solid coverage rather than maximum throughput, it is the straightforward choice.

Everything Needed to Mount It Is in the Box

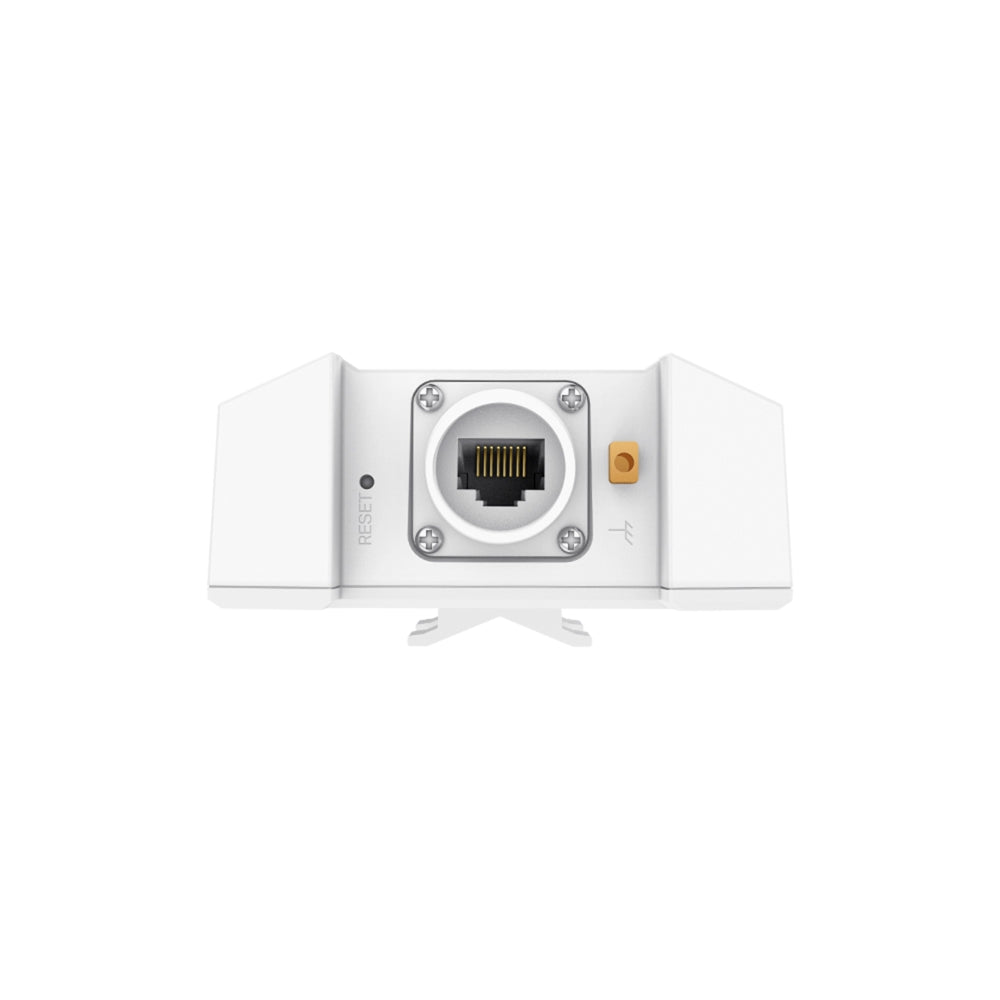

Outdoor installations fail on details, and this is where the EAP610-Outdoor differs from its siblings. The package contains the access point, a 48V/0.5A passive PoE adapter, a power cord, pole and wall mounting kits, waterproof kits and a waterproof antenna — not just the unit and a guide. On a site where the switch is indoors and the AP is on a pole thirty metres away, having the injector and the sealing hardware supplied removes a procurement step and a site delay.

IP67 Weatherproofing for Singapore Conditions

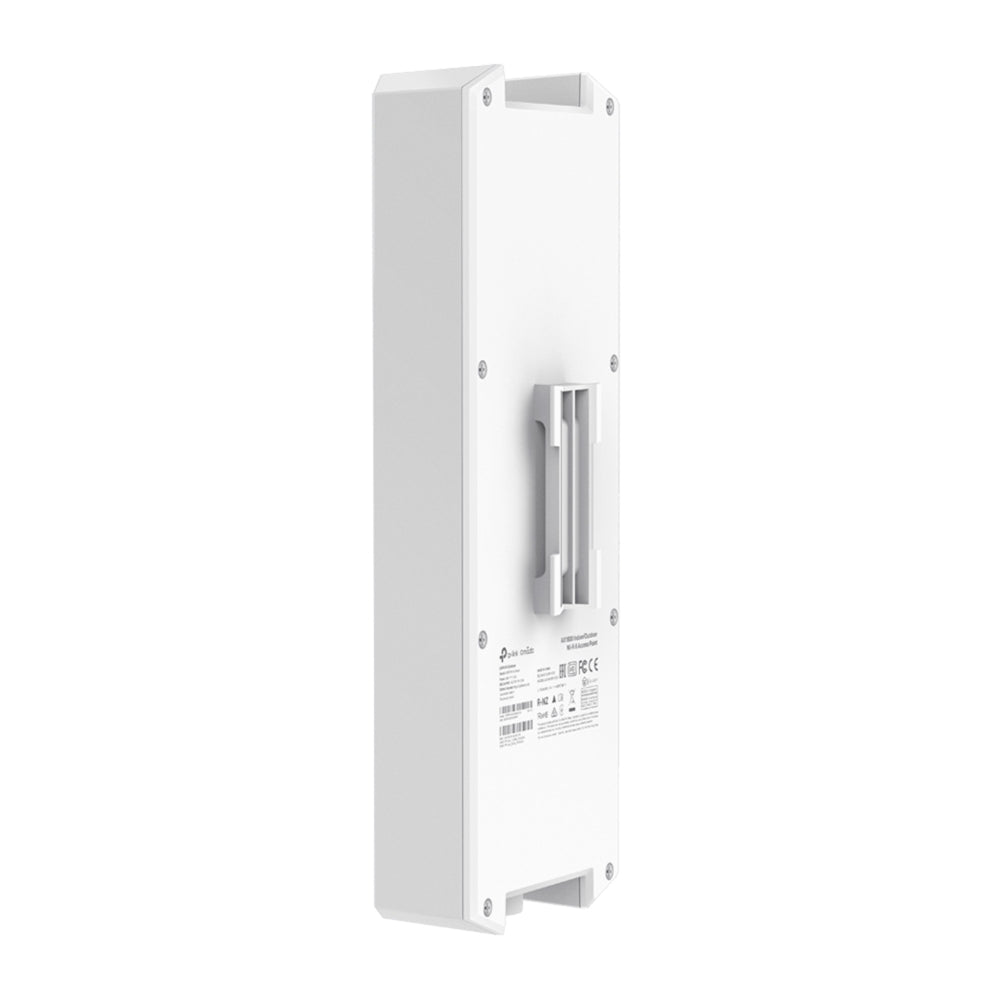

The enclosure is IP67 rated: fully dust-tight and able to withstand temporary immersion. Operating temperature runs from -30 to 70 °C and humidity tolerance is 10-90% non-condensing, so sustained heat, monsoon rain and permanently high humidity are within specification. The body measures 280.4 x 106.5 x 56.8 mm before antenna and mounting kit, and mounts to either a pole or a wall with the supplied kits.

AX1800 With 250+ Concurrent Clients

The radios deliver 1201 Mbps on 5 GHz and 574 Mbps on 2.4 GHz through 2x 4 dBi and 2x 5 dBi antennas, with 250+ concurrent clients supported and up to 16 SSIDs, 8 per band. 1024-QAM, the 4x longer OFDM symbol, OFDMA and MU-MIMO all carry over from the indoor range. CE transmission power reaches 30 dBm on 5 GHz, the higher outdoor ceiling, which is what converts those rates into real coverage across an open area.

Omada Mesh Where Trenching Is Not an Option

The single most useful outdoor feature is Omada Mesh. Running a cable to the far corner of a car park or across a courtyard often means trenching, permits and cost; a mesh node instead takes its uplink wirelessly from a wired neighbour and extends coverage from there. Seamless roaming, band steering, load balancing and airtime fairness operate across wired and mesh nodes alike, so the outdoor area behaves as part of one network rather than a separate island.

WPA3, Captive Portal and Central Management

Security includes WPA3-Personal and WPA3-Enterprise, WPA2, 802.1X, captive portal authentication, MAC address filtering, client isolation, SSID-to-VLAN mapping and rogue AP detection. Adopted into an Omada Controller — Cloud-Based, OC300, OC200 or Software — it is configured, monitored and firmware-updated with the rest of the estate, with L3 management, multi-site management and Zero-Touch Provisioning available for remote sites.

Ideal For

Singapore car parks, courtyards, F&B terraces, condominium common areas, warehouse yards and worksites needing dependable outdoor Wi-Fi 6 with the mounting hardware supplied. Supplied by SourceIT with local Singapore warranty, GST invoice and project pricing on request.
