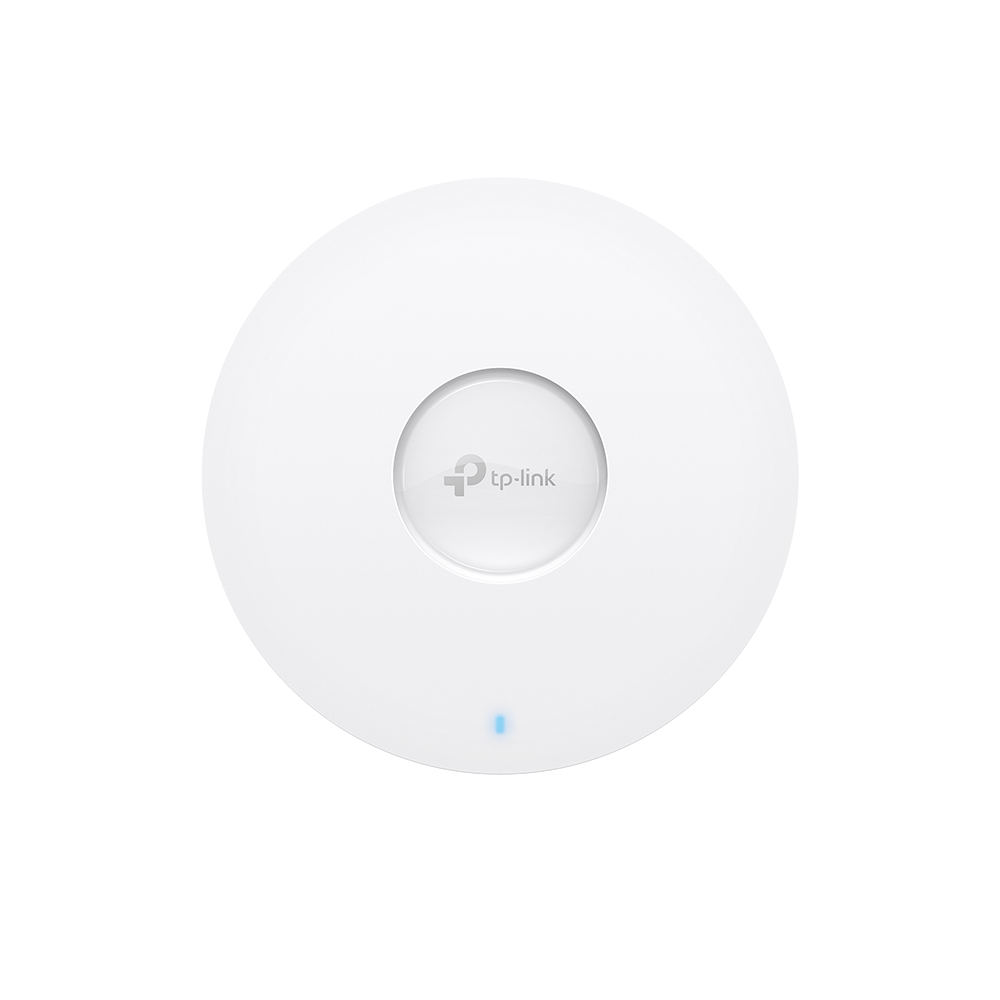

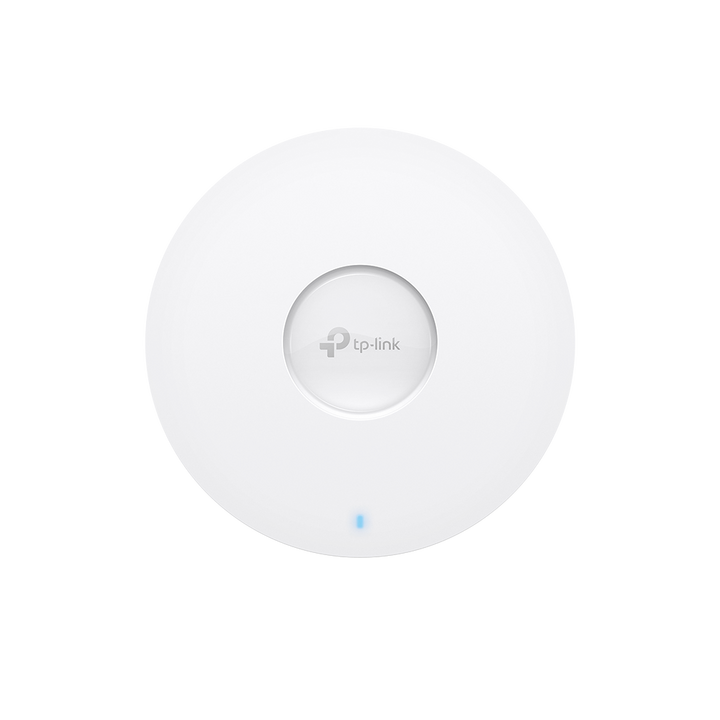

TP-Link Omada AX1800 Ceiling Mount WiFi 6 Access Point

TP-Link Omada AX1800 Ceiling Mount WiFi 6 Access Point (EAP610) - 5 Years Local Warranty

The EAP610 is Omada's AX1800 dual-band Wi-Fi 6 ceiling access point, the mainstream workhorse below the Wi-Fi 7 EAP7-series. It trades the multi-gigabit uplink and higher stream counts of those models for an ultra-slim 33.6 mm profile, an 11 W power draw and a single Gigabit PoE+ port, making it the low-cost, high-density choice for offices, hotels and schools.

AX1800 Dual-Band Wi-Fi 6 Across 2.4 and 5 GHz

The EAP610 runs both radios simultaneously, delivering 1201 Mbps on 5 GHz and 574 Mbps on 2.4 GHz for 1775 Mbps of combined Wi-Fi speed. Internal omnidirectional antennas — two at 4 dBi on 2.4 GHz and two at 5 dBi on 5 GHz — give even coverage from a ceiling position over roughly 115 m² (1,250 ft²). That makes it a sensible per-room or per-zone AP where the goal is consistent coverage across many access points rather than maximum throughput from one.

OFDMA and MU-MIMO Keep Crowded Rooms Responsive

Wi-Fi 6's efficiency features are what distinguish the EAP610 from an older 802.11ac access point. OFDMA subdivides each channel so a single transmission can serve several clients at once instead of one at a time, and MU-MIMO lets the AP talk to multiple devices in parallel. Combined with 1024-QAM and a 4× longer OFDM symbol, the result is that more connected devices enjoy faster speeds in congested environments — a classroom or a meeting room full of laptops and phones, where contention rather than raw link rate is the real limit. Omada rates it for 250+ concurrent clients.

Omada Mesh for Places You Cannot Run Cable

Omada Mesh lets EAP610s link to one another wirelessly, extending coverage into areas where pulling Ethernet is impractical or expensive — a heritage building, an outbuilding, a temporary layout. The mesh is intelligently self-organising and self-healing, so the access points work out the topology themselves and reroute automatically if a link degrades or a node drops out, rather than requiring an administrator to plan and maintain the backhaul path by hand.

802.11k/v/r Seamless Roaming for Voice and Video

With a controller in place the EAP610 supports 802.11k/v/r seamless roaming, the three standards that between them let a client discover neighbouring APs, be steered to a better one, and re-authenticate fast enough that the session is not interrupted. The practical effect is that even video streams and voice calls are unaffected as users move between locations — someone can walk from a desk to a meeting room mid-call without the handover being audible.

Ultra-Slim Chassis and Flexible PoE+ or DC Power

At Φ160 mm × 33.6 mm the EAP610 is slim enough to sit discreetly on a ceiling tile, and it mounts to a ceiling, a wall or a junction box. Power is deliberately flexible: 802.3at PoE+, passive PoE, or the included DC adapter, with maximum consumption of 11.0 W on PoE or 9.9 W on DC. A draw that low means a modest PoE switch can carry a large number of access points, which matters when the deployment is dozens of units rather than a handful.

Centralised Cloud or Local Management Under Omada SDN

The EAP610 is managed through Omada SDN using a hardware controller, the software controller, or a cloud-based controller, with the whole network administered locally or from the cloud via the web UI or the Omada app. On the security side it supports up to 16 SSIDs for segmented guest access, SMS and voucher authentication for captive-portal onboarding, and WPA3 for worry-free open public networks — so a guest SSID can be encrypted without a shared passphrase.

Ideal For

Singapore businesses, schools, hotels and managed-service providers building on Omada, and IT teams that want a router they can adopt, monitor and update centrally rather than box by box. Supplied by SourceIT with local Singapore warranty, GST invoice and project pricing on request.
