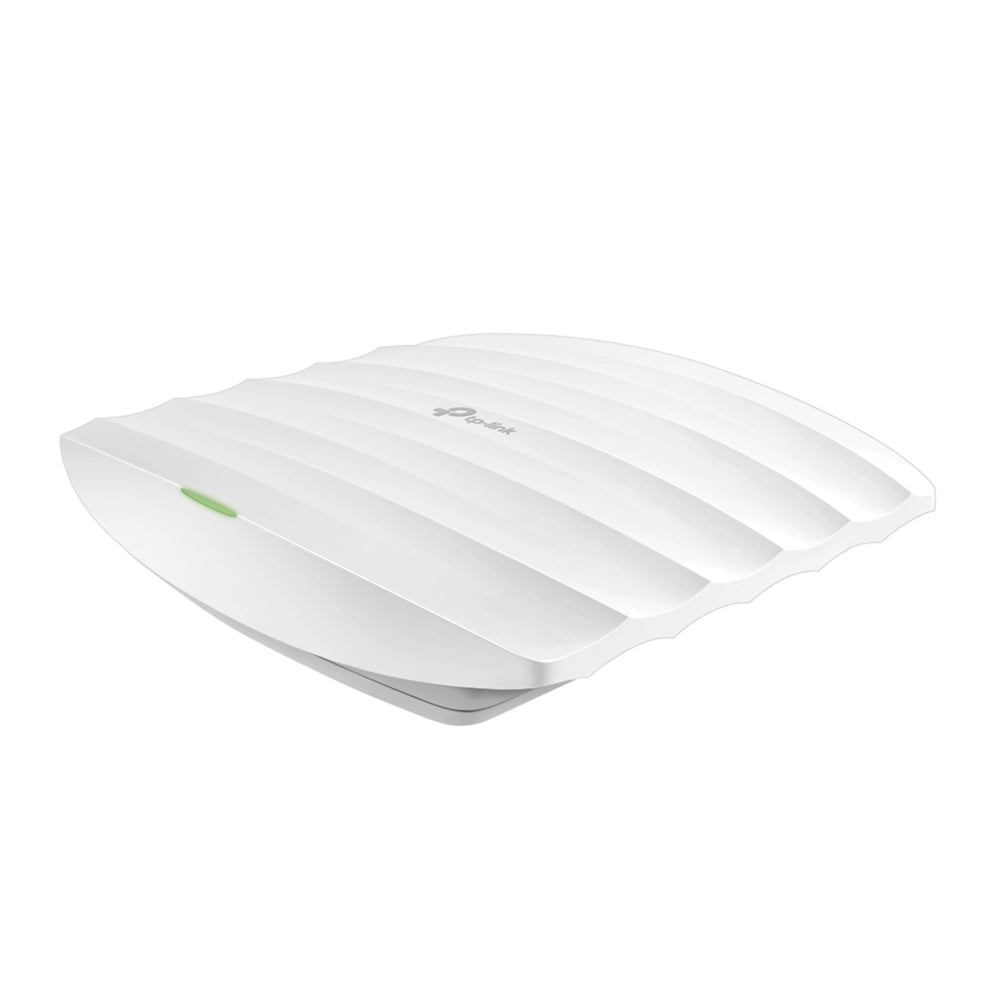

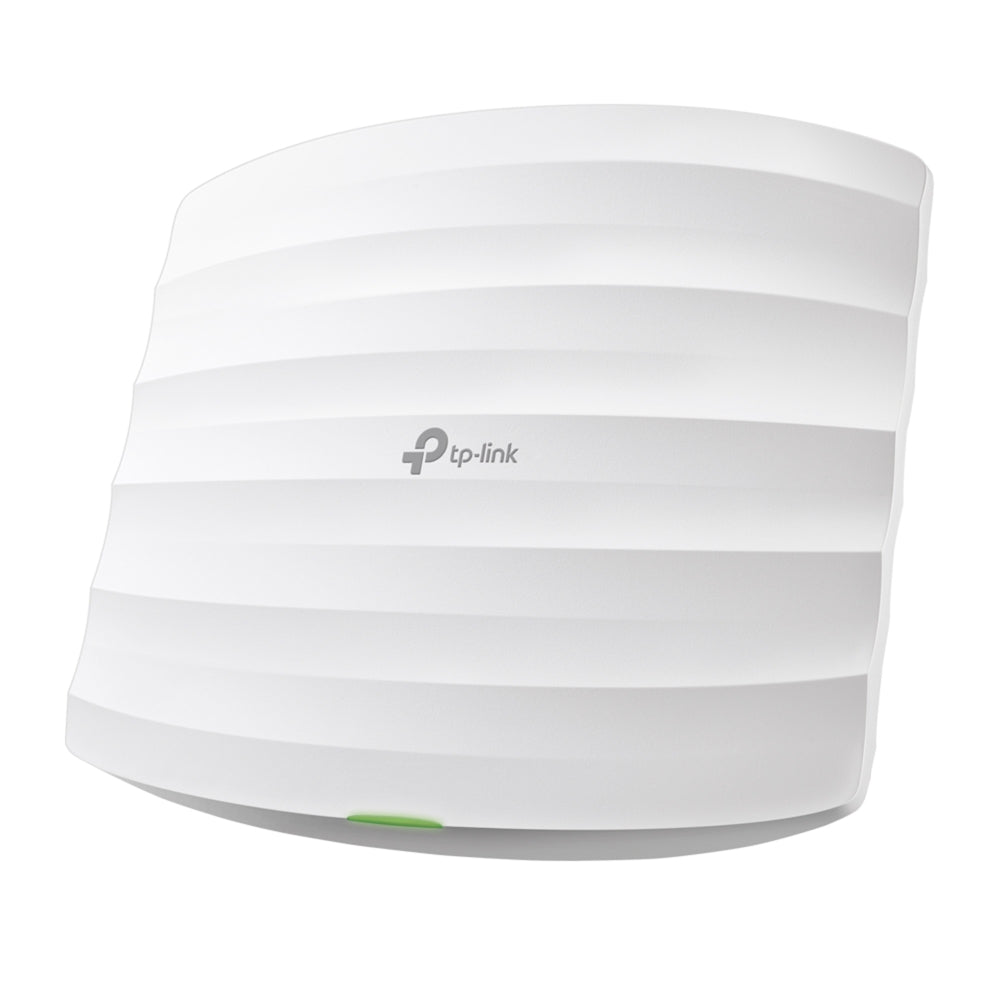

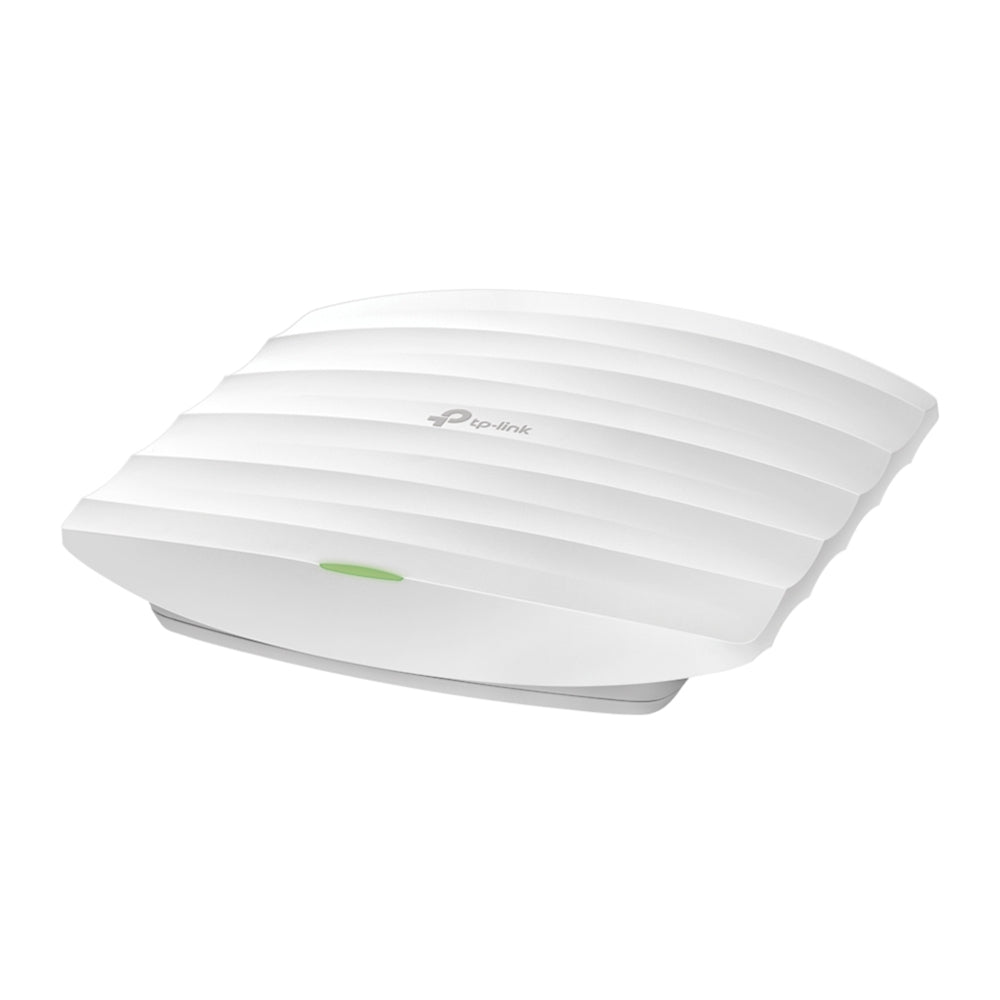

TP-Link Omada AC1750 MU-MIMO Ceiling Mount Gigabit Access Point

TP-Link Omada AC1750 Wireless MU-MIMO Gigabit Ceiling Mount Access Point (EAP245) - 5 Years Local Warranty

The EAP245 is Omada's long-serving AC1750 ceiling access point: 3x3 MU-MIMO on both bands for up to 1300 Mbps on 5 GHz and 450 Mbps on 2.4 GHz, two Gigabit ports, and a passive PoE adapter in the box. It remains a dependable, well-supported choice for offices, retail units, clinics and schools running Wi-Fi 5 client estates under Omada SDN.

3x3 MU-MIMO on Both Bands

Three internal 3.5 dBi antennas on 2.4 GHz and three 4 dBi antennas on 5 GHz give the EAP245 a full three-stream radio on each band — 1300 Mbps and 450 Mbps respectively. MU-MIMO lets the access point transmit to several clients at once rather than servicing them in sequence, and beamforming concentrates signal toward each connected device. For a typical office floor of laptops and phones, that combination is what keeps throughput steady as the client count rises.

Two Gigabit Ports with Passive PoE Adapter Supplied

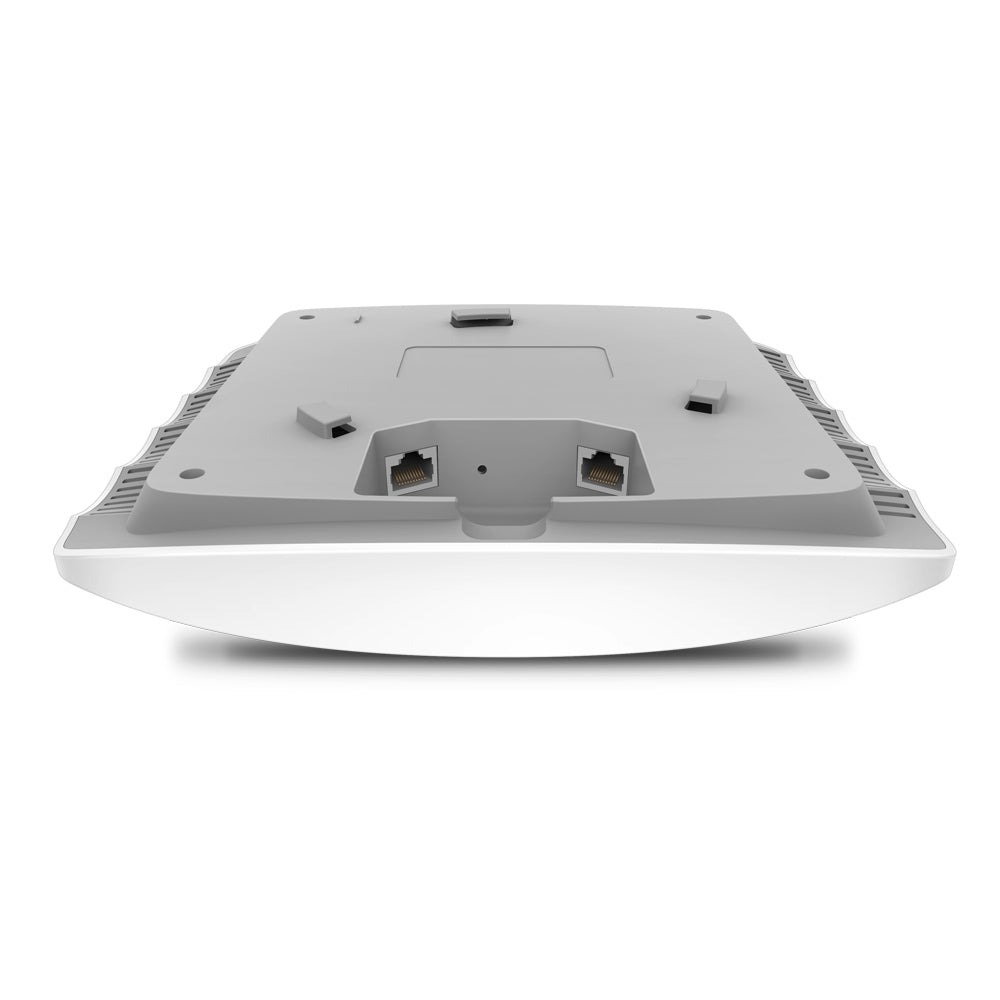

The unit has two Gigabit RJ-45 ports; one accepts 802.3af PoE or 48V passive PoE, and a Gigabit passive PoE adapter with power cord is included. That means the EAP245 can be installed before a PoE switch is in place, or in a site where the ceiling point is fed from a nearby socket. Maximum consumption is 12.3 W, and a physical security lock point is provided for exposed installations.

Seamless Roaming, Band Steering and Airtime Fairness

Seamless roaming lets clients move between access points across a floor or building without dropping a voice or video session. Band steering pushes dual-band capable devices onto the less crowded 5 GHz radio, load balancing spreads clients between neighbouring units, and airtime fairness prevents one slow legacy device from consuming the airtime that faster clients need. All of it is configured centrally rather than per access point.

16 SSIDs, Captive Portal and Rogue AP Detection

Up to 16 SSIDs (eight per band) can each be mapped to their own VLAN, so guest Wi-Fi, staff access, POS terminals and IoT devices stay separated. Captive portal authentication handles visitor onboarding, wireless isolation stops clients reaching each other, and MAC address filtering, 802.1X, rogue AP detection and WPA/WPA2-Enterprise complete the security set. Rate limiting and wireless schedules give control over how the guest network behaves.

Managed Centrally Under Omada SDN

The EAP245 is adopted into the Omada Software Controller or an OC200 hardware controller, with cloud access available through either, and zero-touch provisioning supported via the Omada Cloud-Based Controller. Once adopted, configuration, monitoring and firmware updates are handled for the whole estate at once. L3 management, multi-site management, email alerts, SNMP, syslog, SSH and HTTPS web management are all supported.

Ideal For

Offices, retail units, clinics, schools and small hotels in Singapore with Wi-Fi 5 client estates, and integrators extending or maintaining an existing Omada deployment. Supplied by SourceIT with local Singapore warranty, GST invoice and project pricing on request.
