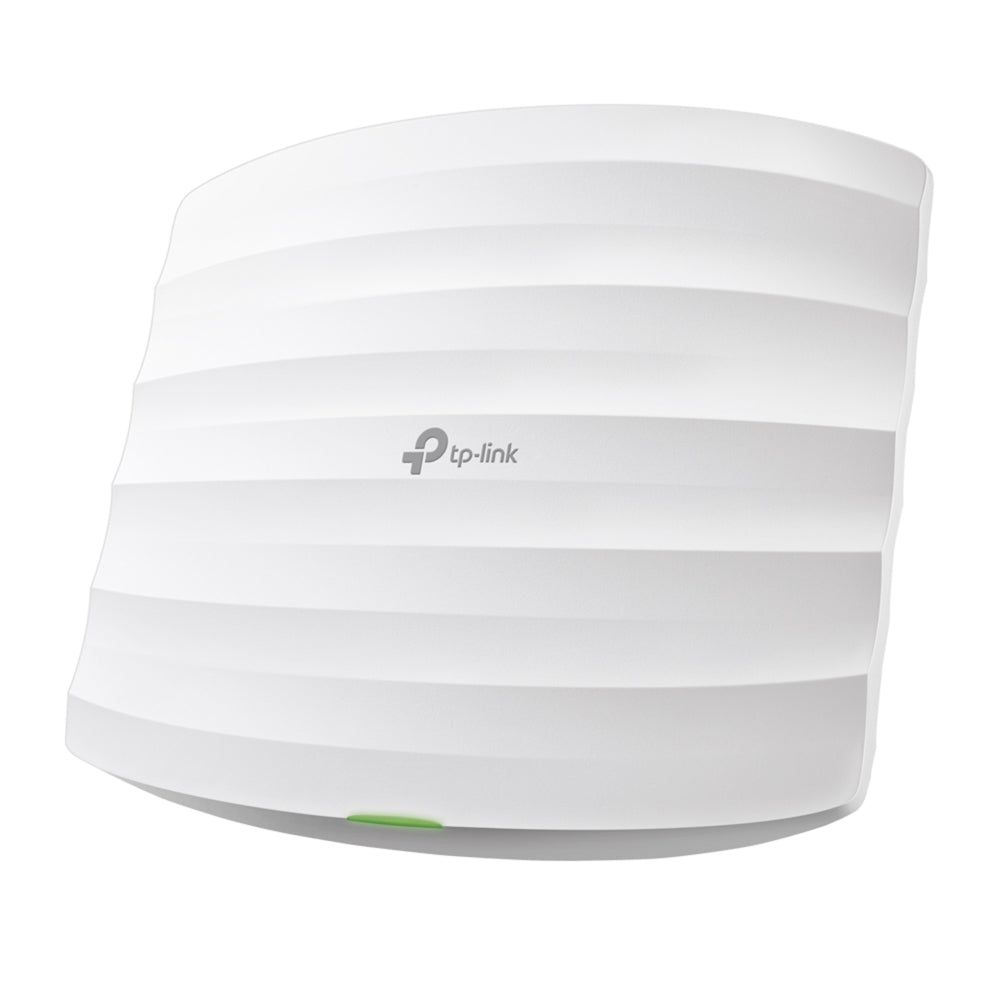

TP-Link Omada AC1750 High-Density Ceiling Mount Gigabit Access Point

TP-Link Omada AC1750 Wireless MU-MIMO Gigabit Ceiling Mount Access Point (EAP265 HD) - 5 Years Local Warranty

The EAP265 HD is Omada's high-density AC1750 ceiling access point. It carries the same 1300/450 Mbps radios as the EAP245 but is specified for 640+ concurrent clients over 140 m², with two Gigabit ports for uplink redundancy or a wired downlink, and support for 802.3at as well as 802.3af PoE. It is built for rooms where client count, not raw speed, is the constraint.

Specified for 640+ Concurrent Clients

The defining figure on this model is client capacity: TP-Link rates the EAP265 HD at 640+ concurrent clients across a 140 m² (1500 ft²) coverage area. That is the difference between a general-purpose office access point and one intended for a lecture theatre, function room, canteen or place of worship, where several hundred phones associate to the same access point at the same time. Load balancing, airtime fairness and band steering all work to keep that population served evenly.

3x3 MU-MIMO on Both Bands

Three internal 3.5 dBi antennas on 2.4 GHz and three 4 dBi antennas on 5 GHz deliver up to 1300 Mbps on 5 GHz and 450 Mbps on 2.4 GHz. MU-MIMO transmits to multiple clients simultaneously instead of queueing them, and beamforming concentrates signal toward each connected device. Seamless roaming lets clients hand between access points as people move between the hall, the corridor and the office without dropping calls.

Two Gigabit Ports and 802.3at Support

The EAP265 HD has two Gigabit RJ-45 ports, one of which accepts 802.3af/at PoE or 48V passive PoE — and a Gigabit passive PoE adapter is supplied in the box. The second port can carry a wired device or a second uplink path. Maximum draw is 12.3 W, and a physical security lock point is provided for installations in publicly accessible spaces.

16 SSIDs, Captive Portal and Rogue AP Detection

Up to 16 SSIDs (eight per band) can each be mapped to a VLAN, so guest, staff, POS and IoT traffic stay separated from a single access point. Captive portal authentication handles visitor onboarding, wireless isolation prevents client-to-client traffic, and MAC address filtering, 802.1X, rogue AP detection and WPA/WPA2-Enterprise complete the security set. Rate limiting keeps any single SSID from taking the whole uplink.

Managed Centrally Under Omada SDN

Adopt the EAP265 HD into an Omada Cloud-Based Controller, OC300, OC200 or the Omada Software Controller and the whole estate — gateways, switches and access points — is configured, monitored and updated from one interface. L3 management, multi-site management, email alerts, SNMP v1/v2c, local and remote syslog, SSH and HTTPS web management are all supported, as is the Omada app for iOS and Android.

Ideal For

Lecture theatres, function rooms, places of worship, canteens, training centres and open-plan offices in Singapore where hundreds of clients associate to one access point, and integrators standardising on Omada SDN. Supplied by SourceIT with local Singapore warranty, GST invoice and project pricing on request.
