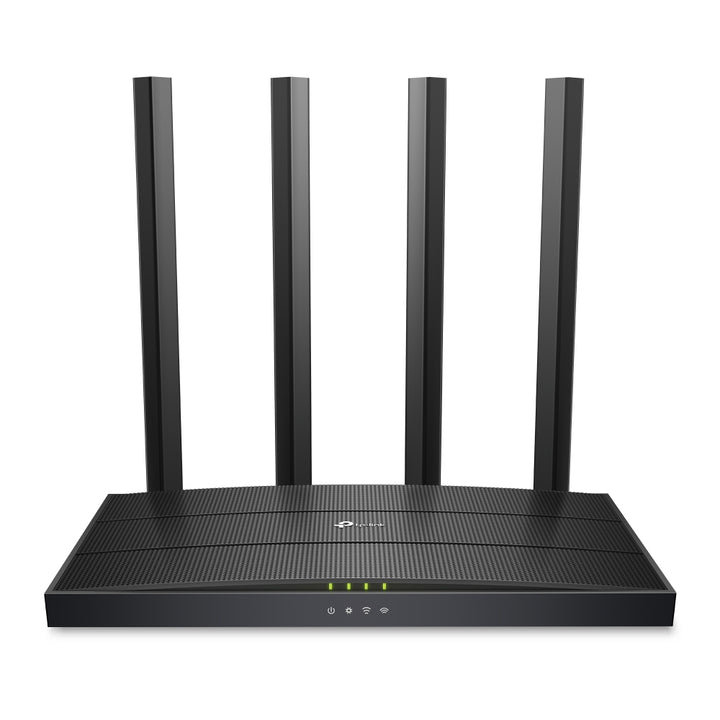

TP-Link Omada AC1350 Gigabit VPN Router
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
TP-Link Omada AC1350 Gigabit VPN Router (ER605W) - 5 Years Local Warranty
The ER605W is the Wi-Fi version of Omada's entry-level multi-WAN VPN router: five Gigabit Ethernet ports, dual-band AC1350 Wi-Fi with four external antennas, and centralised Omada cloud management, for small offices that want gateway and Wi-Fi in one device without giving up Omada SDN.

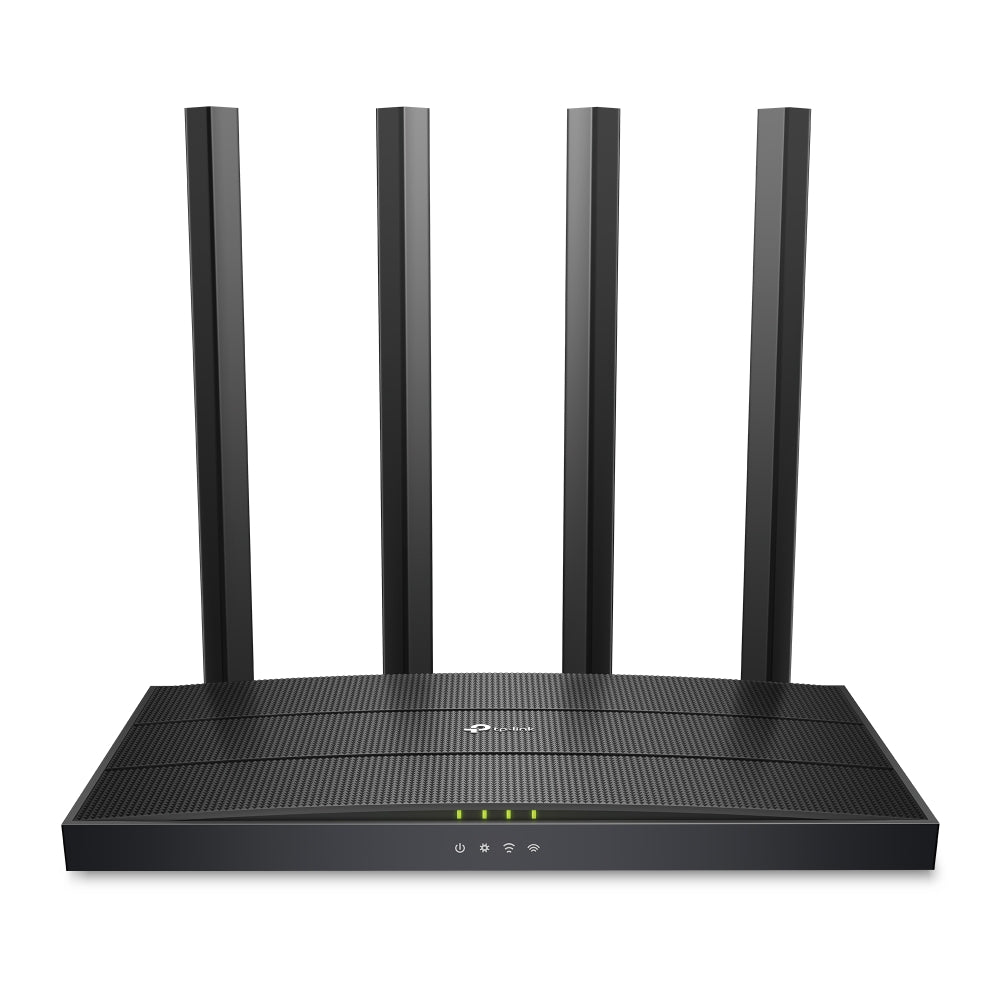

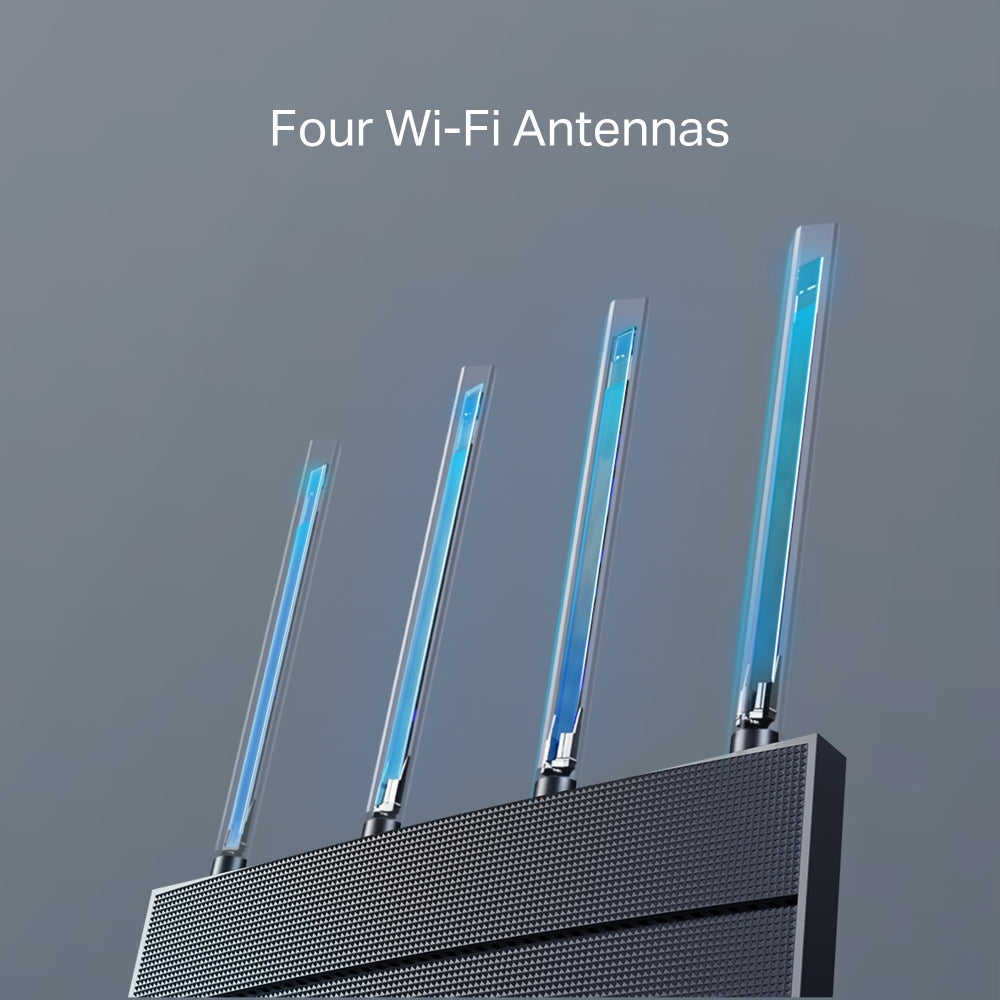

AC1350 Dual-Band Wi-Fi With Four External Antennas
The ER605W delivers 867 Mbps on 5 GHz and 450 Mbps on 2.4 GHz. Four 5 dBi external antennas plus a built-in 2.4 GHz antenna extend and concentrate the signal, and the router supports band steering, beamforming, airtime fairness, seamless roaming, guest networks and up to 8 SSIDs (4 per radio).

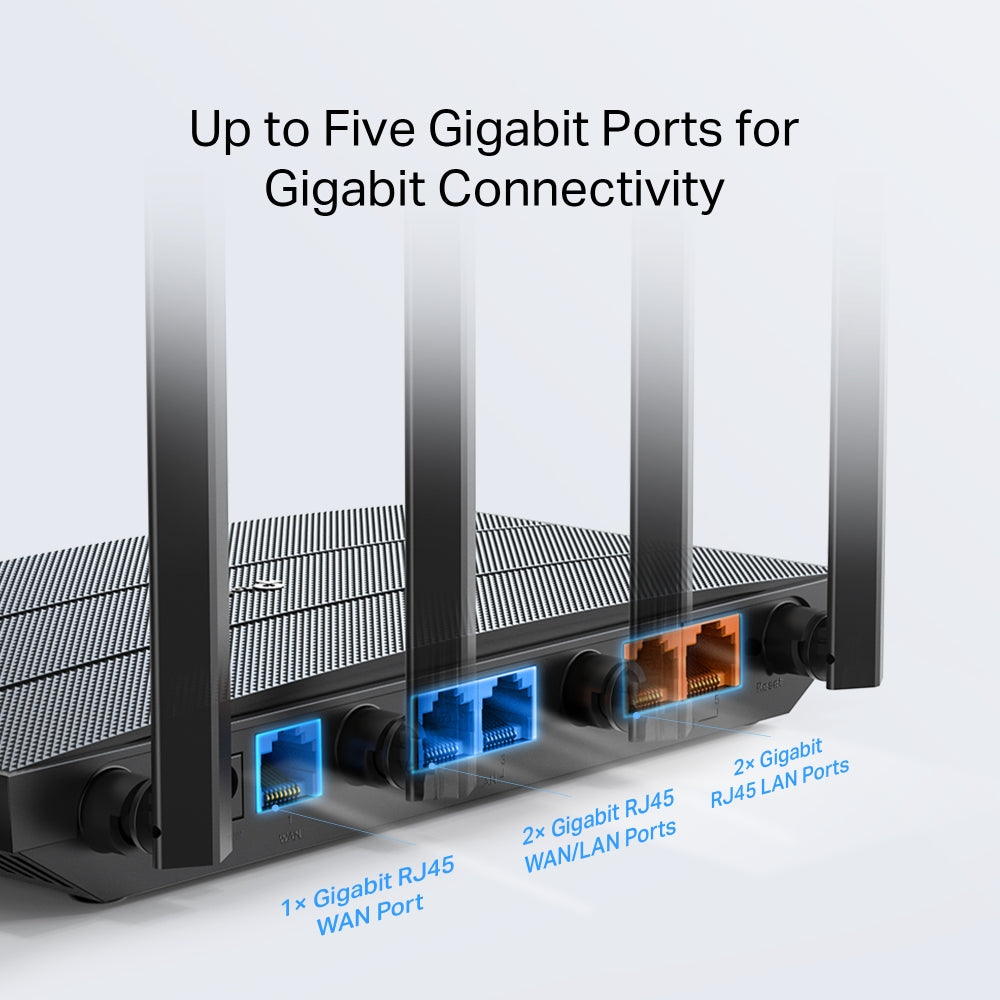

Five Gigabit Ports With Multi-WAN Load Balancing
1× Gigabit WAN, 2× Gigabit WAN/LAN and 2× Gigabit LAN ports allow up to three WAN connections. Intelligent load balancing, application-optimised routing and link backup (timing and failover) keep a small office online if one broadband line fails, with NAT throughput of around 940 Mbps.

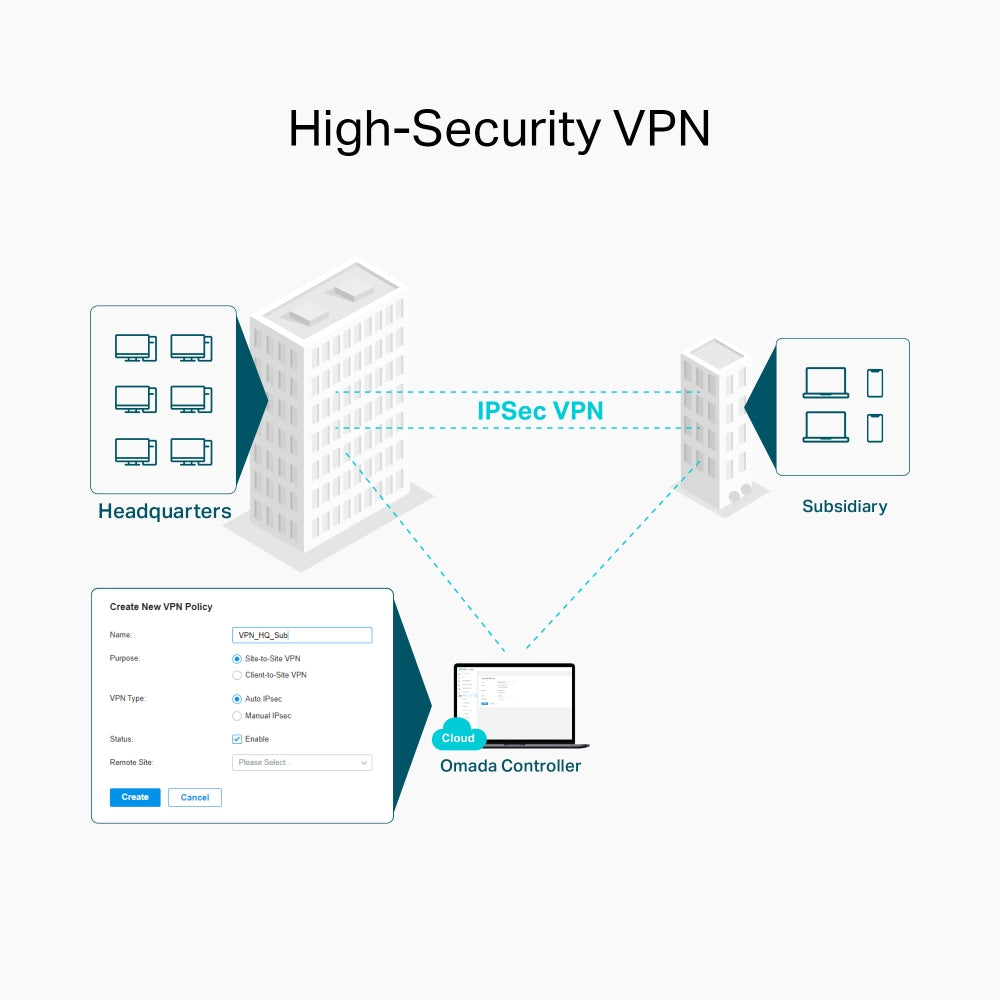

Site-to-Site and Remote-Access VPN
IPsec (3 tunnels), OpenVPN (18 tunnels), PPTP and L2TP (3 tunnels each) are supported, with the ER605W able to connect to up to three OpenVPN, PPTP or L2TP servers as a client. That is sized for a small branch linking back to head office plus a handful of remote workers.
Business-Grade Security Features
DoS defence against TCP/UDP/ICMP floods, TCP scan blocking, IP/MAC/URL filtering, IP-MAC binding and ARP inspection protect the network and data, alongside IP-based bandwidth control and session limits.

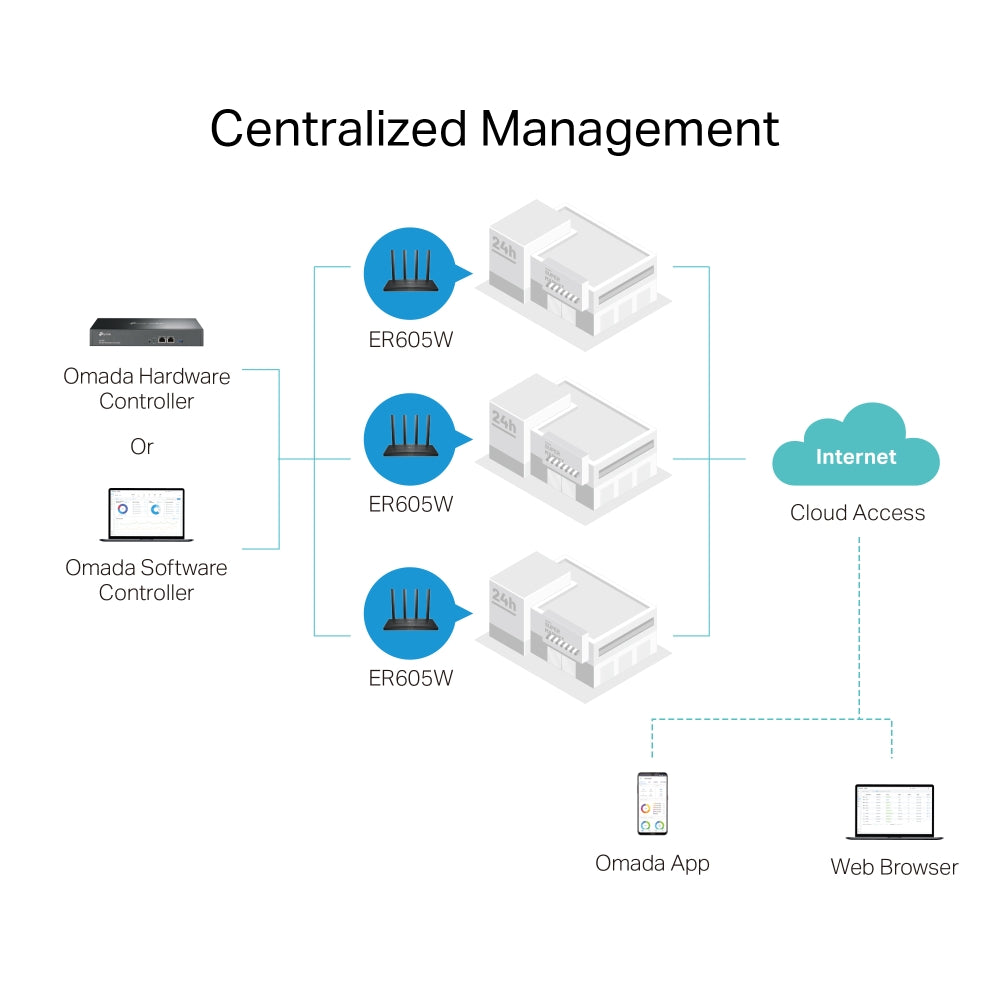

Centralised Omada Cloud Management
Adopt the ER605W into Omada Central, an OC200/OC300 Hardware Controller or the Software Controller to manage it with Omada switches and access points, use the Omada App, and provision new sites with Zero-Touch Provisioning through the Cloud-Based Controller.
Ideal For
Small offices, retail shops, clinics and branch sites that want a multi-WAN VPN router with built-in Wi-Fi under Omada cloud management. Supplied by SourceIT with local Singapore warranty, GST invoice and project pricing on request.
ER605W Datasheet — Technical Specifications
General
| Model | ER605W |
| Official Product Name | Omada AC1350 Gigabit VPN Router |
| Brand | TP-Link Omada |
| Warranty | 5 Years Local Warranty (Singapore) |
Hardware

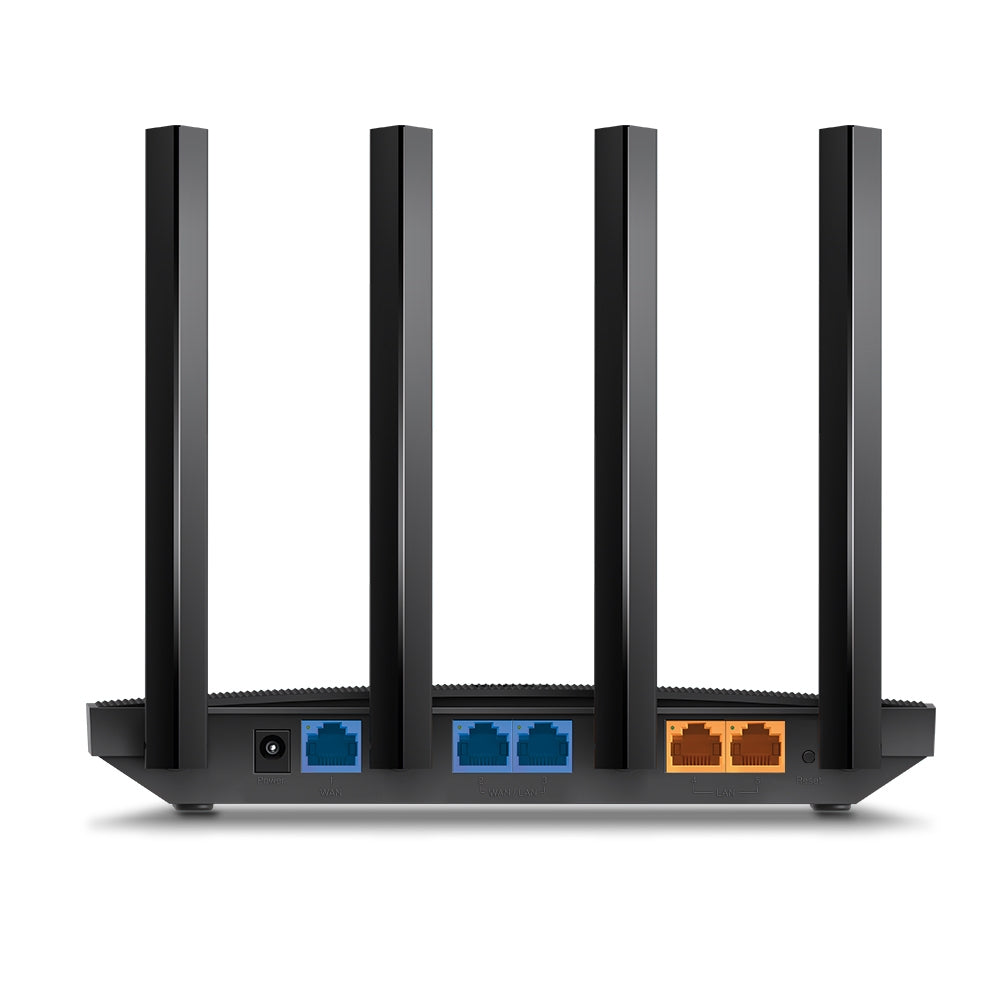

| Interface | 1× Gigabit WAN Port, 2× Gigabit WAN/LAN Ports, 2× Gigabit LAN Ports |
| Button | Reset Button |
| Power Supply | 12 V DC / 1 A Power Adapter |
| Flash | 16 MB NOR Flash |
| DRAM | 128 MB DDR2 |
| LED | Power, SYS, 2.4G, 5G, WAN (1000/100/10M Link/Act), WAN/LAN (1000/100/10M Link/Act) |
| Antenna | 2.4 GHz: 2× 5 dBi non-detachable antennas and 1 built-in antenna; 5 GHz: 2× 5 dBi non-detachable antennas |
| Dimensions (W × D × H) | 8.5 × 4.6 × 1.2 in (215 × 117 × 32 mm) |
| Mounting | Desktop / Wall-mounting |
| Max. Power Consumption | EU: 10 W; US: 12 W |
Wireless
| Wi-Fi Frequency & Signal Rate | 2.4 GHz: 450 Mbps; 5 GHz: 867 Mbps |
| Advanced Features | 8 SSIDs (4 per radio), Enable/Disable Wireless Radio and SSID Broadcast, Guest Network, Automatic Channel Selection, Transmit Power Control, Seamless Roaming, Beamforming, Rate Limit (SSID/Client), Load Balance, Airtime Fairness, Band Steering, RADIUS Accounting |
| Wireless Encryption | WPA/WPA2 Personal, WPA/WPA2 Enterprise |
Performance
| Concurrent Sessions | 20,000 |
| New Sessions / Second | 1,300 |
| NAT (Static IP) | 941.2 Mbps / 937.6 Mbps |
| NAT (DHCP) | 933.5 Mbps / 933.6 Mbps |
| NAT (PPPoE) | 919.2 Mbps / 931.9 Mbps |
| NAT (L2TP) | 333.2 Mbps / 387.4 Mbps |
| NAT (PPTP) | 304.2 Mbps / 473.2 Mbps |
| 66 Byte Packet Forwarding Rate | 1,453,489 pps / 1,453,488 pps |
| 1,518 Byte Packet Forwarding Rate | 81,274 pps / 81,275 pps |
| IPsec VPN Throughput | ESP-SHA1-AES256: 19.7 Mbps; ESP-SHA256-AES256: 17.5 Mbps; ESP-SHA384-AES256: 13.9 Mbps; ESP-SHA512-AES256: 13.9 Mbps |
| OpenVPN | 18.0 Mbps |
| L2TP VPN Throughput | Unencrypted: 307.7 Mbps; Encrypted: 9.8 Mbps |
| PPTP VPN Throughput | Unencrypted: 319.6 Mbps; Encrypted: 41.9 Mbps |
VPN
| IPsec VPN | 3 IPsec VPN tunnels; LAN-to-LAN, Client-to-LAN; Main/Aggressive negotiation; DES, 3DES, AES128/192/256; IKE v1/v2; MD5, SHA1, SHA2-384, SHA2-512; NAT-T; DPD; PFS |
| PPTP VPN | PPTP VPN Server; PPTP VPN Client (3); 3 tunnels; MPPE encryption |
| L2TP VPN | L2TP VPN Server; L2TP VPN Client (3); 3 tunnels; L2TP over IPSec |
| OpenVPN | OpenVPN Server; OpenVPN Client (3); 18 OpenVPN tunnels; Certificate + Account mode; Full mode |
Functions & Security
| WAN Connection Type | Static IP, Dynamic IP, PPPoE (supports MRU configuration), PPTP, L2TP |
| DHCP | DHCP Server, DHCPv6 PD Server (Standalone Mode), DHCP Options Customization, DHCP Address Reservation, Multi-IP Interfaces, Multi-Net DHCP |
| IPv6 | Static IP / SLAAC / DHCPv6 / PPPoE / 6to4 Tunnel / Pass-Through / Non-Address mode |
| VLAN / IPTV | 802.1Q VLAN; IGMP v2/v3 Proxy, Custom Mode, Bridge Mode |
| Advanced Routing | Static Routing, Policy Routing |
| Load Balance | Intelligent Load Balance, Application Optimized Routing, Link Backup (Timing, Failover), Online Detection |
| NAT | One-to-One NAT, Multi-Net NAT, Virtual Server, Port Triggering (Standalone Mode), NAT-DMZ, FTP/H.323/SIP/IPSec/PPTP ALG, UPnP |
| Access Control | Source/Destination IP Based Access Control |
| Filtering | Web Group Filtering (Standalone Mode), URL Filtering, Web Security (Standalone Mode) |
| Attack Defense | TCP/UDP/ICMP Flood Defense, Block TCP Scan (Stealth FIN/Xmas/Null), Block Ping from WAN |
| ARP Inspection | Sending GARP Packets, ARP Scanning (Standalone Mode), IP-MAC Binding |
| Web Authentication | No Authentication, Simple Password, Hotspot (Local User / Voucher / SMS / Radius), External Radius Server, External Portal Server (Controller Mode for Simple Password, Voucher, SMS, Radius and External Portal); LDAP not supported in Standalone Mode |
Management
| Centralized Management | Omada Cloud-Based Controller, Omada Hardware Controller (OC300 / OC200), Omada Software Controller |
| Omada App / Cloud Access | Yes |
| Zero-Touch Provisioning | Yes — requires the Omada Cloud-Based Controller |
| Service | Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization) |
| Maintenance | Web Management Interface, Remote Management, Export & Import Configuration, Diagnostics (Ping & Traceroute, Standalone Mode), NTP Synchronize (Standalone Mode), Port Mirroring, Syslog |
| Management Features | Automatic Device Discovery, Intelligent Network Monitoring, Abnormal Event Warnings, Unified Configuration, Reboot Schedule, Captive Portal Configuration |
Environment & Certification
| Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Storage Temperature | -40 °C to 70 °C (-40 °F to 158 °F) |
| Operating Humidity | 10% to 90% non-condensing |
| Storage Humidity | 5% to 90% non-condensing |
| Certification | CE, FCC |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8/8.1/10/11, MAC OS, NetWare, UNIX or Linux |
Wi-Fi class and rates are as published on TP-Link's Singapore product page (AC1350: 450 Mbps on 2.4 GHz + 867 Mbps on 5 GHz). Some distributor listings describe the ER605W as AC1200 (300 + 867 Mbps); confirm the hardware version on order if the 2.4 GHz rate matters.
Compatibility & Software Support
The ER605W is part of the Omada ecosystem: gateways, switches and access points are managed together from one controller, under one set of policies, with one view of the network. Cloud and app features listed below require the device to be adopted into an Omada Controller.
| Omada SDN Controller | Supported — adopt and manage centrally from Omada Central (Cloud-Based Controller), the Omada Hardware Controller or the Omada Software Controller |
| Omada App | Supported — remote management from iOS and Android |
| Omada Cloud Access | Supported — requires adoption into an Omada Controller |
| Standalone Mode | Supported — the gateway can also be configured on its own via its web interface |
| Zero-Touch Provisioning | Supported — requires the Omada Cloud-Based Controller |
Package Contents & Ordering Information
What’s in the Box
| Package Contents | ER605W, Power Adapter, Quick Installation Guide |
Ordering Information
| Model | ER605W |
| Recommended Retail Price (incl. GST) | S$203.00 |
Datasheet & Downloads
Frequently Asked Questions — ER605W
Does the ER605W need an Omada Controller?
No. The ER605W runs standalone through its own web interface. Adopting it into an Omada Software, Hardware or Cloud-Based Controller is what unlocks central configuration, monitoring, firmware management and cloud/app access across every Omada device on site.
What warranty does SourceIT provide?
Five years local Singapore warranty. Every ER605W sold by SourceIT comes with a GST invoice.
Is stock held locally?
SourceIT holds fast-moving Omada lines in Singapore. Anything not in local stock is brought in on indent — ask us for the current lead time before committing to a project date.
Is this model available for project orders?
Yes. TP-Link supplies this model for project deployments; contact SourceIT with your bill of materials for pricing and lead time.
Can SourceIT quote this for a project or tender?
Yes. Send the bill of materials and we will quote the whole Omada build — controller, gateway, switching, access points and optics — with local warranty and support.
