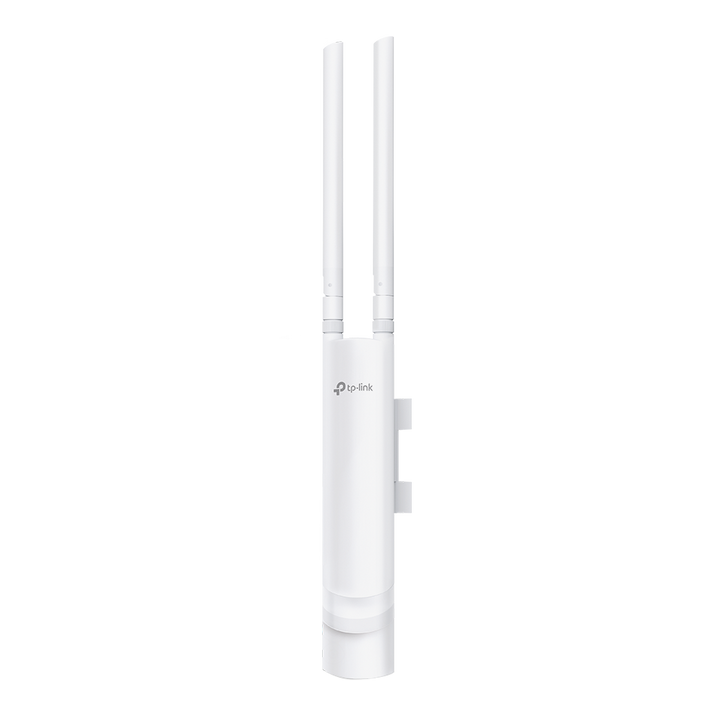

TP-Link Omada AC1200 MU-MIMO Gigabit Indoor/Outdoor Access Point

TP-Link Omada AC1200 Wireless MU-MIMO Gigabit Indoor/Outdoor Access Point (EAP225-Outdoor) - 5 Years Local Warranty

The EAP225-Outdoor is Omada's AC1200 dual-band access point in an IP65 weatherproof housing, rated from -30 °C to 70 °C and supplied with pole and wall mounting kits plus a 24V passive PoE adapter. It is the practical choice for covering car parks, courtyards, covered walkways, worksites and outdoor F&B seating from an existing Omada network.

IP65 Weatherproofing Rated Well Beyond Singapore Conditions

The enclosure carries an IP65 rating against dust and water jets, and TP-Link specifies an operating range of -30 °C to 70 °C — comfortably beyond anything a Singapore rooftop, loading bay or poolside will present. Pole and wall mounting kits are included in the box, so the unit can be strapped to a lamp column or fixed to a facade without buying a separate bracket. At 215 x 46 x 27 mm it is slim enough to sit unobtrusively on a wall.

AC1200 Dual-Band with MU-MIMO and Airtime Fairness

Two 3 dBi antennas on 2.4 GHz and two 4 dBi antennas on 5 GHz drive up to 867 Mbps on 5 GHz and up to 300 Mbps on 2.4 GHz. MU-MIMO serves multiple clients simultaneously, and airtime fairness stops a single slow legacy device from monopolising the radio — which matters outdoors, where clients are often at the edge of range and negotiating low data rates. Omada rates the unit for 220+ concurrent clients.

Powered Over 802.3af or the Included Passive PoE Adapter

The single Gigabit RJ-45 port accepts both 802.3af PoE and 24V passive PoE, and a passive PoE adapter is supplied in the box. That means the access point can be deployed either from an existing PoE switch or from a mains outlet at the near end of the cable run, which is useful when the outdoor unit sits well away from the comms room. Maximum consumption is 10.5 W.

Captive Portal, VLAN Segmentation and Rogue AP Detection

Up to 16 SSIDs (eight per band) can be mapped to separate VLANs, so a public outdoor guest network is kept clear of operational traffic such as car park barriers or outdoor cameras. Captive portal authentication onboards visitors, wireless isolation prevents client-to-client access, and MAC address filtering, 802.1X and rogue AP detection complete the security picture. Rate limiting keeps the public SSID from consuming the site's bandwidth.

Seamless Roaming Between Indoor and Outdoor Coverage

Adopted into an Omada Cloud-Based Controller, OC300, OC200 or the Omada Software Controller, the EAP225-Outdoor becomes part of the same wireless network as the indoor ceiling and wall units — same SSIDs, same policies, same portal — so staff and guests move from inside to the courtyard without reconnecting. Zero-touch provisioning through the Cloud-Based Controller, L3 and multi-site management, email alerts, SNMP v1/v2c, syslog and SSH are supported.

Ideal For

Car parks, condominium grounds, school fields, worksites, outdoor dining areas and covered walkways in Singapore that need dual-band coverage tied into an existing Omada network. Supplied by SourceIT with local Singapore warranty, GST invoice and project pricing on request.
