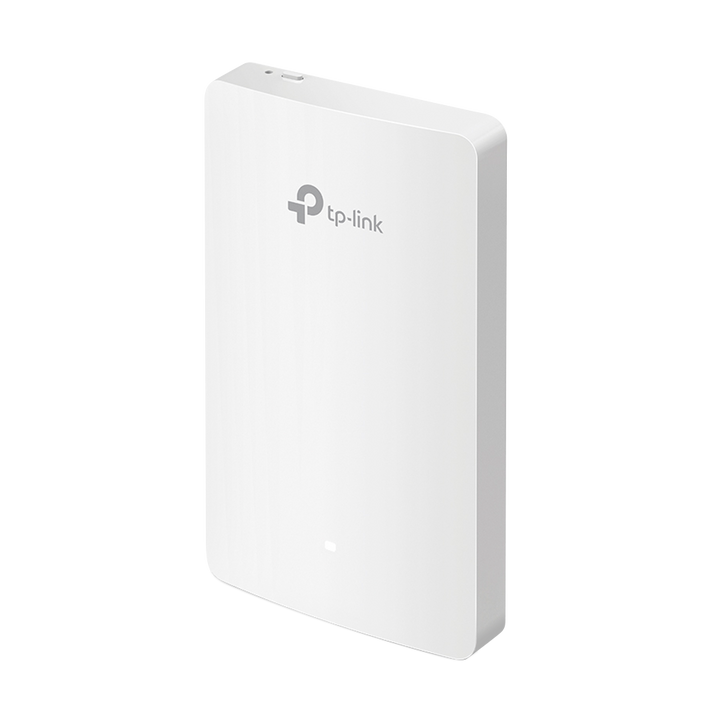

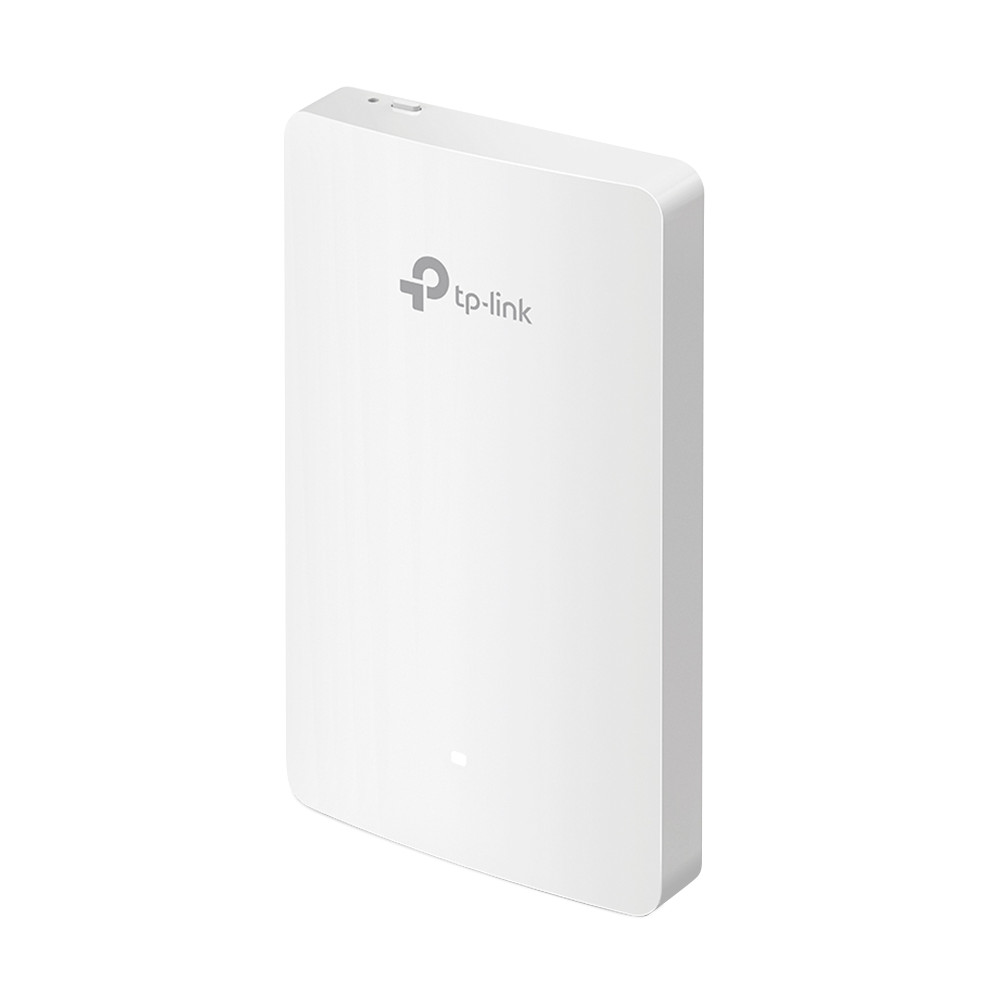

TP-Link Omada AC1200 Wall-Plate Access Point with 3 Gigabit Downlink Ports

TP-Link Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point (EAP235-Wall) - 5 Years Local Warranty

The EAP235-Wall replaces a standard wall outlet with an AC1200 dual-band access point and a three-port Gigabit switch, one of which delivers PoE out. It is built for hotel rooms, serviced apartments, dormitories and clinic consultation rooms, where each room needs its own Wi-Fi coverage plus wired ports for a TV, IP phone or desk PC — without running additional cabling.

One Wall Plate, Wi-Fi and Three Wired Ports

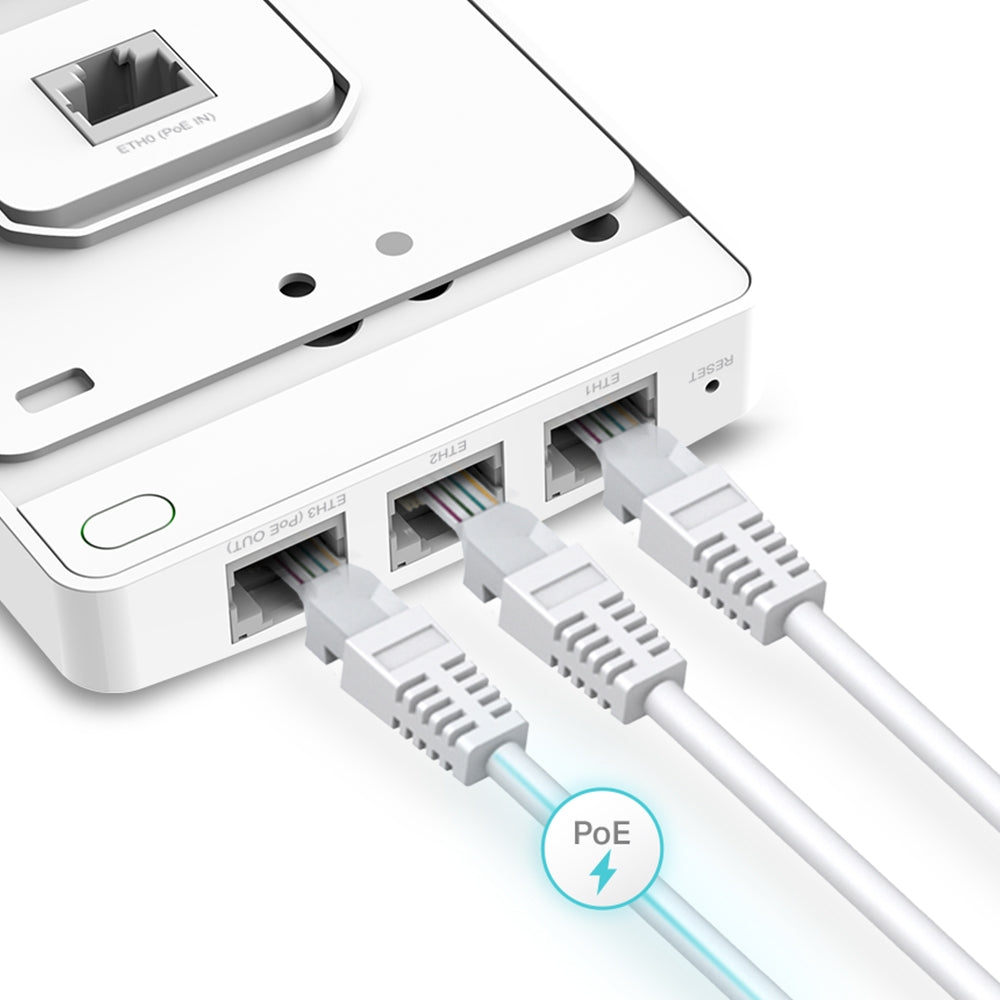

Where a ceiling access point only serves wireless clients, the EAP235-Wall provides both. A single uplink 10/100/1000 Mbps port carries data and PoE power to the unit, and three 10/100/1000 Mbps downlink ports sit on the faceplate for wired devices in the room. That means the in-room TV, the IP phone and a desk PC all connect back through the same cable run that feeds the access point, which is what makes per-room deployment affordable in a retrofit.

PoE Passthrough Powers a Second Device

One of the three downlink ports supports PoE passthrough, delivering up to 13 W when the access point itself is fed from an 802.3at source. In practice that powers an in-room IP phone, a small IP camera or a door-entry panel directly from the wall plate, with no local power brick and no second cable back to the comms room. Total draw is 9.8 W for the access point alone, or 24.4 W with PoE out included, so the upstream switch port should be sized for the higher figure.

AC1200 Dual-Band Wi-Fi with MU-MIMO and Beamforming

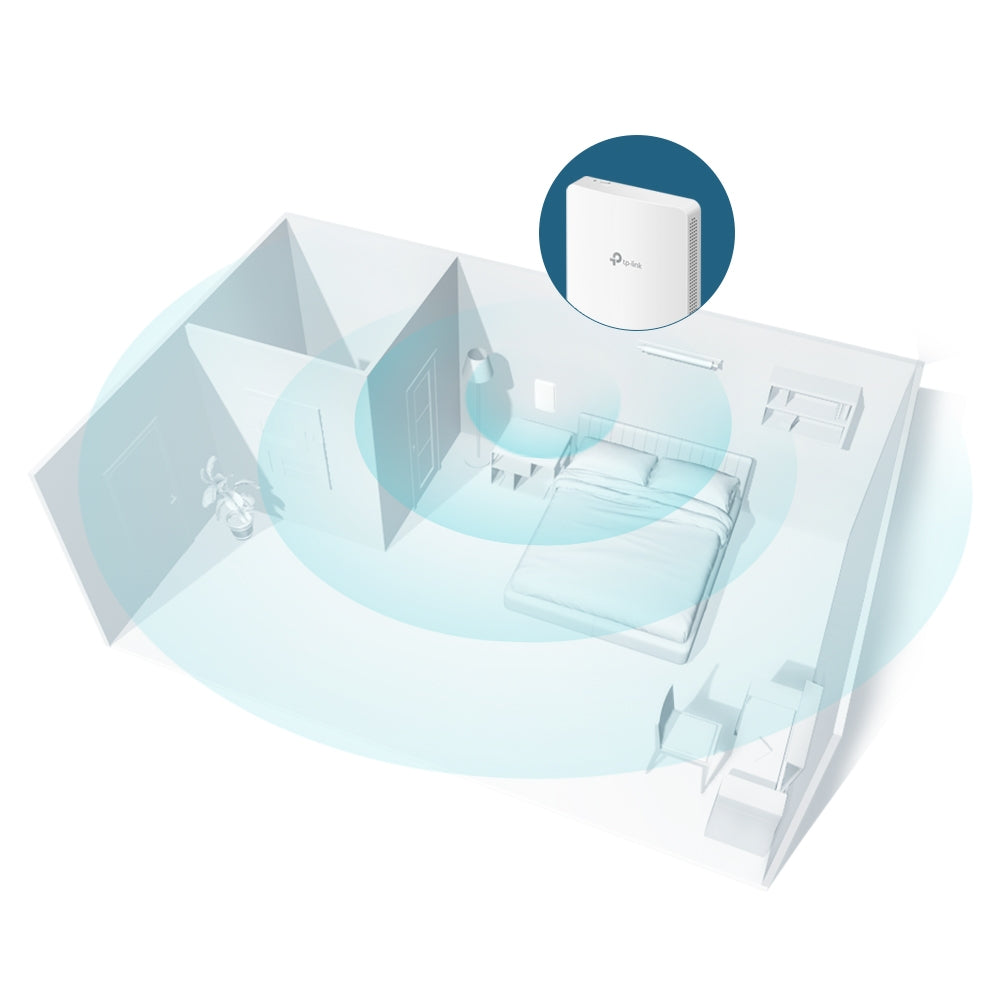

The EAP235-Wall runs 867 Mbps on 5 GHz and 300 Mbps on 2.4 GHz across two dual-band 4 dBi antennas, with MU-MIMO serving multiple clients simultaneously rather than in turn. Band steering pushes capable devices onto 5 GHz, and beamforming focuses signal toward connected clients. Omada rates it at 25 m² (300 ft²) and 200+ concurrent clients, which suits the small, enclosed space each unit is meant to cover.

Segmentation, Captive Portal and Rogue AP Detection

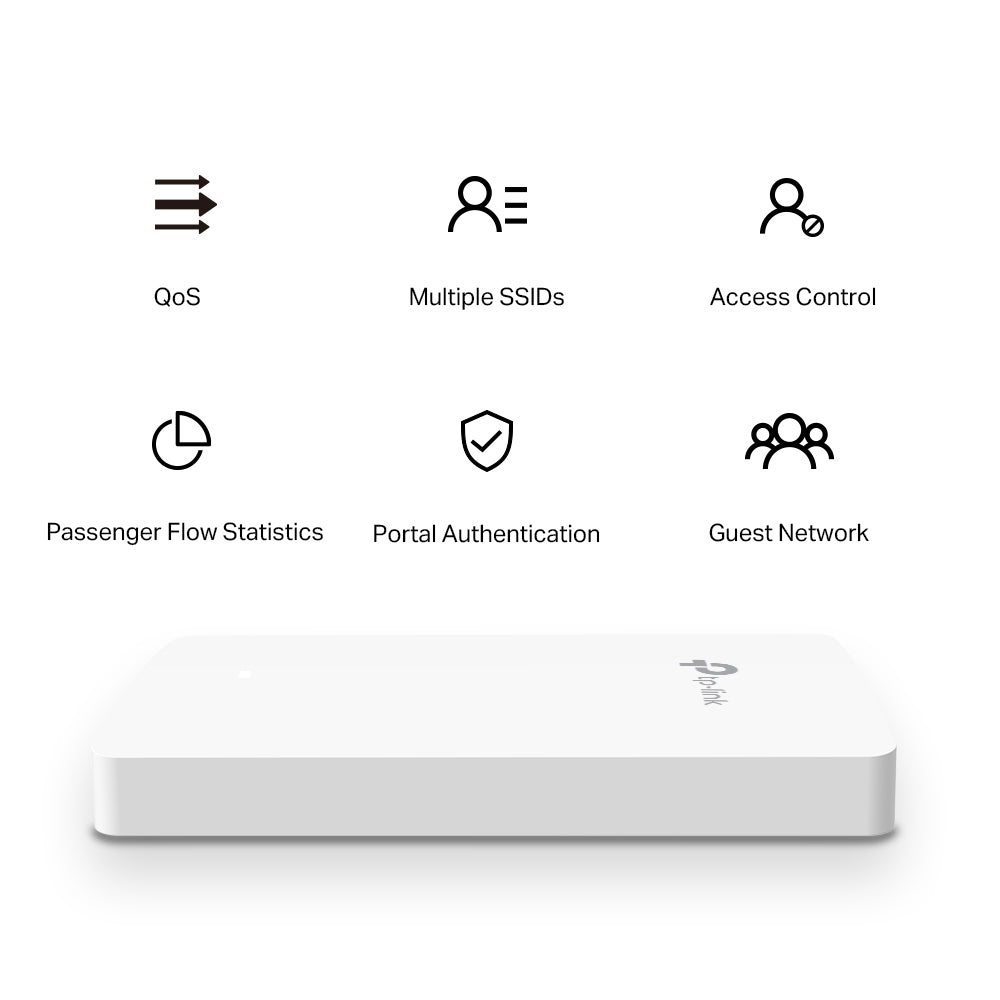

Guest networks need separation as much as coverage. The EAP235-Wall supports 16 SSIDs (up to eight per band), SSID-to-VLAN mapping and local LAN port VLAN, so the guest Wi-Fi, the in-room TV port and staff access can all sit on different VLANs from the same faceplate. Captive portal authentication, wireless client isolation, MAC filtering, 802.1X and rogue AP detection round out the security set, and WPA/WPA2-Enterprise is supported for corporate deployments.

Managed Centrally Under Omada SDN

Every unit can be adopted into an Omada Cloud-Based Controller, OC300, OC200 or the Omada Software Controller, so a hundred rooms are configured, monitored and updated as one estate rather than one faceplate at a time. Zero-touch provisioning through the Cloud-Based Controller means a replacement unit can be posted to site and adopted remotely. L3 management, multi-site management, email alerts, SNMP v1/v2c, syslog and the Omada app are all supported.

Ideal For

Hotels, serviced apartments, student accommodation, hospitals and clinics in Singapore that need per-room Wi-Fi plus wired ports from a single wall plate, and integrators standardising on Omada SDN. Supplied by SourceIT with local Singapore warranty, GST invoice and project pricing on request.
