TP-Link Omada 8-Port Gigabit L2+ Managed Switch with 2 SFP Slots
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
TP-Link Omada 8-Port Gigabit L2+ Managed Switch with 2 SFP Slots (SG3210) - 5 Years Local Warranty

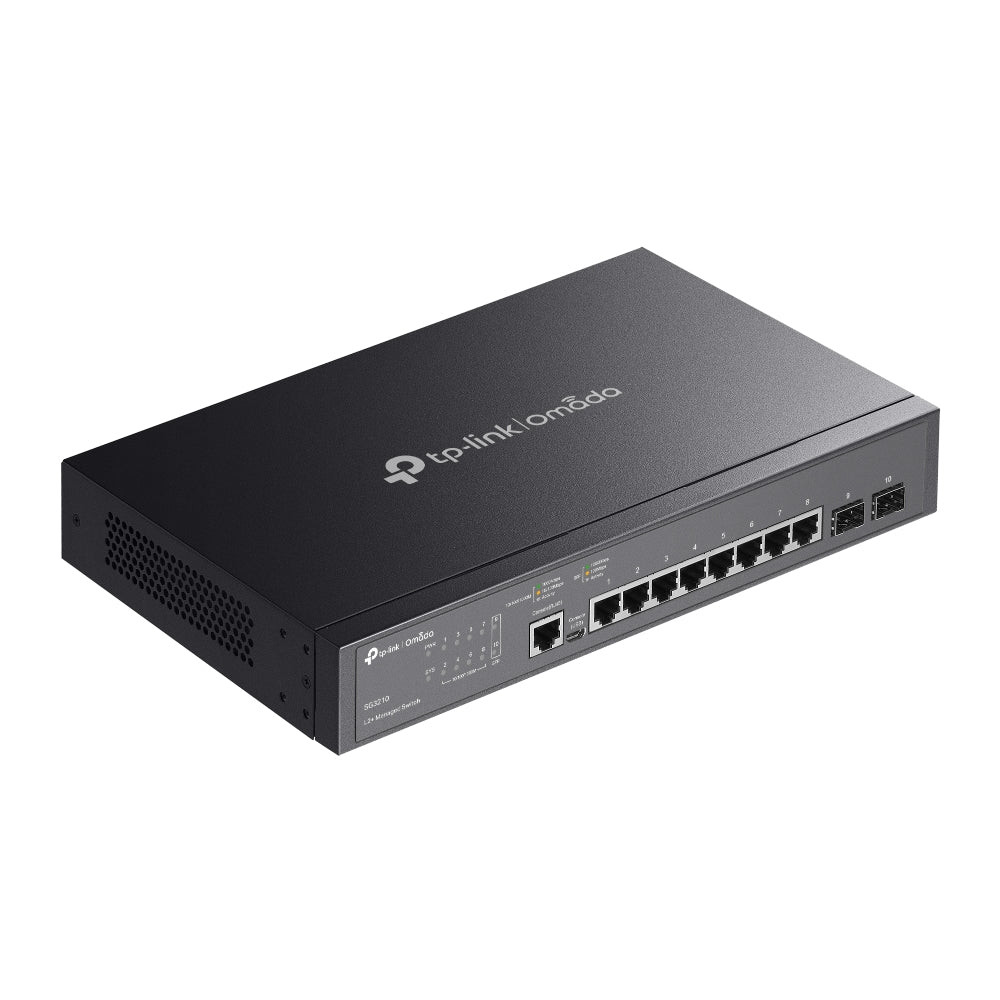

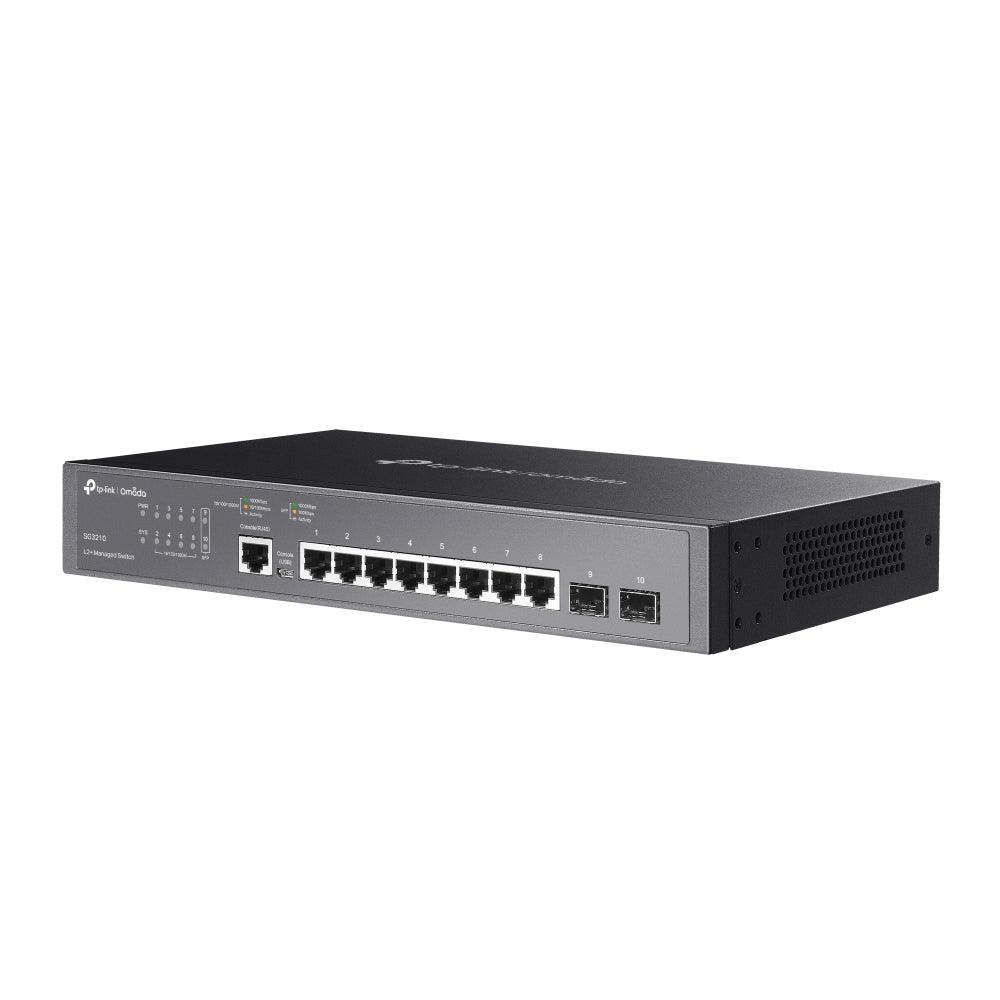

The SG3210 (also listed by TP-Link as TL-SG3210) is Omada's 8-port Gigabit L2+ managed switch with two SFP slots — a compact, fanless access switch for branch offices, retail outlets and wiring closets that need proper VLAN, ACL and security features plus fibre uplinks. It runs standalone via web, CLI, SNMP and RMON, or as part of an Omada SDN network managed from the cloud or the Omada App.
Eight Gigabit Ports and Two SFP Slots for Fibre Uplinks

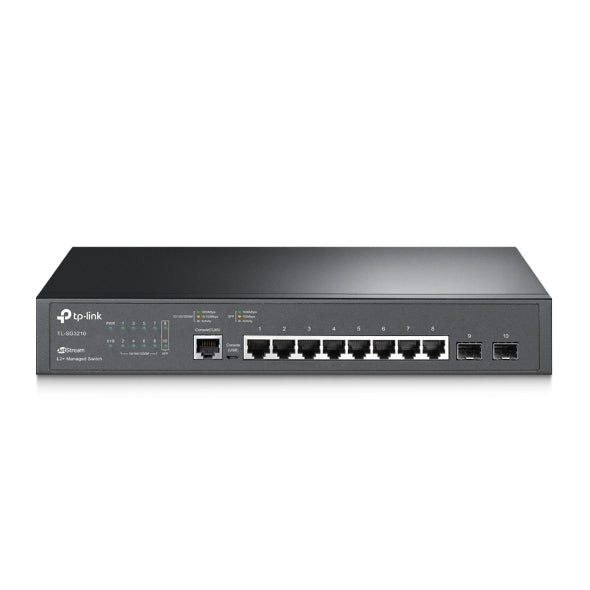

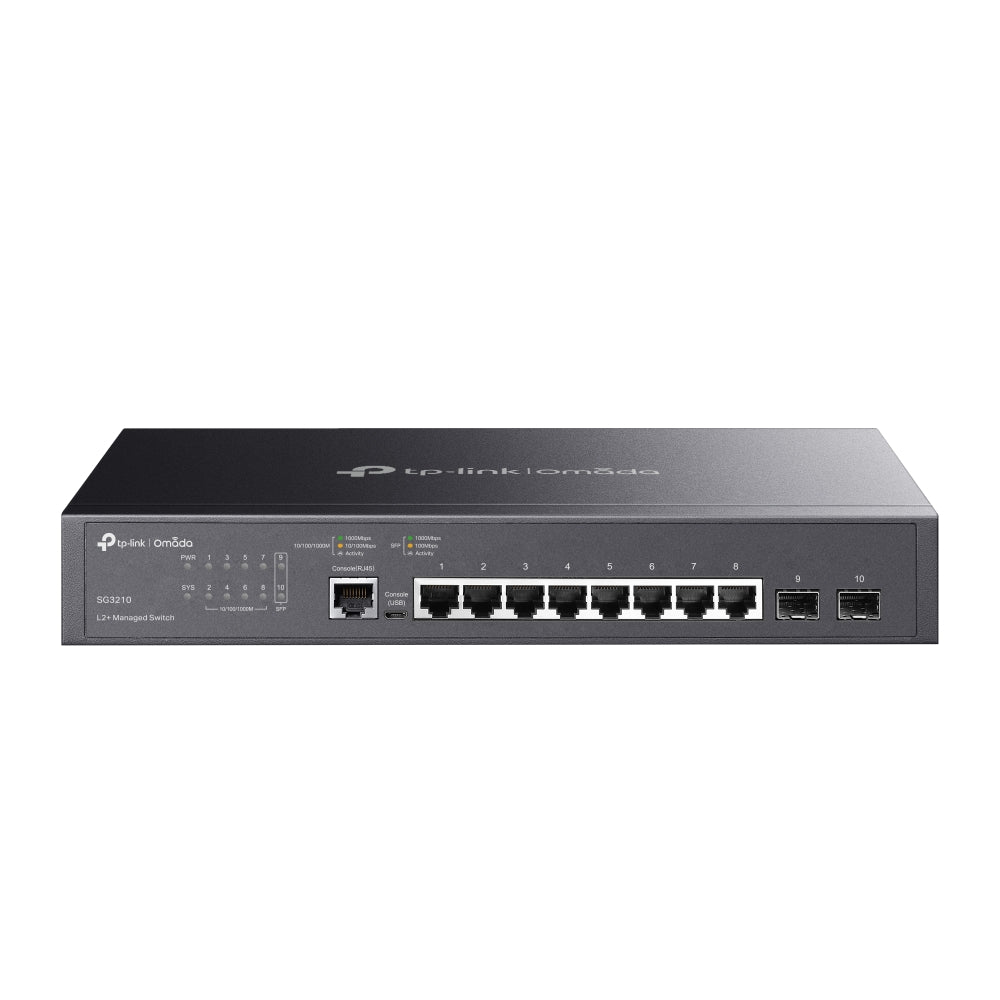

The SG3210 provides 8× 10/100/1000 Mbps RJ45 ports and 2× 100/1000 Mbps SFP slots, with both an RJ45 and a Micro-USB console port for out-of-band access. Switching capacity is 20 Gbps with a 14.89 Mpps forwarding rate, an 8K MAC address table, 4.1 Mbit packet buffer and 9 KB jumbo frames — non-blocking for its ten ports. The SFP slots let a remote closet or floor link back to the core over fibre, or create a redundant pair of uplinks.
L2+ Static Routing Keeps Inter-VLAN Traffic Local
Beyond L2 switching, the SG3210 supports 32 IPv4/IPv6 interfaces and 48 static routes, plus static ARP (128 entries), proxy ARP, DHCP server and DHCP relay. That lets a site route between its own VLANs on the switch instead of hair-pinning every packet through the gateway, which TP-Link positions as routing internal traffic for higher efficiency.
Comprehensive Security: 802.1X, ACLs and IP-MAC-Port Binding
Access control covers 802.1X (port- and MAC-based, VLAN assignment, MAB, guest VLAN), RADIUS and TACACS+ AAA, time-based MAC/IP/IPv6 ACLs, IP-MAC-Port Binding with DHCP Snooping and ARP Inspection, IPv6 ND detection and source guard, DoS defence, port security up to 64 MACs per port, storm control and port isolation. Management access is protected with HTTPS (SSLv3/TLS 1.2) and SSHv1/v2.
ERPS, OAM and DDM for Resilient, Diagnosable Links
ERPS provides rapid protection and recovery in a ring topology, while 802.3ah Ethernet Link OAM, DLDP and DDM help detect failing fibre links and SFP modules before they cause outages. ISP-oriented features — L2PT, PPPoE ID insertion and QinQ (port-based and selective) — are also available, configured in standalone mode.
Omada SDN Cloud Management or Standalone CLI/SNMP
Adopted into an Omada Cloud-Based, Hardware or Software Controller, the SG3210 gains automatic device discovery, batch configuration and firmware upgrades, intelligent network monitoring, abnormal event warnings and reboot schedules, with remote access through the Omada App and Zero-Touch Provisioning via the Cloud-Based Controller. It is fanless for silent operation, draws a maximum of 6.84 W, and ships with a rackmount kit and rubber feet for rack or desktop installation.
Ideal For
Singapore SMBs, branch offices, retail chains, schools and managed-service providers that want an 8-port managed access switch with fibre uplinks, L2+ routing and enterprise-grade security, managed centrally alongside Omada gateways and access points. Supplied by SourceIT with local Singapore warranty, GST invoice and project pricing on request.
SG3210 Datasheet — Technical Specifications
General
| Model | SG3210 (TL-SG3210) |
| Official Product Name | Omada 8-Port Gigabit L2+ Managed Switch with 2 SFP Slots |
| Brand | TP-Link Omada |
| Warranty | 5 Years Local Warranty (Singapore) |
Hardware Features
| Interface | 8× 10/100/1000 Mbps RJ45 Ports (Auto-Negotiation/Auto MDI/MDIX), 2× 100/1000 Mbps SFP Slots, 1× RJ45 Console Port, 1× Micro-USB Console Port |
| Fan Quantity | Fanless |
| Physical Security Lock | Yes |

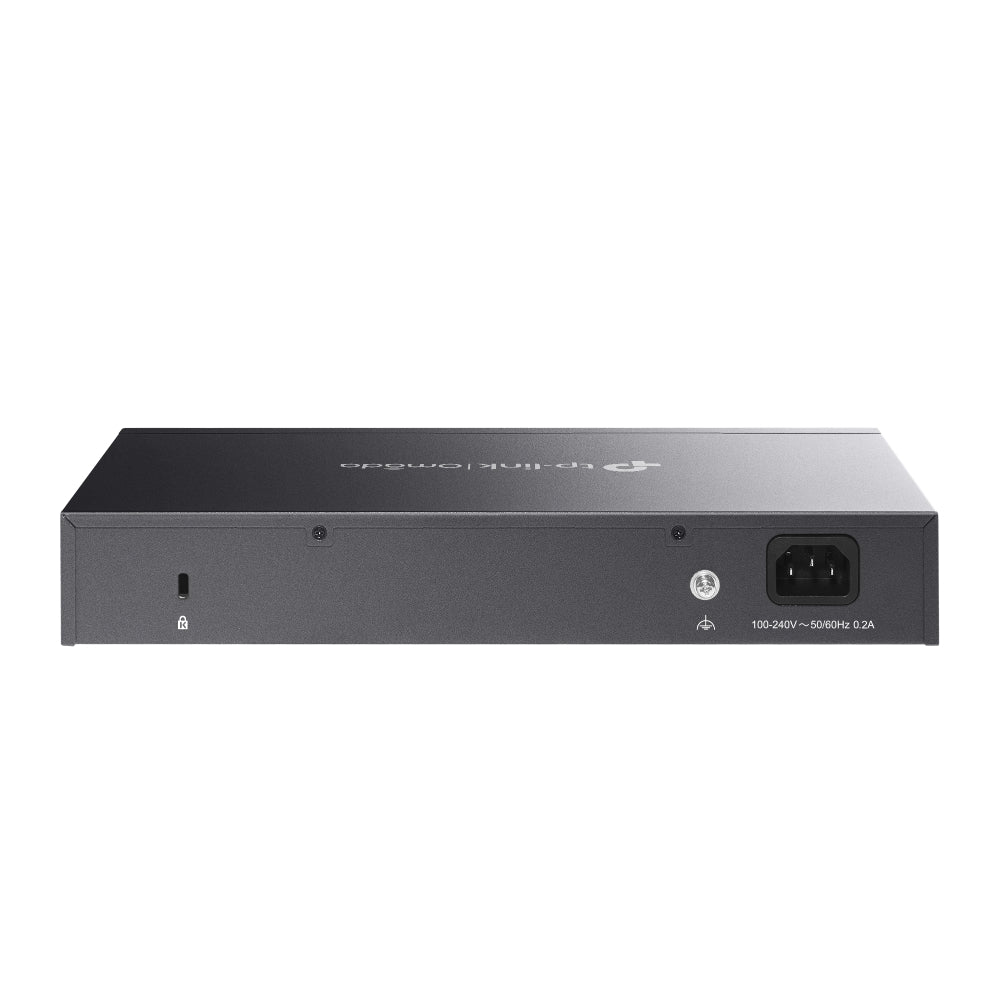

| Power Supply | 100–240 V AC, 50/60 Hz |
| Dimensions (W × D × H) | 11.6 × 7.1 × 1.7 in (294 × 180 × 44 mm) |
| Surge Protection | ±6 kV |
| Mounting | Rack Mountable / Desktop |
| Max. Power Consumption | 6.84 W (220 V/50 Hz) |
| Max. Heat Dissipation | 23.33 BTU/h (220 V/50 Hz) |
Performance
| Packet Buffer Memory | 4.1 Mbit |
| Jumbo Frame | 9 KB |
| Switching Capacity | 20 Gbps |
| Packet Forwarding Rate | 14.89 Mpps |
| MAC Address Table | 8K |
Software Features
| Quality of Service | 8 priority queues; 802.1p CoS/DSCP priority; Queue scheduling: SP, WRR, SP+WRR; Bandwidth Control: Port/Flow based Rate Limiting; Smoother Performance; Action for Flows: QoS remark (802.1P Remark, DSCP Remark) |
| L2 and L2+ Features | 32 IP Interfaces (IPv4/IPv6); Static Routing: 48 IPv4/IPv6 Static Routes; Static ARP: 128 static entries; 316 ARP Entries; Proxy ARP; Gratuitous ARP; DHCP Server; DHCP Relay (Interface Relay, VLAN Relay); DHCP L2 Relay; Link Aggregation; Spanning Tree Protocol; Loopback Detection; 802.3x Flow Control; Mirroring |
| L2 Multicast | 511 (IPv4, IPv6) IGMP groups; IGMP Snooping; IGMP Authentication; Multicast VLAN Registration (MVR); MLD Snooping; Multicast Filtering: 256 profiles and 16 entries per profile |
| Advanced Features | Automatic Device Discovery†; Batch Configuration†; Batch Firmware Upgrading†; Intelligent Network Monitoring†; Abnormal Event Warnings†; Unified Configuration†; Reboot Schedule†; ISP Features*: L2PT, DLDP, PPPoE ID Insertion; ERPS; 802.3ah Ethernet Link OAM; DDM |
| VLAN | Max 4K VLAN Groups; 802.1Q Tagged VLAN; MAC VLAN: 12 Entries; Protocol VLAN: Protocol Template 16, Protocol VLAN 16; Private VLAN; GVRP; VLAN VPN (QinQ): Port-Based QinQ, Selective QinQ; Voice VLAN |
| Access Control List | Time-based ACL; MAC ACL; IP ACL; Combined ACL; Packet Content ACL; IPv6 ACL; Policy: Mirroring, Redirect, Rate Limit, QoS Remark; ACL apply to Port/VLAN |
| Security | IP-MAC-Port Binding (512 Entries, DHCP Snooping, ARP Inspection, IPv4 Source Guard: 100 Entries); IPv6-MAC-Port Binding (512 Entries, DHCPv6 Snooping, ND Detection, ND Snooping, IPv6 Source Guard: 100 Entries); DoS Defend; DHCP Filter; Static/Dynamic Port Security (up to 64 MAC addresses per port); Broadcast/Multicast/Unicast Storm Control; 802.1X (Port-based, MAC-based, VLAN Assignment, MAB, Guest VLAN, RADIUS); AAA (including TACACS+); Port Isolation; HTTPS with SSLv3/TLS 1.2; SSHv1/SSHv2; IP/Port/MAC-based access control |
| IPv6 | Dual IPv4/IPv6; MLD Snooping; IPv6 ACL; IPv6 Interface; Static IPv6 Routing; IPv6 neighbor discovery (ND); Path MTU discovery; ICMPv6; TCPv6/UDPv6; IPv6 applications: DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP |
| MIBs | MIB II (RFC1213); Bridge MIB (RFC1493); P/Q-Bridge MIB (RFC2674); Radius Accounting Client MIB (RFC2620); Radius Authentication Client MIB (RFC2618); Remote Ping, Traceroute MIB (RFC2925); TP-Link private MIBs; RMON MIB (RFC1757, rmon 1,2,3,9) |
Management Features
| Omada App | Yes. Requires Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller |
| Centralized Management | Omada Cloud-Based Controller; Omada Hardware Controller; Omada Software Controller |
| Cloud Access | Yes. Requires Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller |
| Zero-Touch Provisioning | Yes. Requires Omada Cloud-Based Controller |
| Management Features | Web-based GUI; CLI through console port, telnet; SNMPv1/v2c/v3 (Trap/Inform, RMON 1, 2, 3, 9 groups); SDM Template; DHCP/BOOTP Client; 802.1ab LLDP/LLDP-MED; DHCP AutoInstall; Dual Image, Dual Configuration; CPU Monitoring; Cable Diagnostics; EEE; Password Recovery; SNTP; System Log |
Others
| Certification | CE, FCC |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8/10/11, MAC OS, NetWare, UNIX or Linux |
| Operating Temperature | 0–45 °C (32–113 °F) |
| Storage Temperature | -40–70 °C (-40–158 °F) |
| Operating Humidity | 10–90% RH non-condensing |
| Storage Humidity | 5–90% RH non-condensing |
| Package Contents | SG3210 Switch, Power Cord, Quick Installation Guide, Rackmount Kit, Rubber Feet |
†These functions require the use of the Omada SDN Controller. Zero-Touch Provisioning requires the use of the Omada Cloud-Based Controller. *ISP features can only be configured in standalone mode.
Compatibility & Software Support
The SG3210 is part of the Omada ecosystem: gateways, switches and access points are managed together from one controller, under one set of policies, with one view of the network. Cloud and app features listed below require the device to be adopted into an Omada Controller.
| Omada SDN Controller | Supported — adopt and manage centrally from the Omada Software Controller, Hardware Controller or Cloud-Based Controller |
| Omada App | Supported — remote management from iOS and Android (requires a controller) |
| Omada Cloud Access | Supported — requires an Omada controller |
| Zero-Touch Provisioning | Supported with the Omada Cloud-Based Controller |
| Standalone Mode | Supported — web GUI, CLI (console/telnet/SSH), SNMP and RMON; ISP features are configured in standalone mode |
Package Contents & Ordering Information
What’s in the Box
| Package Contents | SG3210 Switch, Power Cord, Quick Installation Guide, Rackmount Kit, Rubber Feet (SFP modules sold separately) |
Ordering Information
| Model | SG3210 |
| Recommended Retail Price (incl. GST) | S$295.00 |
Datasheet & Downloads
Frequently Asked Questions — SG3210
Does the SG3210 need an Omada Controller?
No. The SG3210 runs standalone through its web GUI, CLI and SNMP. Adopting it into an Omada Software, Hardware or Cloud-Based Controller is what unlocks central configuration, monitoring, batch firmware management and cloud/app access across every Omada device on site.
Is the SG3210 the same switch as the TL-SG3210?
TP-Link's product page lists the model as "SG3210 (TL-SG3210)". Check the hardware version on the label if you are matching units to an existing installation.
What warranty does SourceIT provide?
Five years local Singapore warranty. Every SG3210 sold by SourceIT comes with a GST invoice.
Is stock held locally?
SourceIT holds fast-moving Omada lines in Singapore. Anything not in local stock is brought in on indent — ask us for the current lead time before committing to a project date.
Can SourceIT quote this for a project or tender?
Yes. Send the bill of materials and we will quote the whole Omada build — controller, gateway, switching, access points and optics — with local warranty and support.
