TP-Link Omada 8-Port Gigabit Industrial Easy Managed Switch
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
TP-Link Omada 8-Port Gigabit Industrial Easy Managed Switch (IES208G) - 5 Years Local Warranty

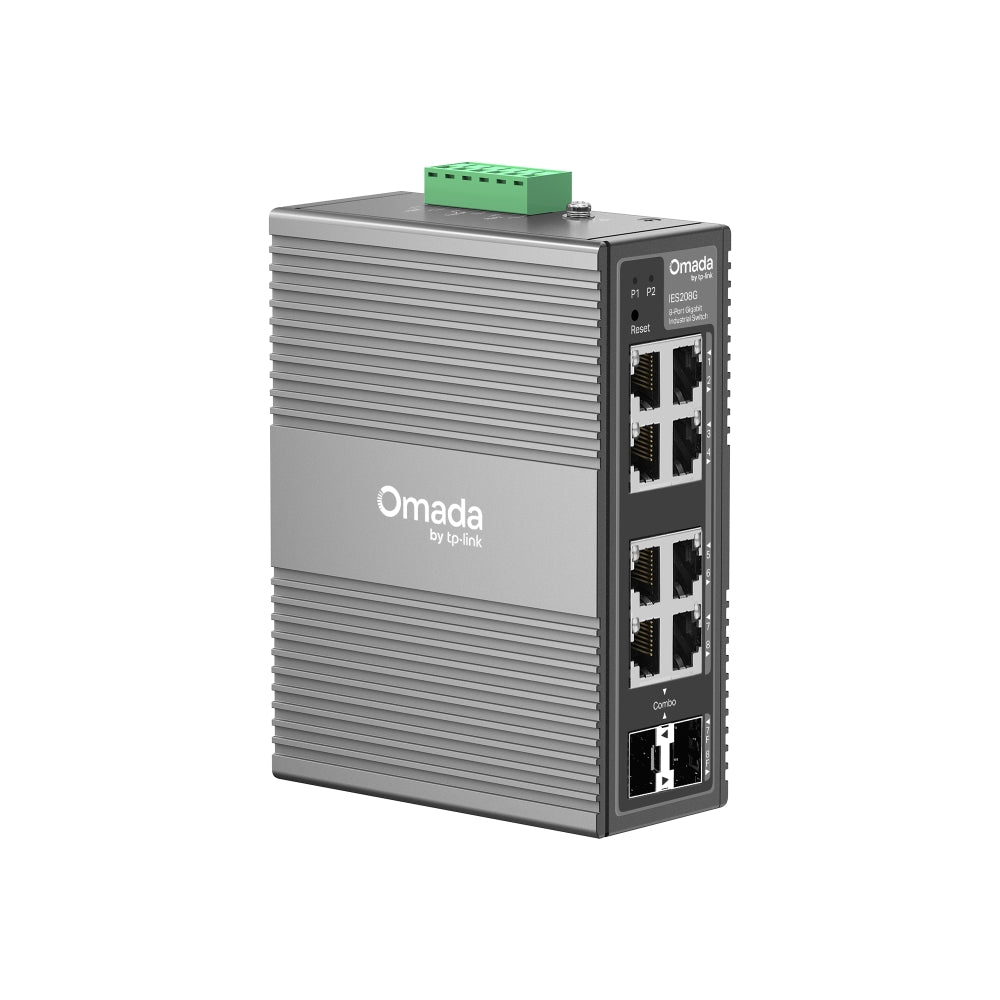

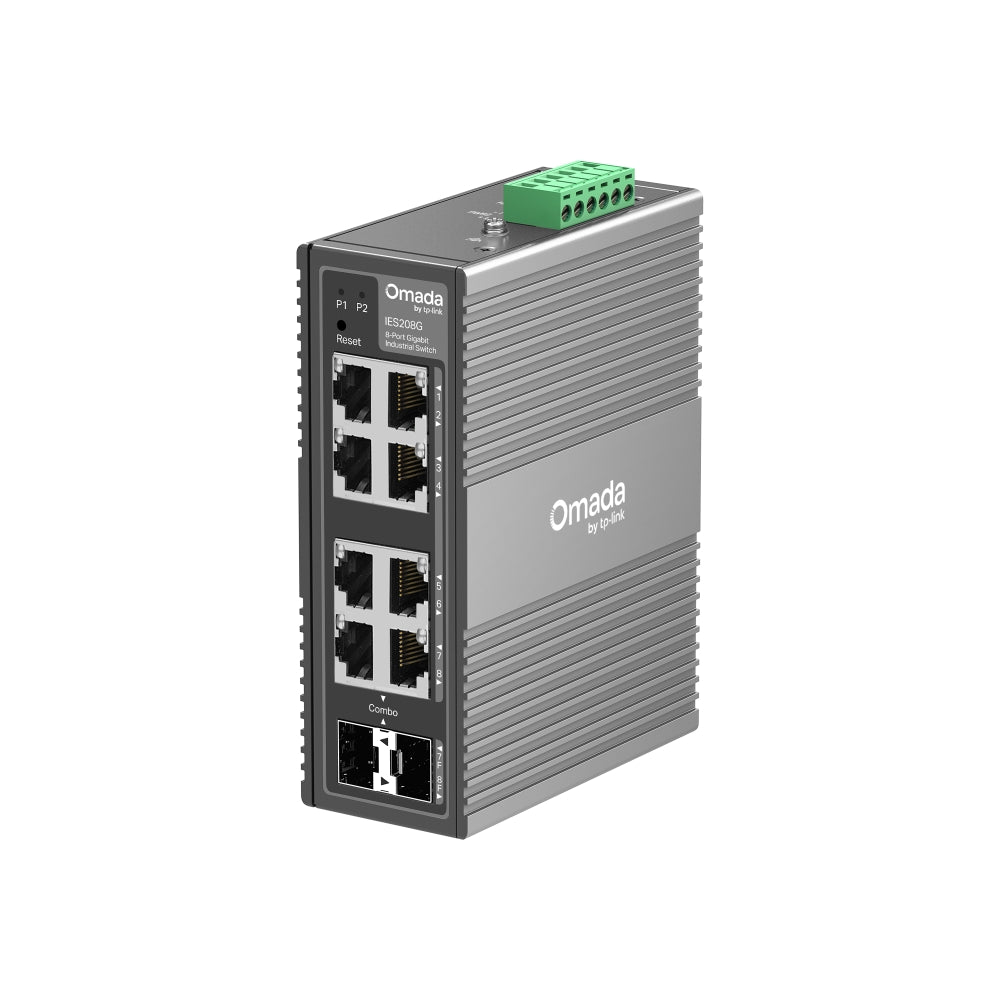

The IES208G is Omada's non-PoE 8-port industrial Easy Managed switch: six Gigabit RJ45 ports and two Gigabit SFP/RJ45 combo slots in a compact fanless IP40 aluminium DIN-rail housing, rated from -40°C to 75°C and fed by redundant 9.6–60 V DC inputs. It suits industrial and outdoor sites where the end devices are powered locally and the switch has to survive the cabinet.
Industrial-Grade Protection for Harsh Environments
The switch is rated for -40°C to 75°C operation (storage to 85°C) and 5%–95% non-condensing humidity, sits in an IP40 industrial-grade aluminium casing, and is fanless. Surge protection is ±6 kV in common mode on the Ethernet ports and ±4 kV in common mode on the DC power inputs — TP-Link's "6kV lightning protection" — for outdoor cabinets, factory floors, car parks and transport sites.
Wide 9.6–60 V Redundant DC Input

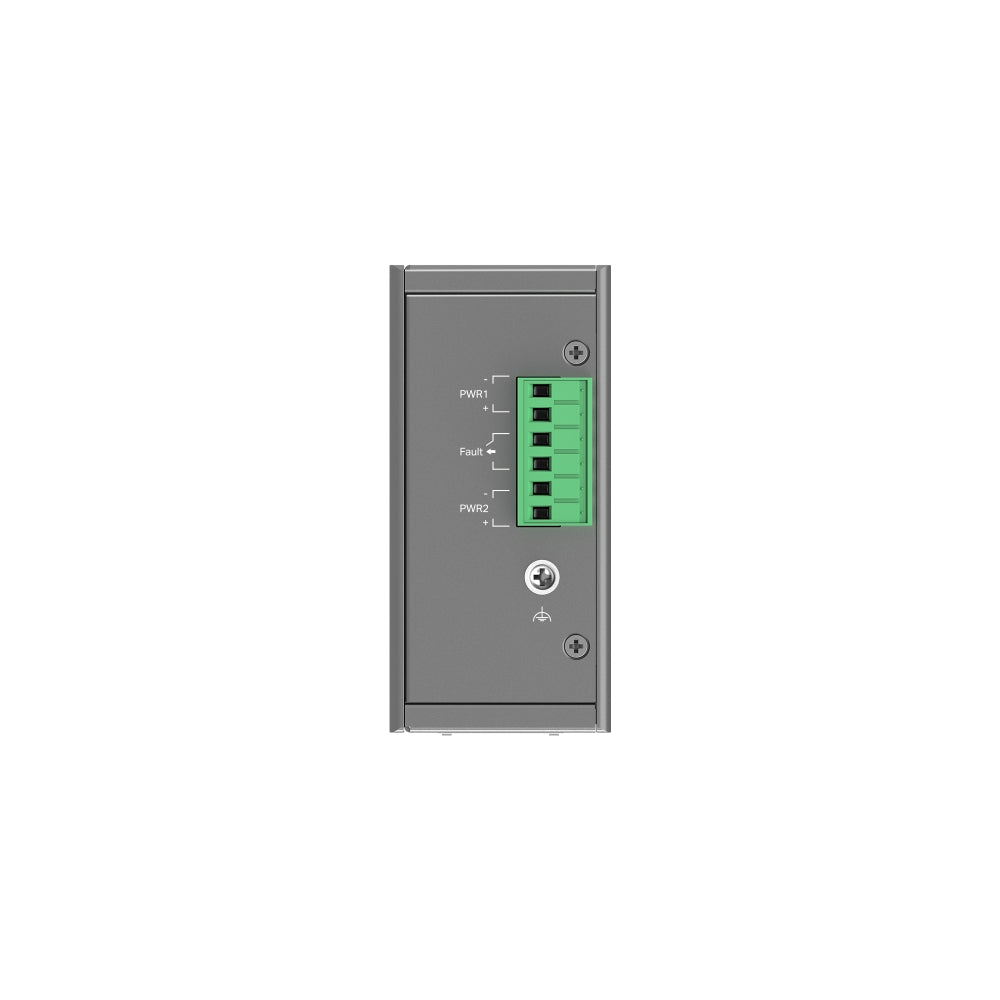

Dual power input ports run as 1+1 redundant power across a 9.6–60 V DC range, so the switch can be fed from common 12 V, 24 V or 48 V industrial supplies and stays up if one feed fails. TP-Link's real-time fault alarm flags port disconnection or power abnormalities. As a non-PoE model it does not supply power to connected devices.
Six Gigabit RJ45 Ports and Two Combo Uplinks

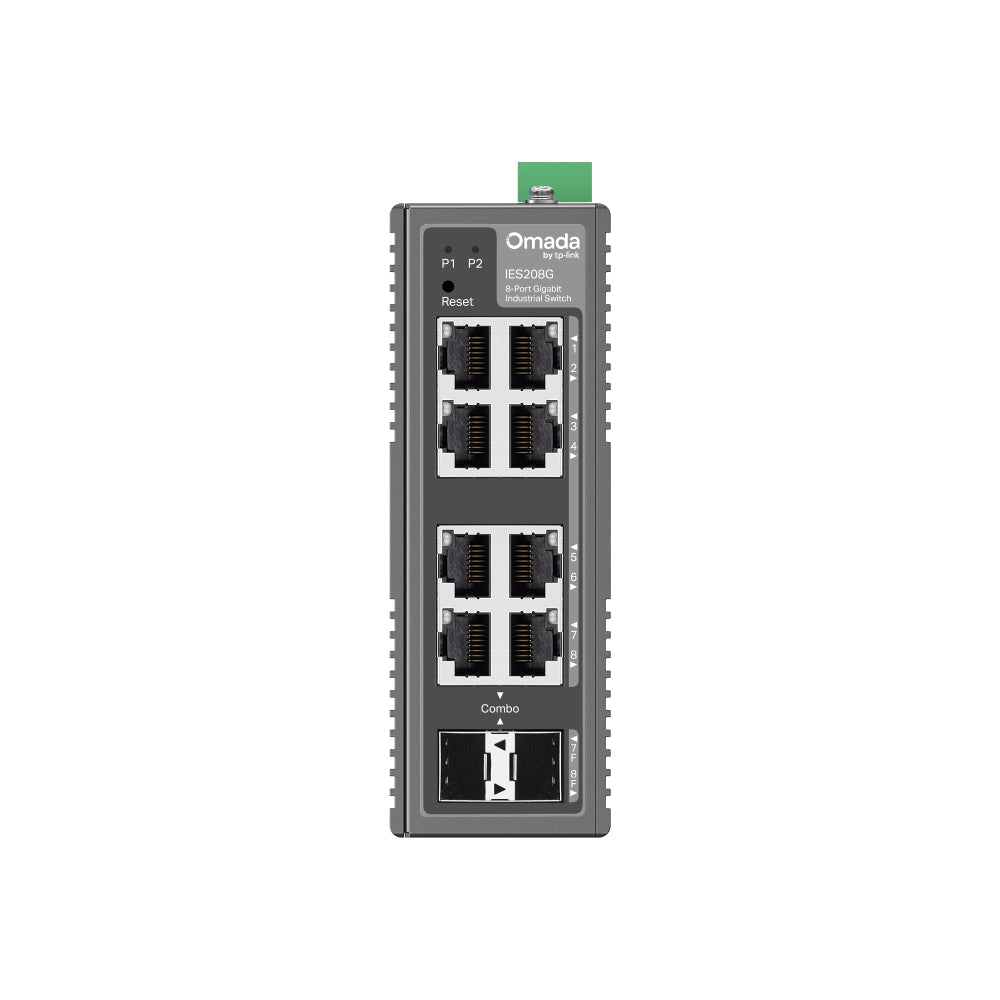

Six 10/100/1000 Mbps RJ45 ports connect PLCs, controllers, cameras with local power and other edge devices, while two Gigabit SFP/RJ45 combo slots allow copper or fibre uplinks. Switching capacity is 16 Gbps (11.9 Mpps), with an 8K MAC table, 4 Mbit packet buffer and 15 KB jumbo frames, all in a 129 × 95 × 45 mm housing.
Easy Managed L2 Features
Static link aggregation (up to 2 groups, up to 4 ports per group), STP (802.1d) and RSTP (802.1w), loopback detection, 802.3x flow control, port mirroring, IGMP v1/v2/v3 snooping with fast leave, and MTU, port-based and 802.1Q VLANs (max 32 groups, 4K VID). QoS offers 802.1p/DSCP priority with 8 priority queues, bandwidth control and storm control.
Easy Operation with Free Omada Cloud Management
TP-Link describes the IES range as plug-and-play with simple configuration, and offers free centralised cloud management via Omada Central Essentials, with access logs and alert notifications at any time. Adopted into an Omada Cloud-Based, Hardware or Software Controller, the switch is managed alongside the rest of the Omada network, with batch configuration and batch firmware upgrading† and intelligent network monitoring for topology visualisation. Cable diagnostics and Digital Diagnostic Monitoring (DDM) for optics are built in.
Ideal For
Industrial automation, utilities, transport and outdoor-cabinet deployments that need a hardened, managed Gigabit switch with fibre-capable uplinks and redundant DC power, but no PoE. Supplied by SourceIT with local Singapore warranty, GST invoice and project pricing on request.
This model is newly announced; contact SourceIT for availability and lead time.
IES208G Datasheet — Technical Specifications
General
| Model | IES208G |
| Official Product Name | Omada 8-Port Gigabit Industrial Easy Managed Switch |
| Brand | TP-Link Omada |
| Warranty | 5 Years Local Warranty (Singapore) |
Hardware Features
| Interface | 6× 10/100/1000 Mbps RJ45 Ports; 2× Gigabit SFP/RJ45 Combo Slots; Auto-Negotiation/Auto MDI/MDIX |
| Fan Quantity | Fanless |

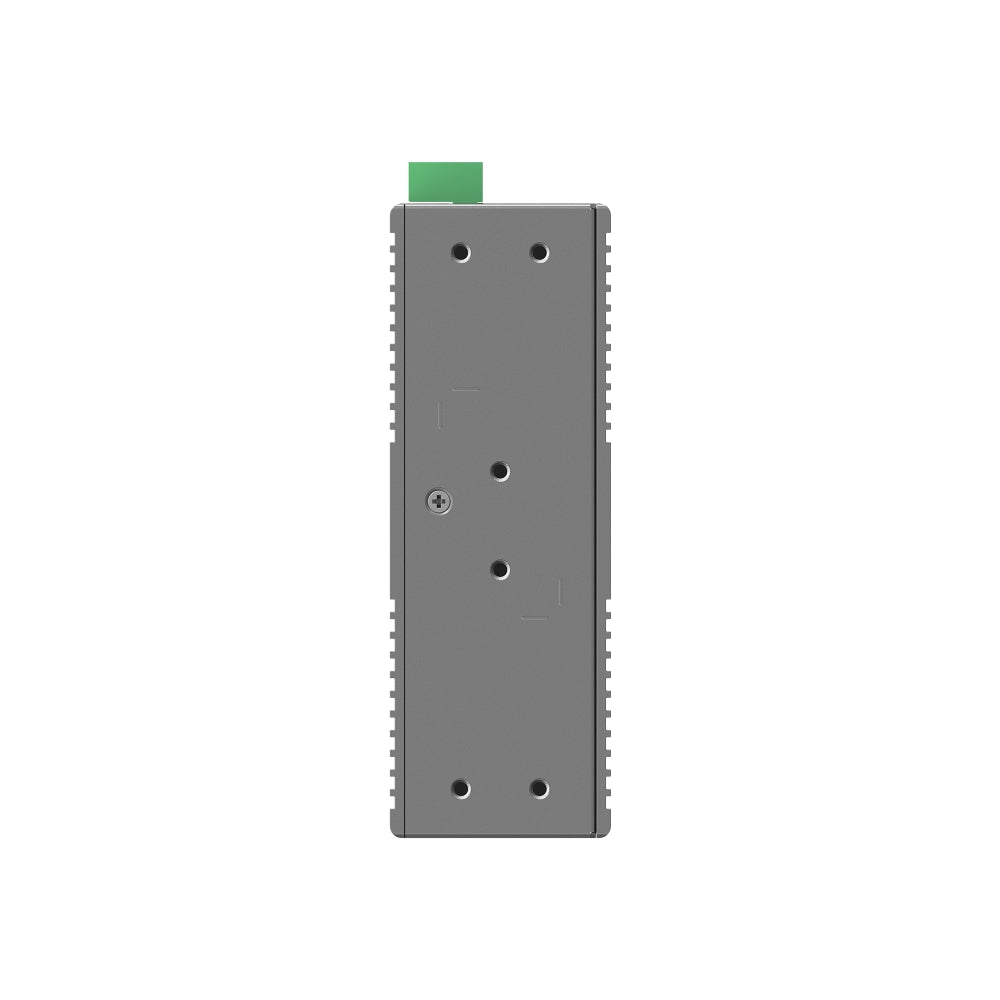

| Installation | DIN-rail mounting; Wall mounting |
| Power Supply | 9.6-60V 1+1 Redundant DC Power Input |
| Dimensions (W × D × H) | 5.1 × 3.7 × 1.8 in (129 × 95 × 45 mm) |
| Enclosure | Industrial-Grade IP40 Aluminium Casing |
| Surge Protection | ±6 kV in common mode for Ethernet ports; ±4 kV in common mode for DC power input ports |
Performance
| Packet Buffer Memory | 4 Mbit |
| Jumbo Frame | 15 KB |
| Switching Capacity | 16 Gbps |
| Packet Forwarding Rate | 11.9 Mpps |
| MAC Address Table | 8K |
Software Features
| Quality of Service | 802.1p DSCP Priority; 8 Priority Queues; WRR (Weighted Round Robin); Bandwidth Control; Storm Control |
| L2 Features | Link Aggregation (up to 2 aggregation groups, up to 4 ports per group); Loopback Detection; 802.3x Flow Control; Port Mirroring; Spanning Tree: STP (802.1d), RSTP (802.1w) |
| L2 Multicast | IGMP Snooping: IGMP v1/v2/v3 Snooping, Fast Leave |
| VLAN | MTU VLAN; Port-Based VLAN; 802.1Q Tag VLAN: Max 32 VLAN Groups, 4K VID |
| Transmission Method | Store-And-Forward |
Management
| Omada App | Yes. Requires the use of an Omada Controller |
| Centralized Management | Omada Cloud-Based Controller; Omada Hardware Controller; Omada Software Controller |
| Zero-Touch Provisioning | Requires the Omada Cloud-Based Controller (Omada Cloud Standard or Essentials) |
| Management Features | Web-based GUI; DHCP Client; Cable Diagnostics; Digital Diagnostic Monitoring (DDM); Batch Configuration†; Batch Firmware Upgrading† |
Others
| Certification | FCC, CE |
| Operating Temperature | -40℃~75℃ (-40℉~167℉) |
| Storage Temperature | -40℃~85℃ (-40℉~185℉) |
| Operating Humidity | 5%~95% non-condensing |
| Storage Humidity | 5%~95% non-condensing |
† These functions require the use of the Omada Controller. Zero-Touch Provisioning requires the use of the Omada Cloud-Based Controller (Omada Cloud Standard or Omada Cloud Essentials).
TP-Link does not publish a physical security lock row for this model, so none is claimed here.
Compatibility & Software Support
The IES208G is part of the Omada ecosystem: gateways, switches and access points are managed together from one controller, under one set of policies, with one view of the network. Cloud and app features listed below require the device to be adopted into an Omada Controller.
| Omada SDN Controller | Supported — adopt and manage centrally from the Omada Software Controller, Hardware Controller or Cloud-Based Controller |
| Omada App | Supported — requires the use of an Omada Hardware, Cloud-Based or Software Controller |
| Omada Cloud Access | Supported — requires the use of an Omada Hardware, Cloud-Based or Software Controller |
| Zero-Touch Provisioning | Supported — requires the Omada Cloud-Based Controller (Omada Cloud Standard or Omada Cloud Essentials) |
| Standalone Mode | Supported — the switch can also be managed on its own via its web-based GUI |
Power note: the switch is powered by DC input only (dual 1+1 redundant inputs, 9.6–60 V); no power adapter is listed in the package contents.
Package Contents & Ordering Information
What’s in the Box
| Package Contents | IES208G, DIN-Rail Mounting Bracket, Wall-Mounting Plates, Installation Guide |
Ordering Information
| Model | IES208G |
| Recommended Retail Price (incl. GST) | S$379.00 |
Datasheet & Downloads
Frequently Asked Questions — IES208G
Does the IES208G need an Omada Controller?
No. The IES208G can be configured on its own through its web-based GUI. Adopting it into an Omada Software, Hardware or Cloud-Based Controller is what unlocks the Omada App, cloud access, automatic device discovery, batch configuration and batch firmware upgrades across every Omada device on site; Zero-Touch Provisioning additionally needs the Omada Cloud-Based Controller.
What warranty does SourceIT provide?
Five years local Singapore warranty. Every IES208G sold by SourceIT comes with a GST invoice.
Is stock held locally?
SourceIT holds fast-moving Omada lines in Singapore. Anything not in local stock is brought in on indent — ask us for the current lead time before committing to a project date.
Can SourceIT quote this for a project or tender?
Yes. Send the bill of materials and we will quote the whole Omada build — controller, gateway, switching, access points and optics — with local warranty and support.
Is this model available for project orders?
Yes. TP-Link supplies this model for project deployments; contact SourceIT with your bill of materials for pricing and lead time.
