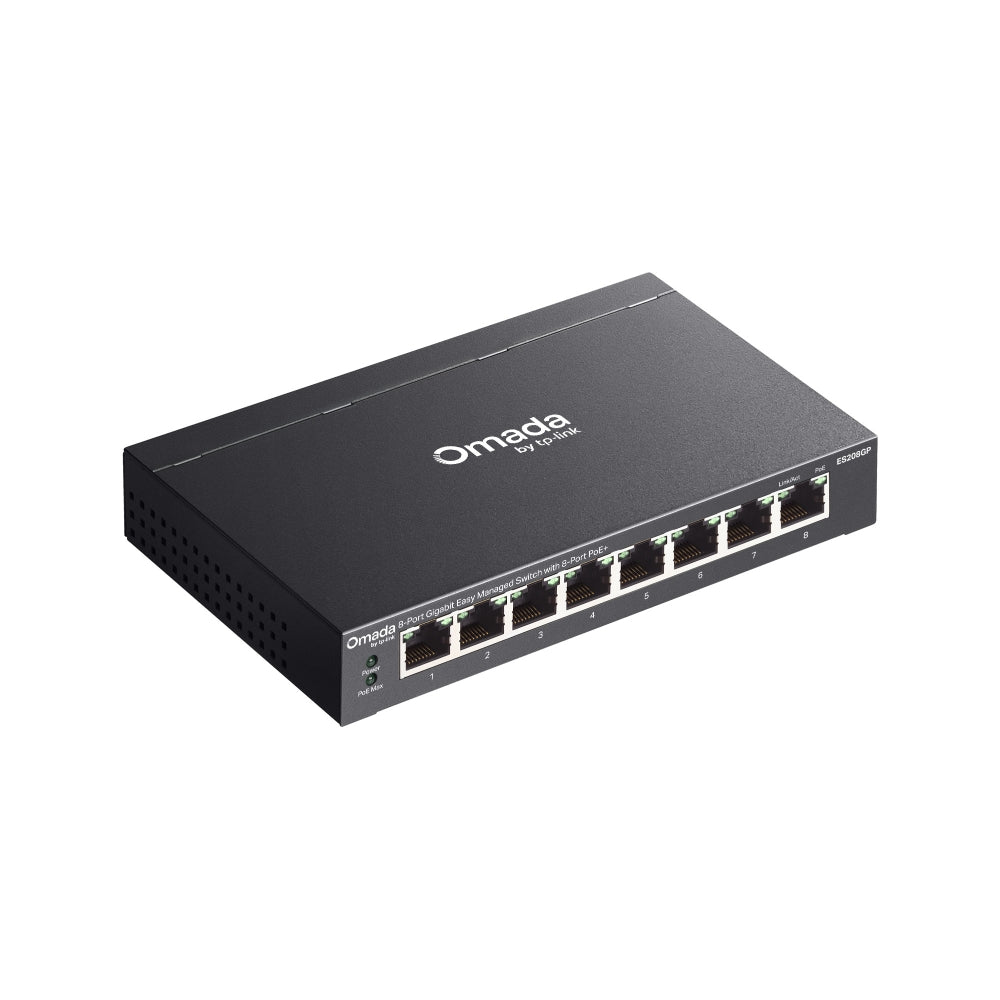

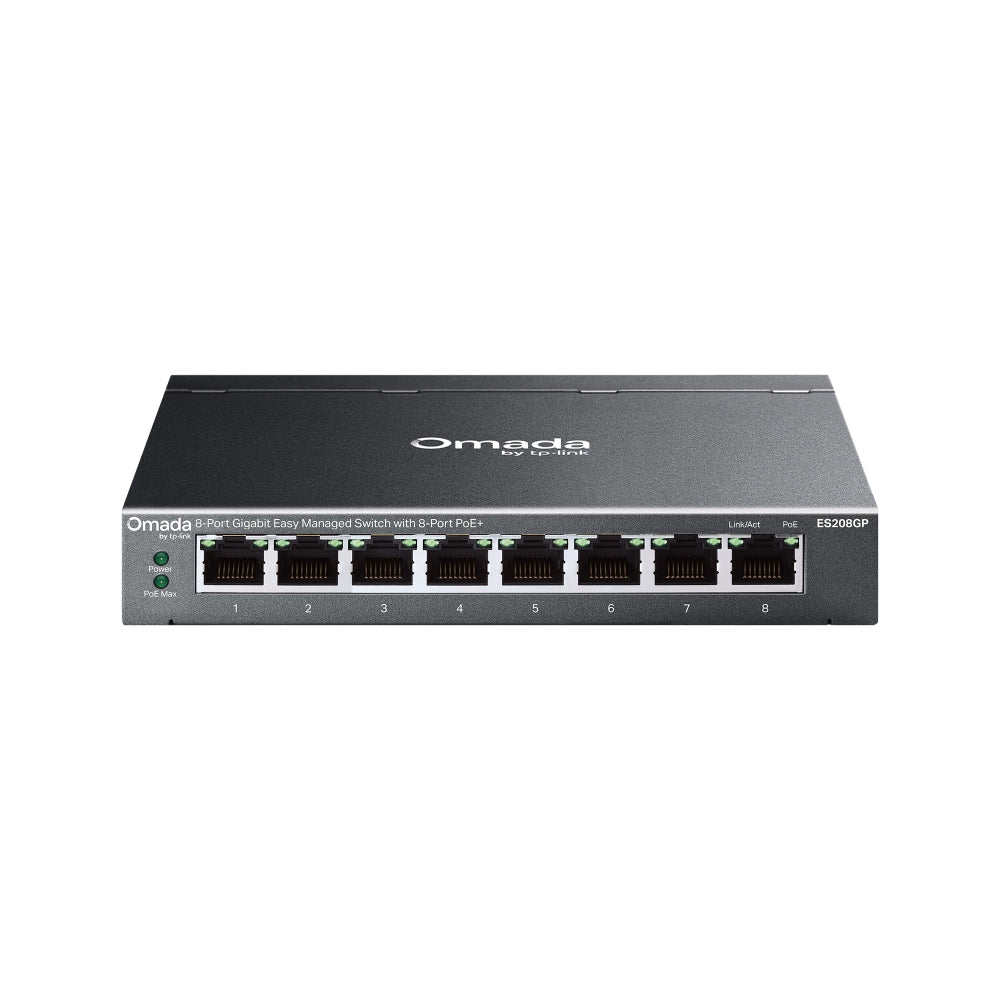

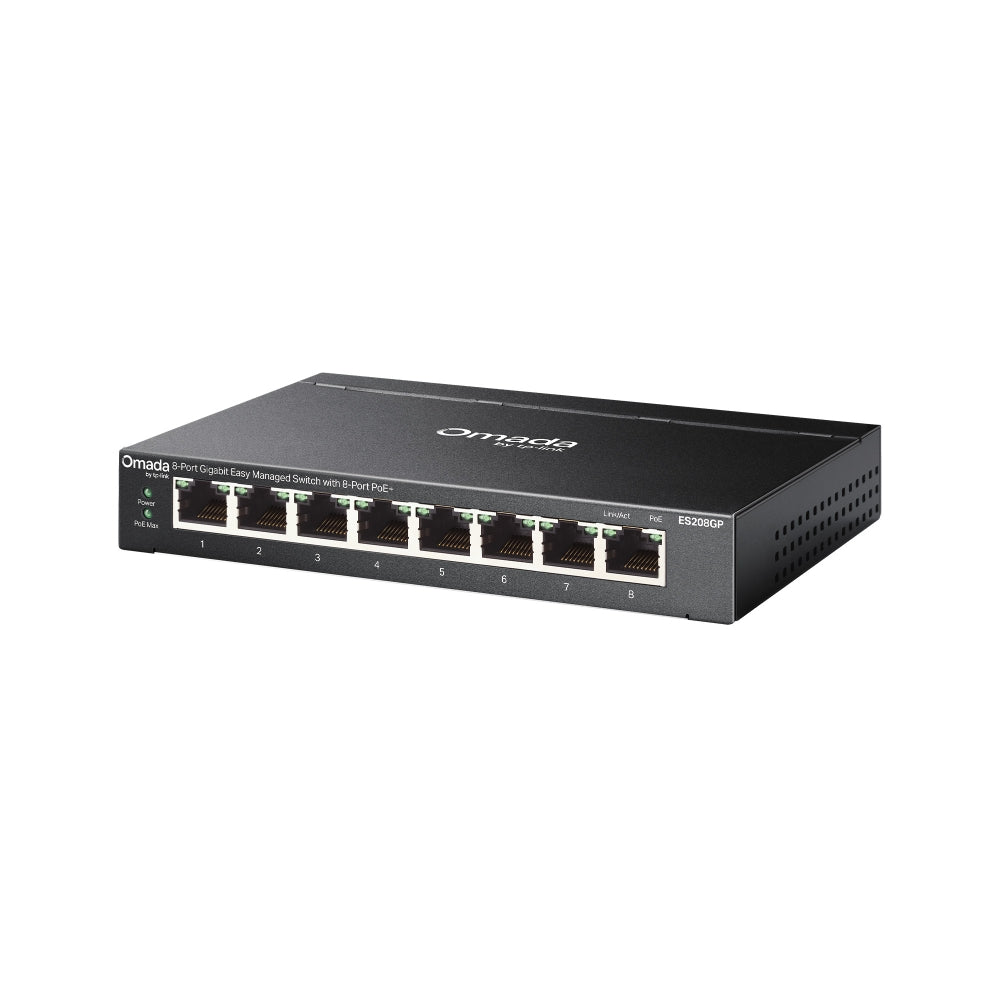

TP-Link Omada 8-Port Gigabit Easy Managed Switch with 8-Port PoE+

Reliable Gigabit Networking with PoE+ Support

The TP-Link Omada ES208GP is an 8-Port Gigabit Easy Managed Switch designed to provide reliable network connectivity and Power over Ethernet (PoE+) for business, surveillance, and wireless networking environments. Featuring eight Gigabit RJ45 ports with PoE+ support, the switch simplifies deployments by delivering both data and power over a single Ethernet cable, making it ideal for IP cameras, wireless access points, VoIP phones, and other PoE-enabled devices.

Easy Cloud Management with Omada SDN

As part of the TP-Link Omada Software Defined Networking (SDN) ecosystem, the ES208GP supports centralized cloud management through the Omada Controller. Network administrators can remotely configure, monitor, and manage multiple devices from a single interface, making it suitable for businesses, schools, hotels, retail stores, and branch offices that require simplified network administration.

High PoE Budget for Flexible Deployments

The ES208GP provides IEEE 802.3af/at PoE+ support across all eight ports, enabling efficient deployment of multiple powered devices without requiring separate power adapters. Intelligent PoE management automatically prioritizes power distribution and protects connected devices, ensuring stable operation even under high network loads.

Business-Class Performance with Advanced Features

Designed for small and medium-sized businesses, the ES208GP offers Gigabit performance alongside Layer 2 management features including VLAN, QoS, IGMP Snooping, Loop Prevention, Port Isolation, and Link Aggregation. Its fanless design ensures silent operation, making it suitable for offices, meeting rooms, retail environments, and other noise-sensitive installations.

Technical Specifications

General
Model: ES208GP
Part Number: ES208GP
Product Name: TP-Link Omada 8-Port Gigabit Easy Managed Switch with 8-Port PoE+
Manufacturer: TP-Link
Product Type: Easy Managed Gigabit PoE+ Switch
Series: Omada Agile Series
Switch Type: Layer 2 Easy Managed Switch
Form Factor: Desktop / Wall Mount
Management: Standalone Web UI, Omada Cloud, Omada App, Omada SDN Controller
Deployment: SMB, Enterprise, Retail, Hospitality, Surveillance, Education
Warranty: Limited Lifetime Warranty (Region Dependent)

Network Specifications
Switching Capacity: 16 Gbps
Packet Forwarding Rate: 11.9 Mpps
Packet Buffer Memory: 512 KB
MAC Address Table: 8K Entries
Jumbo Frame Support: Up to 15 KB
Transfer Method: Store-and-Forward
Flow Control: IEEE 802.3x Flow Control
Auto Negotiation: Supported
Auto MDI/MDIX: Supported

Port Specifications
Network Ports: 8 × 10/100/1000 Mbps RJ45
PoE Ports: 8 × IEEE 802.3af/at PoE+ Ports
Maximum PoE per Port: 30W
Total PoE Budget: 64W
Port Auto Negotiation: Supported
Port Auto MDI/MDIX: Supported
Port Mirroring: Supported
Port Isolation: Supported
Loop Prevention: Supported

PoE Features
PoE Standard: IEEE 802.3af / IEEE 802.3at
Total PoE Budget: 64W
Maximum Power Per Port: 30W
PoE Auto Detection: Supported
PoE Priority: Supported
PoE Scheduling: Supported
PoE Auto Recovery: Supported
Remote Camera Reboot: Supported
Long Distance PoE Mode: Up to 250 m (10 Mbps Mode)
PoE Power Management: Supported

Layer 2 Features
IEEE 802.1Q VLAN
Port-Based VLAN
Voice VLAN
QoS (802.1p/DSCP)
IGMP Snooping V1/V2/V3
Static Link Aggregation (LAG)
Loop Detection
Storm Control
Cable Test
Port Statistics
Port Mirroring
Broadcast Storm Control
Multicast Management

Management Features
Standalone Web Management
Omada SDN Integration
Omada Cloud Management
Omada Mobile App Support
Zero-Touch Provisioning (Controller Deployment)
Centralized Configuration
Remote Monitoring
Firmware Upgrade
Configuration Backup & Restore
System Log
Device Diagnostics
Remote Maintenance

Security Features
Port Isolation
Loop Prevention
Broadcast Storm Control
Access Control
DoS Prevention Features
VLAN Segmentation
Secure Remote Management
Network Traffic Isolation

Power Specifications

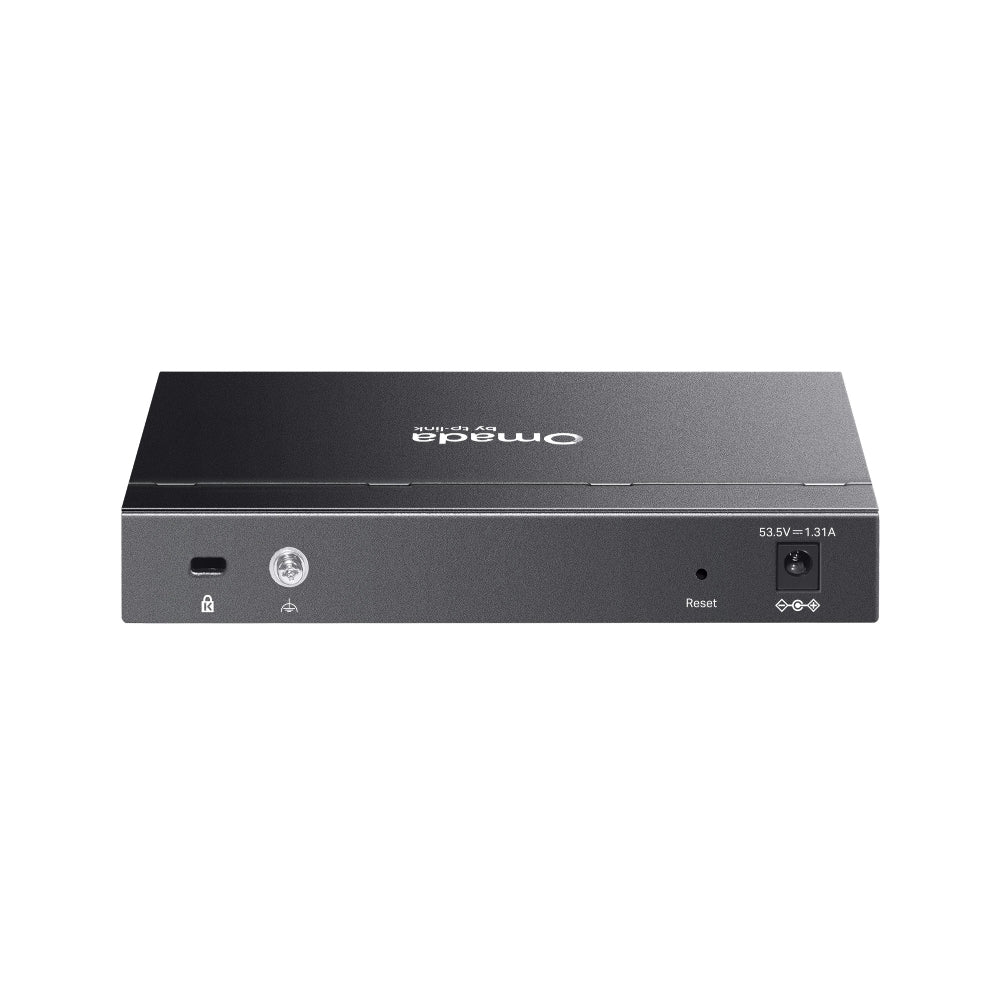

Power Supply: External Power Adapter
Input Voltage: 100–240V AC, 50/60Hz
Maximum Power Consumption: Approximately 68.8W (Full PoE Load)
PoE Power Budget: 64W
Energy Efficient Ethernet (EEE): Supported

Management Compatibility
Omada Hardware Controller OC200: Supported
Omada Hardware Controller OC300: Supported
Omada Software Controller: Supported
Omada Cloud-Based Controller: Supported
Omada App (iOS & Android): Supported
Standalone Web GUI: Supported

Installation & Deployment
Desktop Installation: Supported

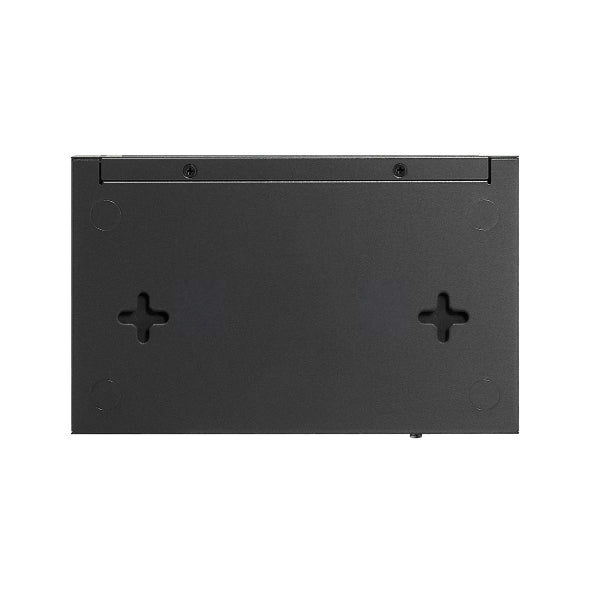

Wall Mount Installation: Supported
Plug-and-Play Deployment: Supported
Silent Operation: Fanless Design
Business Network Ready: Supported
Surveillance Network Ready: Supported

Design & Construction
Color: Silver
Housing Material: Metal Chassis
Cooling: Fanless Passive Cooling
Mounting Type: Desktop / Wall Mount
Commercial-Grade Construction: Supported

Environmental Specifications
Operating Temperature: 0°C to 40°C
Storage Temperature: -40°C to 70°C
Operating Humidity: 10% to 90% Non-Condensing
Storage Humidity: 5% to 90% Non-Condensing

Physical Specifications
Dimensions: 158 × 101 × 25 mm
Weight: Approximately 0.54 kg
Color: Silver
Form Factor: Desktop Switch

Package Contents
TP-Link Omada ES208GP Easy Managed Switch
Power Adapter
Quick Installation Guide
Rubber Feet

Key Features
8 × Gigabit RJ45 Ports
8 × IEEE 802.3af/at PoE+ Ports
64W Total PoE Budget
Up to 30W Per PoE Port
16 Gbps Switching Capacity
11.9 Mpps Forwarding Rate
Omada Cloud Management
Standalone Web Management
Mobile App Management
VLAN Support
QoS Traffic Prioritization
IGMP Snooping
Port Isolation
Loop Prevention
Long Distance PoE Mode (Up to 250m)
Remote Camera Reboot
Fanless Silent Design
Metal Housing
Desktop and Wall Mount Installation

Performance & Features
Designed for small and medium-sized business networks requiring reliable Gigabit connectivity with integrated PoE+ power delivery.
Provides centralized cloud management through the Omada SDN platform while also supporting standalone deployment without a controller.
Delivers up to 64W of PoE power for wireless access points, IP cameras, VoIP phones, and other PoE-enabled devices.
Supports intelligent Layer 2 management features including VLAN, QoS, IGMP Snooping, Link Aggregation, and Port Isolation to improve network efficiency and security.
Long Distance PoE mode enables deployments of surveillance cameras up to 250 meters without requiring additional networking equipment.
Fanless metal chassis ensures silent operation, making it suitable for offices, classrooms, retail stores, and hospitality environments.
Ideal as an edge switch for Omada SDN deployments requiring easy management, cloud monitoring, and reliable PoE performance.

Typical Use Cases
Small Business Networks
Enterprise Branch Offices
Wireless Access Point Deployment
IP Camera Surveillance Systems
VoIP Phone Installations
Retail Stores
Hotels and Hospitality
Schools and Classrooms
Healthcare Clinics
Conference Rooms
Government Offices
Smart Building Networks
Omada SDN Deployments
Edge Network Infrastructure
Silent Office Networking

Detailed Specifications

Omada 8-Port Gigabit Easy Managed Switch with 8-Port PoE+
PORT: 8× Gigabit PoE+ Ports
SPEC: 802.3at/af, 64 W PoE Power,  Desktop Steel Case and Fanless
