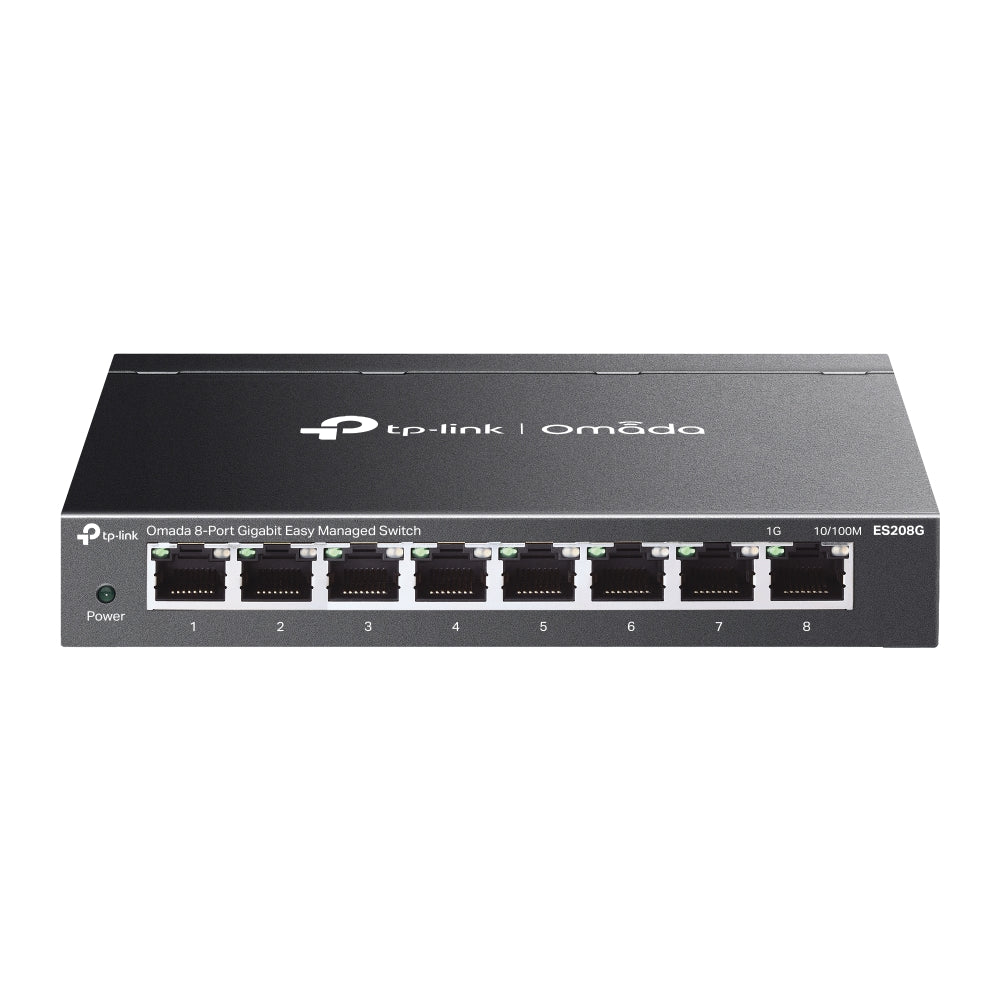

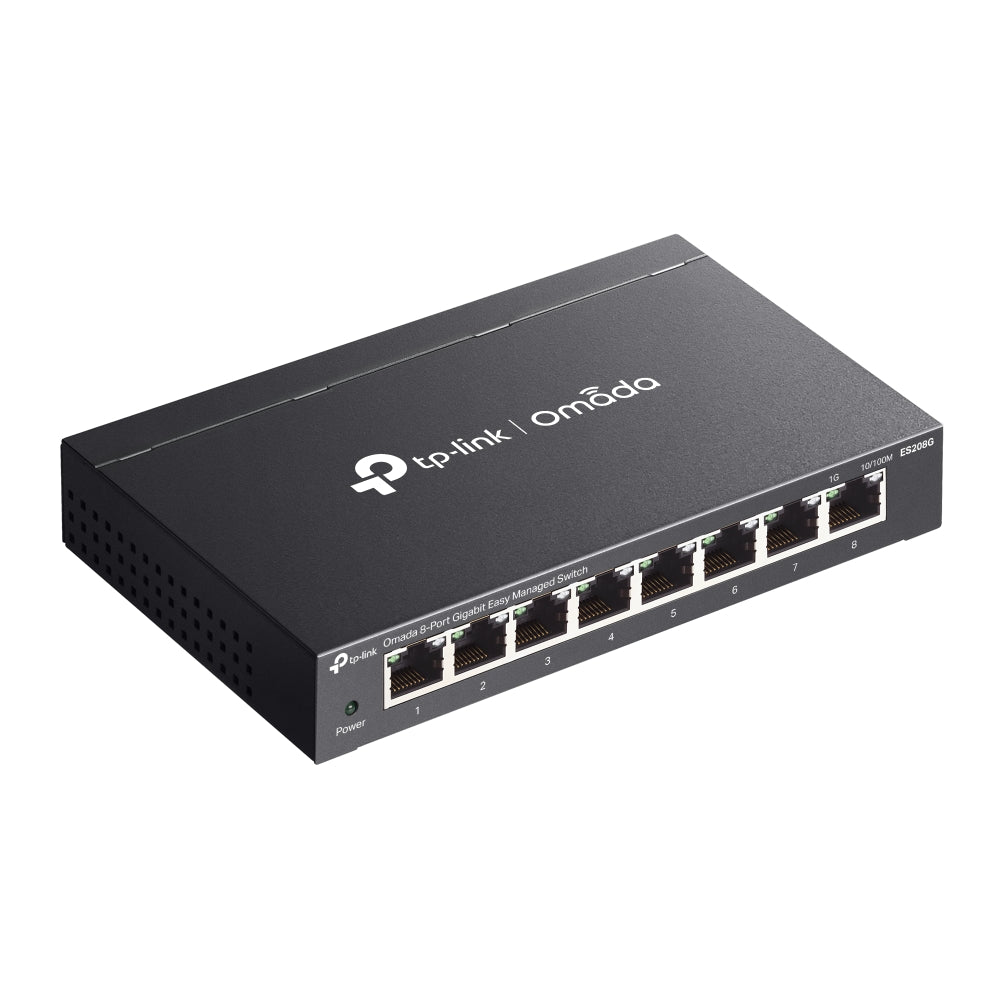

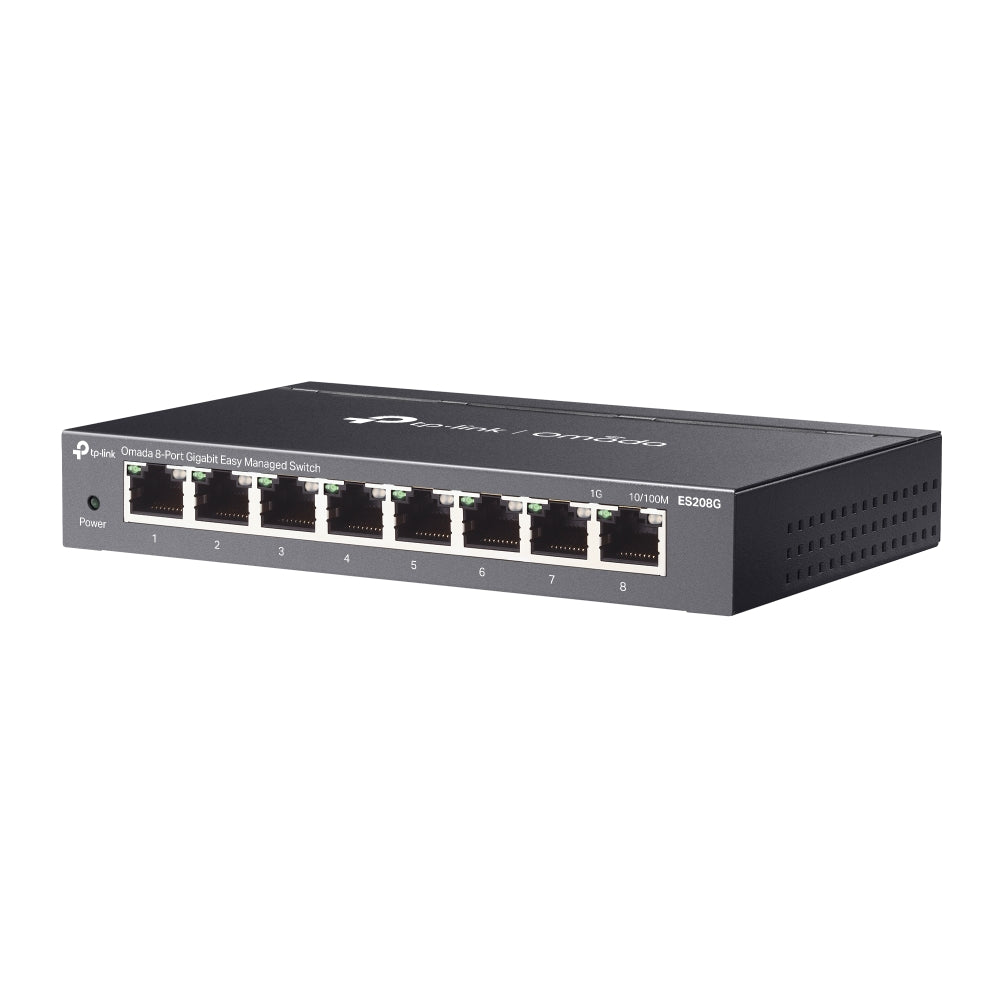

TP-Link Omada 8-Port Gigabit Easy Managed Switch

TP-Link Omada 8-Port Gigabit Easy Managed Switch (ES208G) - 5 Years Local Warranty

The ES208G is the compact entry point to Omada's Easy Managed switch range: eight Gigabit RJ45 ports in a fanless, wall-mountable metal body powered by an external 5 VDC adapter. Despite the small footprint it carries the same Easy Managed feature set as its larger siblings - VLANs, eight-queue QoS, IGMP snooping, loop prevention, port mirroring and cable diagnostics - over 16 Gbps of switching capacity.

Eight Gigabit Ports At Full Line Rate In A Palm-Sized Body

The eight 10/100/1000 Mbps RJ45 ports all support auto-negotiation and Auto MDI/MDIX, and the 16 Gbps switching capacity is twice the 8 Gbps of aggregate port bandwidth - so every port can run at full Gigabit in both directions at once with no internal contention. The 11.9 Mpps packet forwarding rate keeps that intact for small packets, and a 4 Mbit buffer plus an 8K MAC address table let the switch handle far more endpoints than eight ports would suggest when it feeds downstream hubs or access points.

Wall Mountable And Externally Powered For Awkward Locations

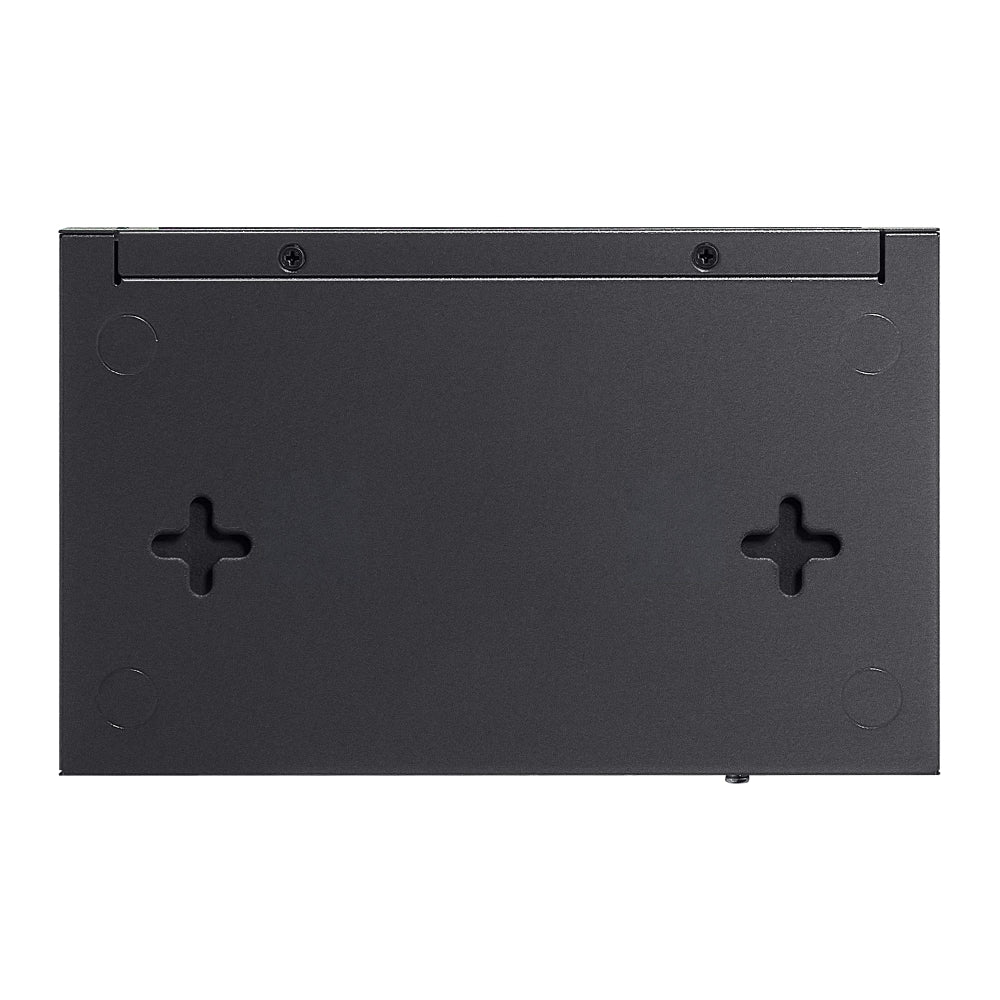

At 158 x 101 x 25 mm the ES208G is small enough to sit behind a monitor, inside a cabinet or screwed flat to a wall, and it runs on an external 5 VDC 0.6 A adapter rather than mains wiring - so it can be sited where a full-depth rack switch never could. The fanless metal casing means silent, dust-tolerant operation in occupied rooms. Note that operating temperature is rated -5 to 45 degrees Celsius, a narrower ceiling than the rack-mount models in the range, so avoid sealed, unventilated enclosures.

VLANs And Port Isolation For Surveillance And Guest Segments

802.1Q tag VLAN supports up to 32 groups across the full 4K VID range, letting the ES208G act as a tagged edge extension of a larger managed network. Port-based VLAN gives a simple untagged split, and MTU VLAN keeps each port isolated from its neighbours while sharing one uplink - exactly the pattern wanted for IP cameras or public-access ports. Port isolation reinforces that, ensuring endpoints can reach the gateway without being able to see or reach each other across the switch.

Eight Priority Queues, Rate Limiting And Storm Control

QoS classification can come from the port itself, the 802.1p priority bits in a VLAN tag, or the DSCP field of the IP header, feeding eight priority queues served by weighted round robin so urgent traffic goes first without starving the rest. Port-based rate limiting caps individual devices, and storm control - configurable in either kbps or pps - throttles broadcast, multicast and unknown-unicast floods. On a small switch acting as the edge for phones and cameras, this is what keeps one misbehaving device from degrading everything else.

Troubleshooting Tools You Would Not Expect At This Size

Port mirroring supports both one-to-one and many-to-one configurations, so traffic from several ports can be copied to a single analyser port for packet capture - genuinely useful when diagnosing an intermittent device. Cable diagnostics test each attached copper run from the web interface and report faults without a separate tester. Loopback detection shuts down a port that has been patched back into the switch before a broadcast storm forms, and IGMP v1/v2/v3 snooping with Fast Leave confines multicast streams to the ports that actually asked for them.

Cloud Adoption Without A Local Controller Appliance

The ES208G is a DHCP client with zero-touch provisioning support, so it can be shipped to a site, plugged in by anyone, and then adopted remotely into an Omada Controller. Omada Cloud Essentials is the free tier of the cloud-based controller, giving centralized management through a browser or the Omada app without buying controller hardware. For a business running several small sites, that means the eight-port switch in each branch appears in the same management view as the larger switches and access points at head office.

Ideal For

Singapore businesses, schools, hotels and managed-service providers building on Omada, and IT teams that want a switch they can adopt, monitor and update centrally rather than box by box. Supplied by SourceIT with local Singapore warranty, GST invoice and project pricing on request.
