TP-Link Omada 8-Port 2.5G + 2-Port 10G Easy Managed Switch with 8-Port PoE++
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
TP-Link Omada 8-Port 2.5G + 2-Port 10G Easy Managed Switch with 8-Port PoE++ (ES210XPP-M2) - 5 Years Local Warranty
The ES210XPP-M2 is an Omada Easy Managed switch built for multi-gigabit Wi-Fi 7 and Wi-Fi 6 rollouts: eight 2.5 Gbps RJ45 ports, every one of them 802.3bt PoE++ at up to 90 W, a 200 W total PoE budget, and two 10G uplinks — one 10G RJ45 and one 10G SFP+ — in a fanless desktop or wall-mount chassis.
Eight 2.5G PoE++ Ports at up to 90 W Each
All eight 2.5 Gbps RJ45 ports are 802.3af/at/bt compliant, delivering up to 90 W per port within a 200 W total budget*. One cable carries both data and power to PoE++ devices — high-power Wi-Fi 7 access points, PTZ cameras and similar loads — without the hassle and cost of installing separate power cabling. Fast PoE, Perpetual PoE and PoE Auto Recovery‡ keep powered devices online.
Two 10G Uplinks: One RJ45, One SFP+
A 10 Gbps RJ45 port and a 10 Gbps SFP+ slot give a choice of copper or fibre uplink to the gateway, NAS or core, so eight 2.5G clients are not squeezed through a Gigabit link. Switching capacity is 80 Gbps with a 59.52 Mpps forwarding rate, a 16K MAC address table, 5 Mbit packet buffer and 10 KB jumbo frames.
Easy Managed L2 Features
The ES210XPP-M2 covers the essentials without full-managed complexity: static link aggregation (up to 6 groups, up to 4 ports per group), loopback detection, 802.3x flow control, port mirroring, 802.1ab LLDP, IGMP v1/v2/v3 snooping with fast leave, and MTU, port-based and 802.1Q VLANs (max 32 VLAN groups, 4K VID). QoS offers 8 priority queues with WRR scheduling, port-based rate limiting and storm control.
Free Cloud Management with Omada Central Essentials
TP-Link positions the switch to work with Omada Central Essentials for free and easy cloud management. Adopted into an Omada Cloud-Based, Hardware or Software Controller it gains the Omada App, cloud access, automatic device discovery, batch configuration, batch firmware upgrading and unified configuration†, with Zero-Touch Provisioning via the Cloud-Based Controller. TP-Link specifies minimum controller versions of 5.15.22 (Cloud-Based) and 5.15.20 (Hardware and Software).
Fanless, Wall-Mountable and Surge Protected

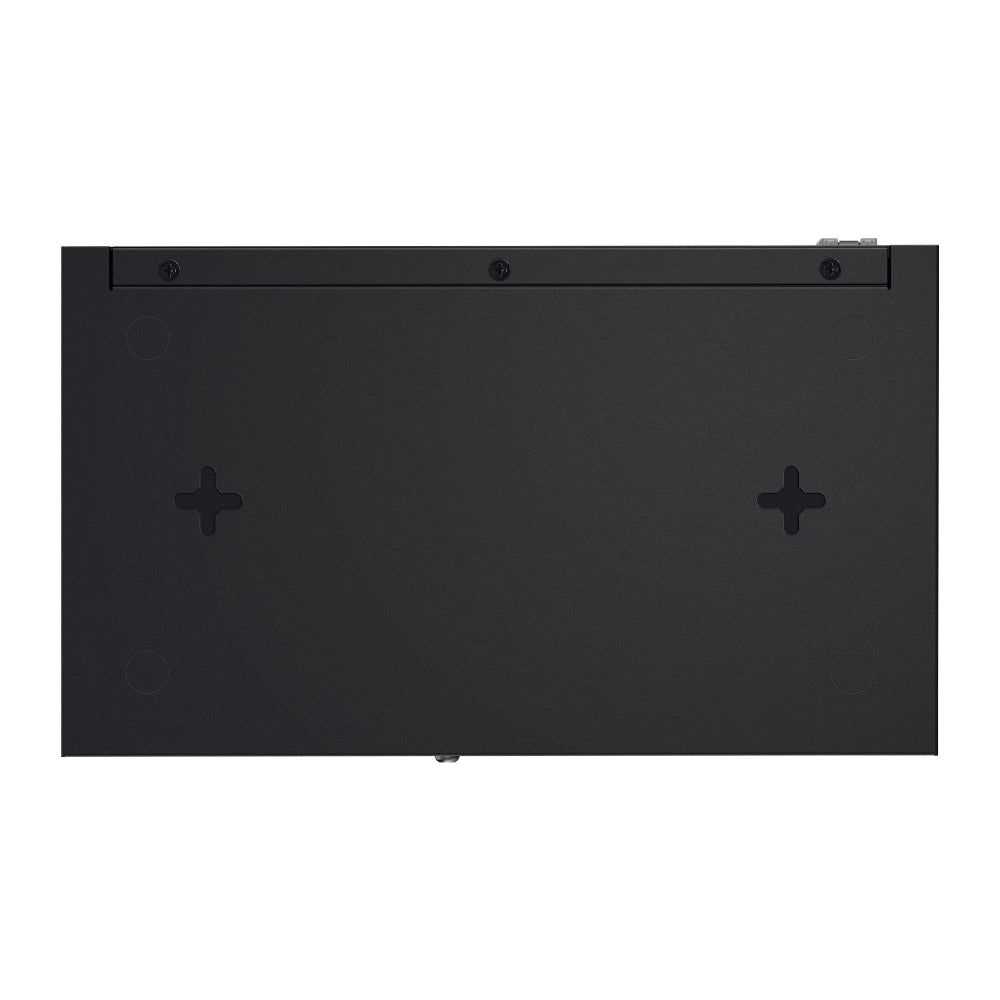

The fanless design makes the switch silent for offices and classrooms, it installs on a desk or wall, ±6 kV surge protection guards the ports, and a physical security lock slot is provided.
Ideal For
SMB offices, schools, hotels and retail sites deploying 2.5G Wi-Fi 7/6 access points or high-power PoE++ devices, and Omada networks that want a compact multi-gig PoE edge switch with a 10G uplink. Supplied by SourceIT with local Singapore warranty, GST invoice and project pricing on request.
ES210XPP-M2 Datasheet — Technical Specifications
General
| Model | ES210XPP-M2 |
| Official Product Name | Omada 8-Port 2.5G + 2-Port 10G Easy Managed Switch with 8-Port PoE++ |
| Brand | TP-Link Omada |
| Warranty | 5 Years Local Warranty (Singapore) |
Hardware Features
| Interface | 8× 2.5 Gbps RJ45 Ports (8× 802.3af/at/bt-compliant PoE++); 1× 10 Gbps RJ45 Port; 1× 10 Gbps SFP+ Slot; Auto-Negotiation/Auto MDI/MDIX |
| Fan Quantity | Fanless |
| Installation | Desktop; Wall Mount |
| Physical Security Lock | Yes |
| Power Supply | AC/DC Adapter (Input: 100-240V AC; Output: 54V DC/4.16A) |
| PoE Ports (RJ45) | Standard: 802.3af/at/bt PoE++ compliant; PoE Ports: 8 Ports; PoE Budget: 200 W available for all PoE++ ports, 90 W max per port*; Fast PoE & Perpetual PoE; PoE Auto Recovery‡ |
| Dimensions (W × D × H) | 8.9 × 5.2 × 1.4 in (226 × 131.2 × 35 mm) |
| Surge Protection | ±6 kV |
Performance
| Packet Buffer Memory | 5 Mbit |
| Jumbo Frame | 10 KB |
| Switching Capacity | 80 Gbps |
| Packet Forwarding Rate | 59.52 Mpps |
| MAC Address Table | 16K |
Software Features
| Quality of Service | Port-based/802.1p/DSCP QoS△; 8 Priority Queues; Priority Schedule Mode: WRR (Weighted Round Robin); Queue Weight Config; Bandwidth Control: Port-Based Rating Limit; Storm Control: Multiple Control Modes (kbps/pps), Broadcast/Multicast/Unknown-Unicast Control |
| L2 Features | Static Link Aggregation (up to 6 aggregation groups and up to 4 ports per group); Loop Prevention / Loopback Detection; 802.3x Flow Control; Port Mirroring (One-to-One, Many-to-One, Ingress/Egress/Both); Port Statistics (Port Mirror Status, Traffic Statistics); 802.1ab LLDP |
| L2 Multicast | IGMP Snooping: IGMP v1/v2/v3 Snooping, Fast Leave |
| VLAN | MTU VLAN; Port-Based VLAN; 802.1Q Tag VLAN: Max 32 VLAN Groups, 4K VID |
| Transmission Method | Store-And-Forward |
Management
| Omada App | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralized Management | Omada Cloud-Based Controller (requires built-in version 5.15.22 or later); Omada Hardware Controller (requires built-in version 5.15.20 or later); Omada Software Controller (requires built-in version 5.15.20 or later) |
| Cloud Access | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Zero-Touch Provisioning | Yes. Requires the use of Omada Cloud-Based Controller |
| Management Features | Web-based GUI; DHCP Client; Cable Diagnostics; Automatic Device Discovery†; Batch Configuration†; Batch Firmware Upgrading†; Unified Configuration† |
Others
| Certification | FCC, CE |
| Operating Temperature | -10℃~40℃ (14℉~104℉) |
| Storage Temperature | -40℃~70℃ (-40℉~158℉) |
| Operating Humidity | 10%~90% non-condensing |
| Storage Humidity | 5%~90% non-condensing |
* PoE budget calculations are based on laboratory testing. The actual PoE power budget is not guaranteed and will vary due to client limitations and environmental factors.
△ Port-based/802.1p/DSCP QoS are supported under Standalone Mode.
† These functions require the use of the Omada Controller. Zero-Touch Provisioning requires the use of the Omada Cloud-Based Controller (Omada Cloud Standard or Omada Cloud Essentials).
‡ This switch supports PoE Auto Recovery under Standalone Mode (managed separately without a controller) and supports manual PoE Recovery under Controller Mode (centrally managed with a controller).
Compatibility & Software Support
The ES210XPP-M2 is part of the Omada ecosystem: gateways, switches and access points are managed together from one controller, under one set of policies, with one view of the network. Cloud and app features listed below require the device to be adopted into an Omada Controller.
| Omada SDN Controller | Supported — adopt and manage centrally from the Omada Software Controller, Hardware Controller or Cloud-Based Controller |
| Omada App | Supported — requires the use of an Omada Hardware, Cloud-Based or Software Controller |
| Omada Cloud Access | Supported — requires the use of an Omada Hardware, Cloud-Based or Software Controller |
| Zero-Touch Provisioning | Supported — requires the Omada Cloud-Based Controller (Omada Cloud Standard or Omada Cloud Essentials) |
| Standalone Mode | Supported — the switch can also be managed on its own via its web-based GUI |
Controller version requirements: Omada Cloud-Based Controller 5.15.22 or later; Omada Hardware and Software Controller 5.15.20 or later.
Package Contents & Ordering Information
What’s in the Box
| Package Contents | ES210XPP-M2, Power Adapter, Power Cord, Mounting Feet, Installation Guide |
Ordering Information
| Model | ES210XPP-M2 |
| Recommended Retail Price (incl. GST) | S$339.00 |
Datasheet & Downloads
Frequently Asked Questions — ES210XPP-M2
Does the ES210XPP-M2 need an Omada Controller?
No. The ES210XPP-M2 can be configured on its own through its web-based GUI. Adopting it into an Omada Software, Hardware or Cloud-Based Controller is what unlocks the Omada App, cloud access, automatic device discovery, batch configuration and batch firmware upgrades across every Omada device on site; Zero-Touch Provisioning additionally needs the Omada Cloud-Based Controller.
What warranty does SourceIT provide?
Five years local Singapore warranty. Every ES210XPP-M2 sold by SourceIT comes with a GST invoice.
Is stock held locally?
SourceIT holds fast-moving Omada lines in Singapore. Anything not in local stock is brought in on indent — ask us for the current lead time before committing to a project date.
Can SourceIT quote this for a project or tender?
Yes. Send the bill of materials and we will quote the whole Omada build — controller, gateway, switching, access points and optics — with local warranty and support.
Is this model available for project orders?
Yes. TP-Link supplies this model for project deployments; contact SourceIT with your bill of materials for pricing and lead time.
