TP-Link Omada 6-Port Gigabit Industrial Easy Managed Switch with 3-Port PoE+ and 1-Port PoE++

TP-Link Omada 6-Port Gigabit Industrial Easy Managed Switch with 3-Port PoE+ and 1-Port PoE++ (IES206GPP) - 5 Years Local Warranty

The IES206GPP is the compact member of Omada's industrial Easy Managed PoE range: one Gigabit PoE++ port at up to 60 W, three Gigabit PoE+ ports at up to 30 W, a Gigabit SFP/RJ45 combo slot and a dedicated Gigabit SFP slot, in a fanless IP40 aluminium DIN-rail housing rated from -40°C to 75°C, with up to 120 W of PoE.

Industrial-Grade Protection for Harsh Environments

The switch is rated for -40°C to 75°C operation (storage to 85°C) and 5%–95% non-condensing humidity, sits in an IP40 industrial-grade aluminium casing, and is fanless. Surge protection is ±6 kV in common mode on the Ethernet ports and ±4 kV in common mode on the DC power inputs — TP-Link's "6kV lightning protection" — for outdoor cabinets, factory floors, car parks and transport sites.

1 PoE++ and 3 PoE+ Ports, up to 120 W Total

One 802.3af/at/bt PoE++ port supplies up to 60 W for a PTZ camera or outdoor access point, and three 802.3af/at PoE+ ports supply up to 30 W each. The PoE budget is 60 W at 12–21 V input and 120 W at 21–57 V input*, so the DC supply you pair it with sets the usable budget. TP-Link also documents an Extend Mode for 250 m (820 ft) PoE transmission, at which the port speed drops to 10 Mbps**.

Redundant Power and Real-Time Fault Alarms

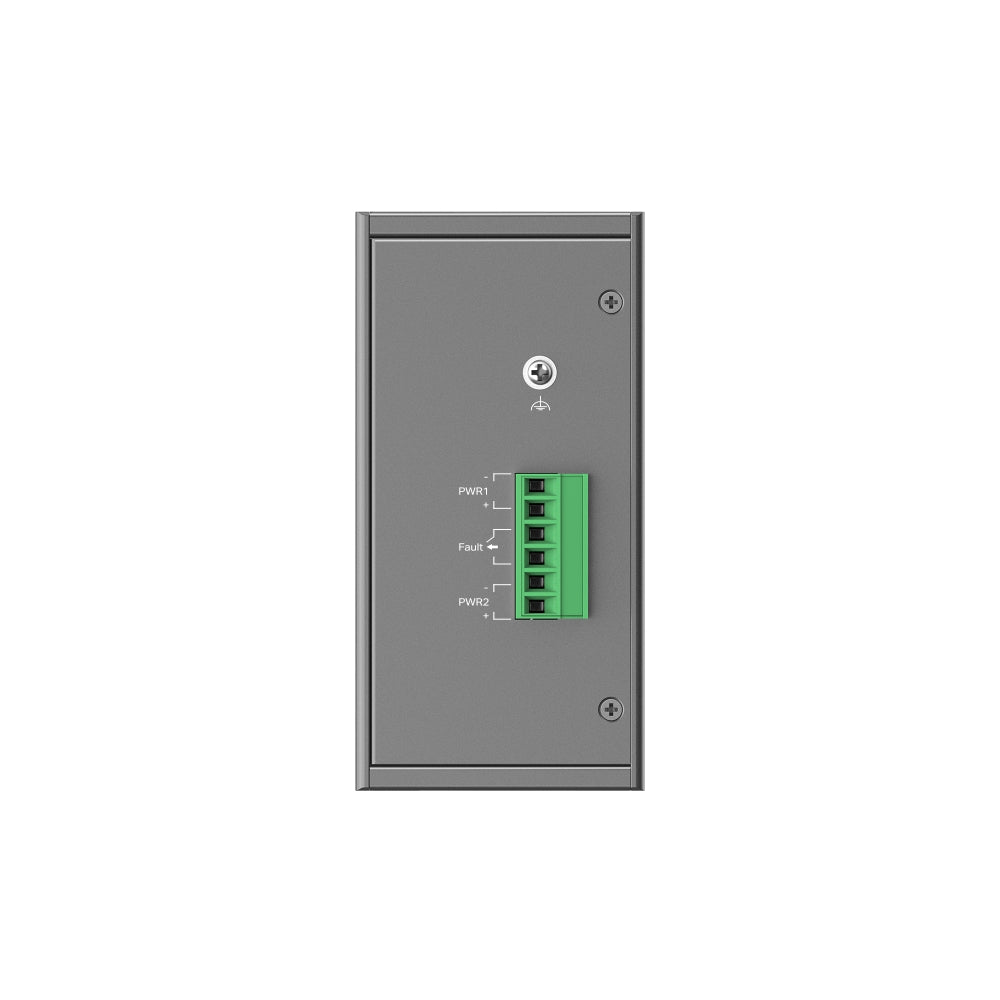

Dual power input ports with a wide 12–57 V DC range run as 1+1 redundant power, and TP-Link's real-time fault alarm flags port disconnection or power anomalies so problems at remote cabinets are seen quickly. A power adapter is not included.

Fibre-Ready Uplinks and L2 Features

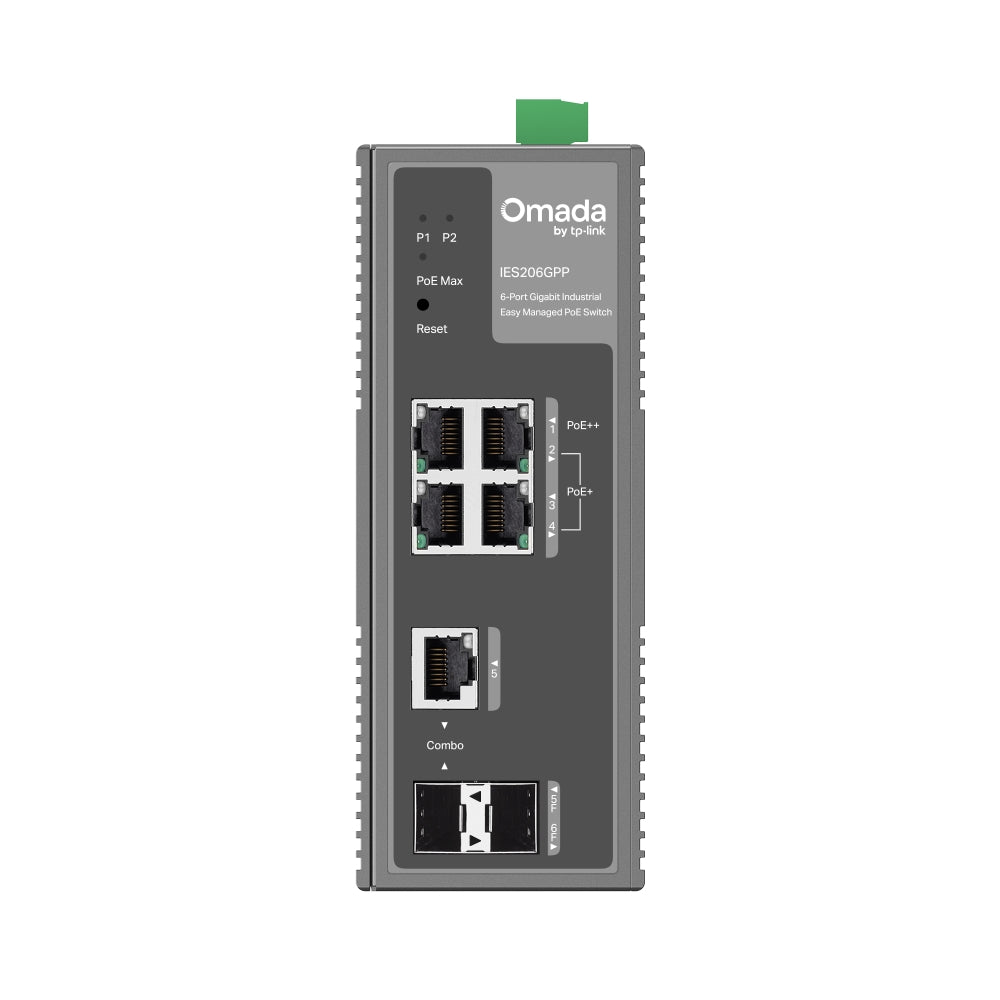

A Gigabit SFP/RJ45 combo slot plus a dedicated Gigabit SFP slot allow a fibre ring or long-distance fibre uplink. Switching capacity is 12 Gbps (8.93 Mpps), with an 8K MAC table and 15 KB jumbo frames. L2 features include static link aggregation (up to 2 groups, up to 4 ports per group), STP/RSTP, loopback detection, port mirroring, LLDP, IGMP snooping and 802.1Q VLANs.

Easy Operation with Free Omada Cloud Management

TP-Link describes the IES range as plug-and-play with simple configuration, and offers free centralised cloud management via Omada Central Essentials, with access logs and alert notifications at any time. Adopted into an Omada Cloud-Based, Hardware or Software Controller, the switch gains the Omada App, cloud access, automatic device discovery, batch configuration, batch firmware upgrading and unified configuration†, with Zero-Touch Provisioning via the Cloud-Based Controller. Cable diagnostics and Digital Diagnostic Monitoring (DDM) for optics are built in.

Ideal For

Integrators deploying one or two cameras or outdoor APs per pole or cabinet — car parks, perimeters, roadside and transport sites, small production lines — where an industrial temperature range and redundant DC power matter more than port count. Supplied by SourceIT with local Singapore warranty, GST invoice and project pricing on request.
