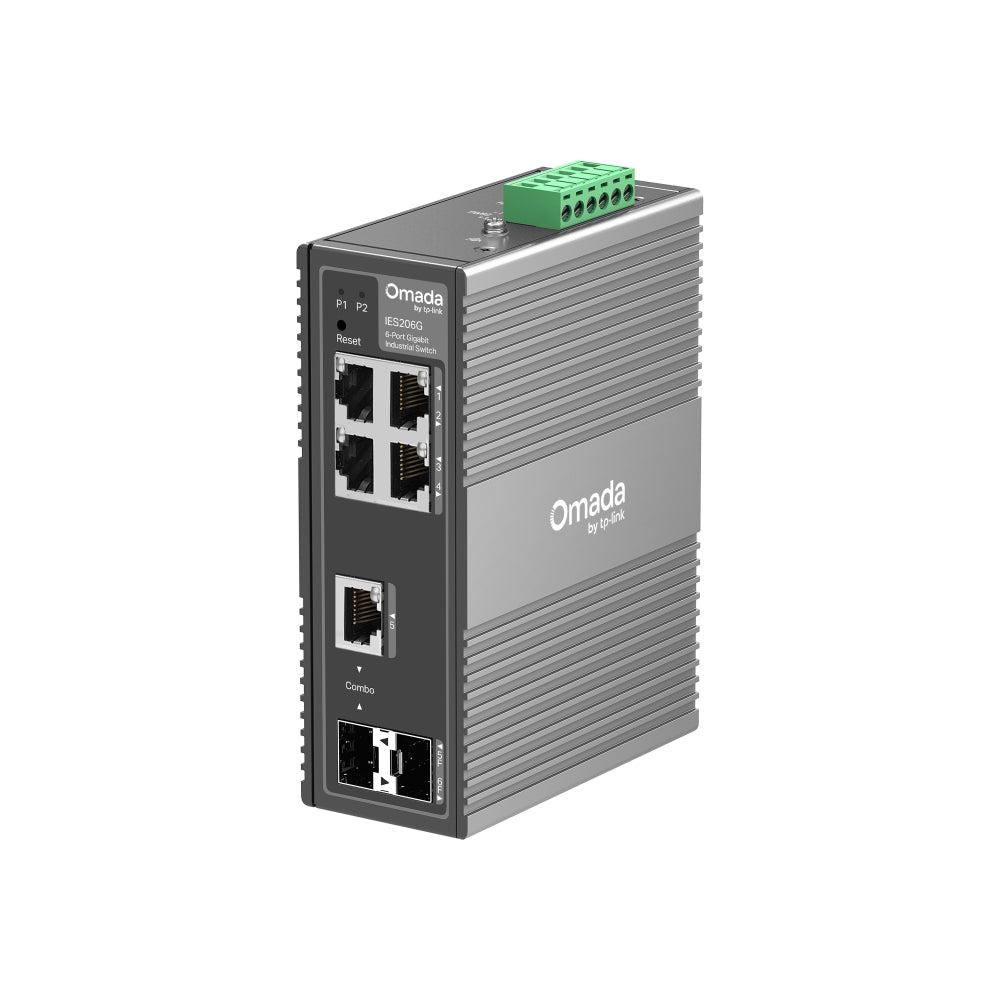

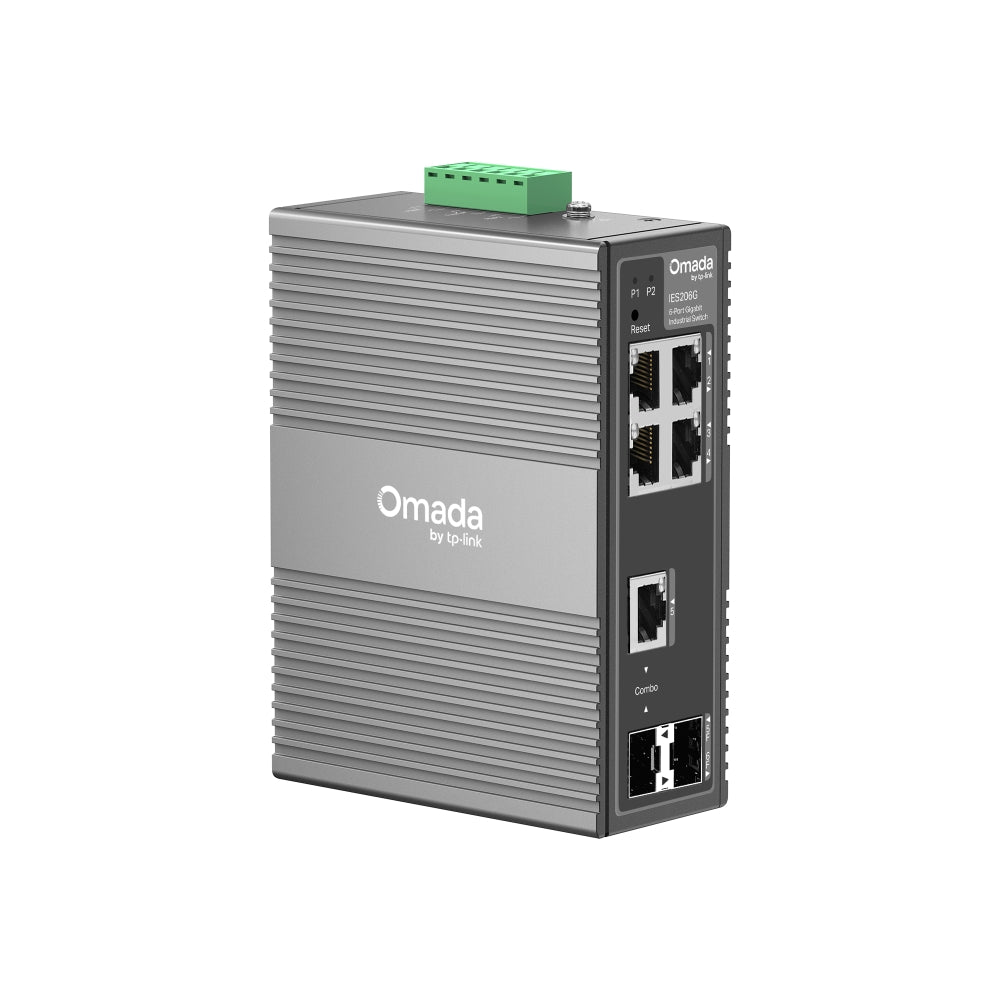

TP-Link Omada 6-Port Gigabit Industrial Easy Managed Switch

TP-Link Omada 6-Port Gigabit Industrial Easy Managed Switch (IES206G) - 5 Years Local Warranty

The IES206G is Omada's compact 6-port Gigabit industrial switch for cabinets, poles and plant rooms where an office switch will not survive. It combines four Gigabit RJ45 ports with one RJ45/SFP combo port and one dedicated SFP slot, so a remote camera cluster or controller can be fed over fibre from the core, and wraps it in a fanless IP40 aluminium housing rated for -40 °C to 75 °C with redundant DC power input and Omada cloud management.

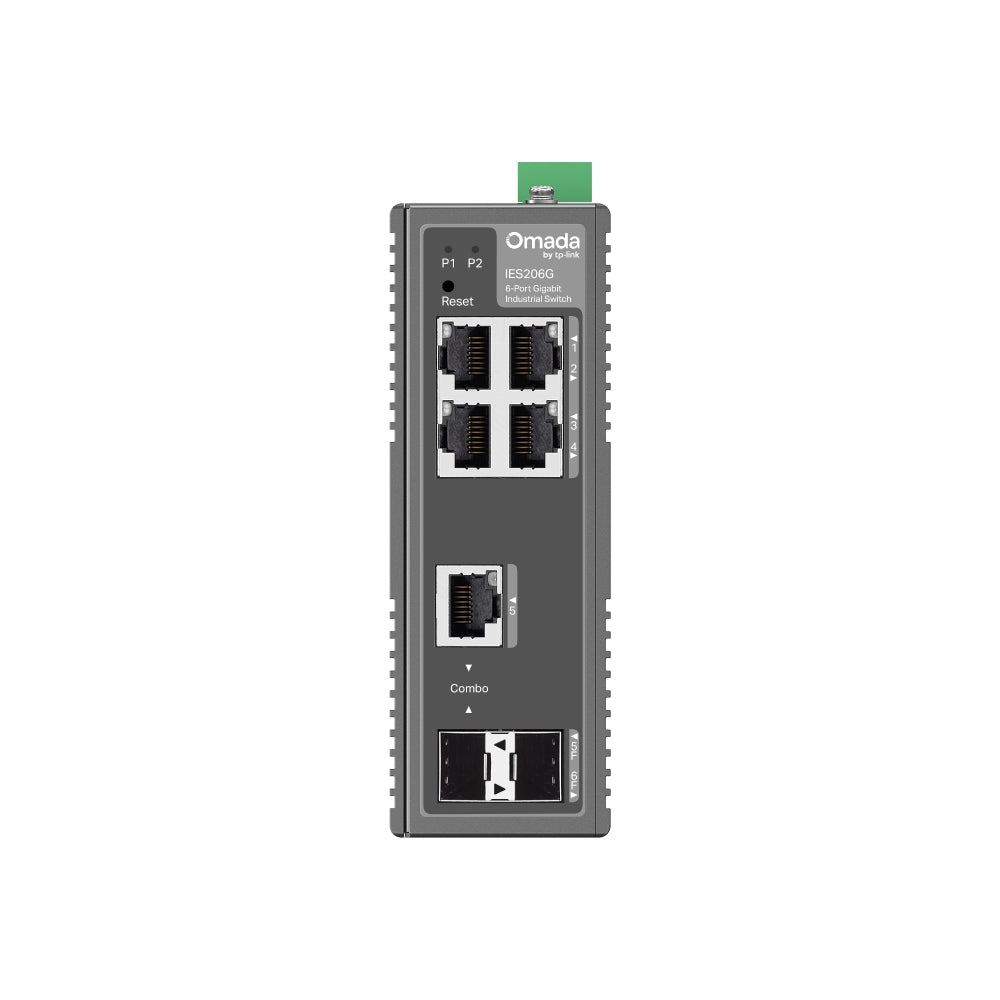

Four Copper Ports Plus Two Fibre-Capable Uplinks

The port layout is 4× 10/100/1000 Mbps RJ45, 1× Gigabit SFP/RJ45 combo slot and 1× Gigabit SFP slot. That gives two paths for fibre: one SFP back to the core and a second for daisy-chaining to the next cabinet, or a copper uplink on the combo port where fibre is not run. Switching capacity is 12 Gbps with an 8.93 Mpps forwarding rate, an 8K MAC address table, 4 Mbit packet buffer and 15 KB jumbo frames — headroom for the handful of cameras, PLCs or access points a field cabinet typically serves.

Rated From -40 °C to 75 °C With 6 kV Lightning Protection

TP-Link rates the IES206G for -40 °C to 75 °C operation and 5%–95% non-condensing humidity, well beyond the 0–40/45 °C envelope of standard Omada switches. Ethernet ports carry ±6 kV common-mode surge protection and the DC inputs ±4 kV, which matters on outdoor camera runs and long copper links exposed to lightning-induced surges. The fanless design and IP40 aluminium casing remove the moving parts and vents that fail first in dusty or hot enclosures.

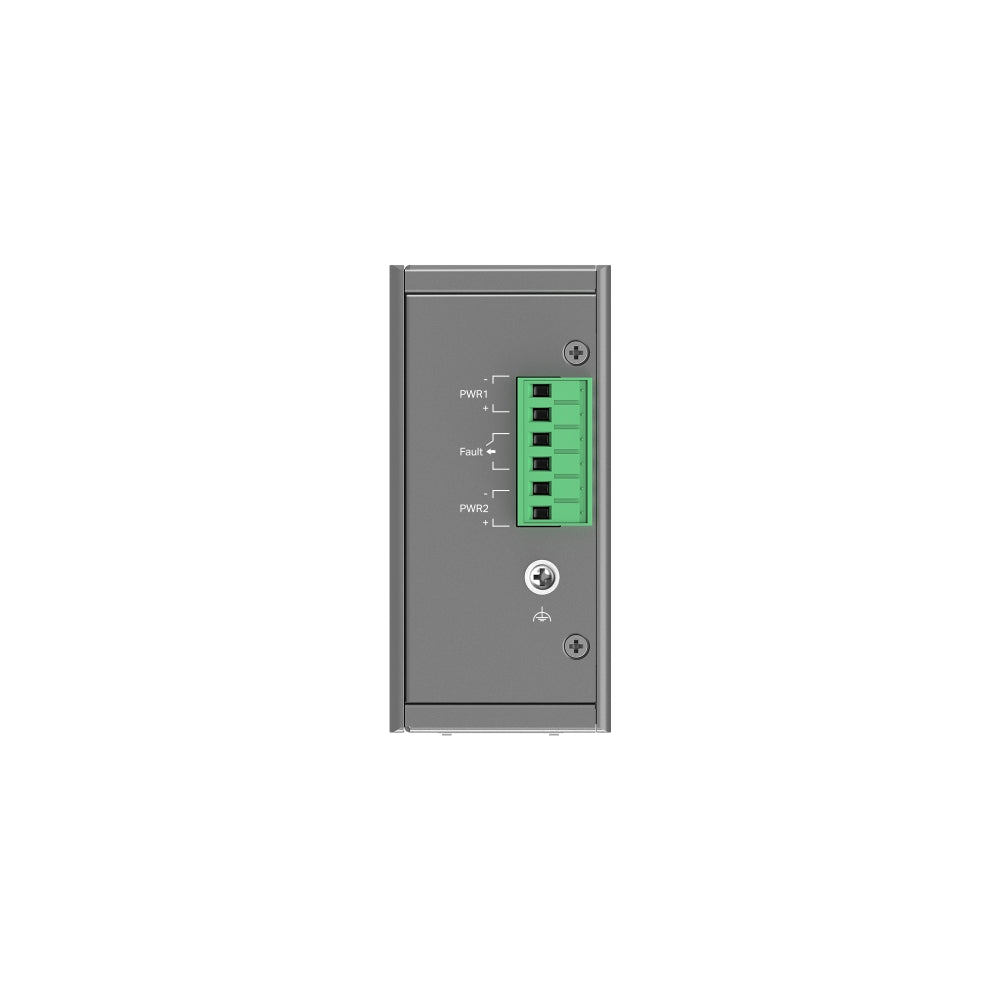

1+1 Redundant 9.6–60 V DC Power and Real-Time Fault Alarms

Two DC power inputs accept a wide 9.6–60 V range, so the switch keeps running if one supply or feed fails and fits the 12 V, 24 V and 48 V supplies common in industrial and surveillance cabinets. TP-Link states the switch outputs alarm signals when a port disconnects or power becomes abnormal, so a failed feed is flagged rather than discovered on the next site visit.

VLAN, QoS and STP/RSTP for Segmented, Resilient Field Networks

As an easy managed switch the IES206G covers the L2 essentials for OT and surveillance segmentation: 802.1Q tag VLANs (32 VLAN groups, 4K VIDs), port-based and MTU VLAN, 802.1p/DSCP QoS with 8 priority queues, port rate limiting and storm control, IGMP Snooping v1/v2/v3, static link aggregation (up to 2 groups of 4 ports), port mirroring, loopback detection, LLDP and STP/RSTP for redundant paths. Cable diagnostics and DDM for SFP modules help remote troubleshooting.

Free Cloud Management Through Omada Central Essentials

The switch can be adopted into Omada Cloud-Based, Hardware or Software Controllers and managed from the web or the Omada App alongside Omada gateways, switches and APs. TP-Link highlights free centralised cloud management via Omada Central Essentials, access logs and alert notifications, and intelligent network monitoring with instant topology views. Zero-Touch Provisioning is supported with Omada Central, so cabinets can be pre-configured centrally and installed by field technicians.

Ideal For

Singapore system integrators and facilities teams building surveillance, industrial automation, energy and smart-building networks — roadside and perimeter camera cabinets, plant-floor controllers, M&E rooms and outdoor enclosures that need DIN-rail or wall mounting. Supplied by SourceIT with local Singapore warranty, GST invoice and project pricing on request.

This model is newly announced; contact SourceIT for availability and lead time.
