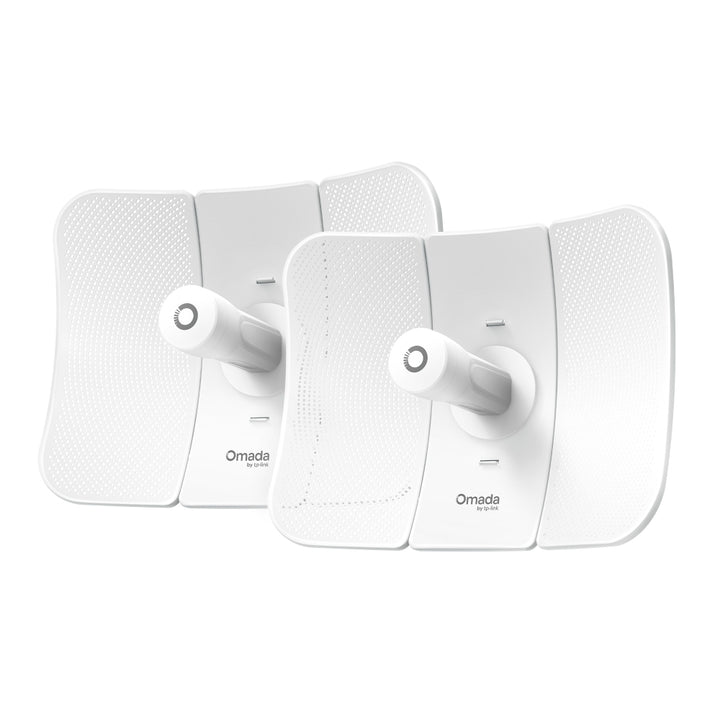

TP-Link Omada 5GHz 867Mbps Ultra-Range Indoor/Outdoor Wireless Bridge Kit, Pre-Paired 2-Unit Set
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
TP-Link Omada 5GHz 867Mbps Ultra-Range Indoor/Outdoor Wireless Bridge Kit, Pre-Paired 2-Unit Set (Beam Bridge 5 UR KIT) - 5 Years Local Warranty
The Beam Bridge 5 UR KIT is a pre-configured PAIR of Omada 5 GHz ultra-range bridges — one kit contains two bridge units (a main bridge and a sub-bridge) that auto-pair out of the box to form a single point-to-point link. With 23 dBi dual-polarised directional antennas, TP-Link rates the link at up to 15 km (9.3 mi), for joining buildings, sites or camera poles where running fibre is not practical.
Two Bridges, Pre-Paired for an Instant Point-to-Point Link
TP-Link supplies the kit preconfigured for instant PtP auto-pairing: the official datasheet lists two Beam Bridge 5 UR units, two Passive PoE adapters, two power cords and two mounting kits in the box. A Role Switch DIP switch and a System Mode Selection button set each end's role, so the link can be stood up without configuring either unit from scratch.
Up to 15 km Ultra-Range Transmission
External 2×2 dual-polarised directional MIMO antennas of 23 dBi with a tight 9° horizontal by 7° vertical beamwidth concentrate the signal for long distance — TP-Link publishes a transmission distance of 15 km (9.3 mi) on 5 GHz, at a signal rate of up to 867 Mbps (IEEE 802.11a/n/ac, 20/40/80 MHz channels).
App-Guided Alignment and Speed Test
Long links live or die on alignment. The Omada App provides app-guided antenna alignment plus an instant speed test so the installer can verify the link on the pole before leaving site, and the bridge supports channel optimisation and automatic channel selection.
Simple PoE Deployment
Each unit has one Gigabit RJ45 port (PoE in) and accepts 802.3af PoE or 24V/48V Passive PoE, with a maximum consumption of 15.8 W. A passive PoE adapter is supplied for each end, so no separate PoE switch is needed at the remote site.
Weatherproof and Protected
An IP65 weatherproof enclosure, ±6 kV Ethernet-port lightning protection and a -40 °C to 70 °C operating range suit rooftop and pole installations; pole mounting kits are included.
Standalone or Omada SDN Managed
Run the link standalone, or adopt both ends into Omada Central, an Omada Hardware Controller or Software Controller for remote centralised monitoring, firmware updates, email alerts and zero-touch provisioning.
Ideal For
Linking two buildings, a guardhouse, a remote warehouse or a CCTV pole back to the main network across a car park, campus, estate or worksite — any Singapore site where a cabled or fibre run is impractical. Remember one kit is a complete two-ended link. Supplied by SourceIT with local Singapore warranty, GST invoice and project pricing on request.
Beam Bridge 5 UR KIT Datasheet — Technical Specifications
General
| Model | Beam Bridge 5 UR KIT |
| Official Product Name | Omada 5GHz 867Mbps Ultra-Range Indoor/Outdoor Wireless Bridge |
| Brand | TP-Link Omada |
| Warranty | 5 Years Local Warranty (Singapore) |
Kit
| Bridge Units per Kit | 2 (pre-paired main bridge and sub-bridge, per TP-Link's datasheet package list) |
| Link Type | Point-to-Point (PtP) |
Hardware (per unit)
| Interface | 1 × 10M/100M/1000Mbps Gigabit Ethernet Port (RJ45); PoE In |
| Button | 1 × Reset Button, 1 × System Mode Selection Button |
| DIP Switch | Role Switch |
| Power Supply | 802.3af PoE (1,2 pins; 3,6 pins); 24V or 48V Passive PoE (+4,5 pins; -7,8 pins) |
| Max. Power Consumption | 15.8W |
| Dimensions | 14.4 × 11.0 × 8.1 in (366 × 280 × 207 mm) |
| Antenna | External 2×2 Dual-Polarized Directional MIMO Antennas; 5 GHz: 23 dBi |
| Antenna Beamwidth | Horizontal: 9°, Vertical: 7° |
| Weatherproof Enclosure | IP65 |
| Mounting | Pole Mounting (Kits Included) |
| Lightning Protection | Ethernet Ports: ±6 kV |
| Weight | 1.1 kg (2.43 lb) (main unit) |
Wireless
| PtP | Yes |
| Transmission Distance | 15 km (9.3 mi) |
| Wireless Standards | IEEE 802.11 a/n/ac |
| Frequency | 5 GHz |
| Bandwidth | 5 GHz: 20 MHz/40 MHz/80 MHz |
| Signal Rate | Up to 867 Mbps |
| Wireless Functions | MU-MIMO: 5G 2x2 MU-MIMO DL; Maximum number of associated STAs: 8; Speed Test; Channel Optimization; Antenna Alignment; ACS (Automatic Channel Selection); Rate Limit; Guest Network |
| Wireless Security | VLAN; Rogue AP Detection; Max MAC Filter: 4,000; Wireless Encryption |
| Transmission Power | CE: <23 dBm (U-NII-1/2A), <30 dBm (U-NII-2C); FCC: <27 dBm (U-NII-1/3) |
Management
| Omada App | Yes |
| Restore & Backup | Yes |
| Firmware Update via Web | Yes |
| NTP | Yes |
| Centralized Management | Omada Central (Cloud-Based), Omada Hardware Controller, Omada Software Controller |
| Cloud Access | Yes (requires Omada controller) |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| SNMP | Yes |
| SSH | Yes |
| Web-based Management | Yes |
| Zero-Touch Provisioning | Yes |
Environment & Certification
| Operating Temperature | -40 °C–70 °C (-40 °F–158 °F) |
| Storage Temperature | -40 °C–70 °C (-40 °F–158 °F) |
| Operating Humidity | 10%–90% non-condensing |
| Storage Humidity | 5%–90% non-condensing |
| Certification | CE, FCC |
Signal rate is the physical rate derived from IEEE 802.11; the 15 km distance is calculated from TP-Link laboratory testing and real links depend on line of sight, antenna alignment and interference. Lightning/ESD protection depends on proper setup, grounding and cable shielding.
Compatibility & Software Support
Both bridges in the kit can run standalone (the kit auto-pairs) or be adopted into Omada SDN for central management alongside Omada gateways, switches and APs. TP-Link notes cloud access requires an Omada controller.
| Omada SDN Controller | Supported — Omada Central (Cloud-Based), Omada Hardware Controller, Omada Software Controller |
| Omada App | Supported (including app-guided antenna alignment) |
| Cloud Access | Supported (requires an Omada controller) |
| Zero-Touch Provisioning | Supported |
| Standalone Mode | Supported — web-based management |
Package Contents & Ordering Information
What’s in the Box
| Package Contents | Beam Bridge 5 UR × 2, Passive PoE Adapter × 2, Power Cord × 2, Mounting Kit × 2, Installation Guide × 1 |
Quantities are from TP-Link's official datasheet. The product page's Package Content row lists the same items without quantities ("Beam Bridge 5 UR KIT, Installation Guide, Mounting Kit, Passive PoE Adapter, Power Cord").
Ordering Information
| Model | Beam Bridge 5 UR KIT |
| Recommended Retail Price (incl. GST) | S$299.00 |
Datasheet & Downloads
Frequently Asked Questions — Beam Bridge 5 UR KIT
Is this one bridge or a pair?
A pair. One Beam Bridge 5 UR KIT contains two pre-paired bridge units — everything needed for one point-to-point link, with a PoE adapter, power cord and mounting kit for each end. You do not need to buy a second kit for the other end.
Does the Beam Bridge 5 UR KIT need an Omada Controller?
No. The kit is preconfigured to auto-pair and runs standalone. Adopting both ends into Omada Central or an Omada Hardware/Software Controller adds remote monitoring, alerts, firmware management and cloud access.
What warranty does SourceIT provide?
Five years local Singapore warranty. Every Beam Bridge 5 UR KIT sold by SourceIT comes with a GST invoice.
Is stock held locally?
SourceIT holds fast-moving Omada lines in Singapore. Anything not in local stock is brought in on indent — ask us for the current lead time before committing to a project date.
Is this model available for project orders?
Yes. TP-Link supplies this model for project deployments; contact SourceIT with your bill of materials for pricing and lead time.
