TP-Link Omada 5G Outdoor Gateway
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION

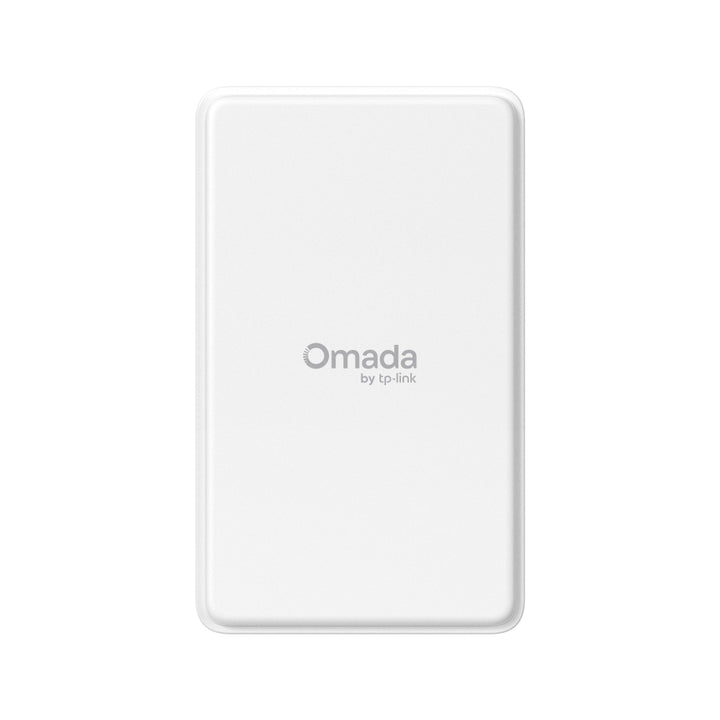

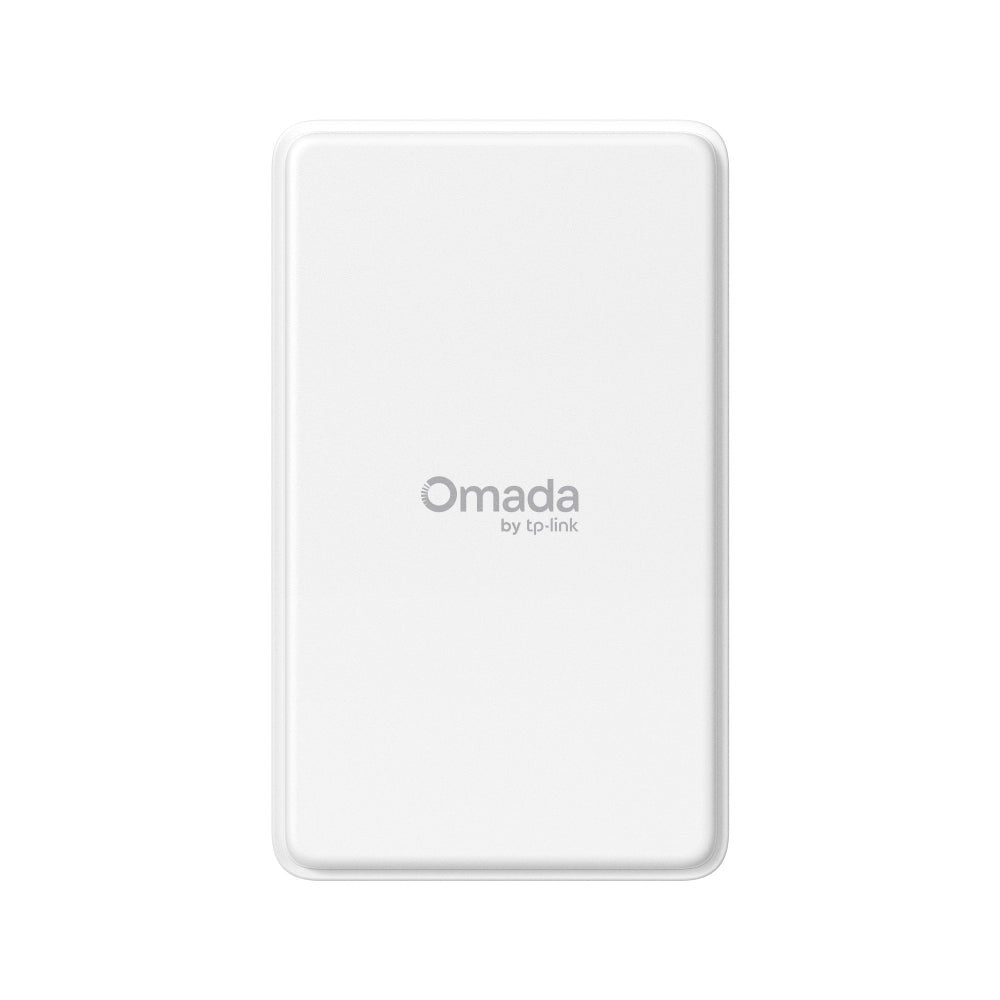

TP-Link Omada 5G Outdoor Gateway (ER701-5G-Outdoor) - 5 Years Local Warranty
The ER701-5G-Outdoor is Omada's weatherproof 5G gateway — "built to go where wired broadband can't". It mounts on a wall, pole or window, takes power and delivers data over a single 2.5G PoE cable, and brings 5G SA/NSA broadband into an Omada-managed network.
Up to 7.01 Gbps 5G Downlink
In 5G standalone (SA) mode TP-Link publishes peak speeds of 7.01 Gbps downlink and 1.25 Gbps uplink; in non-standalone (NSA) mode, 4.5 Gbps down and 730 Mbps up. LTE fallback reaches 1.6 Gbps down and 211 Mbps up, and 3G WCDMA is supported as a last resort. Actual speeds depend on the service plan, network capacity and environment.
Nine High-Gain Internal Cellular Antennas
Nine high-gain directional internal cellular antennas are designed for a strong, stable 5G signal. Installation is simplified by real-time signal strength in the Omada App, so the installer can align the unit for the best reading before fixing it in place.
Single-Cable 2.5G PoE Installation
A single 2.5G RJ45 port carries both data and power — 802.3at PoE (42-57 V, 0.6 A) or passive PoE (48 V, 0.375 A, adapter included) — with a maximum draw of 15.3 W. The gateway can therefore sit on the roof or an external wall where the 5G signal is best, with only one cable run back to the comms room.
Dual SIM Failover for Business Continuity
Two Nano SIM slots run in active/standby, so automatic failover and backup WAN scenarios keep the business up and running if a carrier link degrades.
IP66, 6 kV Surge Protection and -30 °C to 60 °C
The fully sealed enclosure is rated IP66 weatherproof with 6 kV surge protection and an operating range of -30 °C to 60 °C, for prolonged exposure to harsh outdoor conditions. A 2.4 GHz Wi-Fi interface (150 Mbps) is provided for local setup and management only.
Managed in Omada With 500,000 Concurrent Sessions
The gateway is adopted into Omada Central, a Hardware Controller or the Software Controller, with DPI, URL filtering, flood defence and ARP inspection, and is rated for 500,000 concurrent sessions and 6,100 new sessions per second.
Ideal For
Sites without fixed broadband — construction, remote facilities, temporary event and retail sites — and businesses adding 5G as a high-speed backup WAN to an Omada network. Supplied by SourceIT with local Singapore warranty, GST invoice and project pricing on request.
ER701-5G-Outdoor Datasheet — Technical Specifications
General
| Model | ER701-5G-Outdoor |
| Official Product Name | Omada 5G Outdoor Gateway |
| Brand | TP-Link Omada |
| Warranty | 5 Years Local Warranty (Singapore) |
Hardware

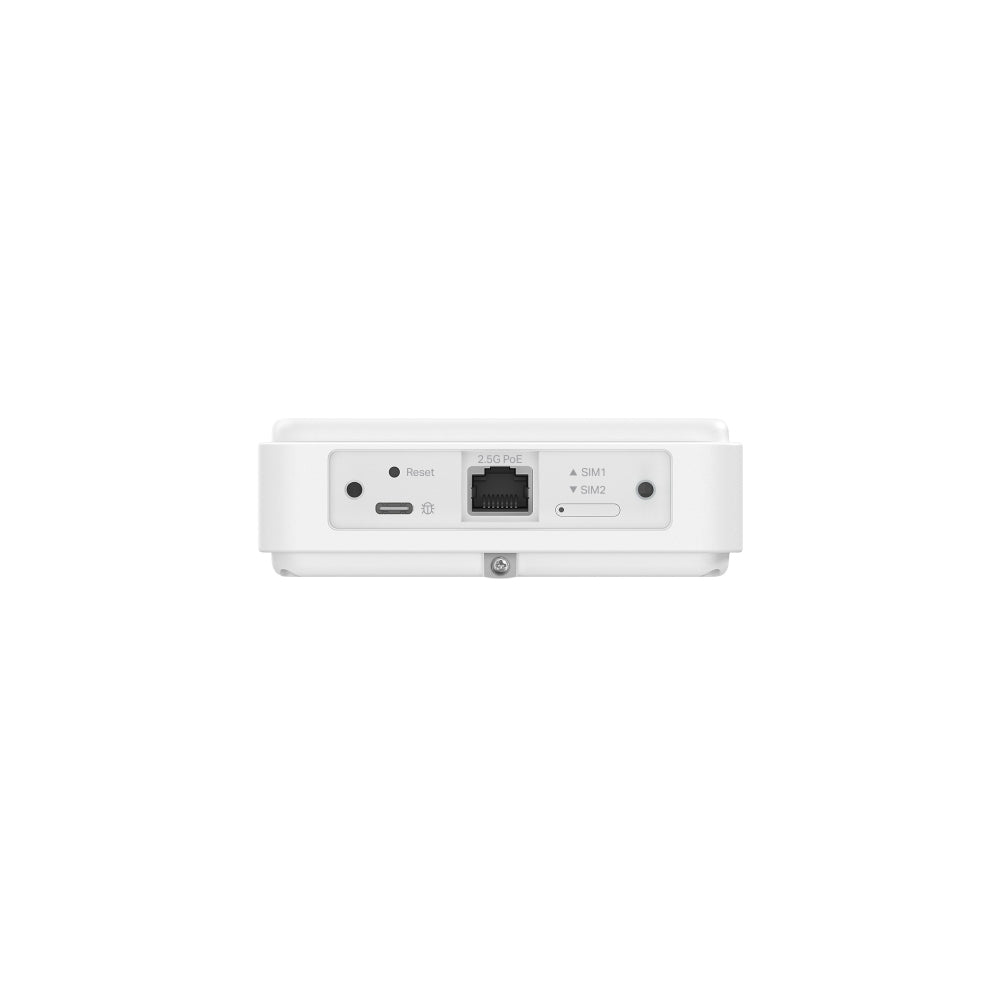

| Interface | 1× 2.5G RJ45 Port (PoE in) |
| SIM Type | Dual Nano SIM |
| Antennas | 9× internal cellular antennas; 1× internal Wi-Fi antenna |
| Button | Reset Button |
| Power Supply | 802.3at PoE: 42-57 V 0.6 A; Passive PoE: 48 V 0.375 A |
| Flash | 4 GB eMMC |
| DRAM | 2 GB LPDDR4x |

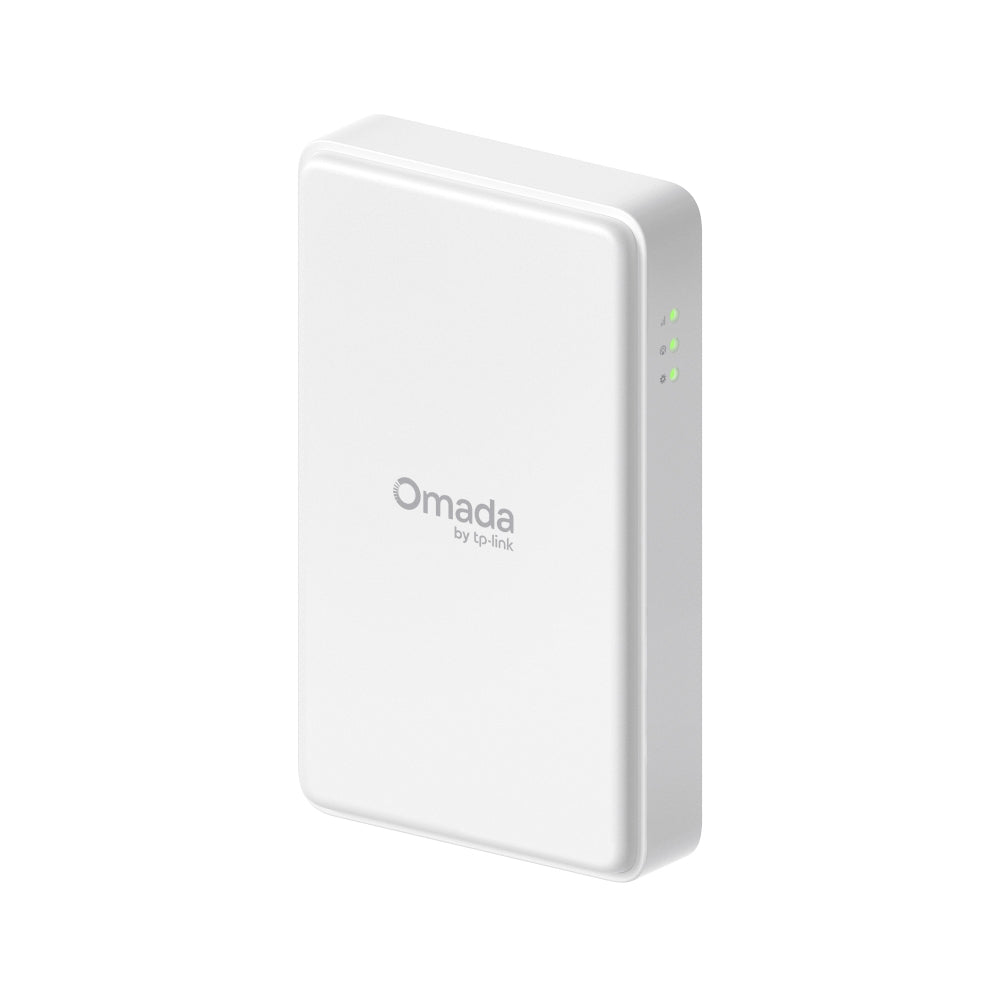

| LED | System, Network Type, Signal Strength |
| Dimensions (W × D × H) | 7.2 × 4.3 × 1.4 in (183 × 110 × 36 mm) |
| Max. Power Consumption | 15.3 W (802.3at PoE or Passive PoE) |

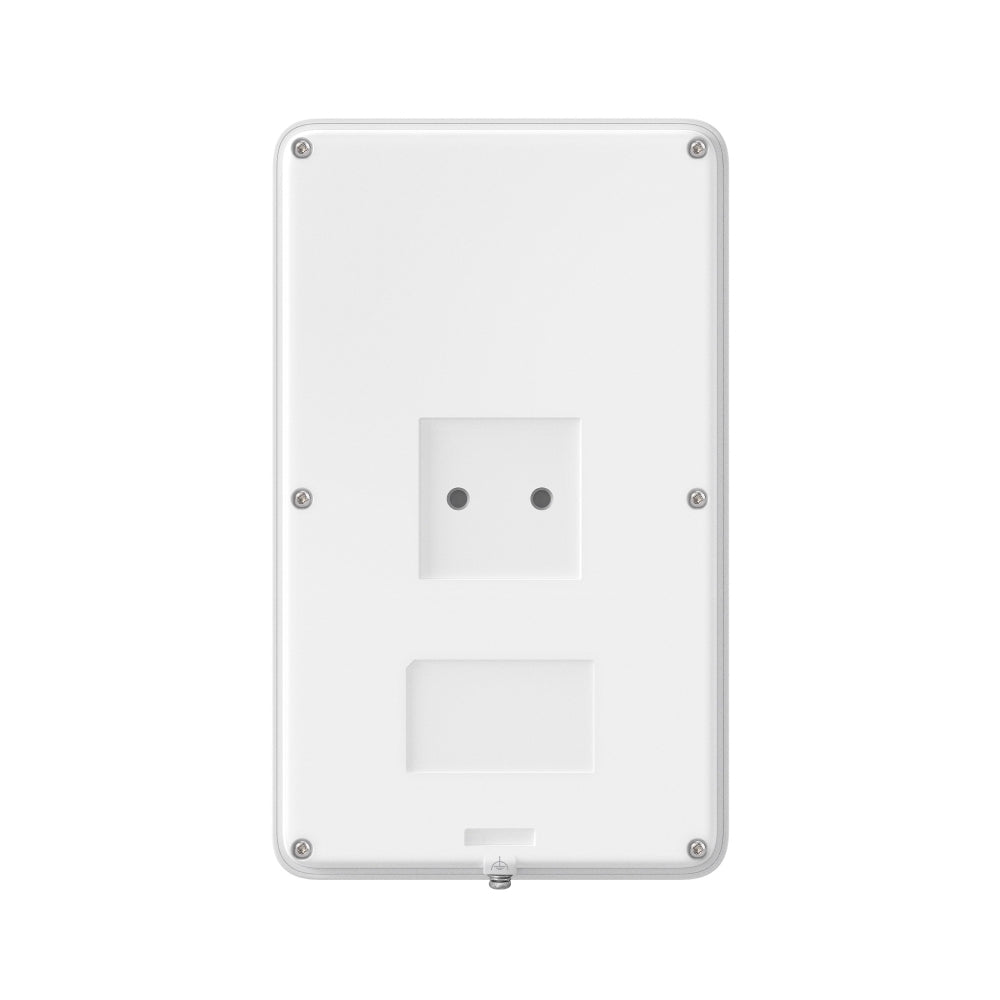

| Mounting | Wall / Pole / Window Mounting |
| Wi-Fi | 2.4 GHz: 150 Mbps (local management only) |
Cellular
| 5G NR SA Speed | Downlink: 7.01 Gbps; Uplink: 1.25 Gbps |
| 5G NR NSA Speed | Downlink: 4.5 Gbps; Uplink: 730 Mbps |
| 5G NR Bands | N1/N3/N5/N7/N8/N20/N26/N28/N38/N40/N41/N75/N76/N77/N78 (N75/N76 downlink only) |
| LTE FDD Bands | B1/B3/B5/B7/B8/B20/B26/B28/B32 (B32 downlink only) |
| LTE TDD Bands | B38/B40/B41/B42/B43 |
| 3G WCDMA Bands | B1/B5/B8 |
| LTE Speed | Downlink: 1.6 Gbps; Uplink: 211 Mbps |
Performance
| Concurrent Sessions | 500,000 |
| New Sessions / Second | 6,100 |
Security
| Access Control | Source/Destination IP Based Access Control |
| DPI | Deep Packet Inspection |
| Filtering | URL Filtering; Web Group Filtering (Standalone Mode); Web Security (Standalone Mode) |
| Attack Defense | TCP/UDP/ICMP Flood Defense; Block TCP Scan; Block Ping from WAN |
| ARP Inspection | Sending GARP Packets; ARP Scanning (Standalone Mode); IP-MAC Binding |
Management
| Centralized Management | Omada Central (Cloud-Based), Omada Hardware Controller, Omada Software Controller, Omada App |
| Cloud Access | Yes |
| Maintenance | Web Management Interface, Remote Management, Export/Import Configuration, SNMP v1/v2c/v3, Diagnostics (Ping & Traceroute), NTP Synchronize, Port Mirroring, CLI (Standalone Mode), Syslog |
| Management Features | Automatic Device Discovery, Intelligent Network Monitoring, Abnormal Event Warnings, Unified Configuration, Reboot Schedule, Captive Portal Configuration |
Environment & Certification
| Operating Temperature | -30 °C to 60 °C (-22 °F to 140 °F) |
| Storage Temperature | -40 °C to 70 °C (-40 °F to 158 °F) |
| Operating Humidity | 5% to 95% non-condensing |
| Storage Humidity | 5% to 90% non-condensing |
| Surge Protection | 6 kV |
| Ingress Protection | IP66 weatherproof |
| Certification | CE, NCC, BSMI |
TP-Link's overview copy describes the unit as "built to endure prolonged submersion", while the specification table rates it IP66 (protection against powerful water jets, not immersion). Both are reproduced as published; plan installations to the IP66 rating.
VPN tunnel counts and VPN throughput figures are not published on TP-Link's Singapore product page; see the datasheet.
Compatibility & Software Support
The ER701-5G-Outdoor is part of the Omada ecosystem: gateways, switches and access points are managed together from one controller, under one set of policies, with one view of the network. Cloud and app features listed below require the device to be adopted into an Omada Controller.
| Omada SDN Controller | Supported — adopt and manage centrally from Omada Central (Cloud-Based Controller), the Omada Hardware Controller or the Omada Software Controller |
| Omada App | Supported — remote management and real-time signal strength for antenna alignment |
| Omada Cloud Access | Supported — requires adoption into an Omada Controller |
| Standalone Mode | Supported — the gateway can also be configured on its own via its web interface |
Package Contents & Ordering Information
What’s in the Box
| Package Contents | ER701-5G-Outdoor Gateway, Passive PoE Adapter, Mounting Kits, Waterproof Kit, Quick Installation Guide |
Ordering Information
| Model | ER701-5G-Outdoor |
| Recommended Retail Price (incl. GST) | S$929.00 |
Datasheet & Downloads
Frequently Asked Questions — ER701-5G-Outdoor
Does the ER701-5G-Outdoor need an Omada Controller?
No. The ER701-5G-Outdoor runs standalone through its own web interface. Adopting it into an Omada Software, Hardware or Cloud-Based Controller is what unlocks central configuration, monitoring, firmware management and cloud/app access across every Omada device on site; features marked Controller Mode on TP-Link's page require a controller.
What warranty does SourceIT provide?
Five years local Singapore warranty. Every ER701-5G-Outdoor sold by SourceIT comes with a GST invoice.
Is stock held locally?
SourceIT holds fast-moving Omada lines in Singapore. Anything not in local stock is brought in on indent — ask us for the current lead time before committing to a project date.
Is this model available for project orders?
Yes. TP-Link supplies this model for project deployments; contact SourceIT with your bill of materials for pricing and lead time.
Can SourceIT quote this for a project or tender?
Yes. Send the bill of materials and we will quote the whole Omada build — controller, gateway, switching, access points and optics — with local warranty and support.
