TP-Link Omada 5-Port Gigabit Easy Managed Switch

TP-Link Omada 5-Port Gigabit Easy Managed Switch (ES205G) - 5 Years Local Warranty

The ES205G puts genuine managed features — VLANs, eight-queue QoS, IGMP snooping, loop prevention and link aggregation — into a five-port fanless box that runs from a 5 V adapter. It is the non-PoE member of the Easy Managed pair, and it can be adopted into an Omada Controller so a small remote site is managed from the same console as the head office.

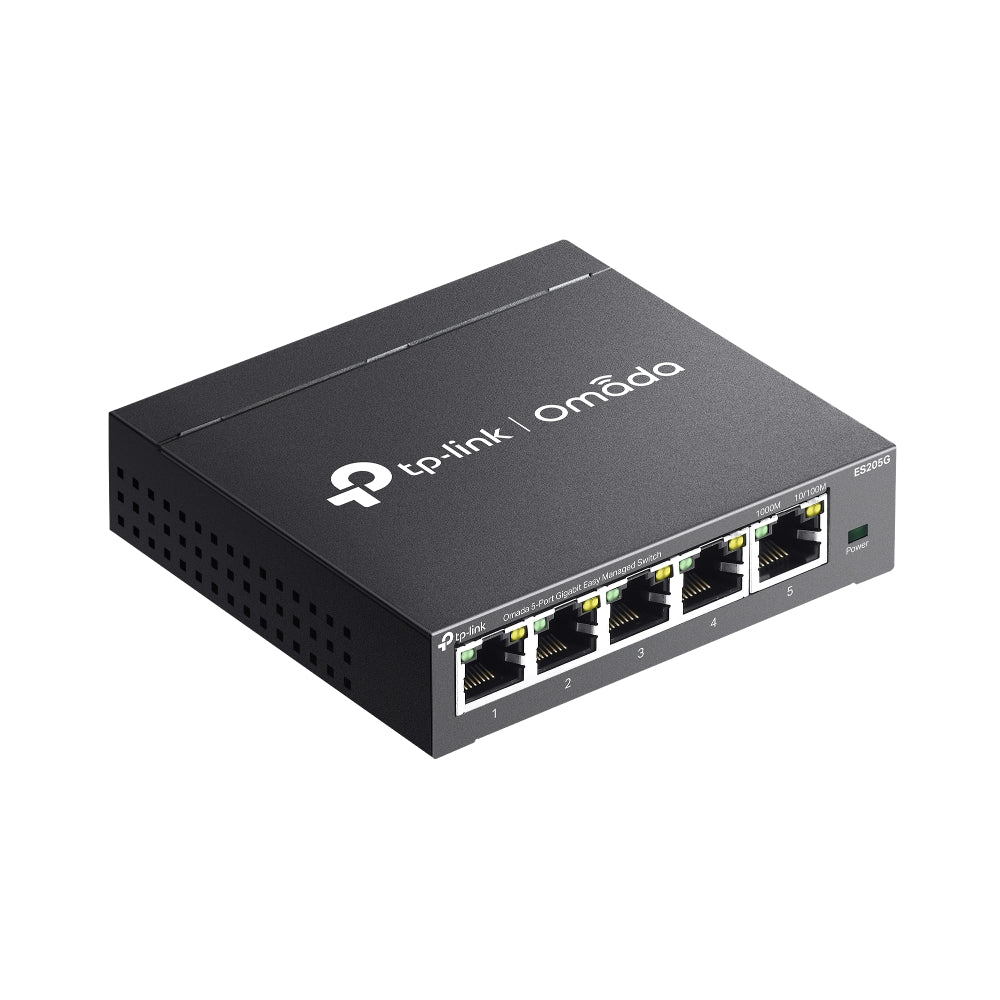

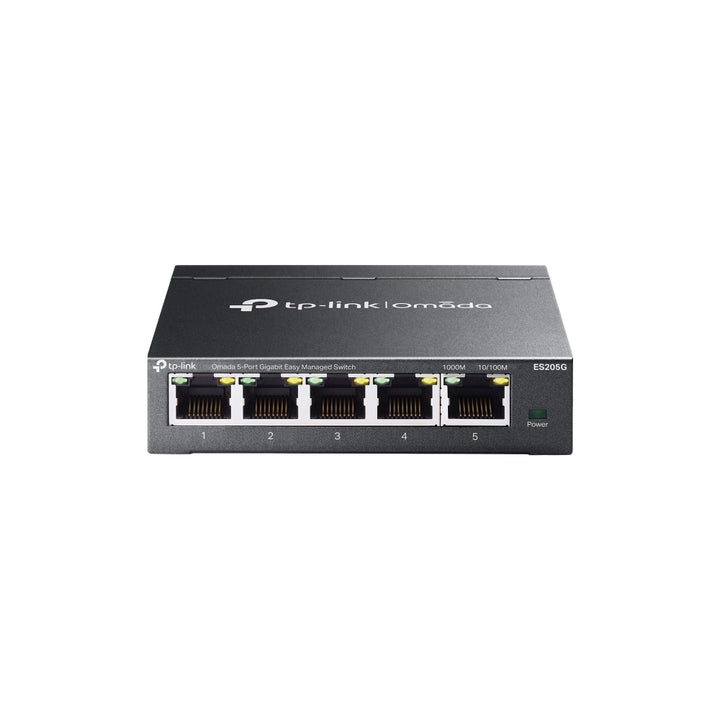

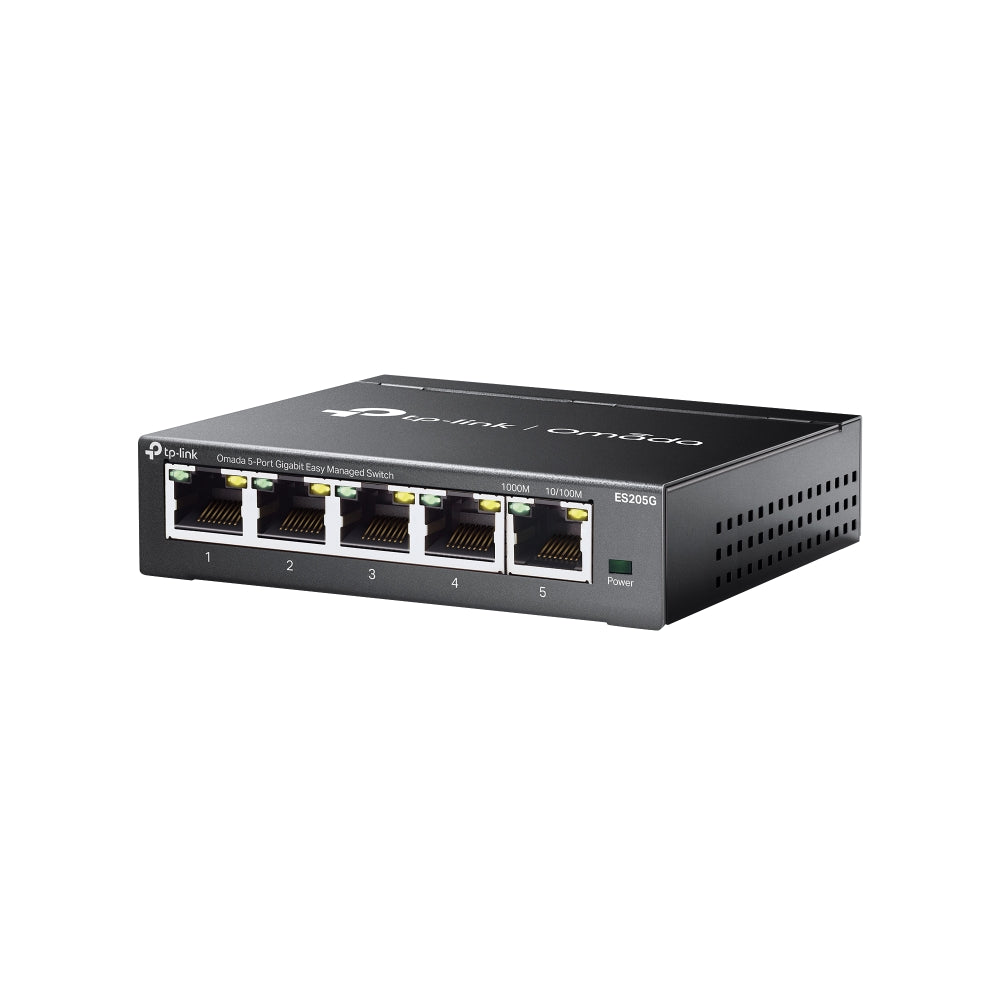

Five Gigabit Ports, No Fan, No Noise

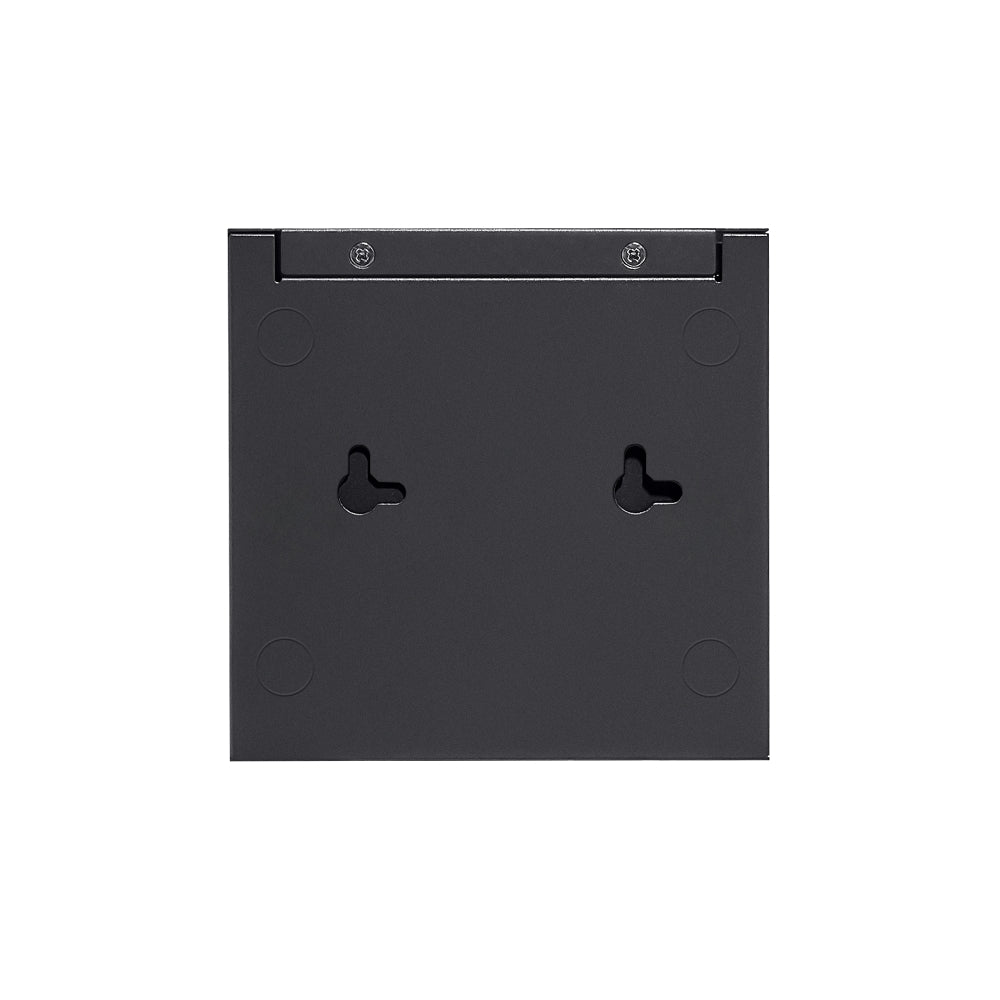

All five ports are 10/100/1000 Mbps with auto-negotiation and Auto MDI/MDIX, so anything plugs into anything and links at its own speed. There is no fan, which makes the switch silent enough for a reception desk, a meeting room or a consulting room rather than only a comms cupboard. At 100 x 98 x 25 mm it sits on a desk or mounts to a wall, and a physical security lock slot lets it be secured where it is exposed.

VLANs and QoS on a Five-Port Switch

The ES205G carries 802.1Q tag VLAN with up to 32 VLAN groups across 4K VIDs, alongside MTU VLAN and port-based VLAN — enough to keep guest Wi-Fi, a payment terminal and staff traffic apart on a single switch at a small site. QoS classifies port-based, by 802.1p or by DSCP into eight priority queues with weighted round robin and configurable queue weights, so a voice or video stream is not held behind a bulk file copy. Port-based rate limiting and storm control complete the picture.

Loop Prevention, Mirroring and Aggregation

Automatic loop prevention detects and shuts down a port that has been patched back into the switch before the broadcast storm spreads — the single most common cause of an office network falling over. Static link aggregation lets two ports be bonded to a server or upstream switch. Port mirroring supports one-to-one and many-to-one in ingress, egress or both directions, which is what makes a problem on a small site diagnosable without a site visit. IGMP snooping v1/v2/v3 with fast leave keeps multicast off ports that did not ask for it.

Adopt It Into Omada, or Run It Alone

The switch works standalone through its own web GUI, with DHCP client and cable diagnostics available immediately. Adopted into an Omada Cloud-Based, Hardware or Software Controller, it joins the rest of the network under one set of policies. TP-Link is specific that automatic device discovery, batch configuration, batch firmware upgrading and unified configuration require the controller, that the Omada app and cloud access require one too, and that Zero-Touch Provisioning requires the Cloud-Based Controller in particular.

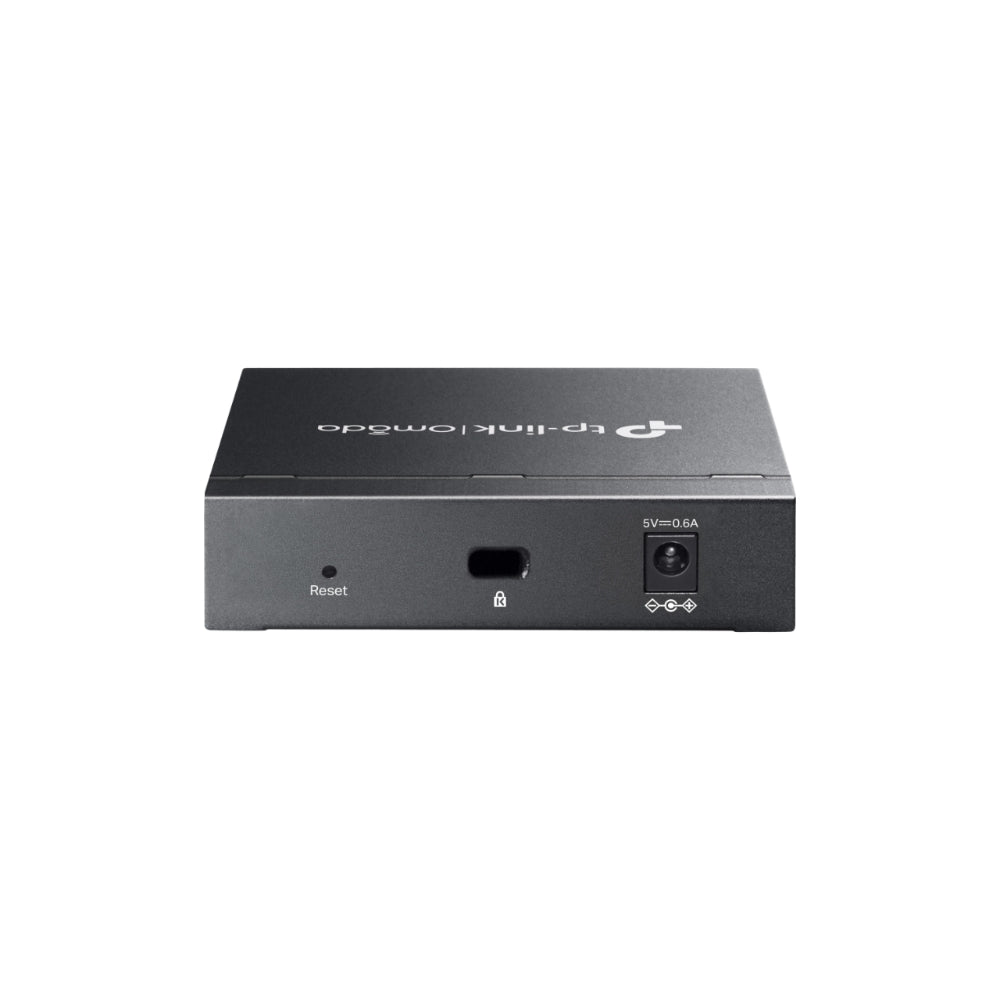

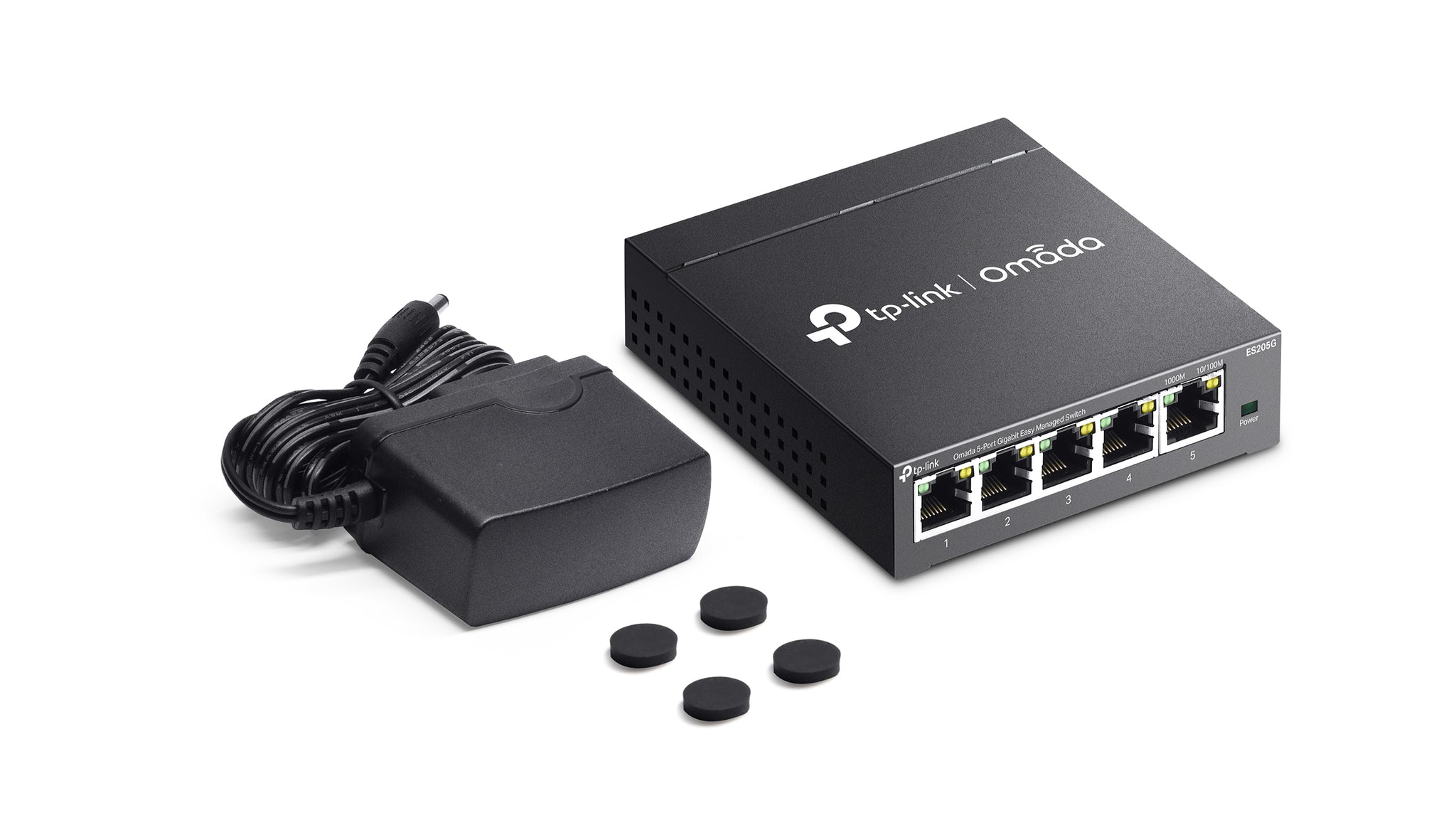

Under a Watt of Adapter Voltage to Worry About

Power comes from an external DC adapter supplying 5 V at 0.6 A — a genuinely small supply, reflecting a switch with no PoE load to carry. Surge protection is rated at ±6 kV. TP-Link publishes an operating range of 0 to 40 degrees Celsius at 10 to 90 percent relative humidity, non-condensing, and certifies the unit to FCC, CE and RoHS. Store-and-forward switching is used throughout.

Ideal For

Singapore branch offices, retail units, clinics and meeting rooms that need VLAN separation and QoS on a handful of ports, and IT teams who want those small switches visible in the same Omada console as everything else. Supplied by SourceIT with local Singapore warranty, GST invoice and project pricing on request.
