TP-Link Omada 5-Port Gigabit PoE++/PoE+ Switch
PRODUCT DESCRIPTION

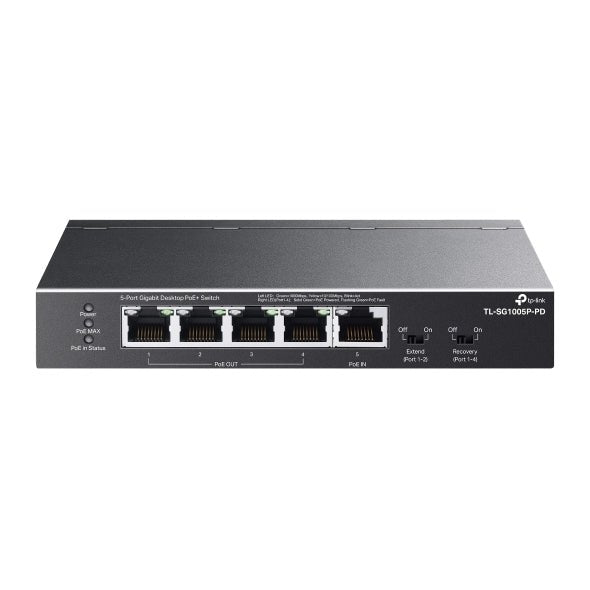

TP-Link Omada 5-Port Gigabit PoE++/PoE+ Switch (TL-SG1005P-PD) - 3 Years Local Warranty
PoE Pass-Through Convenience
The TL-SG1005P-PD is powered entirely by a single PoE++ input, then passes power through to four PoE+ output ports. There is no need for an AC or DC adapter, simply connect it to an upstream PoE source and it powers itself and your devices, making installation remarkably clean and flexible in any location.
Flexible PoE Output Budget
The switch intelligently adjusts its PoE output based on the input source, providing up to 66 W when fed by an 802.3bt Type 4 (90 W) source, 47 W with Type 3 (60 W), 21 W with 802.3at, or 9 W with 802.3af. This adaptability lets it power cameras, access points, and IP phones in a wide range of setups.
Long-Range Extend Mode
With Extend Mode enabled, PoE transmission distance reaches up to 250 meters, far beyond the standard 100-meter limit. This makes the TL-SG1005P-PD perfect for IP camera deployments across large areas, letting you place devices exactly where they are needed without worrying about cable length.
Reliable Fanless Operation
PoE Auto Recovery guarantees stable operation by automatically rebooting dropped or unresponsive powered devices. The durable metal casing supports both desktop and wall-mounting, and the industry-leading fanless design ensures completely silent operation, ideal for homes, shops, and offices alike.
Technical Specifications
- Ports: 5 x Gigabit RJ45 (1 PoE++ In, 4 PoE+ Out)
- PoE Input: 802.3bt (PoE++)
- PoE Output Budget: up to 66 W (90 W input) / 47 W / 21 W / 9 W depending on source
- Extend Mode: PoE up to 250 m
- Power: PoE-powered only (no AC/DC)
- Mounting: Desktop or wall
- Cooling: Fanless metal casing
Ideal Use Case: Perfect for extending PoE networks where no power outlet is available, such as adding cameras or APs downstream of an existing PoE switch in large or remote areas.
