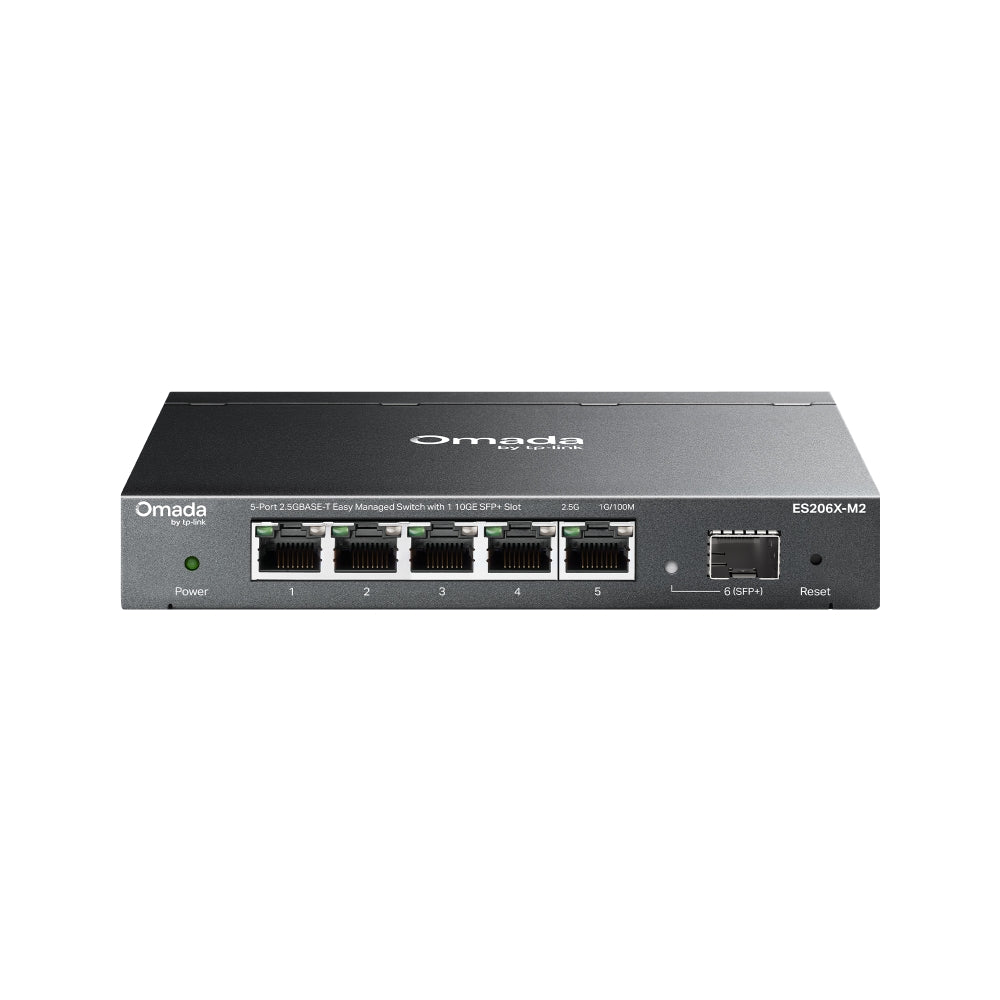

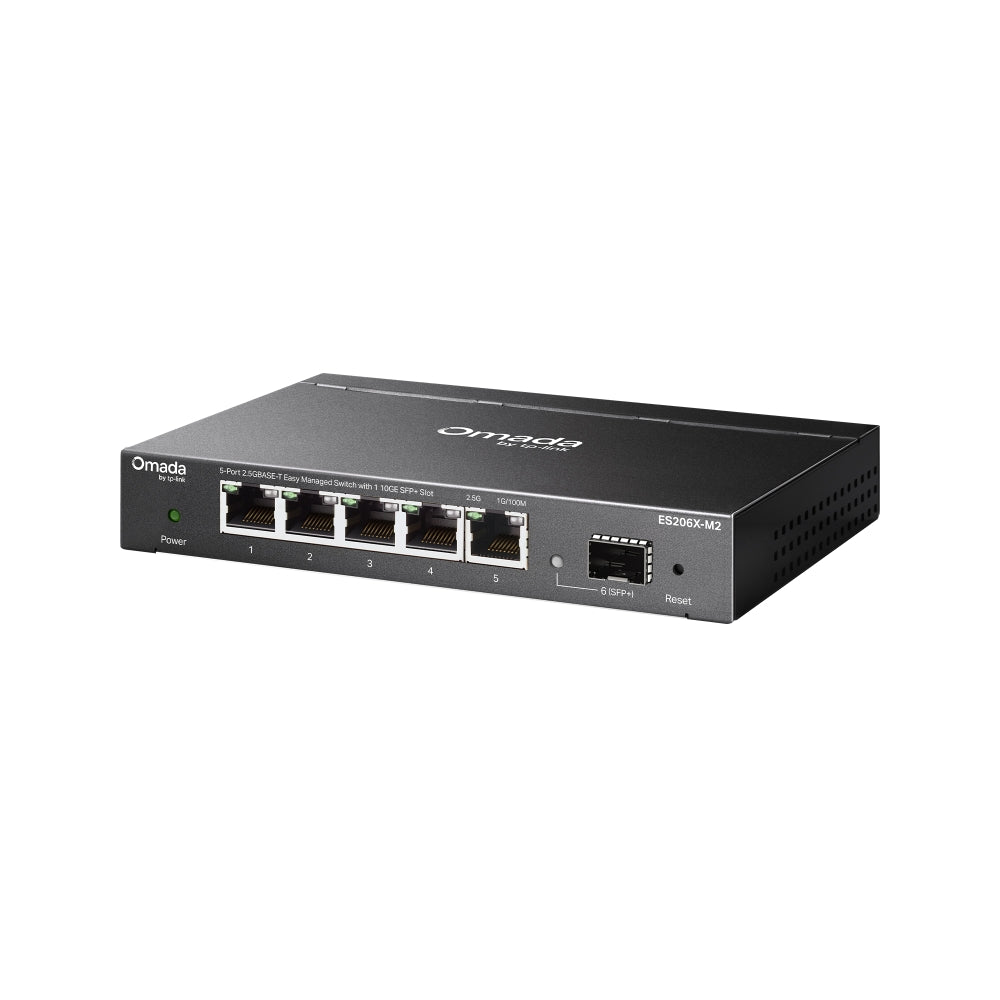

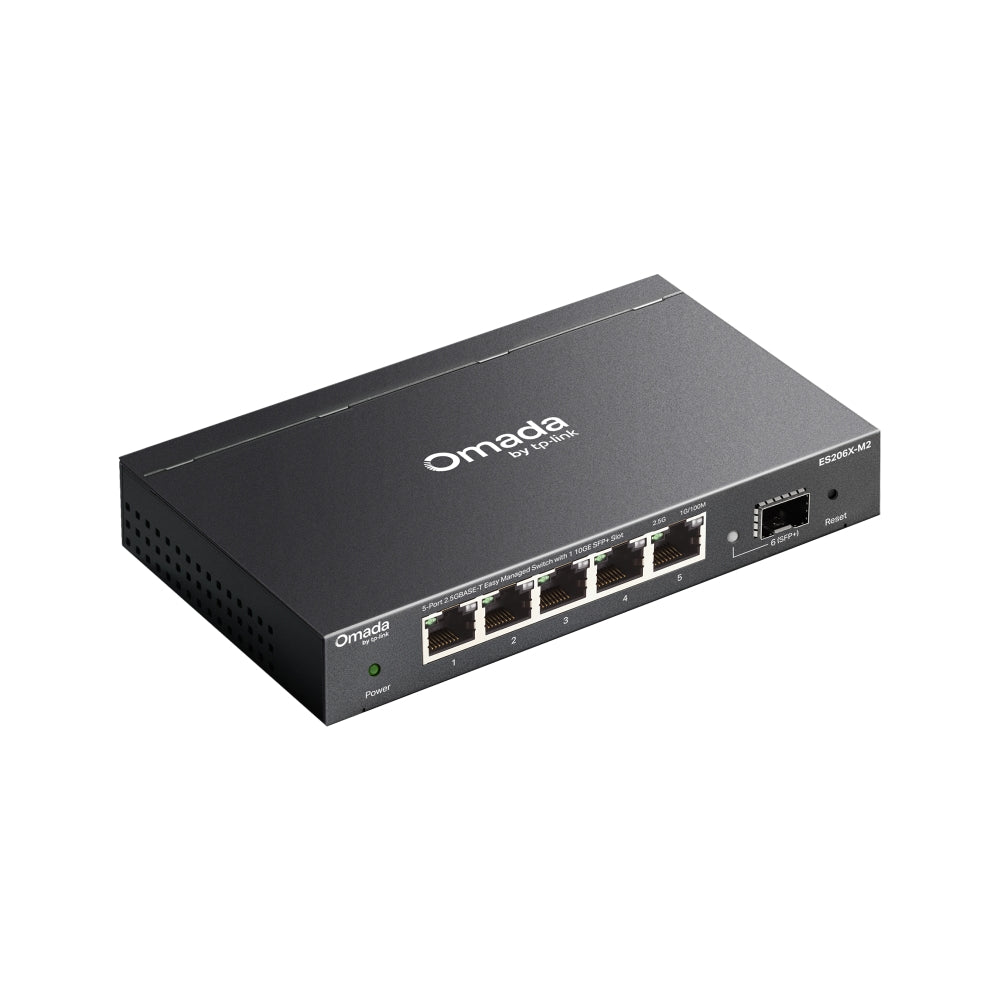

TP-Link Omada 5-Port 2.5GBASE-T Easy Managed Switch with 1 10GE SFP+ Slot

TP-Link Omada 5-Port 2.5GBASE-T Easy Managed Switch with 1 10GE SFP+ Slot (ES206X-M2) - 5 Years Local Warranty

The ES206X-M2 is the compact multi-gigabit member of Omada's Easy Managed line: five 2.5GBASE-T ports and one 10 Gbps SFP+ uplink on a 45 Gbps fabric, in a 158 mm fanless metal chassis. It sits directly below the eight-port ES210X-M2, trading three 2.5G ports and a second SFP+ slot for a smaller footprint. There is no PoE on this model.

Five 2.5GBASE-T Ports for Wi-Fi 7 APs, NAS and Workstations

All five copper ports run at 2.5 Gbps with auto-negotiation and Auto MDI/MDIX, giving two and a half times the bandwidth of a Gigabit link over the Cat5e or Cat6 cabling already in the wall. Omada targets this at the devices that have outgrown Gigabit - 2.5G Wi-Fi 7 and Wi-Fi 6 access points, gaming computers, and NAS or servers whose drives can saturate a 1 Gbps link on a single large transfer. Five ports is enough for a couple of APs, a NAS and a workstation or two.

A Single 10 Gbps SFP+ Uplink Carries the Whole Switch

One 10 Gbps SFP+ slot handles backhaul, and it is sized correctly: five 2.5G access ports generate at most 12.5 Gbps of aggregate demand, so a 10G fibre uplink carries realistic traffic without becoming the bottleneck a Gigabit uplink would be. Fibre also buys distance and electrical isolation, letting the switch sit at the far end of a building and backhaul to the core. If you need two uplinks for redundancy or more access ports, the eight-port ES210X-M2 with dual SFP+ is the step up.

45 Gbps Switching Capacity With a 16K MAC Table

The 45 Gbps switching capacity accounts for all six ports running full duplex at once - five 2.5G links and the 10G slot - so the fabric itself never oversubscribes. A 33.48 Mpps packet forwarding rate sustains line rate at minimum frame sizes, and the 16K MAC address table is well beyond what a six-port switch normally needs, so it copes with a multi-VLAN network or a busy wireless segment behind it. A 640 KB packet buffer and 10 KB jumbo frame support absorb the large bursty transfers that NAS and backup workloads produce.

VLANs, Eight-Queue QoS, Loop Prevention and IGMP Snooping

802.1Q tag VLAN supports a maximum of 32 VLAN groups across 4K VIDs, enough to separate staff, guest, voice and IoT traffic on one small switch. QoS classifies port-based, by 802.1p or by DSCP into eight priority queues with weighted round robin scheduling, so latency-sensitive traffic is not held behind a bulk transfer. Automatic loop prevention detects and shuts down a port that has been patched back into the switch before the broadcast storm spreads, while IGMP snooping v1/v2/v3 keeps multicast traffic on the ports that actually subscribed to it.

Free Lifetime Cloud Management via Omada Central Essentials

The switch works with Omada Central Essentials, which Omada presents as lifetime free cloud without additional fees, allowing management and maintenance from anywhere and reducing what the page calls on-site resource requirements. The cloud workflow covers automatic device identification, visualised management, batch configuration and Zero-Touch Provisioning, so a unit can be shipped to a branch and brought online without a technician configuring it locally. Day-to-day monitoring runs through either a browser or the Omada app on a phone.

Compact Fanless Metal Build, Desktop or Wall Mounted

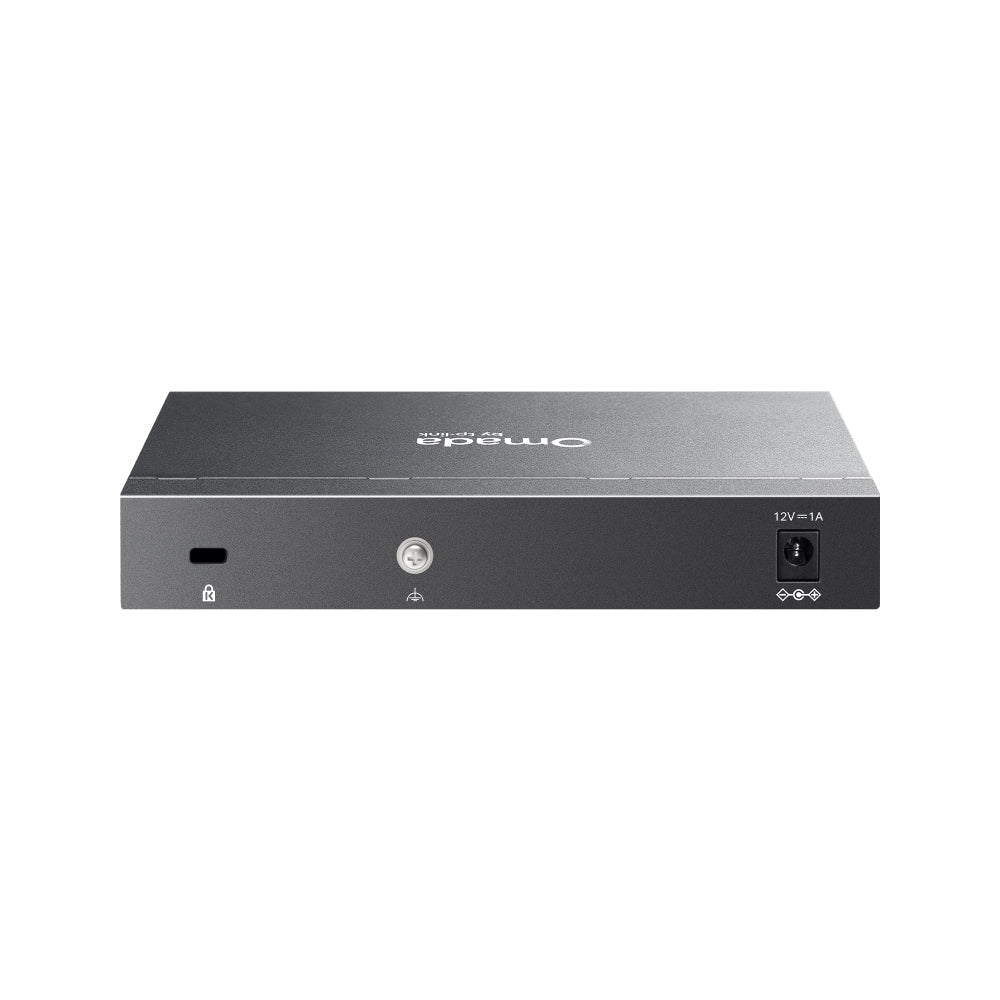

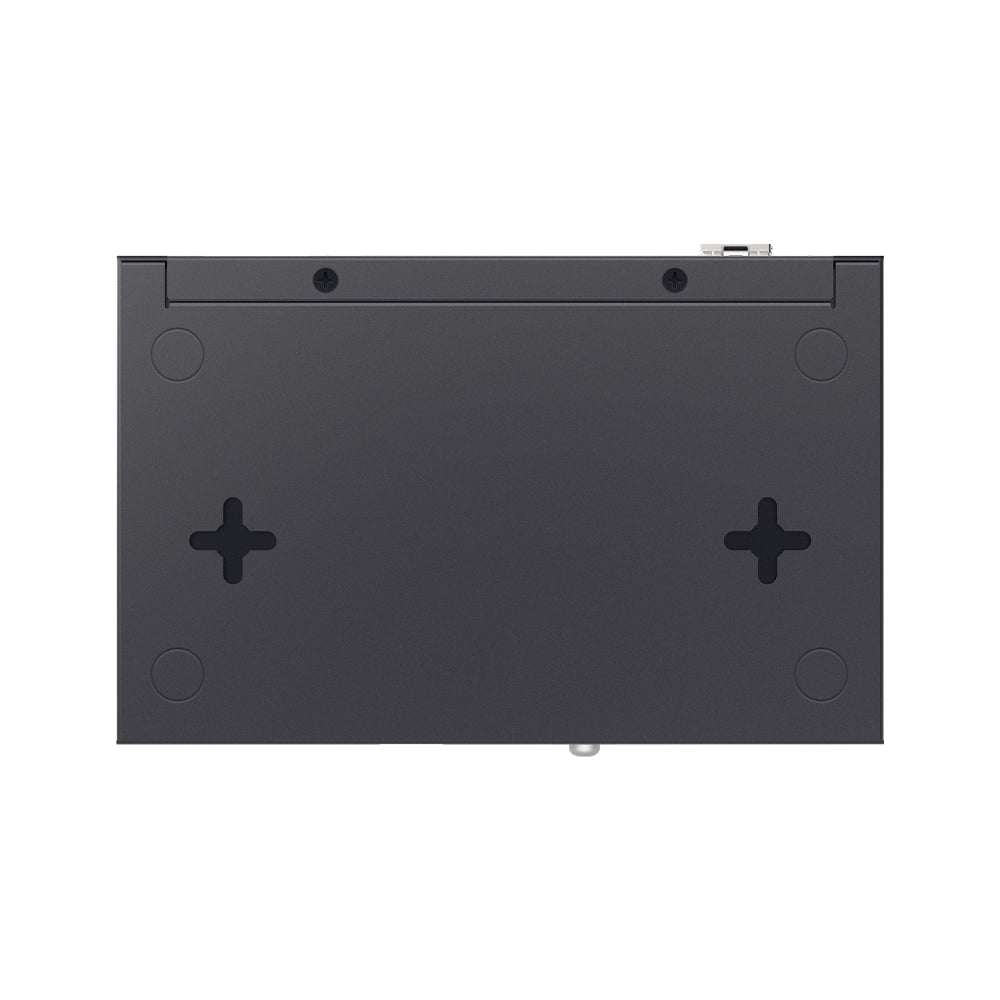

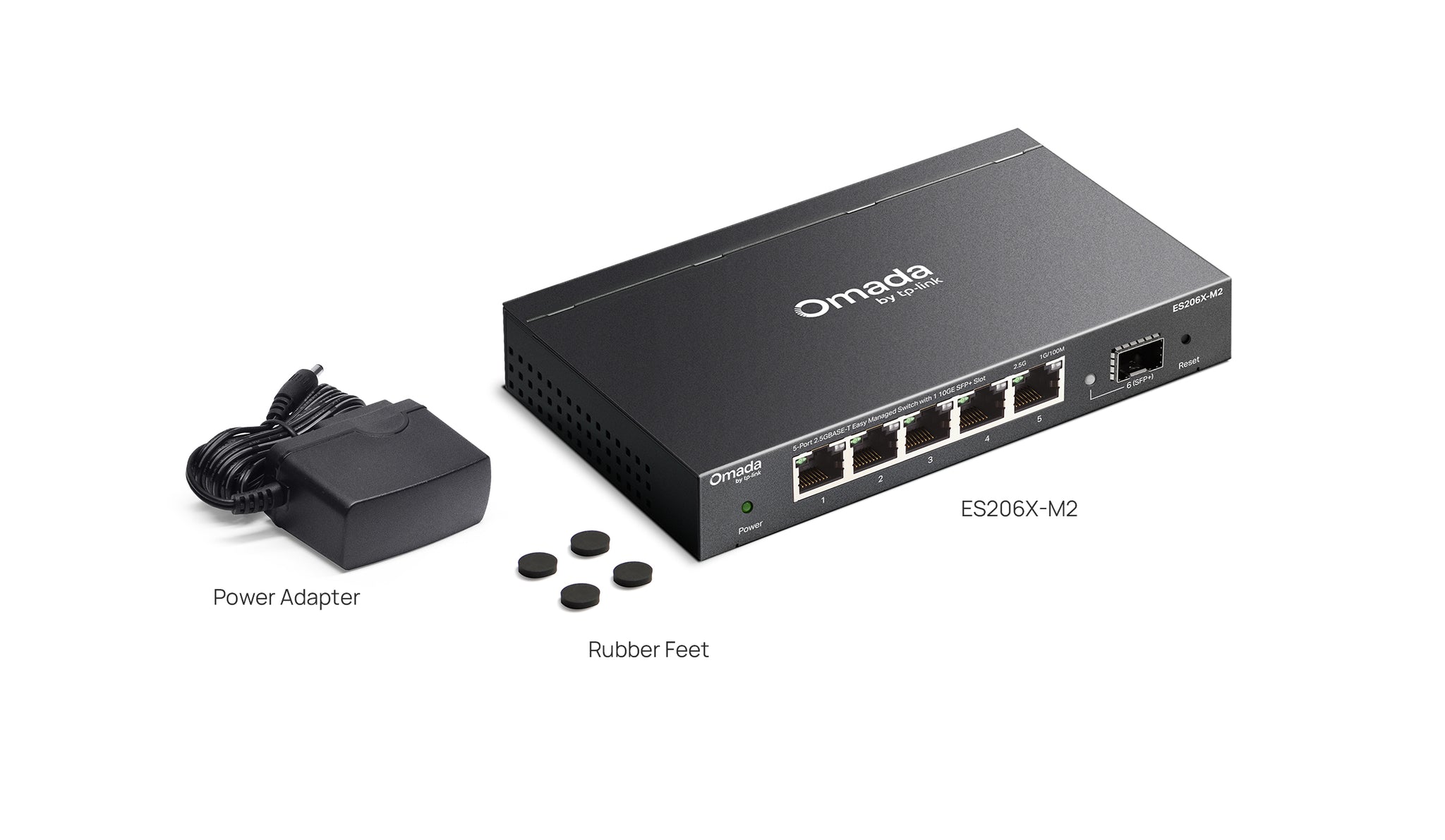

At 158 x 100.7 x 25.4 mm the ES206X-M2 is genuinely small, and the fanless design means it is silent - suitable for a reception desk, a meeting room or a home office rather than only a comms cupboard. The durable metal casing supports both desktop placement and wall mounting, so it can be tucked out of sight near the devices it serves. Power comes from an external AC/DC adapter accepting 100-240 V and supplying 12 V DC at 1 A, reflecting a switch with no PoE load to carry.

Ideal For

Singapore businesses, schools, hotels and managed-service providers building on Omada, and IT teams that want a switch they can adopt, monitor and update centrally rather than box by box. Supplied by SourceIT with local Singapore warranty, GST invoice and project pricing on request.
