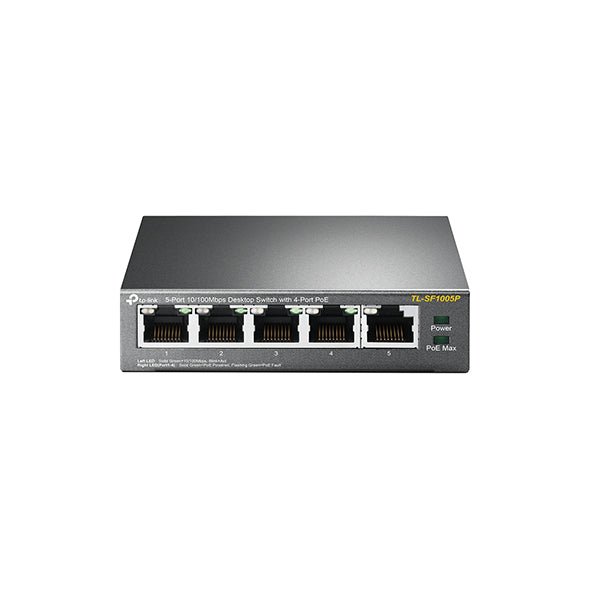

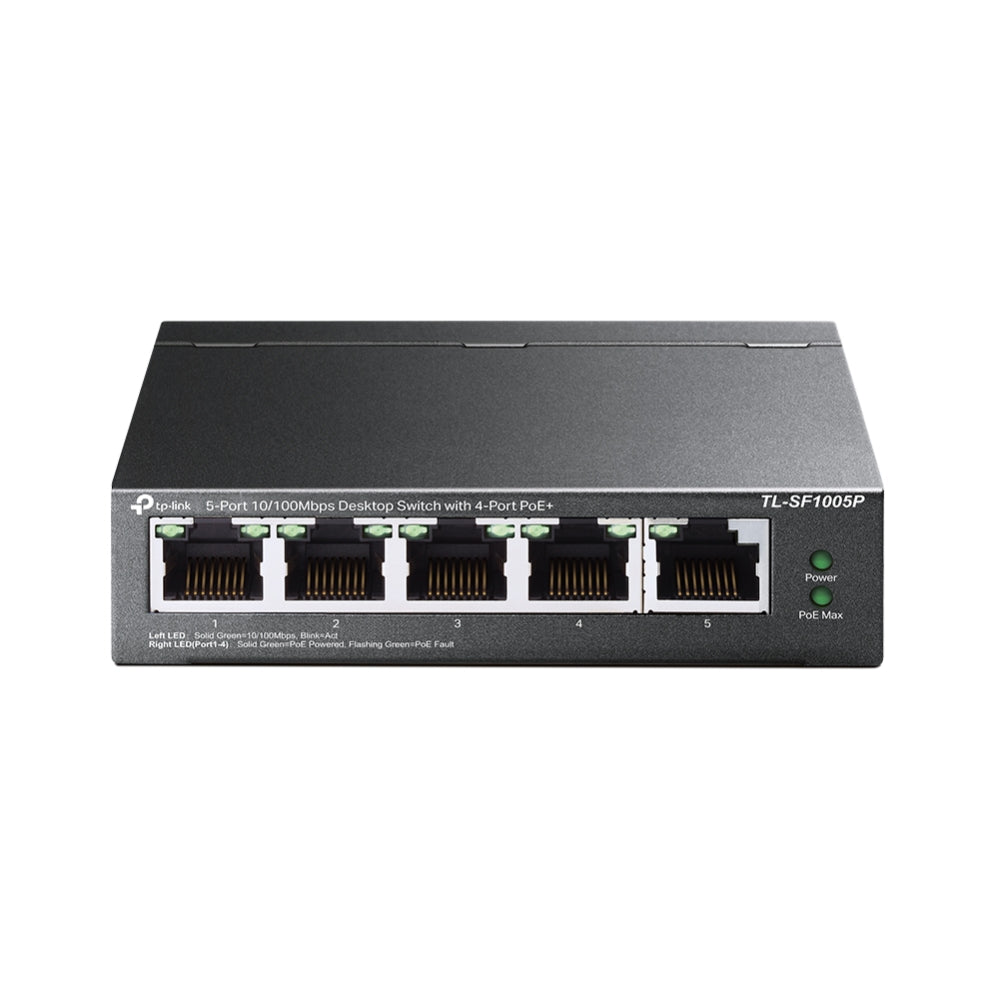

TP-Link Omada 5-Port 10/100Mbps Desktop Switch with 4-Port PoE+ 67W
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
TP-Link 5-Port 10/100Mbps Desktop Switch with 4-Port PoE+ (TL-SF1005P) - 5 Years Local Warranty
The TL-SF1005P is the smallest PoE+ switch in TP-Link's Fast Ethernet range: four 802.3at powered ports and one uplink, a 67 W budget, and a 100 mm fanless chassis barely larger than a paperback. It powers a camera pair, a door station or an access point from a ceiling void, a counter or a cupboard where nothing larger would fit.

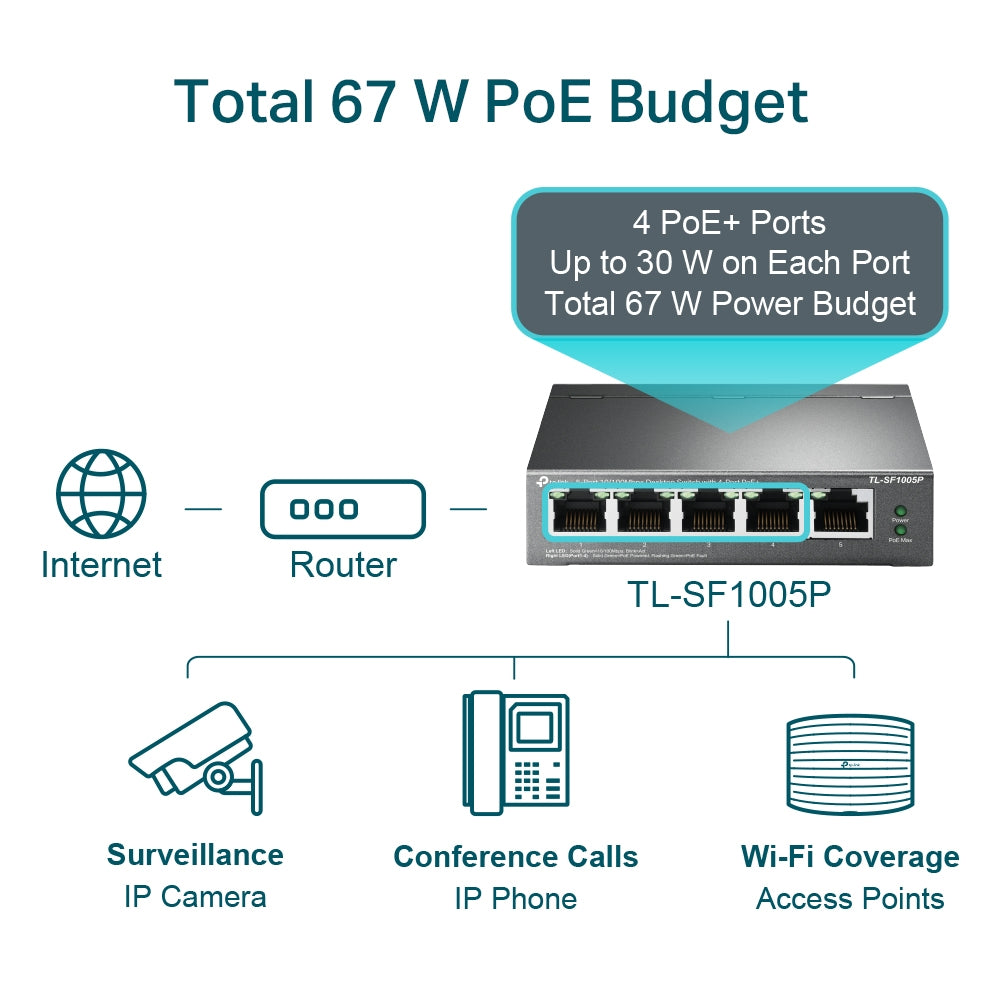

67 W Across Four 802.3at PoE+ Ports
Ports 1 to 4 are IEEE 802.3af/at compliant against a 67 W system budget — nearly 17 W per port with all four loaded, which brings real 802.3at devices within reach rather than only 802.3af ones. PTZ domes, IR-illuminated cameras, video door stations and dual-band access points all sit inside that envelope. Port 5 is the data-only uplink. Power negotiation is automatic, and a non-PoE device connected to a powered port simply receives data.

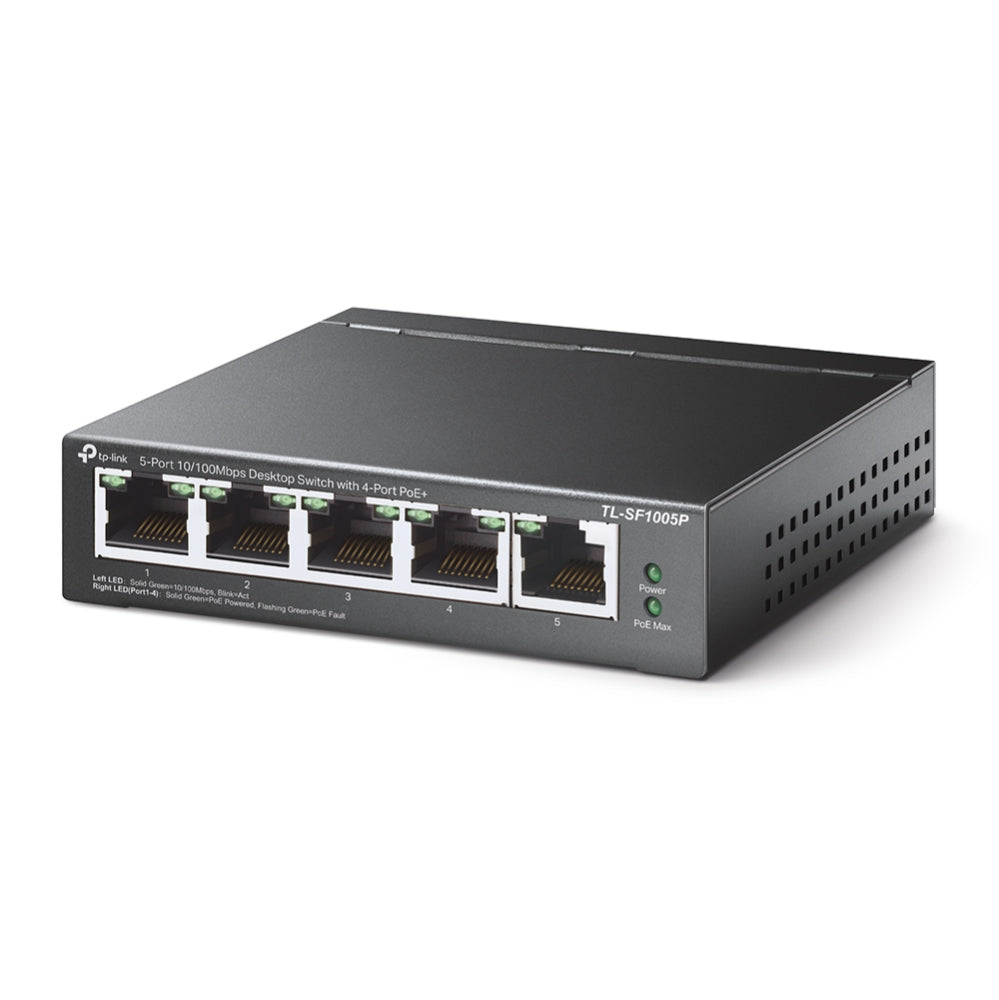

A 100 mm Footprint That Fits Where Switches Normally Do Not
At 100 × 98 × 25 mm the TL-SF1005P is close to square and small enough to sit inside a ceiling void, behind a monitor, in a shallow wall box or on a shop counter. It is fanless and therefore silent, which matters when the only available position is in an occupied room. The external 53.5 VDC / 1.31 A adapter keeps the mains side of the supply outside the chassis, and draw is 1.9 W with nothing powered against 74 W at a full 67 W PoE load.

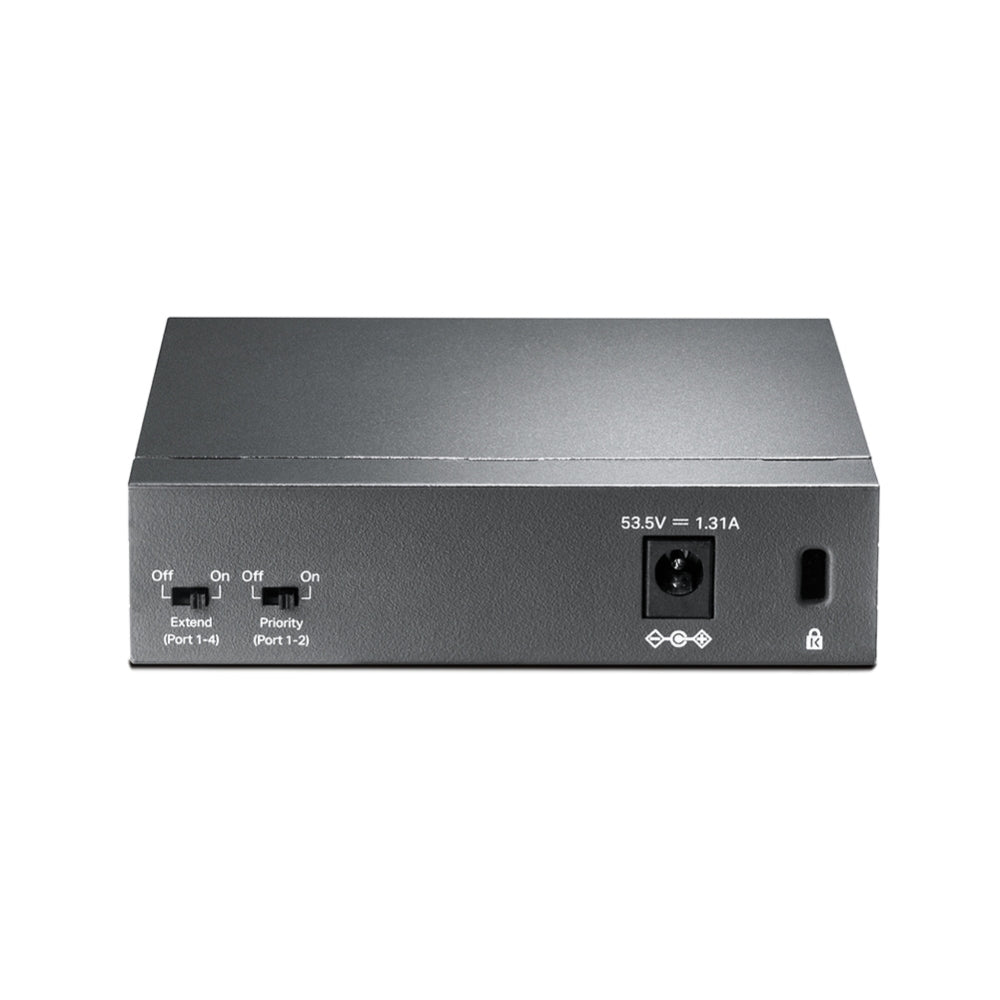

Extend and Priority Modes Without a Configuration Screen

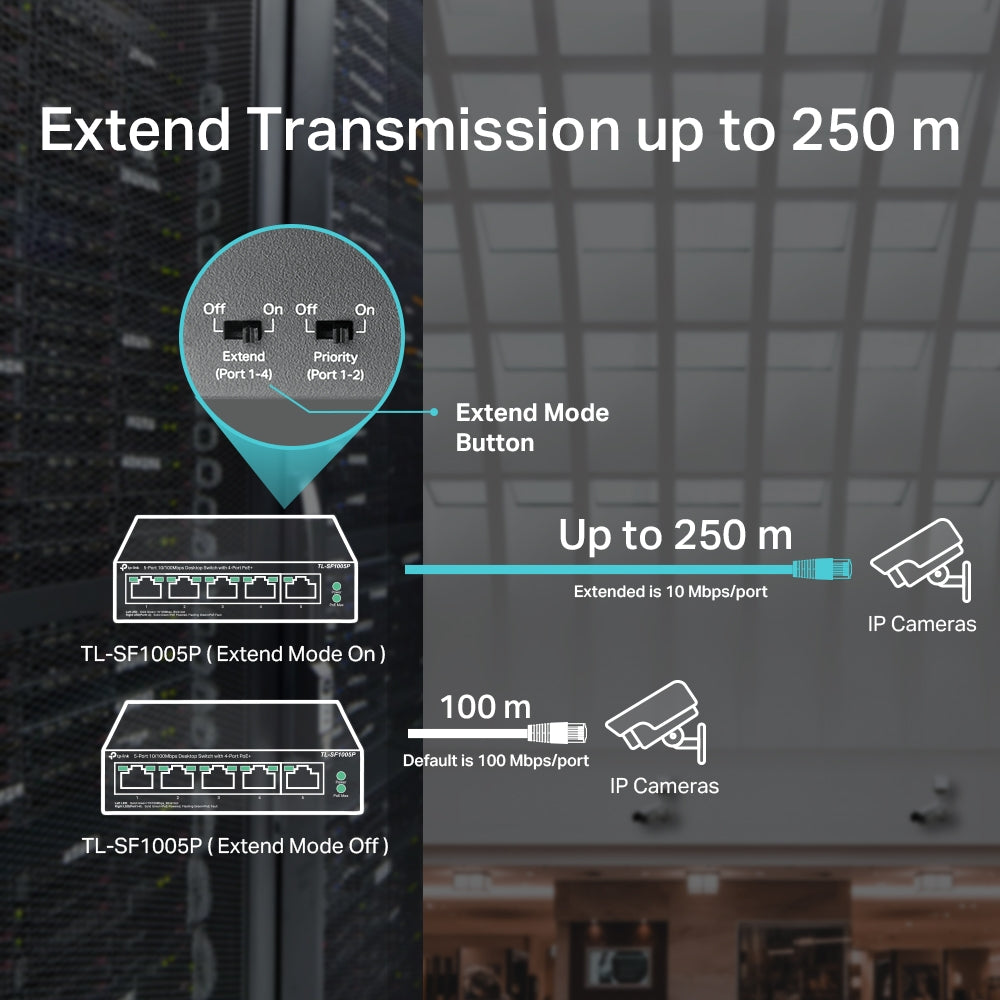

Extend mode carries power and data past the 100 m Ethernet limit at reduced throughput, which reaches a camera at the end of a long run without a mid-span cabinet. Priority mode reserves forwarding capacity for the first ports when the switch is busy, keeping camera or voice traffic ahead of a bulk transfer. Both are hardware selections rather than settings in a web interface, so the behaviour survives power cuts, resets and a change of installer.
1 Gbps Fabric, 2K MAC Table, Store-and-Forward
All five ports are 10/100 Mbps with auto negotiation and auto MDI/MDIX on a 1 Gbps non-blocking fabric at 0.744 Mpps — every port full duplex simultaneously, nothing oversubscribed. A 2K MAC address table suits a small edge segment, 2 KB jumbo frame support covers slightly oversized payloads, and store-and-forward switching validates each frame before forwarding it so corrupted frames do not propagate. IEEE 802.3x flow control handles congestion automatically.
Where It Fits Against the TL-SF1006P
The TL-SF1005P and TL-SF1006P share the same 67 W budget, the same four 802.3at PoE+ ports and the same mode buttons. The difference is the data side: five ports in a 100 mm box against six ports in a 158 mm box. Choose the 1005P when the space is tight and one uplink is all you need; choose the 1006P when a recorder or a router has to share the switch alongside the uplink.
Ideal For
Singapore shops, clinics, lift lobbies, gatehouses and remote cabinets running one to four cameras or access points in a confined space. Supplied by SourceIT with local Singapore warranty, GST invoice and project pricing on request.
TL-SF1005P Datasheet — Technical Specifications
General
| Model | TL-SF1005P |
| Official Product Name | 5-Port 10/100Mbps Desktop Switch with 4-Port PoE+ |
| Brand | TP-Link Omada |
| Warranty | 5 Years Local Warranty (Singapore) |
Hardware
| Interface | 5× 10/100 Mbps RJ45 ports (4× 802.3af/at PoE+ ports); auto negotiation; auto MDI/MDIX |
| Network Media | 10BASE-T: UTP cat. 3/4/5 (max 100 m); 100BASE-TX: UTP cat. 5/5e (max 100 m) |
| PoE Standard | IEEE 802.3af / 802.3at compliant |
| PoE Ports | Ports 1-4 |
| PoE Power Budget | 67 W |
| Fan Quantity | Fanless |
| Power Supply | External power adapter (output 53.5 VDC / 1.31 A) |
| Dimensions (W x D x H) | 3.9 × 3.9 × 1.0 in (100 × 98 × 25 mm) |
| Max Power Consumption | 1.9 W (no PD); 74 W (with 67 W PD connected) |
Performance
| Switching Capacity | 1 Gbps |
| Packet Forwarding Rate | 0.744 Mpps |
| MAC Address Table | 2K |
| Jumbo Frame | 2 KB |
Advanced Features
| PD Compatibility | Compatible with IEEE 802.3af/at compliant PDs |
| Extend Mode | Supported |
| Priority Mode | Supported |
| MAC Handling | MAC address auto-learning |
| Flow Control | IEEE 802.3x |
Other
| Certification | FCC, CE, RoHS |
| Operating Temperature | 0 °C to 40 °C |
| Storage Temperature | -40 °C to 70 °C |
| Operating Humidity | 10% to 90% RH, non-condensing |
| Storage Humidity | 5% to 90% RH, non-condensing |
TP-Link does not publish a max heat dissipation figure, an EAN or a carton pack size for this model; those rows are omitted rather than estimated.
Compatibility & Software Support
The TL-SF1005P is an unmanaged switch. Extend and Priority modes are hardware selections on the unit; there is no web interface, no CLI and no SNMP agent, and it cannot be adopted into an Omada SDN Controller or managed from the Omada app. Where VLANs, 802.1X or central monitoring are required, SourceIT can quote a JetStream smart or Omada-managed switch.
| Management | Unmanaged — hardware mode selections only |
| Omada SDN Controller | Not supported on this model |
| Powered Devices | Any IEEE 802.3af or 802.3at compliant PD on ports 1-4 |
| Uplink | Port 5, 10/100 Mbps RJ45, data only |
| Long-Reach Cabling | Extend mode at reduced throughput |
Package Contents & Ordering Information
Package Contents
| In the Box | TL-SF1005P switch, power adapter, installation guide |
Ordering Information
| Model | TL-SF1005P |
| Form Factor | Fanless desktop, 100 mm chassis |
| PoE Budget | 67 W across 4 ports |
| Availability | Limited — confirm current stock and lead time with SourceIT before committing to a project date |
| Warranty | 5 Years Local Warranty (Singapore) |
Supply of this model is limited. If it is specified in a tender or a drawing, ask SourceIT to confirm availability, or to propose the closest current equivalent, before you order.
Datasheet & Downloads
Frequently Asked Questions — TL-SF1005P
Is this model still available?
Supply is limited. TP-Link continues to publish the specifications and downloads, and SourceIT still quotes it, but availability varies. Ask us to confirm stock and lead time, or to propose the closest current equivalent, before committing to a project date.
TL-SF1005P or TL-SF1006P?
Same 67 W PoE budget and the same four 802.3at PoE+ ports. The 1005P has one uplink port in a 100 mm box; the 1006P has two data ports in a 158 mm box. Choose on space and on whether a recorder or router needs its own port.
How many cameras will 67 W run?
Four in most installations. A fixed-dome 802.3af camera draws 4-8 W and an 802.3at PTZ dome 15-25 W, so a mixed set of four fits. Send SourceIT the camera model list and we will calculate the real load.
What warranty does SourceIT provide?
Five years local Singapore warranty, under TP-Link's Omada replacement warranty policy. Every unit sold by SourceIT comes with a GST invoice.
Can SourceIT quote this for a project or tender?
Yes. Send the bill of materials and we will quote the switching, cabling and any Omada gateway or access points alongside it, with local warranty and support — and flag any line where a current-generation substitute would serve you better.
