TP-Link Omada 5 GHz 867 Mbps Scalable Central Hub Sector Bridge for Long-Range Indoor/Outdoor Connectivity
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
TP-Link Omada 5 GHz 867 Mbps Scalable Central Hub Sector Bridge for Long-Range Indoor/Outdoor Connectivity (Sector Bridge 5) - 5 Years Local Warranty
The Sector Bridge 5 is the hub end of Omada's Flex/Sector bridging system. Its 120° wide-beam directional antennas let one Sector Bridge serve up to 32 Flex Bridge 5 endpoints over TDMA point-to-multipoint, or run a single point-to-point link, at up to 5 km and 867 Mbps on 5 GHz — a way to bring many outlying cameras, gates or buildings back to one network core.
One Hub for up to 32 Flex Bridges via TDMA
TP-Link specifies PtMP operation with up to 32 Flex Bridge 5 endpoints per Sector Bridge, scheduled with TDMA so stations take turns on the air rather than contending, which keeps a multipoint network predictable as it grows. TP-Link notes this capacity is achievable only when used with Flex Bridge 5 and is based on laboratory testing.
120° Wide Beamwidth for Multipoint Deployment
Internal 2 × 16 dBi directional antennas on 5 GHz have a 120° horizontal by 13° vertical beam, so a single hub covers a wide sector — a whole estate, campus or worksite — from one mast or rooftop.
3.1 mi (5 km) Long-Range 5 GHz Links
TP-Link publishes a transmission distance of 5,000 m (3.1 mi) at a 5 GHz signal rate of up to 867 Mbps with 2×2 MU-MIMO. A 2.4 GHz radio (1 × 4 dBi) is used for device management only.
DIP-Switch Pairing
A Pairing Code DIP switch lets installers match the hub to its Flex Bridges quickly, without logging into each unit.
Flexible Power and Rugged Housing
Power by 12V DC/1A, 802.3af PoE or 24V Passive PoE — a passive PoE adapter (for dry indoor use only) is included. Maximum draw is 9 W on DC and 10.5 W on PoE. The housing is IP66 weatherproof with lightning/ESD protection (±8 kV air, ±4 kV contact, ±6 kV common mode), rated -40 °C to 70 °C, with pole and wall mounting kits included.
Standalone or Omada SDN Managed
Manage the hub on its own, or adopt it into an Omada Cloud-Based, Hardware or Software Controller for central monitoring, firmware updates, email alerts and zero-touch provisioning; the Omada App assists with alignment.
Ideal For
Estates, campuses, ports, construction sites, farms and CCTV projects in Singapore that need to connect many remote points — cameras, guardhouses, gates or outbuildings — back to one location using Flex Bridge 5 endpoints. Supplied by SourceIT with local Singapore warranty, GST invoice and project pricing on request.
Sector Bridge 5 Datasheet — Technical Specifications
General
| Model | Sector Bridge 5 |
| Official Product Name | Omada 5 GHz 867 Mbps Scalable Central Hub for Long-Range Indoor/Outdoor Connectivity |
| Brand | TP-Link Omada |
| Warranty | 5 Years Local Warranty (Singapore) |
Hardware

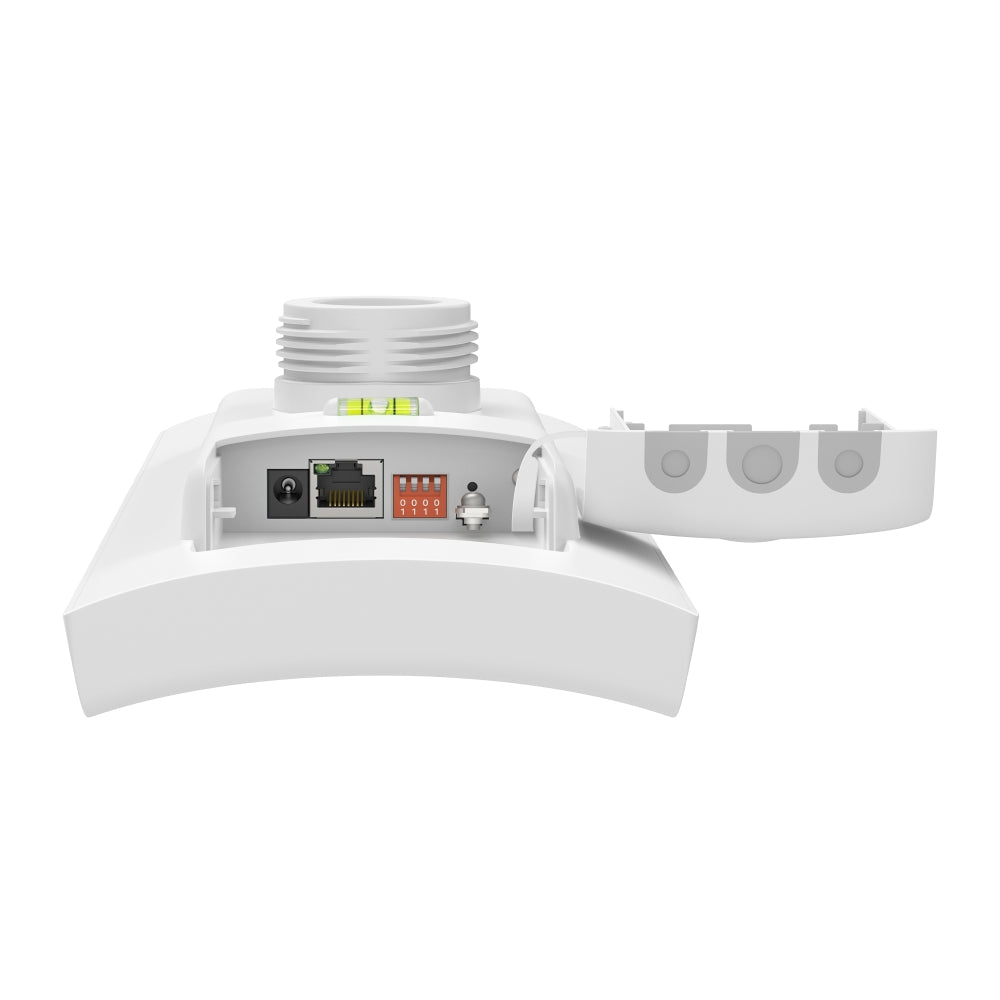

| Interface | 1× Gigabit Ethernet Port |
| Button | Reset |
| DIP Switch | Pairing Code Switch |
| Power Supply | 12V DC/1A; 802.3af PoE; 24V Passive PoE (Passive PoE Adapter Included - For Dry Indoor Use Only) |
| Max. Power Consumption | DC: 9W; PoE: 10.5W |
| Dimensions (W x D x H) | 14.1 × 4.9 × 2.8 in (358.5 × 124.6 × 70.5 mm) |
| Antenna | 2.4 GHz: 1 × 4 dBi (peak gain), internal omnidirectional antennas; 5 GHz: 2 × 16 dBi (peak gain), internal directional antennas; Beamwidth: Horizontal 120°, Vertical 13° |
| Weatherproof Enclosure | IP66 |

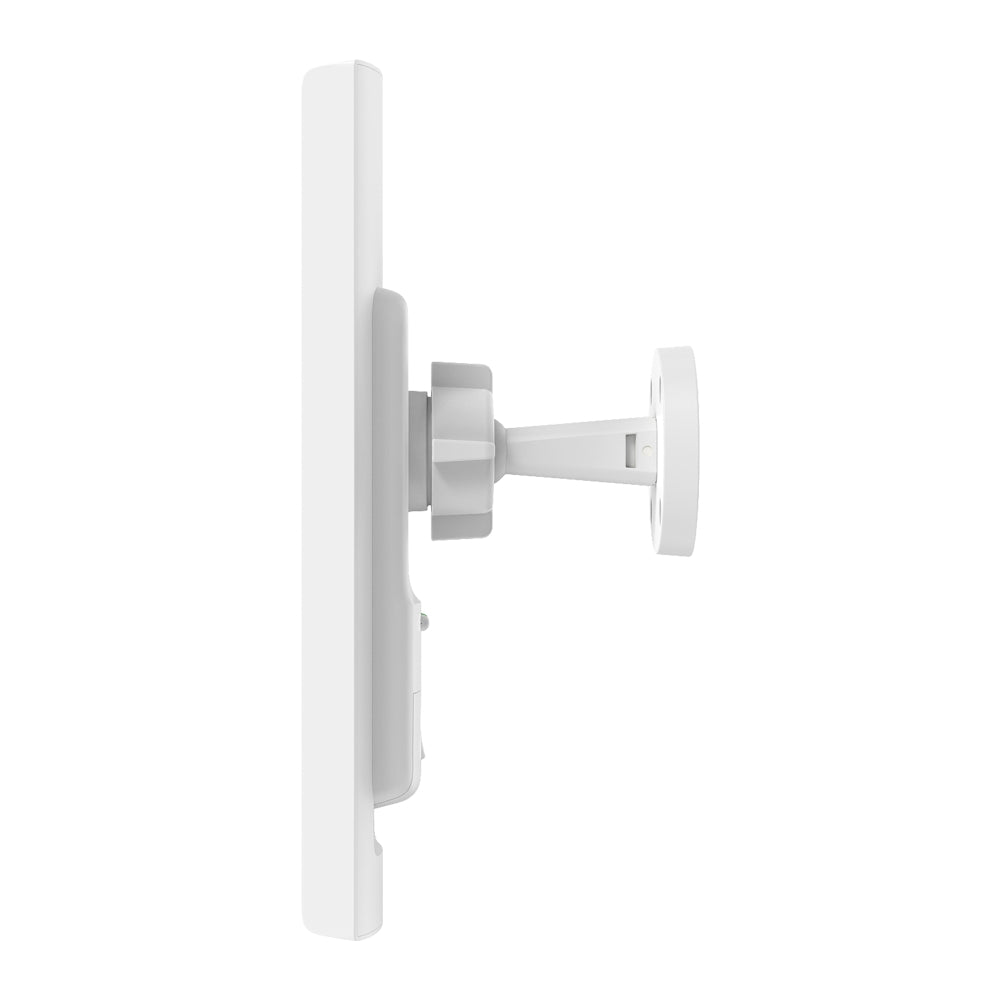

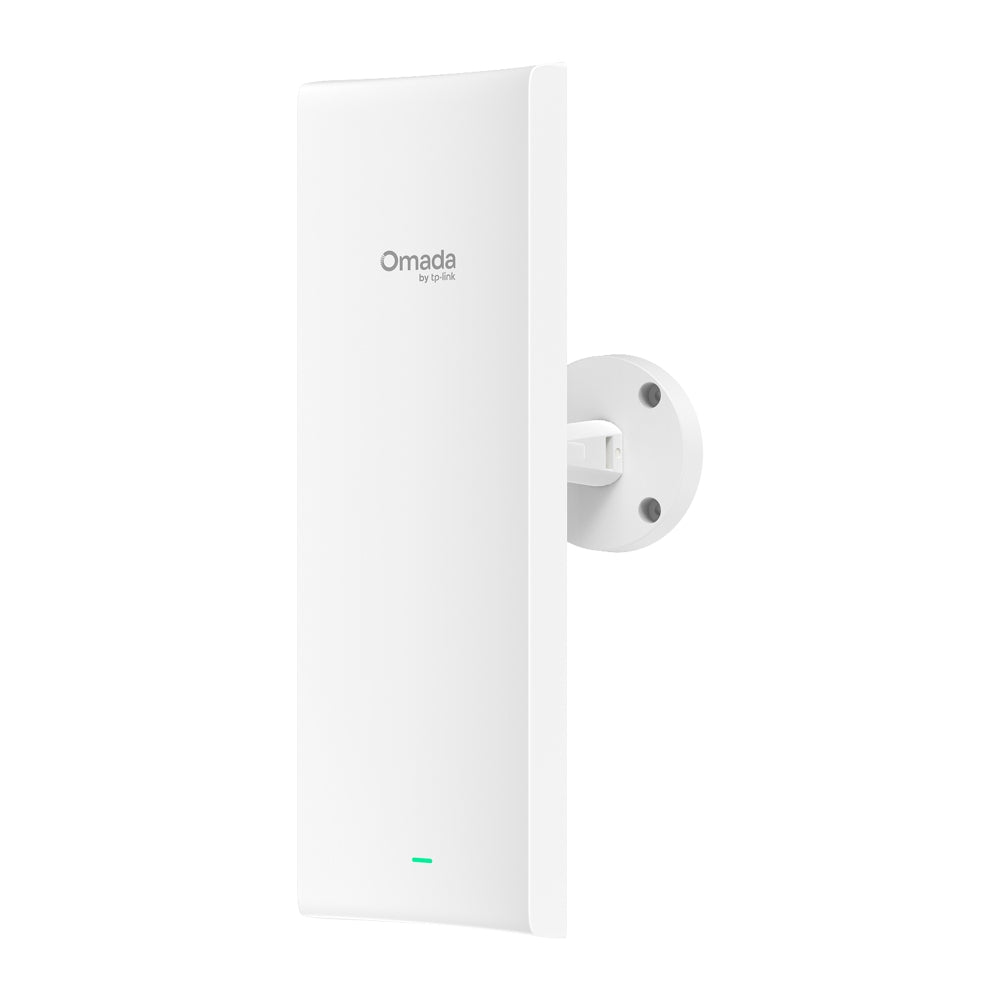

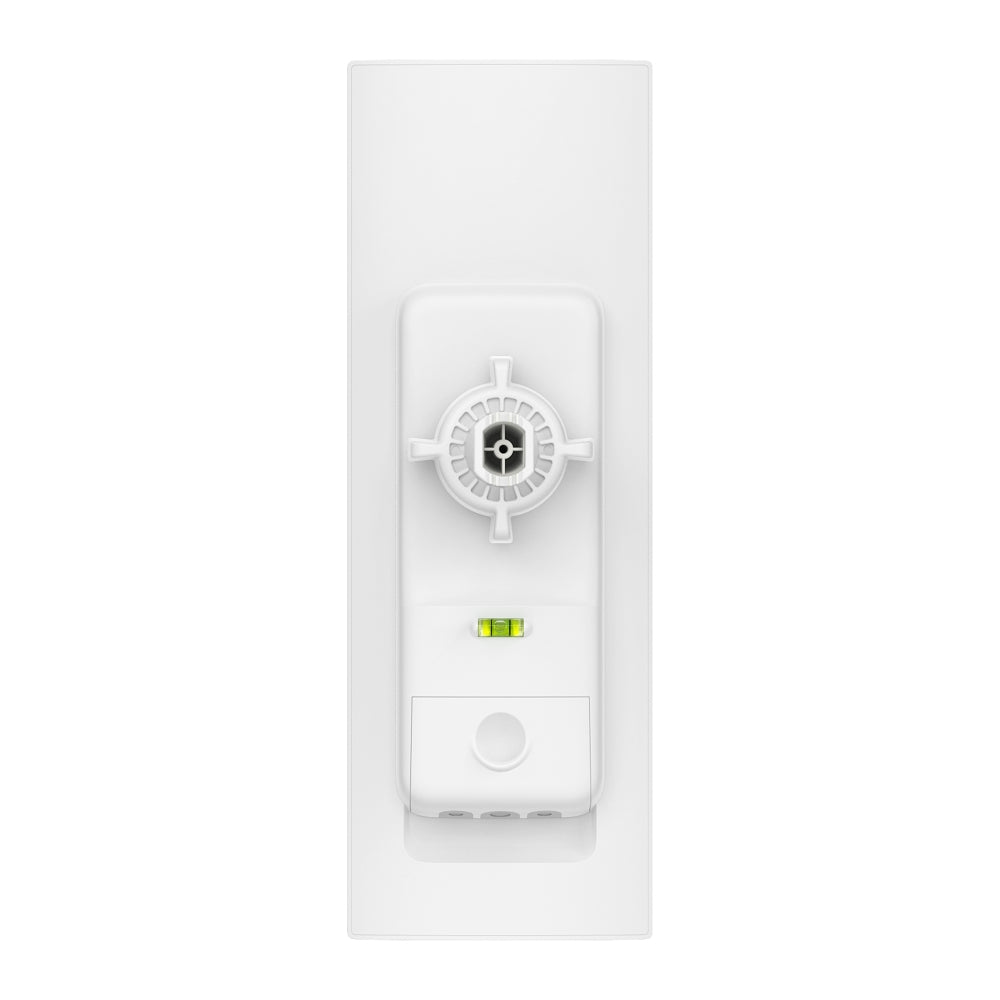

| Mounting | Pole and wall mounting (Kits included) |
| Lightning Protection | Air discharge: ±8kV; Contact discharge: ±4kV; Common mode 10/700: ±6kV |
Wireless
| PtP | Yes |
| PtMP | 32 Maximum |
| Transmission Distance | 3.1 mi (5,000 m) |
| Wireless Standards | IEEE 802.11a/b/g/n/ac |
| Frequency | 2.4 GHz (Device Management Only); 5 GHz |
| Signal Rate | 5 GHz: Up to 867 Mbps |
| Wireless Functions | MU-MIMO: 5G 2x2 MU-MIMO DL; Wireless Statistics; Reboot Schedule; RADIUS Accounting; Static IP/Dynamic IP; Rate Limit; Enable/Disable Wireless Radio; Enable/Disable SSID Broadcast |
| Wireless Security | VLAN; Rogue AP Detection; WPA/WPA2 |
| Transmission Power | CE: 6-23 dBm (5 GHz, U-NII-1 & U-NII-2A, EIRP); 6-30 dBm (5 GHz, U-NII-2C, EIRP). FCC: 4-23 dBm (5 GHz, U-NII-1); 4-25 dBm (5 GHz, U-NII-3) |
Management
| Omada App | Yes |
| Restore & Backup | Yes |
| Firmware update via Web | Yes |
| NTP | Yes |
| Centralized Management | Omada Cloud-Based Controller, Omada Hardware Controller, Omada Software Controller |
| Cloud Access | Yes. Requires the use of an Omada Controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| SNMP | Yes |
| SSH | Yes |
| Web-based Management | Yes |
| Zero-Touch Provisioning | Yes |
Environment & Certification
| Operating Temperature | -40 °C–70 °C (-40 °F–158 °F) |
| Storage Temperature | -40 °C–70 °C (-40 °F–158 °F) |
| Operating Humidity | 10%–90% non-condensing |
| Storage Humidity | 5%–90% non-condensing |
| Certification | CE, FCC |
The 32-endpoint capacity is achievable only when used with Flex Bridge 5 and is based on TP-Link laboratory testing; coverage is likewise a laboratory figure. Specifications are taken from TP-Link's US Omada page, because the Singapore Sector Bridge 5 page currently displays Flex Bridge 5 content. TP-Link does not publish a weight row for this model, so none is claimed here.
Compatibility & Software Support
The Sector Bridge 5 works as the central hub for Flex Bridge 5 endpoints (point-to-multipoint, up to 32) or in a point-to-point pair. It can run standalone or be adopted into Omada SDN alongside Omada gateways, switches and APs; TP-Link notes cloud access requires an Omada controller.
| Omada SDN Controller | Supported — Omada Central (Cloud-Based), Omada Hardware Controller, Omada Software Controller |
| Omada App | Supported (including app-guided antenna alignment) |
| Cloud Access | Supported (requires an Omada controller) |
| Zero-Touch Provisioning | Supported |
| Standalone Mode | Supported — web-based management |
Package Contents & Ordering Information
What’s in the Box
| Package Contents | Sector Bridge 5, Installation Guide, Mounting Kit, Passive PoE Adapter, Power Cord |
Ordering Information
| Model | Sector Bridge 5 |
| Recommended Retail Price (incl. GST) | S$249.00 |
Datasheet & Downloads
Official Omada Sector Bridge 5 product page
Sector Bridge 5 firmware, utilities and documents (Omada support)
TP-Link has not yet published a Singapore datasheet document for the Sector Bridge 5; the product page above carries the full specification.
Frequently Asked Questions — Sector Bridge 5
What does the Sector Bridge 5 connect to?
It is the hub for Flex Bridge 5 endpoints: up to 32 Flex Bridges in point-to-multipoint (TP-Link notes this capacity applies only with Flex Bridge 5), or a single point-to-point link. Flex Bridge 5 units are sold separately.
Does the Sector Bridge 5 need an Omada Controller?
No. It runs standalone with DIP-switch pairing. Adopting it into an Omada Cloud-Based, Hardware or Software Controller adds central monitoring, alerts, firmware management and cloud access.
What warranty does SourceIT provide?
Five years local Singapore warranty. Every Sector Bridge 5 sold by SourceIT comes with a GST invoice.
Is stock held locally?
SourceIT holds fast-moving Omada lines in Singapore. Anything not in local stock is brought in on indent — ask us for the current lead time before committing to a project date.
Is this model available for project orders?
Yes. TP-Link supplies this model for project deployments; contact SourceIT with your bill of materials for pricing and lead time.
