TP-Link Omada 4G+ Cat6 AX3000 Wi-Fi 6 Outdoor/Indoor Gateway
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
TP-Link Omada 4G+ Cat6 AX3000 Wi-Fi 6 Outdoor/Indoor Gateway (ER703WP-4G-Outdoor) - 5 Years Local Warranty
The ER703WP-4G-Outdoor combines 4G+ Cat6 internet access, AX3000 Wi-Fi 6 and three Gigabit PoE in/out ports in one IP55 weatherproof gateway, with automatic backup and load balancing between 4G and wired WAN. It mounts on a pole or wall and can run from PoE or a 12 V DC supply, including solar.
All-in-One 4G, Wi-Fi 6 and PoE at the Edge
One device provides the internet uplink (4G+ Cat6, up to 300 Mbps down / 50 Mbps up), the Wi-Fi (dual-band AX3000: 2402 Mbps on 5 GHz HE160 plus 574 Mbps on 2.4 GHz) and the wired ports (3× Gigabit WAN/LAN with PoE in/out) for an outdoor site. 4G and wired WAN can back each other up or be load-balanced.
IP55 Weatherproof Enclosure
Rated IP55 in ingress protection testing, the enclosure protects the gateway against harsh outdoor conditions, with an operating range of -30 °C to 60 °C and 5-95% humidity. TP-Link notes that lightning protection depends on proper setup, grounding and cable shielding.
PoE or DC Power — Solar Compatible
The gateway accepts 802.3at/bt PoE input or a 12 VDC / 2 A supply, and TP-Link positions the DC option as compatible with solar panels. That removes the need for mains power at car parks, farms, construction sites or perimeter camera positions; maximum consumption is 14.5 W without PoE output and 63 W with PoE.
Wi-Fi 6 With Mesh and Seamless Roaming
OFDMA, MU-MIMO, beamforming and WPA3 are supported, with up to 16 SSIDs (8 per radio), airtime fairness, SSID/client rate limiting, Omada Mesh with EAPs that support Mesh, and seamless roaming — so it can anchor a small outdoor Omada Wi-Fi deployment.
Omada VPN, Security and Cloud Management
IPsec (100 tunnels, up to 568.3 Mbps), WireGuard (20 tunnels, 462.8 Mbps), OpenVPN, SSL, PPTP and L2TP link the site back to head office; DPI (1131 Mbps TCP), URL and web group filtering, flood defence and ARP inspection protect it. Omada Cloud Essentials, the Cloud-Based Controller, OC200/OC300 or the Software Controller manage it centrally, and SMS send/receive is supported.
Ideal For
Outdoor and semi-outdoor sites — car parks, farms, construction and remote facilities, CCTV positions and kiosks — that need 4G internet, Wi-Fi 6 and PoE without mains power or fixed broadband. Supplied by SourceIT with local Singapore warranty, GST invoice and project pricing on request.
ER703WP-4G-Outdoor Datasheet — Technical Specifications
General
| Model | ER703WP-4G-Outdoor |
| Official Product Name | Omada 4G+ Cat6 AX3000 Wi-Fi 6 Outdoor/Indoor Gateway |
| Brand | TP-Link Omada |
| Warranty | 5 Years Local Warranty (Singapore) |
Hardware

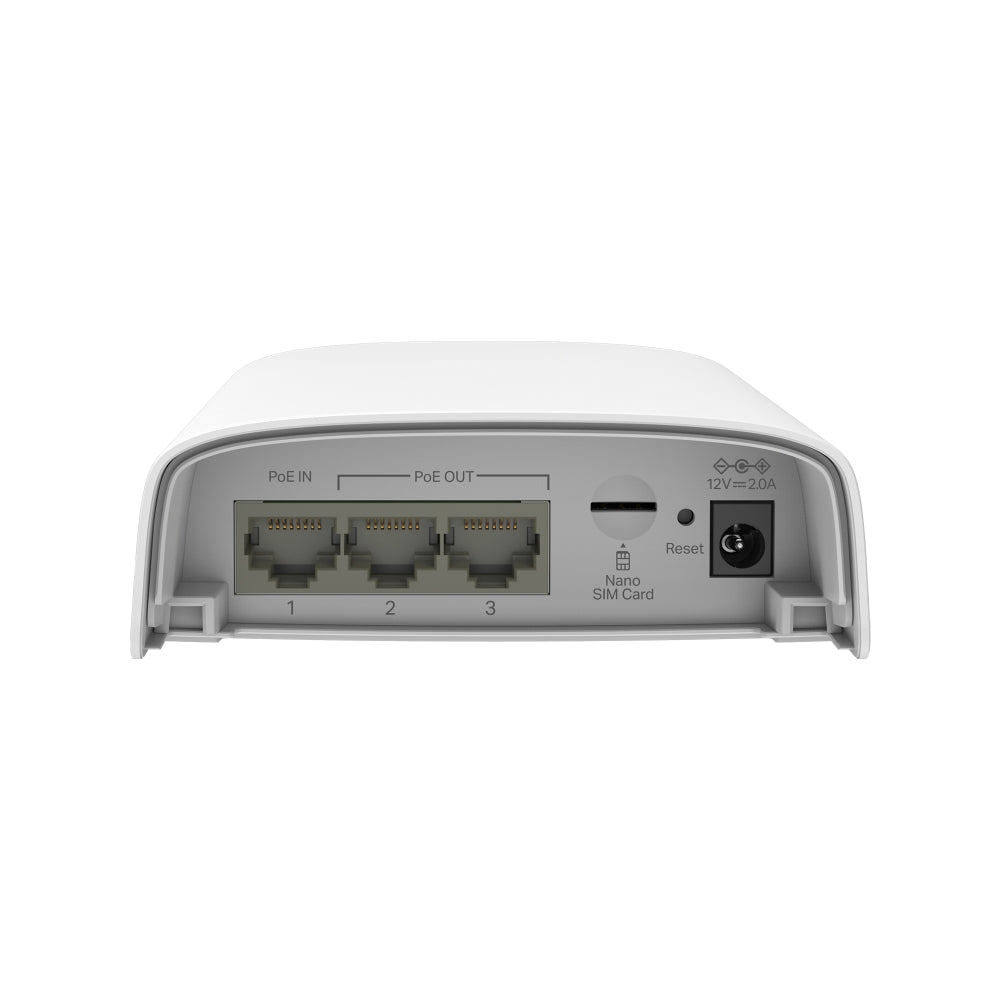

| Interface | 3× Gigabit WAN/LAN Ports (PoE in/out) |
| Network Media | 10BASE-T: UTP cat. 3/4/5 (max 100 m); 100BASE-TX: UTP cat. 5/5e (max 100 m); 1000BASE-T: UTP cat. 5/5e/6 (max 100 m) |
| Button | Reset Button |
| Power Supply | 802.3at/bt PoE; 12 VDC / 2 A power adapter |
| Flash | 256 MB NAND |
| DRAM | 512 MB DDR4 |
| LED | 4G Signal, WLAN, WAN/LAN, SYS |
| Antenna | Wi-Fi: two 5 GHz 4.0 dBi & 2.4 GHz 2.3 dBi dual-band built-in antennas; LTE: two 4.0 dBi omnidirectional detachable antennas |
| Dimensions (W × D × H) | 4.0 × 1.5 × 6.9 in (100.4 × 38.7 × 174.8 mm), antennas not included |
| Mounting | Pole / Wall-Mounting |
| Max. Power Consumption | 14.5 W without PoE; 63 W with PoE |
4G
| SIM Type | 1× Nano SIM card |
| Speed | Downlink: 300 Mbps; Uplink: 50 Mbps |
| Network Type (EU band plan) | 4G LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32; 4G LTE-TDD: B38/B40/B41; 3G DC-HSDPA/HSPA+/HSDPA/HSUPA/WCDMA: B1/B3/B5/B8; carrier aggregation supported |
Wireless
| Wi-Fi Frequency & Signal Rate | 2.4 GHz: 574 Mbps; 5 GHz: 2402 Mbps (HE160) |
| Advanced Features | Seamless Roaming, Mesh (with EAP that supports Mesh), OFDMA, Beamforming, MU-MIMO, Rate Limit (SSID/Client), Airtime Fairness, WPA/WPA2/WPA3 Personal & Enterprise, 16 SSIDs (8 per radio) |
| Guest Network | Supported |
Performance
| Concurrent Sessions | 120,000 |
| New Sessions / Second | 3,800 |
| NAT (Static IP) | 945.9 Mbps / 950.2 Mbps |
| NAT (DHCP) | 947.3 Mbps / 949.4 Mbps |
| NAT (PPPoE) | 916.9 Mbps / 946.3 Mbps |
| NAT (L2TP) | 878.9 Mbps / 778.9 Mbps |
| NAT (PPTP) | 852.2 Mbps / 775.9 Mbps |
| 66 Byte Packet Forwarding Rate | 1,453,489 pps / 1,453,489 pps |
| 1,518 Byte Packet Forwarding Rate | 81,275 pps / 81,275 pps |
| IPsec VPN Throughput | ESP-SHA1-AES256: 568.3 Mbps; ESP-SHA256-AES256: 559.8 Mbps; ESP-SHA384-AES256: 565.6 Mbps; ESP-SHA512-AES256: 550.0 Mbps |
| GRE | Unencrypted: 450.3 Mbps; Encrypted: 277.6 Mbps |
| WireGuard VPN | 462.8 Mbps |
| OpenVPN | 85.1 Mbps |
| L2TP VPN Throughput | Unencrypted: 858.7 Mbps; Encrypted: 467.0 Mbps |
| PPTP VPN Throughput | Unencrypted: 876.2 Mbps; Encrypted: 182.6 Mbps |
| SSL VPN Throughput | 86.6 Mbps |
| DPI Throughput | TCP: 1131 Mbps; UDP: 974 Mbps |
VPN
| IPsec VPN | 100 IPsec VPN tunnels; LAN-to-LAN, Client-to-LAN; Main/Aggressive negotiation; DES, 3DES, AES128/192/256; IPsec Failover; IKE v1/v2; MD5, SHA1, SHA2-384, SHA2-512; NAT-T; DPD; PFS |
| SSL VPN | 50 tunnels |
| PPTP VPN | PPTP VPN Server; PPTP VPN Client (10); 50 tunnels; MPPE encryption |
| L2TP VPN | L2TP VPN Server; L2TP VPN Client (10); 50 tunnels; L2TP over IPSec |
| OpenVPN | OpenVPN Server; OpenVPN Client (5); 55 OpenVPN tunnels; Certificate + Account mode; Full mode |
| WireGuard VPN | 20 tunnels |
| GRE | Supported (Standalone Mode only) |
Functions & Security
| WAN Connection Type | Static IP, Dynamic IP, PPPoE (supports MRU configuration), PPTP, L2TP |
| DHCP | DHCP Server, DHCPv6 PD Server (Standalone Mode), DHCP Options Customization, DHCP Address Reservation, Multi-IP Interfaces, Multi-Net DHCP |
| SMS | Receive / Send SMS |
| IPv6 | Static IP / SLAAC / DHCPv6 / PPPoE / 6to4 Tunnel / Pass-Through / Non-Address mode |
| VLAN / IPTV | 802.1Q VLAN; IGMP v2/v3 Proxy, Custom Mode, Bridge Mode |
| Advanced Routing | Static Routing, Policy Routing, RIP, OSPF |
| Load Balance | Intelligent Load Balance, Application Optimized Routing, Link Backup (Timing, Failover), Online Detection |
| NAT | One-to-One NAT, Multi-Net NAT, Virtual Server, Port Triggering, NAT-DMZ, FTP/H.323/SIP/IPSec/PPTP ALG, UPnP |
| DPI | Application control via DPI / updated app library |
| Filtering | Web Group Filtering, URL Filtering, Web Security |
| Attack Defense | TCP/UDP/ICMP Flood Defense, Block TCP Scan (Stealth FIN/Xmas/Null), Block Ping from WAN |
| ARP Inspection | Sending GARP Packets, ARP Scanning, IP-MAC Binding |
| Web Authentication | No Authentication, Simple Password, Hotspot (Local User / Voucher / SMS / Radius), External Radius Server, External Portal Server, LDAP |
Management
| Centralized Management | Omada Cloud Essentials, Omada Cloud-Based Controller, Omada Hardware Controller (OC300 / OC200), Omada Software Controller |
| Omada App / Cloud Access | Yes |
| Service | Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization) |
| Maintenance | Web Management Interface, Remote Management, Export & Import Configuration, SNMP v1/v2c/v3, Diagnostics (Ping & Traceroute), NTP Synchronize, Port Mirroring, CLI (Standalone Mode), Syslog |
| Management Features | Automatic Device Discovery, Intelligent Network Monitoring, Abnormal Event Warnings, Unified Configuration, Reboot Schedule, Captive Portal Configuration |
Environment & Certification
| Ingress Protection | IP55 |
| Operating Temperature | -30 °C to 60 °C (-22 °F to 140 °F) |
| Storage Temperature | -40 °C to 70 °C (-40 °F to 158 °F) |
| Operating Humidity | 5% to 95% non-condensing |
| Storage Humidity | 5% to 90% non-condensing |
| Certification | CE, FCC, RoHS |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8/8.1/10/11, MAC OS, NetWare, UNIX or Linux |
TP-Link's product page does not publish the PoE-out power budget or which ports carry PoE-out; check the datasheet before sizing powered devices. Actual 4G speeds vary with the service plan, network capacity and environment.
Compatibility & Software Support
The ER703WP-4G-Outdoor is part of the Omada ecosystem: gateways, switches and access points are managed together from one controller, under one set of policies, with one view of the network. Cloud and app features listed below require the device to be adopted into an Omada Controller.
| Omada SDN Controller | Supported — adopt and manage centrally from Omada Central (Cloud-Based Controller), the Omada Hardware Controller or the Omada Software Controller |
| Omada App | Supported — remote management from iOS and Android |
| Omada Cloud Access | Supported — requires adoption into an Omada Controller |
| Standalone Mode | Supported — the gateway can also be configured on its own via its web interface |
Package Contents & Ordering Information
What’s in the Box
| Package Contents | ER703WP-4G-Outdoor, Mounting Kits, Quick Installation Guide |
Ordering Information
| Model | ER703WP-4G-Outdoor |
| Recommended Retail Price (incl. GST) | S$399.00 |
Datasheet & Downloads
Frequently Asked Questions — ER703WP-4G-Outdoor
Does the ER703WP-4G-Outdoor need an Omada Controller?
No. The ER703WP-4G-Outdoor runs standalone through its own web interface. Adopting it into an Omada Software, Hardware or Cloud-Based Controller is what unlocks central configuration, monitoring, firmware management and cloud/app access across every Omada device on site — the Essentials tier of Omada cloud services is free.
What warranty does SourceIT provide?
Five years local Singapore warranty. Every ER703WP-4G-Outdoor sold by SourceIT comes with a GST invoice.
Is stock held locally?
SourceIT holds fast-moving Omada lines in Singapore. Anything not in local stock is brought in on indent — ask us for the current lead time before committing to a project date.
Is this model available for project orders?
Yes. TP-Link supplies this model for project deployments; contact SourceIT with your bill of materials for pricing and lead time.
Can SourceIT quote this for a project or tender?
Yes. Send the bill of materials and we will quote the whole Omada build — controller, gateway, switching, access points and optics — with local warranty and support.
