TP-Link Omada 4G Cat4 N300 Outdoor PoE Gateway
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
TP-Link Omada 4G Cat4 N300 Outdoor PoE Gateway (ER603WP-4G-Outdoor) - 5 Years Local Warranty
The ER603WP-4G-Outdoor is Omada's compact outdoor 4G gateway: a 4G Cat4 modem, 2.4 GHz Wi-Fi 4 and three Gigabit ports (one PoE in, two PoE out) in an IP55 weatherproof housing with 4 kV lightning protection, designed to power and connect a camera or access point where there is no fixed line or mains outlet.
4G Cat4 Internet Up to 150 Mbps
A single Nano SIM slot feeds a 4G Cat4 modem rated at up to 150 Mbps downlink and 50 Mbps uplink, with two external LTE antennas and 3G fallback. Load balancing between 4G and Ethernet WAN lets the unit act as primary or backup internet for a small remote site.
One PoE In, Two PoE Out

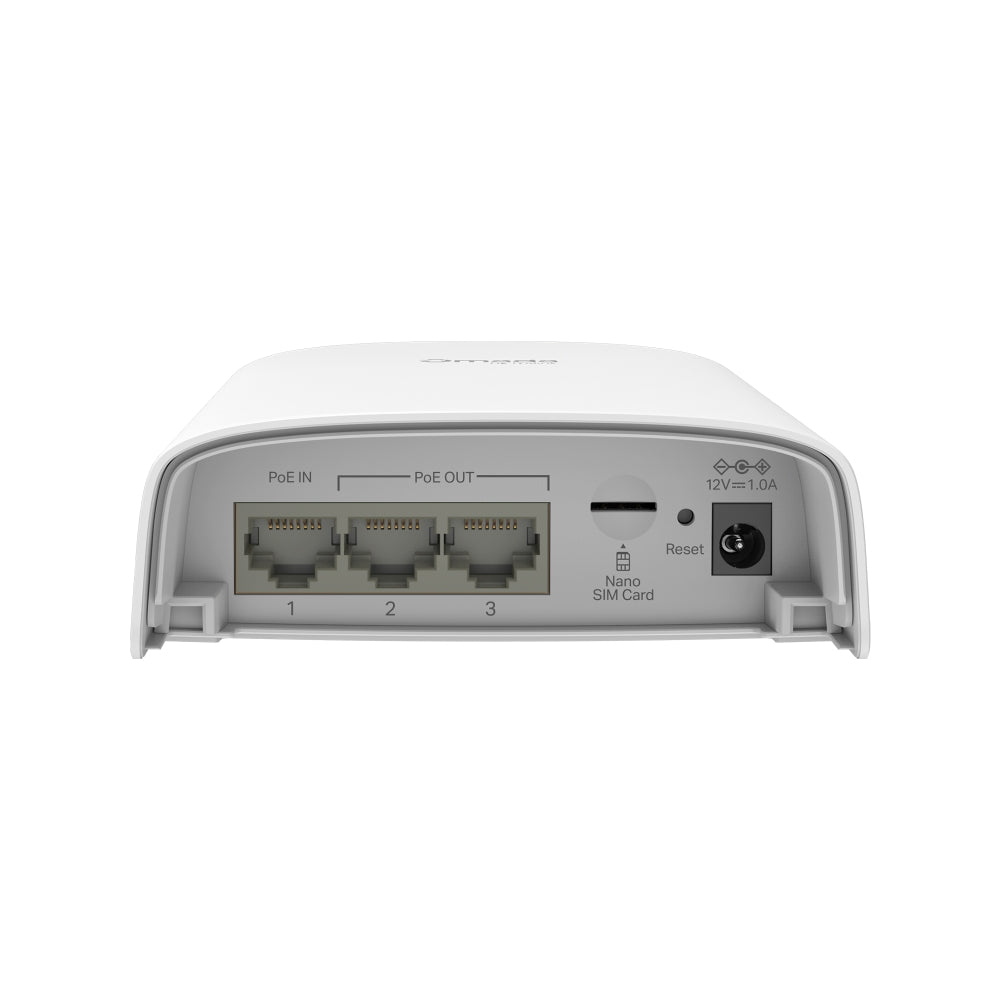

Port 1 accepts passive, 802.3af, 802.3at or 802.3bt PoE input, and ports 2-3 supply passive/802.3af/at PoE output — so one cable from an upstream PoE source can power the gateway and two downstream devices such as IP cameras or outdoor APs. TP-Link notes that PoE-out requires 802.3bt PoE input; a 12 V/1 A DC input is also supported and a passive PoE adapter is included.
IP55 Weatherproof With 4 kV Lightning Protection
The compact 100.4 × 38.7 × 174.8 mm enclosure is IP55 weatherproof with 4 kV lightning protection, operates from -30 °C to 60 °C, and mounts on a wall or pole with the kits supplied. TP-Link notes lightning protection also depends on proper setup, grounding and cable shielding.
Site-to-Site VPN and Omada Security
IPsec, PPTP, L2TP, OpenVPN, WireGuard and GRE (Standalone Mode) VPNs connect the site back to head office, and SD-WAN is available in Controller Mode. Security features include stateful and country-based ACLs, a DNS proxy with DNSSEC, DoH and DoT, web/URL filtering, flood defence and ARP inspection, with 50,000 concurrent sessions.
Centralised Cloud Management and ZTP
Adopt the gateway into Omada Central, a Hardware Controller or the Software Controller to monitor and configure it alongside the rest of the Omada estate, including Zero-Touch Provisioning. The Essentials tier of the Omada cloud-based controller is free; the Standard tier with advanced features requires a licence.
Ideal For
Remote CCTV positions, car parks, farms, kiosks and small outdoor sites that need a low-power 4G link with PoE pass-through for one or two devices. Supplied by SourceIT with local Singapore warranty, GST invoice and project pricing on request.
ER603WP-4G-Outdoor Datasheet — Technical Specifications
General
| Model | ER603WP-4G-Outdoor |
| Official Product Name | Omada 4G Cat4 N300 Outdoor PoE Gateway |
| Brand | TP-Link Omada |
| Warranty | 5 Years Local Warranty (Singapore) |
Hardware
| Interface | 3× Gigabit WAN/LAN Ports |
| PoE Standard | Passive/802.3af/at/bt PoE in on port 1; Passive/802.3af/at PoE out on ports 2-3 (PoE-out requires 802.3bt PoE input) |
| Power Supply | Passive/802.3af/at/bt PoE; 12 V/1 A adapter (passive PoE adapter provided) |
| Network Media | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Button | Reset Button |
| Wi-Fi Frequency & Signal Rate | 2.4 GHz: 300 Mbps (specification table) — see note |
| Flash | 128 MB NAND |
| DRAM | 256 MB DDR3 |
| LED | 4G Signal, WLAN, WAN/LAN, SYS |
| Antenna | 2 internal Wi-Fi antennas; 2 external LTE antennas |
| Dimensions (W × D × H) | 4.0 × 1.5 × 6.9 in (100.4 × 38.7 × 174.8 mm), excluding antennas |

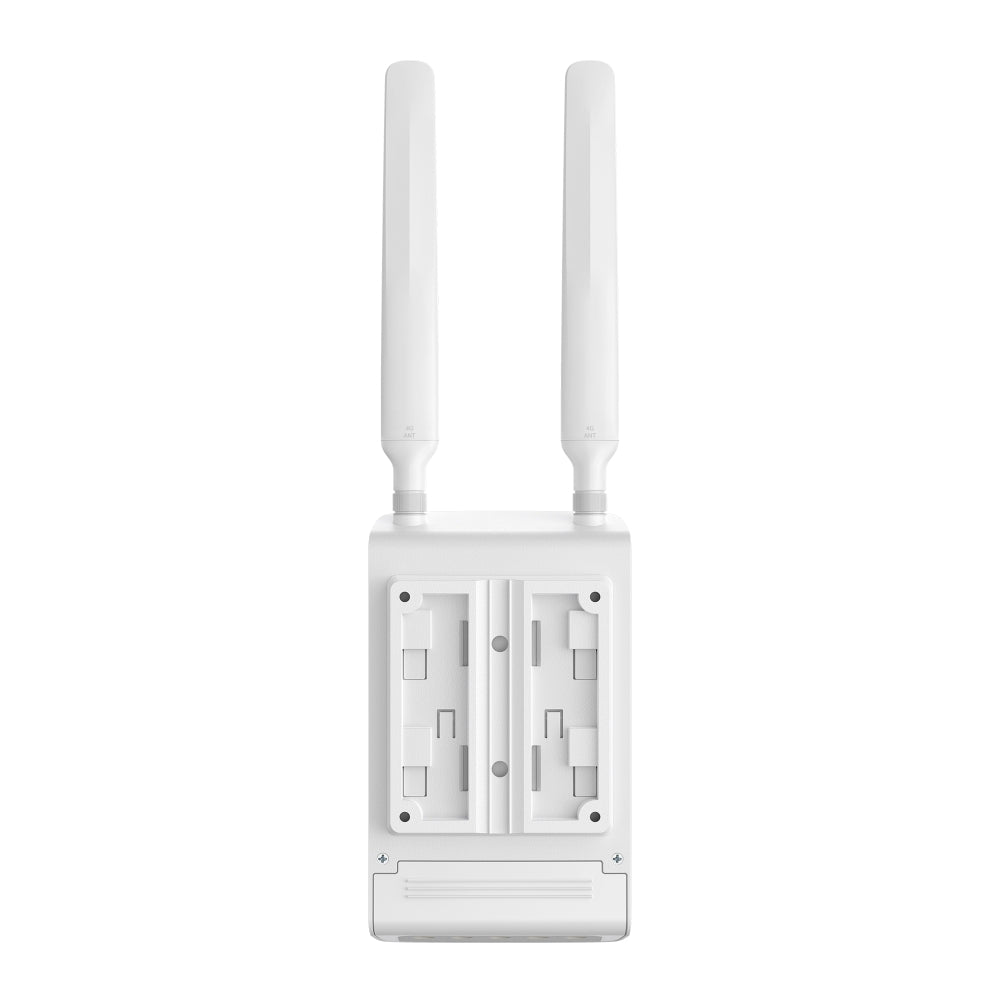

| Mounting | Wall / Pole Mounting (kits included) |
| Max. Power Consumption | 10 W without PoE; 62 W with PoE |
4G
| SIM Type | 1× Nano SIM slot (Cat4 4G) |
| Speed | Downlink: 150 Mbps; Uplink: 50 Mbps |
| Network Type (EU band plan) | 4G LTE-FDD: B1/B3/B5/B7/B8/B20/B28; 4G LTE-TDD: B38/B40/B41; 3G HSPA+/HSDPA/HSUPA/WCDMA: B1/B5/B8 |
Wireless
| Advanced Features | WPA/WPA2 Personal, WPA/WPA2 Enterprise; 8 SSIDs; Rate Limit based on SSID/Client |
| Guest Network | Supported |
Performance
| Concurrent Sessions | 50,000 |
| New Sessions / Second | 2,028 |
| NAT (Static IP) | 944.785 Mbps / 939.201 Mbps |
| NAT (DHCP) | 944.545 Mbps / 927.491 Mbps |
| NAT (PPPoE) | 939.278 Mbps / 928.516 Mbps |
| NAT (L2TP) | 432.126 Mbps / 355.712 Mbps |
| NAT (PPTP) | 513.104 Mbps / 457.323 Mbps |
| 66 Byte Packet Forwarding Rate | 1,419,519 pps / 1,418,731 pps |
| 1,518 Byte Packet Forwarding Rate | 81,068 pps / 81,068 pps |
| IPsec VPN Throughput | ESP-SHA1-AES256: 192.432 Mbps; ESP-SHA256-AES256: 195.445 Mbps; ESP-SHA384-AES256: 48.55 Mbps; ESP-SHA512-AES256: 48.363 Mbps |
| GRE | Unencrypted: 425.292 Mbps; Encrypted: 164.058 Mbps |
| WireGuard VPN | 50.175 Mbps |
| OpenVPN | 11.369 Mbps |
| L2TP VPN Throughput | Unencrypted: 370.822 Mbps; Encrypted: 144.05 Mbps |
| PPTP VPN Throughput | Unencrypted: 408.038 Mbps; Encrypted: 35.912 Mbps |
VPN
| IPsec VPN | 6 tunnels; LAN-to-LAN, Client-to-LAN; Main/Aggressive negotiation; DES, 3DES, AES128/192/256; Failover; IKE v1/v2; MD5, SHA1, SHA-256, SHA2-384, SHA2-512; NAT-T; DPD; PFS |
| PPTP VPN | PPTP Server; 6 client tunnels; MPPE encryption |
| L2TP VPN | L2TP Server; 6 client tunnels; L2TP over IPSec |
| OpenVPN | OpenVPN Server; 3 clients; 18 tunnels; Certificate + Account mode; Full mode |
| WireGuard VPN | Supported |
| GRE | Supported (Standalone Mode only) |
| SD-WAN | Supported (Controller Mode only) |
Security
| Access Control | Source/Destination IP Based ACL; Stateful ACL; IPv4/IPv6 ACL; National Based ACL |
| DNS Proxy | DNSSEC, DoH, DoT, DNS Override |
| Filtering | Web Group Filtering, URL Filtering, Web Security |
| Attack Defense | TCP/UDP/ICMP Flood Defense, Block TCP Scan (Stealth FIN/Xmas/Null), Block Ping from WAN |
| ARP Inspection | Sending GARP Packets, ARP Scanning, IP-MAC Binding, ARP Detection |
Management
| Centralized Management | Omada Cloud-Based Controller, Omada Hardware Controller, Omada Software Controller |
| Omada App / Cloud Access | Yes |
| Service | Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization) |
| Maintenance | Web Management Interface, Remote Management, Export & Import Configuration, SNMP v1/v2c/v3, Diagnostics (Ping & Traceroute), NTP Synchronize, Port Mirroring, CLI (Standalone Mode), Syslog |
| Management Features | Automatic Device Discovery, Intelligent Network Monitoring, Abnormal Event Warnings, Unified Configuration, Reboot Schedule, Captive Portal Configuration, Zero-Touch Provisioning |
Environment & Certification
| Ingress / Surge Protection | IP55 weatherproof; 4 kV lightning protection |
| Operating Temperature | -30 °C to 60 °C (-22 °F to 140 °F) |
| Storage Temperature | -40 °C to 70 °C (-40 °F to 158 °F) |
| Operating Humidity | 5% to 95% non-condensing |
| Storage Humidity | 5% to 90% non-condensing |
| Certification | CE |
TP-Link's pages disagree on the Wi-Fi rate: the overview copy says "Wi-Fi 4, Support 150 Mbps on 2.4 GHz", while the specification table (and the N300 product name) gives 2.4 GHz: 300 Mbps. Both are reproduced as published. The Wi-Fi is 2.4 GHz only.
The specification table was taken from TP-Link's Omada Australia product page because the Singapore page does not publish one. Actual 4G speeds vary with the service plan, network capacity and environment.
Compatibility & Software Support
The ER603WP-4G-Outdoor is part of the Omada ecosystem: gateways, switches and access points are managed together from one controller, under one set of policies, with one view of the network. Cloud and app features listed below require the device to be adopted into an Omada Controller.
| Omada SDN Controller | Supported — adopt and manage centrally from Omada Central (Cloud-Based Controller), the Omada Hardware Controller or the Omada Software Controller |
| Omada App | Supported — remote management from iOS and Android |
| Omada Cloud Access | Supported — requires adoption into an Omada Controller |
| Standalone Mode | Supported — the gateway can also be configured on its own via its web interface |
| Zero-Touch Provisioning | Supported — requires the Omada Cloud-Based Controller |
Package Contents & Ordering Information
What’s in the Box
| Package Contents | ER603WP-4G-Outdoor, Mounting Kits, Passive PoE Adapter, Quick Installation Guide |
Ordering Information
| Model | ER603WP-4G-Outdoor |
| Recommended Retail Price (incl. GST) | S$299.00 |
Datasheet & Downloads
Frequently Asked Questions — ER603WP-4G-Outdoor
Does the ER603WP-4G-Outdoor need an Omada Controller?
No. The ER603WP-4G-Outdoor runs standalone through its own web interface. Adopting it into an Omada Software, Hardware or Cloud-Based Controller is what unlocks central configuration, monitoring, firmware management and cloud/app access across every Omada device on site — SD-WAN is a controller-only feature.
What warranty does SourceIT provide?
Five years local Singapore warranty. Every ER603WP-4G-Outdoor sold by SourceIT comes with a GST invoice.
Is stock held locally?
SourceIT holds fast-moving Omada lines in Singapore. Anything not in local stock is brought in on indent — ask us for the current lead time before committing to a project date.
Is this model available for project orders?
Yes. TP-Link supplies this model for project deployments; contact SourceIT with your bill of materials for pricing and lead time.
Can SourceIT quote this for a project or tender?
Yes. Send the bill of materials and we will quote the whole Omada build — controller, gateway, switching, access points and optics — with local warranty and support.
