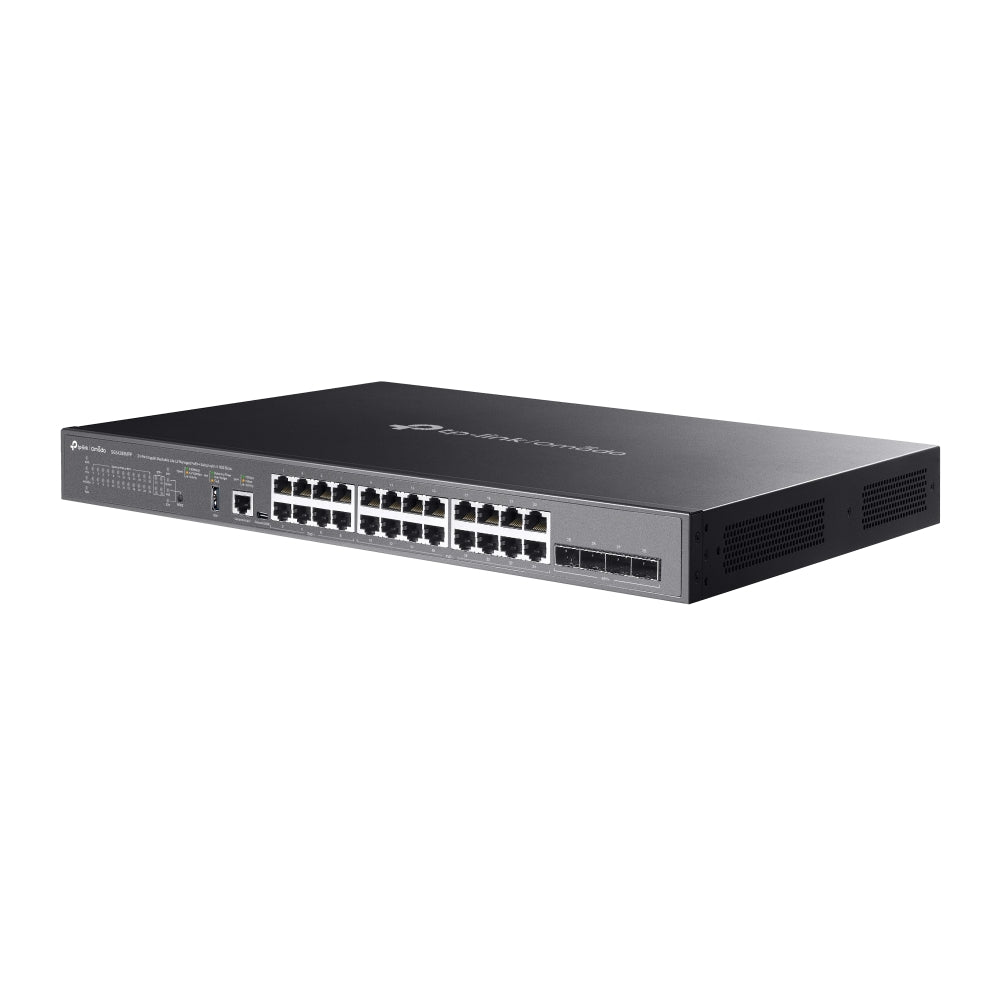

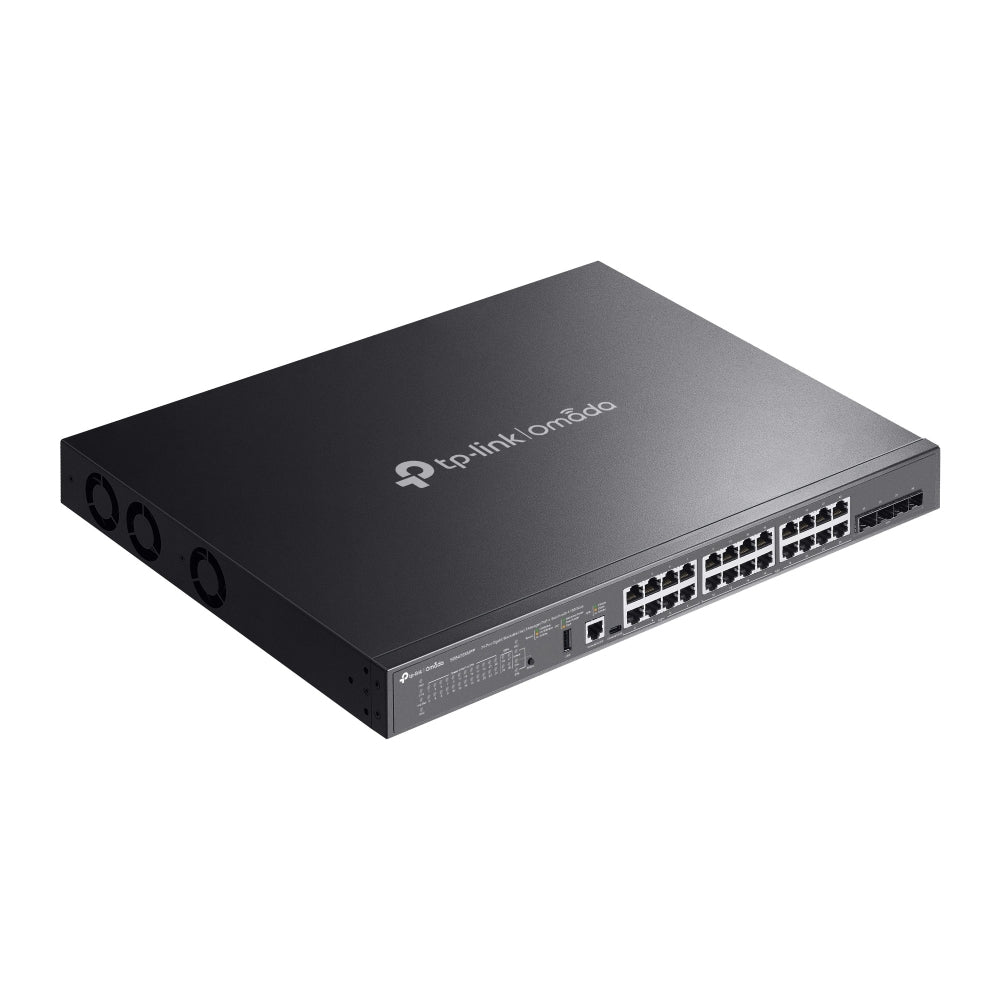

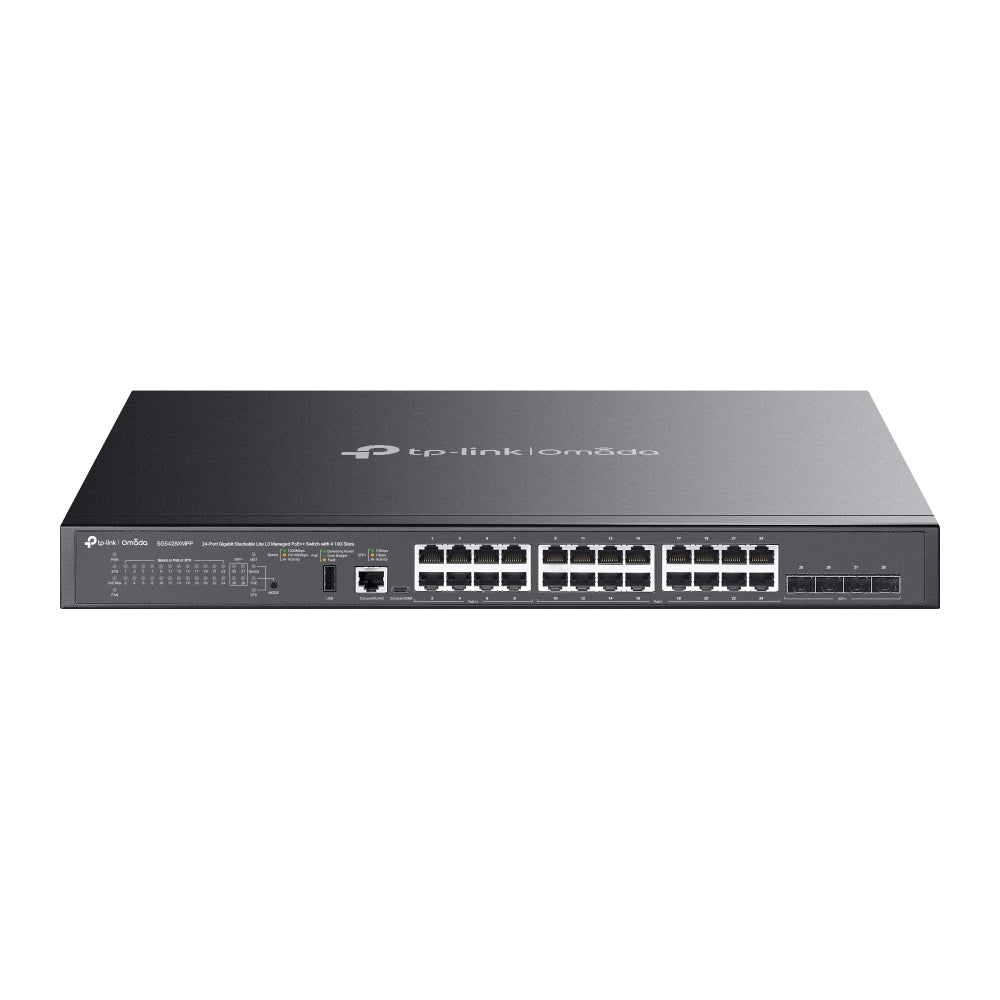

TP-Link Omada 24-Port Gigabit Stackable Lite L3 Managed PoE++ Switch with 4× 10G Slots
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
TP-Link Omada 24-Port Gigabit Stackable Lite L3 Managed PoE++ Switch with 4× 10G Slots (SG5428XMPP) - 5 Years Local Warranty
The SG5428XMPP is the 24-port PoE model in TP-Link's Omada SG5400 stackable Lite L3 range: 24 Gigabit PoE ports (8 × 90 W PoE++ and 16 × 30 W PoE+) sharing a 500 W PoE budget, four 10G SFP+ uplinks, four-unit stacking and Lite L3 routing under Omada SDN.
500 W Across 24 PoE Ports, With Eight 90 W PoE++ Ports
Ports 1–8 are IEEE 802.3af/at/bt PoE++ ports delivering up to 90 W each, and ports 9–24 are 802.3af/at PoE+ ports at up to 30 W each, all drawing on a 500 W total PoE budget. TP-Link footnotes that the budget is based on laboratory testing and the actual PoE budget is not guaranteed and varies with clients and environment — so if all eight PoE++ ports will run near 90 W, check the remaining headroom for the PoE+ ports.
Perpetual PoE and Fast PoE
TP-Link lists Perpetual PoE, which keeps power flowing to connected devices while the switch itself reboots, plus Fast PoE — so cameras, phones and access points are not dropped every time the switch is upgraded or restarted.
128 Gbps Per Unit and 80 Gbps Stacking
24 Gigabit RJ45 ports and four 10G SFP+ slots give 128 Gbps switching capacity and 95.23 Mpps forwarding per unit. Up to four units stack over the 10G SFP+ slots — all uplink ports can be used as stacking ports — for up to 80 Gbps stacking bandwidth across four stacking ports.
Lite L3 Routing for Inter-VLAN Traffic at the Edge
Static routing, RIP v1/v2, OSPF v2/v3, a DHCP server (up to 64 IP pools) and DHCP relay let the switch route between VLANs locally instead of hair-pinning traffic through the gateway. That is usually what a building or floor needs — routing between staff, guest, voice and CCTV VLANs — without paying for the full BGP/IS-IS stack of a core switch.
Security and Availability Built In
ACLs (IPv4 and IPv6), Dynamic ARP Inspection, IEEE 802.1X with MAB, port security (up to 64 MAC addresses per port), DHCP Snooping and IPv4/IPv6 Source Guard defend the access layer, while ERPS (Ethernet Ring Protection Switching) gives rapid protection and recovery in ring topologies.
Omada SDN: Cloud Management and Zero-Touch Provisioning
Adopted into an Omada Hardware, Software or Cloud-Based Controller, the switch is configured, monitored and upgraded alongside Omada gateways and access points — automatic device discovery, batch configuration and firmware upgrades, abnormal event warnings and reboot schedules. Zero-Touch Provisioning requires the Omada Cloud-Based Controller. Standalone web GUI and CLI management remain available.
Ideal For
Mid-sized PoE access closets in offices, schools, clinics and retail sites powering Wi-Fi 7 APs, PTZ cameras and phones, with stacking and local inter-VLAN routing under Omada. Supplied by SourceIT with local Singapore warranty, GST invoice and project pricing on request.
SG5428XMPP Datasheet — Technical Specifications
General
| Model | SG5428XMPP |
| Official Product Name | Omada 24-Port Gigabit Stackable Lite L3 Managed PoE++ Switch with 4× 10G Slots |
| Brand | TP-Link Omada |
| Warranty | 5 Years Local Warranty (Singapore) |
Hardware
| Interface | 24× 10/100/1000 Mbps RJ45 Ports (8× PoE++, 16× PoE+) 4× 1/10 Gbps SFP+ Slots** 1× USB 2.0 Port 1× RJ45 Console Port 1× USB Type-C Console Port |
| PoE Standard | 802.3af/at/bt compliant |
| PoE++ Ports | Ports 1–8, up to 90 W per port |
| PoE+ Ports | Ports 9–24, up to 30 W per port |
| PoE Power Budget | 500 W* |
| PoE Features | Fast PoE, Perpetual PoE |
| Power Supply | 100–240 V~ 50/60 Hz |
| Fans | 3 |
| Max. Power Consumption | 587.7 W (220 V/50 Hz) with 500 W PD connected @ 25 °C 615.8 W (110 V/60 Hz) with 500 W PD connected @ 25 °C |
| Max. Heat Dissipation | 2004.06 BTU/hr (220 V/50 Hz) with 500 W PD connected @ 25 °C 2099.88 BTU/hr (110 V/60 Hz) with 500 W PD connected @ 25 °C |
| Dimensions (W × D × H) | 440 × 330 × 44 mm (17.3 × 13.0 × 1.7 in) |
| Mounting | Rackmountable |
Performance
| Switching Capacity | 128 Gbps per unit |
| Packet Forwarding Rate | 95.23 Mpps |
| MAC Address Table | 16 K |
| Packet Buffer Memory | 12 Mbit |
| Jumbo Frame | 9 KB |
| Stacking | Up to 4 units; stacking via the 10G SFP+ slots (all uplink ports can be used as stacking ports); up to 80 Gbps stacking bandwidth (4 stacking ports) |
L3 Features
| IP Interfaces | IPv4: max 128, IPv6: max 128 |
| Static Routing | IPv4 max 512, IPv6 max 128 |
| Host Route Table | Max 1,024 entries |
| RIP | v1/v2, max 1,796 |
| OSPF | v2/v3; v2: max 1,796, v3: max 450 |
| ARP | 512 static entries; 3,600 dynamic entries; Proxy ARP |
| DHCP Server | Max 64 IP pools; max 1,000 manual binding entries |
| DHCP Relay | Relayed Interface; Relayed VLAN |
L2, VLAN & QoS
| L2 and L2+ Features | Link Aggregation; Spanning Tree Protocol; Port- and VLAN-based Loopback Detection; 802.3x Flow Control; ERPS; Mirroring; RSPAN; MAC Address Table |
| Multicast | IGMP Snooping; MLD Snooping; L2 multicast table max 2,000; Fast Leave; Multicast VLAN Registration (MVR); Static Multicast Groups; Multicast Filtering |
| VLAN | Max 4K VLAN groups (802.1Q); 802.1Q Tagged VLAN; MAC VLAN (60 entries); Multicast VLAN; Management VLAN; VLAN VPN (QinQ, max 256 entries); GVRP; Protocol VLAN (16 templates, 12 entries); Voice VLAN; Private VLAN |
| Quality of Service | 8 priority queues; Port / 802.1p / DSCP priority; Queue Min-Bandwidth; SP, WRR, SP+WRR scheduling; Rate Limit; Storm Control; Voice VLAN; User-Defined OUI; Smoother Performance; QoS remark (802.1p, DSCP) |
| Advanced / ISP Features | Automatic Device Discovery, Batch Configuration, Batch Firmware Upgrading, Intelligent Network Monitoring, Abnormal Event Warnings, Unified Configuration, Reboot Schedule (require an Omada Controller); 802.3ah Ethernet Link OAM; L2PT; DLDP; DDM; sFlow |
Security
| Security | Port Isolation; CPU-Defend; Dynamic ARP Inspection; DoS Defend; IP-MAC-Port Binding (1,024 entries, DHCP Snooping, ARP Inspection, IPv4 Source Guard); IPv6-MAC-Port Binding (1,024 entries, DHCPv6 Snooping, ND Detection, ND Snooping, IPv6 Source Guard); DHCP Filter; Static/Dynamic Port Security (up to 64 MAC addresses per port); Broadcast/Multicast/Unknown-unicast Storm Control (kbps/ratio) |
| Authentication & Access Control | 802.1X (port- and MAC-based, VLAN assignment, MAB, Guest VLAN, RADIUS); AAA incl. TACACS+; HTTPS with SSLv3/TLS 1.2; SSHv2; IP/Port/MAC-based access control |
Management
| Omada App | Yes — requires the Omada Hardware, Cloud-Based or Software Controller |
| Centralized Management | Omada Cloud-Based Controller, Omada Hardware Controller, Omada Software Controller |
| Cloud Access | Yes — requires an Omada Controller |
| Zero-Touch Provisioning | Yes — requires the Omada Cloud-Based Controller (Omada Cloud Standard or Omada Cloud Essentials) |
| Local Management | Web-based GUI; CLI through console port, telnet; SNMPv1/v2c/v3 (Trap/Inform, RMON 1, 2, 3, 9 groups); SDM Template; DHCP/BOOTP Client; 802.1ab LLDP/LLDP-MED; DHCP Auto Install; Dual Image, Dual Configuration; CPU Monitoring; Cable Diagnostics; Password Recovery; SNTP; System Log; IEEE 802.3az EEE |
Physical & Environment
| Operating Temperature | -5 °C to 45 °C (23 °F to 113 °F) |
| Storage Temperature | -40 °C to 70 °C (-40 °F to 158 °F) |
| Operating Humidity | 10–90% RH non-condensing |
| Storage Humidity | 5–90% RH non-condensing |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8/10/11, MAC OS, NetWare, UNIX or Linux |
| Package Contents | SG5428XMPP Switch, Power Cord, Console Cable, Rackmount Kits, Rubber Feet, Quick Installation Guide |
Notes
* PoE budget calculations are based on laboratory testing. The actual PoE power budget is not guaranteed and will vary due to client limitations and environmental factors. The maximum power output of every single PoE++ port is 90W.
** Only one 10G RJ45 SFP+ module can be inserted at a time.
Advanced features marked as controller functions require the use of the Omada Controller. Zero-Touch Provisioning requires the use of the Omada Cloud-Based Controller (Omada Cloud Standard or Omada Cloud Essentials).
Compatibility & Software Support
The SG5428XMPP is part of the Omada ecosystem: gateways, switches and access points are managed together from one controller, under one set of policies, with one view of the network. Cloud and app features listed below require the switch to be adopted into an Omada Controller.
| Omada SDN Controller | Supported — Omada Software Controller, Hardware Controller or Cloud-Based Controller |
| Omada App | Supported — requires an Omada Hardware, Cloud-Based or Software Controller |
| Omada Cloud Access | Supported — requires an Omada Controller |
| Zero-Touch Provisioning | Supported — requires the Omada Cloud-Based Controller (Omada Cloud Standard or Omada Cloud Essentials) |
| Standalone Mode | Supported — web-based GUI and CLI (console port, telnet, SSHv2), SNMPv1/v2c/v3 |
Package Contents & Ordering Information
What’s in the Box
| Package Contents | SG5428XMPP Switch, Power Cord, Console Cable, Rackmount Kits, Rubber Feet, Quick Installation Guide |
Ordering Information
| Model | SG5428XMPP |
| Recommended Retail Price (incl. GST) | S$1799.00 |
Datasheet & Downloads
Frequently Asked Questions — SG5428XMPP
Does the SG5428XMPP need an Omada Controller?
No. The SG5428XMPP runs standalone through its own web interface and CLI. Adopting it into an Omada Software, Hardware or Cloud-Based Controller is what unlocks central configuration, monitoring, batch firmware management and cloud/app access across every Omada device on site; Zero-Touch Provisioning requires the cloud-based option.
How much PoE can the SG5428XMPP deliver?
TP-Link rates the total PoE budget at 500 W, with up to 90 W on each of ports 1–8 (PoE++) and up to 30 W on ports 9–24 (PoE+). TP-Link notes the budget is based on laboratory testing and the actual figure will vary with clients and environment.
What warranty does SourceIT provide?
Five years local Singapore warranty. Every SG5428XMPP sold by SourceIT comes with a GST invoice.
Is stock held locally?
SourceIT holds fast-moving Omada lines in Singapore. Anything not in local stock is brought in on indent — ask us for the current lead time before committing to a project date.
Is this model available for project orders?
Yes. TP-Link supplies this model for project deployments; contact SourceIT with your bill of materials for pricing and lead time.
Can SourceIT quote this for a project or tender?
Yes. Send the bill of materials and we will quote the whole Omada build — controller, gateway, switching, access points and optics — with local warranty and support.
