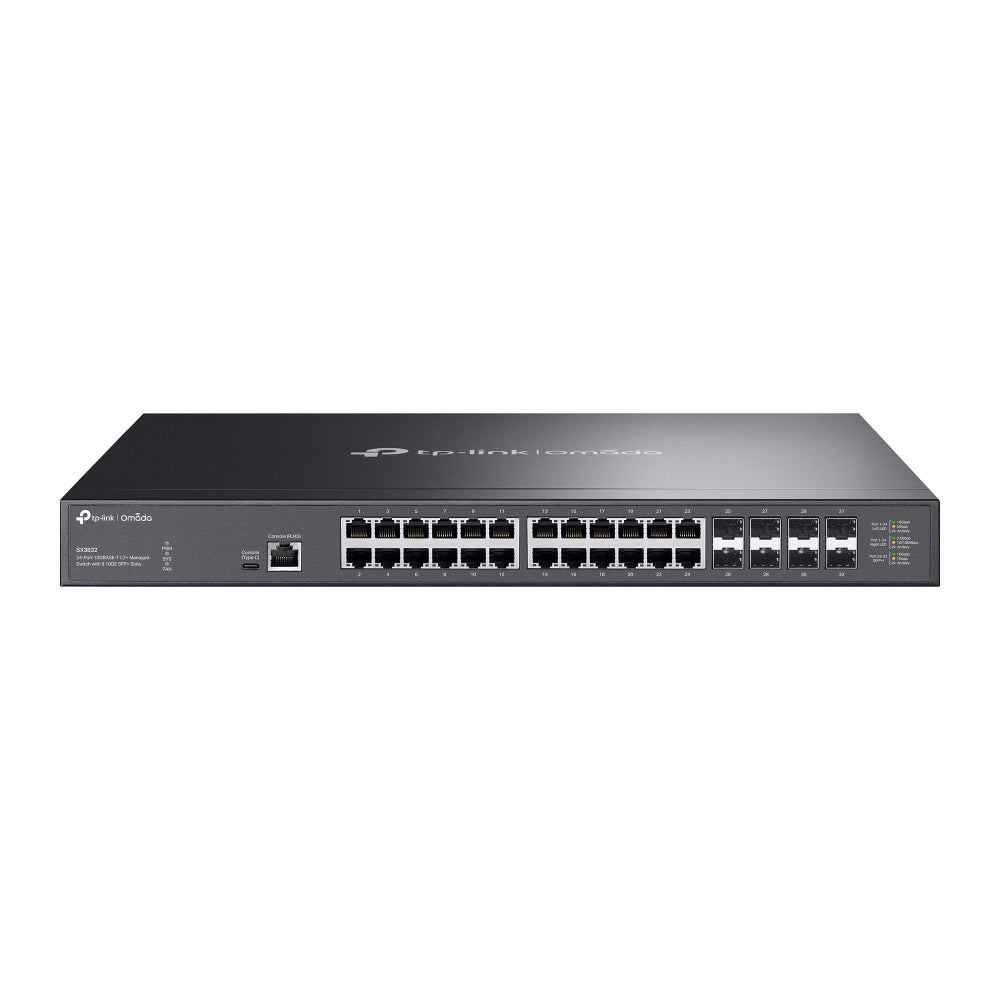

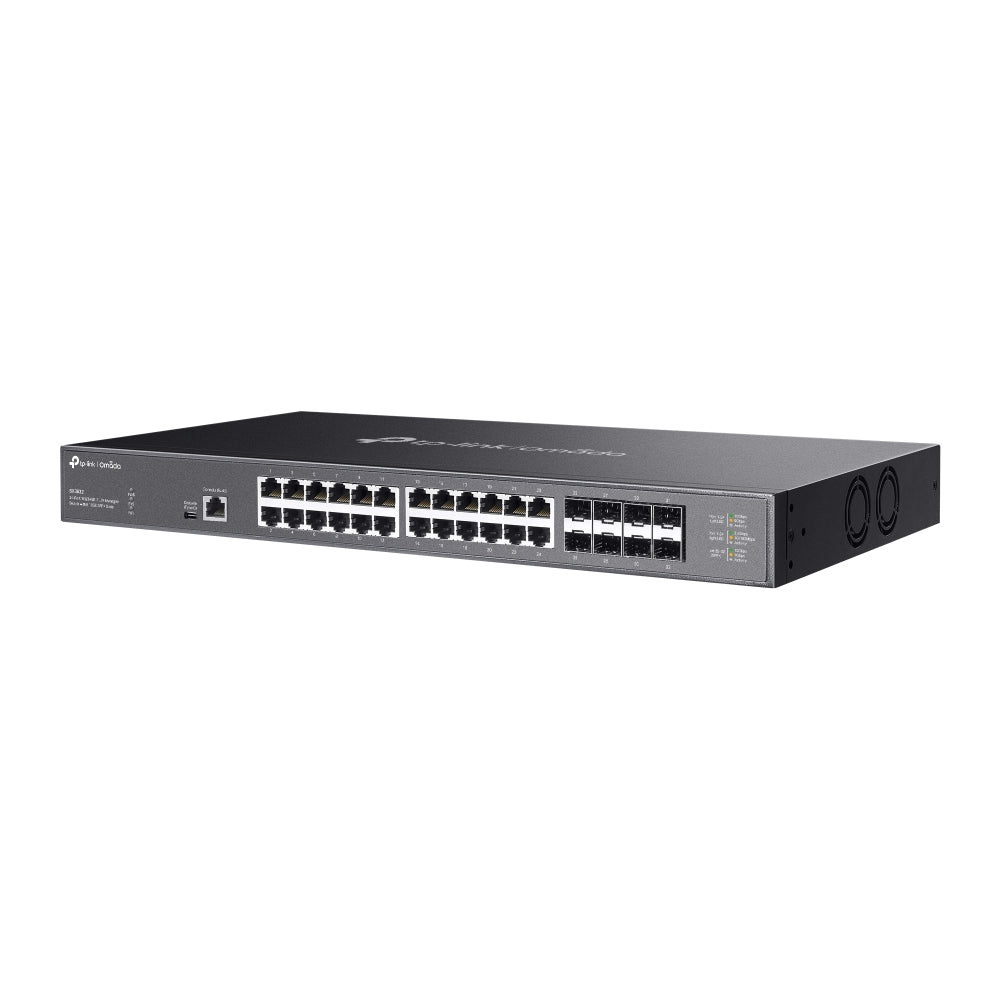

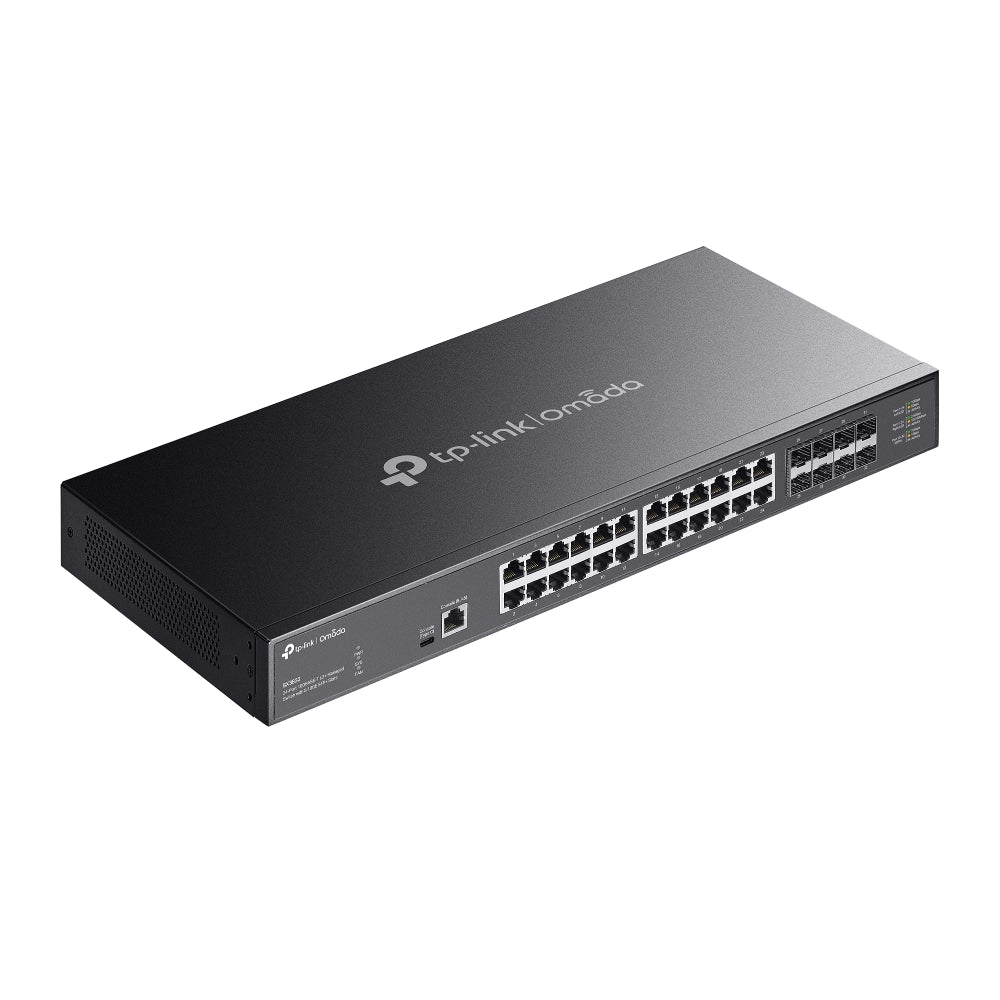

TP-Link Omada 24-Port 10GBASE-T L2+ Managed Switch with 8 10GE SFP+ Slots

TP-Link Omada 24-Port 10GBASE-T L2+ Managed Switch with 8 10GE SFP+ Slots (SX3832) - 5 Years Local Warranty

The SX3832 sits at the top of Omada's Access Max switching line as a pure ten-gigabit L2+ managed aggregation switch. Twenty-four multi-gigabit RJ45 ports negotiate 100 Mbps through 10 Gbps over existing copper, while eight 10G SFP+ slots handle fibre uplinks. What separates it from Omada's 2.5G access switches is scale: 640 Gbps of switching capacity and a 240 Mpps forwarding rate, with static routing and ERPS ring protection built in.

Twenty-Four 10GBASE-T Ports That Reuse the Copper You Already Have

Every one of the SX3832's 24 RJ45 ports auto-negotiates at 100 Mbps, 1 Gbps, 2.5 Gbps, 5 Gbps or 10 Gbps, so a mixed estate of legacy gigabit servers, 2.5G and 5G NBASE-T devices and full 10GBASE-T endpoints all land on the same switch without media converters or separate aggregation tiers. Because 10GBASE-T runs over structured copper rather than fibre, you can lift a floor or a rack from gigabit to ten-gigabit using cabling that is already installed, and the switch steps each link down gracefully when a port or a cable run cannot sustain the full rate.

640 Gbps of Switching Capacity for Genuine Non-Blocking Aggregation

With 24 copper ports and 8 SFP+ slots all capable of 10 Gbps in both directions, the SX3832 is specified at 640 Gbps of switching capacity and a 240 Mpps packet forwarding rate — enough headroom to drive every port at line rate simultaneously rather than oversubscribing the fabric. A 32K MAC address table and 24 Mbit of packet buffer memory keep large flat networks and bursty east-west traffic from thrashing, and 9 KB jumbo frame support reduces per-packet overhead on storage and backup workloads that move very large payloads between servers and NAS.

Eight 10G SFP+ Slots Give You Fibre Reach and Uplink Choice

Eight dedicated 1/10 Gbps SFP+ slots sit alongside the copper ports, letting you run ten-gigabit fibre between floors, buildings or to a core router where copper distance limits bite. DDM (digital diagnostic monitoring) reports each transceiver's optical transmit and receive power, temperature and bias current, so a degrading link can be spotted before it drops. Up to two of the SFP+ slots accept 10G RJ45 transceiver modules, and link aggregation lets you bond several slots into a single higher-bandwidth, fault-tolerant uplink to the core.

Static Routing and ERPS Keep Traffic Local and the Ring Alive

As an L2+ switch the SX3832 carries 48 static IPv4/IPv6 routes, so inter-VLAN traffic is routed on the switch itself instead of hairpinning up to a firewall or router — cutting latency and freeing gateway capacity. Up to 4K 802.1Q VLAN groups segment the network, and IPv6 dual-stack operation is supported throughout. For resilience, ERPS delivers rapid protection and recovery in a ring topology, with spanning tree and loopback detection as further safeguards against the broadcast storms that a miscabled ring would otherwise cause.

Layered Security and Policy Enforcement at the Port

Access is controlled with 802.1X authentication in port-based, MAC-based and MAB modes, backed by DHCP snooping, ARP inspection, IPv6 source guard, DoS defence, port security for up to 64 MAC addresses per port, and broadcast, multicast and unicast storm control. Time-based ACLs can match on MAC, IP, IPv6, combined or packet-content criteria and then mirror, redirect, rate-limit or re-mark the matching traffic. Management itself is protected by HTTPS with SSLv3/TLS 1.2 and SSH v1/v2, so configuration sessions are not carried in clear text.

Managed Centrally Through Omada SDN, or Standalone When You Prefer

The SX3832 joins the Omada SDN platform for centralised cloud management through a browser or the Omada app, giving one pane of glass across switches, gateways and access points on one site or many. Where a controller is not wanted, the switch runs standalone via its web GUI, CLI over the RJ45 or USB Type-C console port, Telnet, or SNMP v1/v2c/v3 with trap, inform and RMON for integration with existing NMS tooling. Batch firmware upgrading, DHCP AutoInstall, dual image and dual configuration, and cable diagnostics reduce the risk of a failed change.

Ideal For

Singapore businesses, schools, hotels and managed-service providers building on Omada, and IT teams that want a switch they can adopt, monitor and update centrally rather than box by box. Supplied by SourceIT with local Singapore warranty, GST invoice and project pricing on request.
