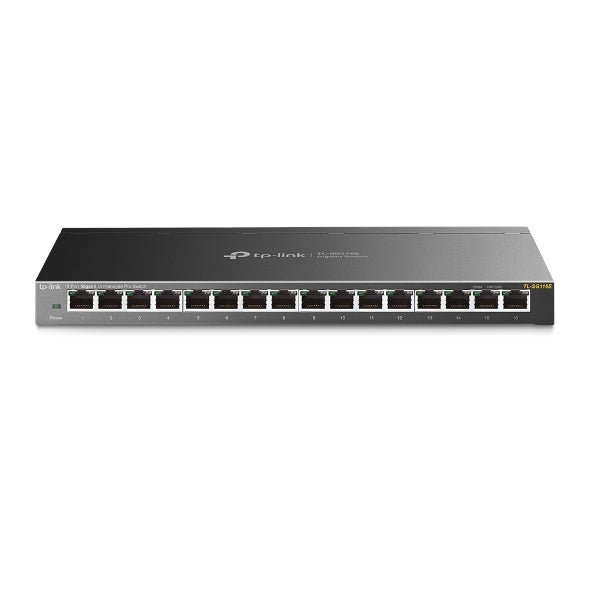

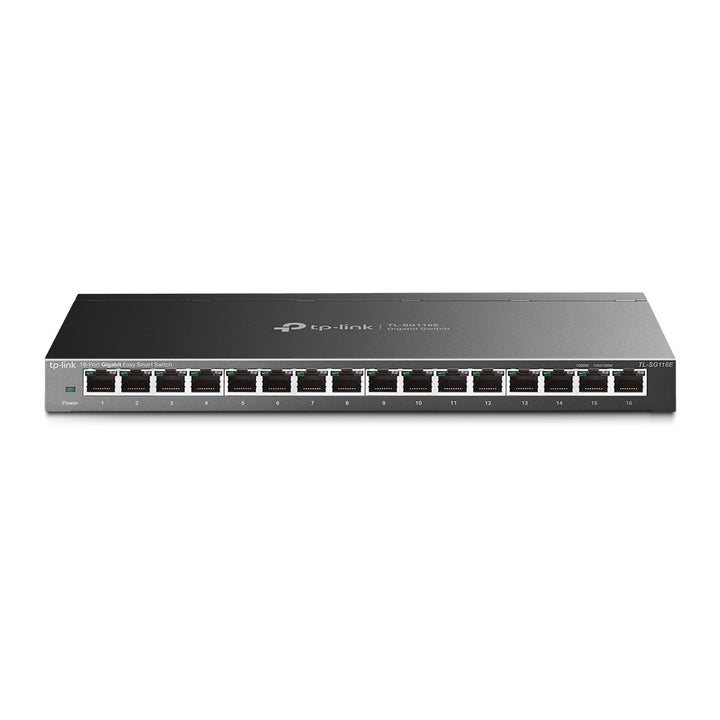

TP-Link Omada 16-Port Gigabit Easy Smart Switch

TP-Link 16-Port Gigabit Easy Smart Switch (TL-SG116E) - Local Warranty

The TL-SG116E puts sixteen Gigabit ports and genuine VLAN, QoS and IGMP snooping control into a fanless desktop-sized metal case that runs from a 12 V adapter. It is the step up from an unmanaged sixteen-port switch for offices that need traffic separated and prioritised, without moving to a rack-mounted managed platform.

Sixteen Gigabit Ports Without a Fan or a Rack

The TL-SG116E carries sixteen 10/100/1000 Mbps RJ45 ports with auto-negotiation and auto MDI/MDIX, delivering 32 Gbps of switching capacity and 23.81 Mpps of forwarding. At 286 x 111.7 x 25.4 mm it is a slim, low-profile unit rather than a 1U chassis, and it is completely fanless — so it can live on a desk, a shelf or a wall-side bracket in an office where noise matters. Power comes from an external 12 V DC/1.0 A adapter rather than a mains cord.

Up to 32 VLANs, Managed From a Browser

Easy Smart management gives you up to 32 simultaneous VLANs from the full 4K VLAN ID range, in MTU, port-based and 802.1Q tag-based modes. For a growing business that means guest traffic, VoIP handsets, CCTV and staff workstations can share one switch while staying logically separate, configured in a web browser or the Easy Smart Configuration Utility. Loop prevention and cable diagnostics catch the two most common site problems — an accidental loop and a marginal patch lead — before they become outages.

Four QoS Queues and Multicast Control Built In

Quality of Service covers port-based, 802.1p and DSCP priority across four queues, with rate limiting and storm control available per port. IGMP Snooping v1/v2/v3 forwards multicast only to the ports that asked for it, so IP cameras, signage players or IPTV streams do not flood every port on the switch. Static link aggregation lets you bond ports for a faster, resilient uplink, and port mirroring gives you somewhere to attach an analyser when something needs diagnosing.

Modest Power Draw and Standard Office Environment

Maximum power consumption is 9.19 W at 220 V/50 Hz with a maximum heat dissipation of 31.36 BTU/h. The switch is rated for 0-40 C operating temperature and 10-90% non-condensing humidity, and stores down to -40 C. Certification is FCC, CE and RoHS. Packet buffer memory is 4.1 Mb, the MAC address table holds 8K entries and jumbo frames up to 9 KB are supported.

Ideal For

Singapore offices, studios and retail sites that need sixteen quiet Gigabit ports with VLAN segmentation and multicast control on a desk or shelf rather than in a rack, and integrators adding a managed-lite access layer to an existing network. Supplied by SourceIT with local Singapore warranty, GST invoice and project pricing on request.
