TP-Link Omada 16-Port 10GE SFP+ L2+ Managed Switch
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION

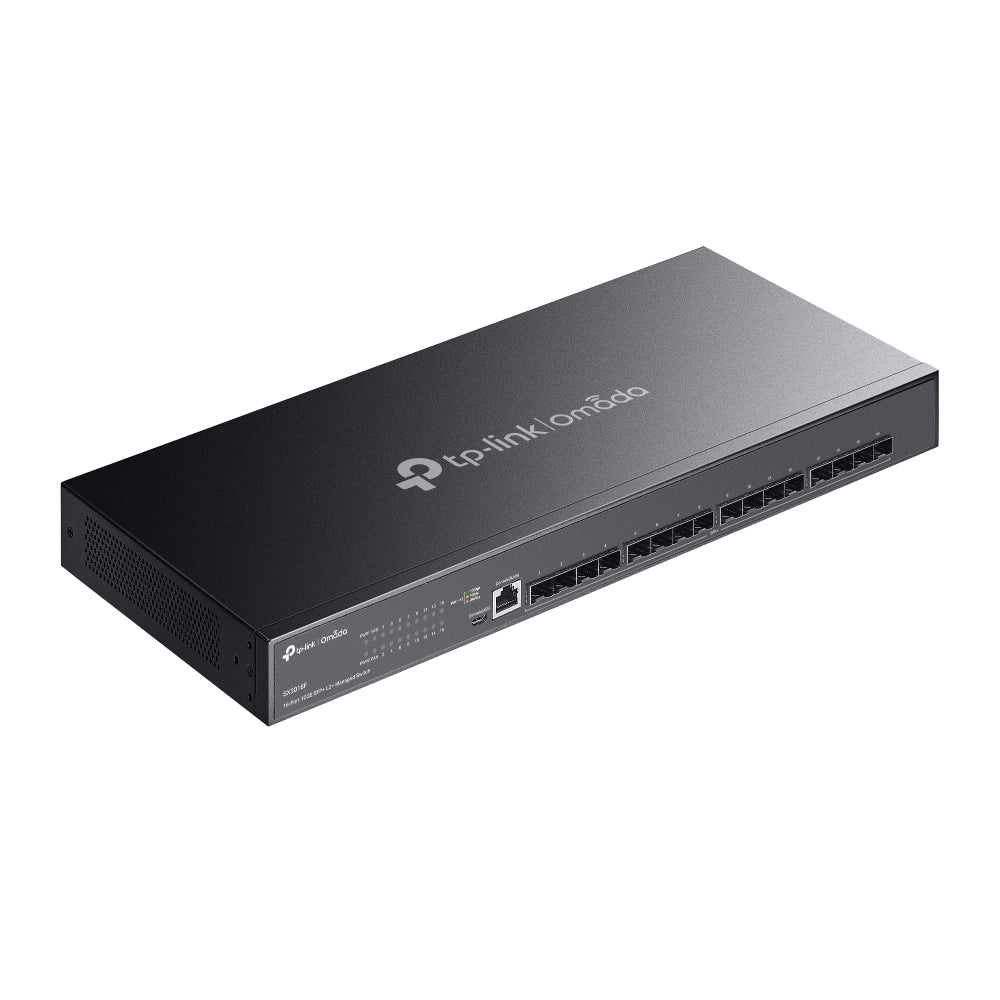

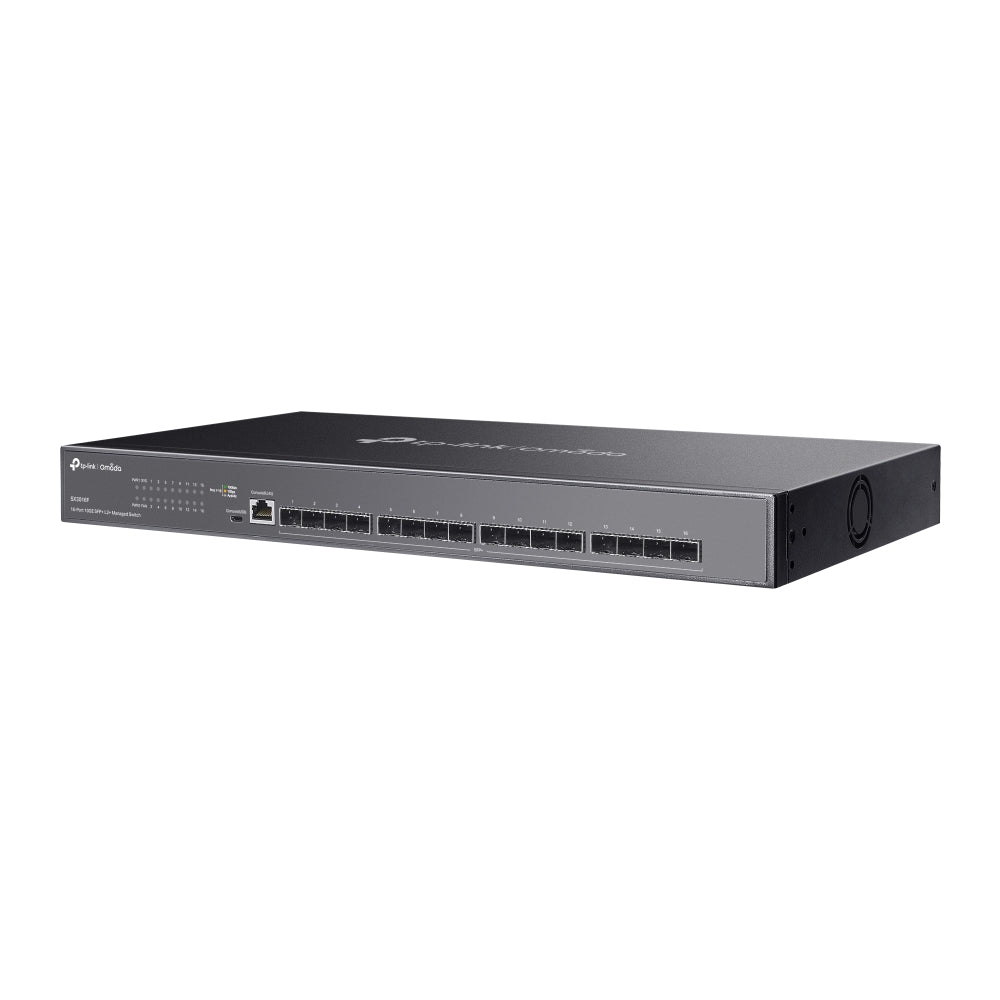

TP-Link Omada 16-Port 10GE SFP+ L2+ Managed Switch (SX3016F) - 5 Years Local Warranty
The SX3016F is a 16-slot 10-Gigabit aggregation switch built for networks that have outgrown a handful of 10G links. A 320 Gbps non-blocking fabric, dual redundant power supplies, static routing across 128 IP interfaces and a physical security lock put it in the wiring-centre or small-datacentre class, in a single 440 x 220 x 44 mm rack unit.

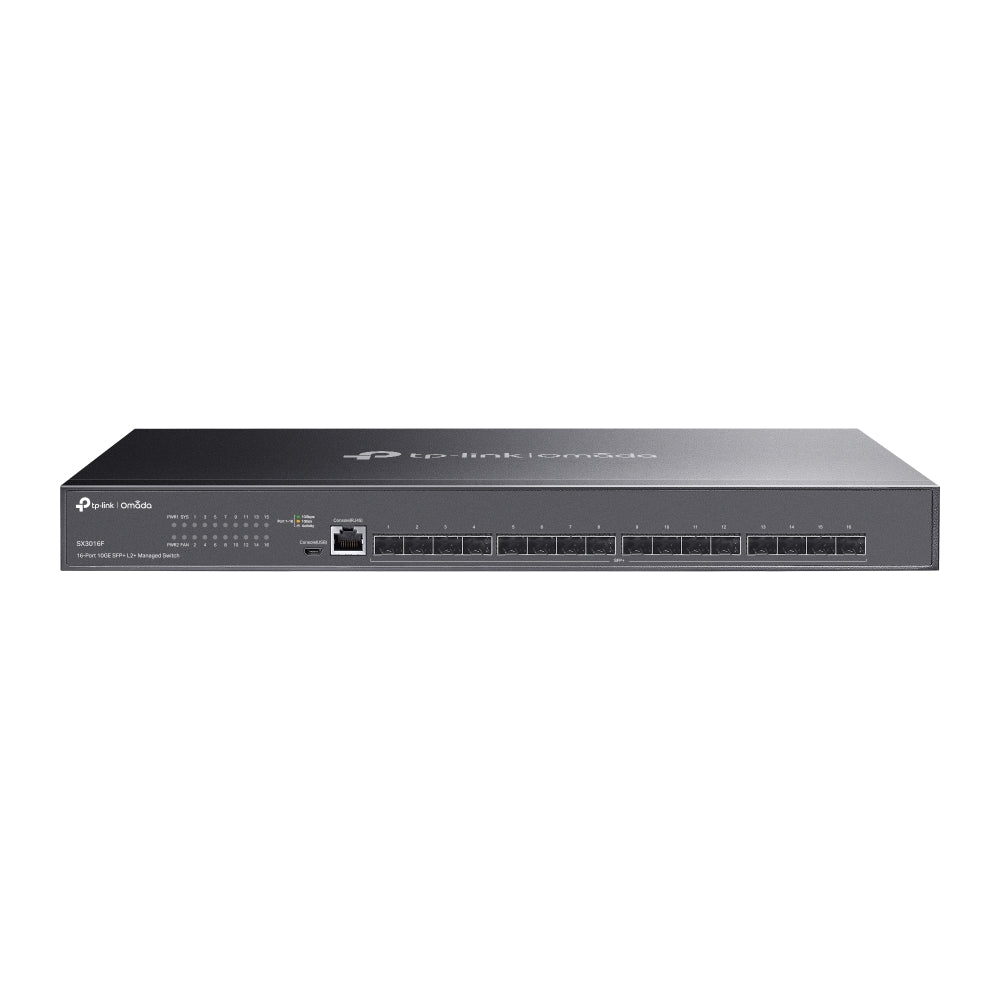

Sixteen 10G SFP+ Slots on a Non-Blocking 320 Gbps Fabric
Sixteen 10GE SFP+ slots at 320 Gbps of switching capacity means every port can run full duplex at line rate simultaneously - the fabric is not the constraint. A 238.08 Mpps forwarding rate holds that rate down to minimum frame sizes, and a 32 K MAC table, 24 Mbit packet buffer and 9 KB jumbo frames handle the large flows and deep queues that storage replication, backup windows and video production generate. All-optical ports let each link use the right medium for its distance.
Dual Redundant Power Supplies

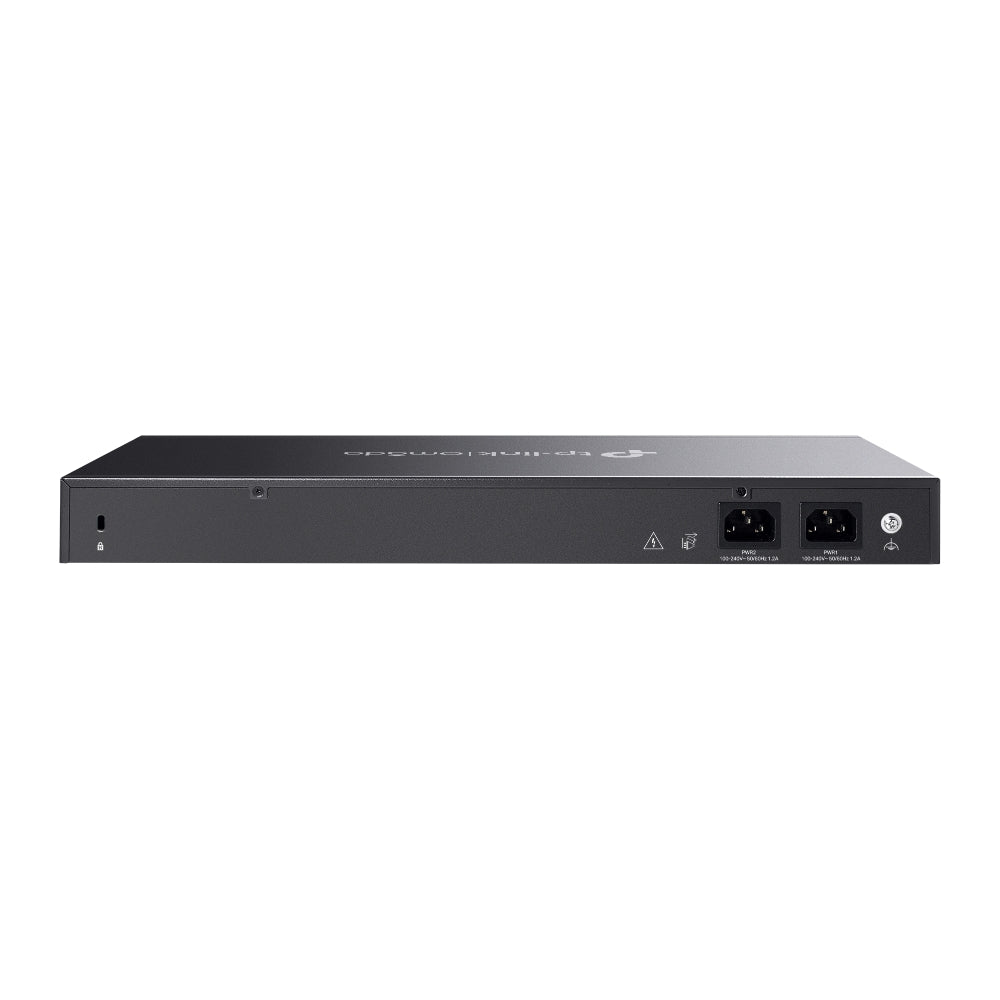

The SX3016F ships with dual redundant power supplies accepting 100-240 V AC, so the switch survives the loss of one feed or one PSU. On an aggregation switch that matters more than on an access switch: everything below it depends on this box staying up, and a single power fault would otherwise take out a whole floor or wing. Feeding the two supplies from separate circuits, or one from a UPS, is the configuration this hardware is designed to allow.
Static Routing Across 128 IP Interfaces
Beyond switching, the SX3016F carries 128 IP interfaces with static routing across 48 IPv4 and IPv6 routes, plus DHCP server and DHCP relay. That allows inter-VLAN traffic to be routed in hardware at the aggregation layer instead of hairpinning back to the firewall, which both removes a bottleneck and keeps east-west traffic off the gateway. VLAN support runs to 4K groups with MAC VLAN, protocol VLAN, QinQ and voice VLAN.
Enterprise Security and Multicast Control
Security covers IP-MAC-Port Binding with 512 entries, 802.1X, AAA with TACACS+, port isolation, storm control and encrypted management over HTTPS, SSH and SSL. ACLs are time-based and available on MAC, IP, IPv6 and packet content with mirroring, redirect and rate-limit policies. For multicast-heavy sites the switch holds 1,000 IGMP groups with IGMP and MLD snooping and multicast filtering, which keeps IPTV, digital signage and multicast video off ports that never asked for it.
ERPS, DDM and Central Omada Management
Advanced features include ERPS ring protection, DDM for monitoring optical transceiver health, L2PT and 802.3ah OAM - the tooling you need when links leave the building. The switch is adopted into the Omada Cloud-Based, Software or Hardware Controller for automatic device discovery, batch configuration, batch firmware upgrading and Zero-Touch Provisioning, alongside standalone Web GUI, CLI, SNMP v1/v2c/v3, RMON and LLDP. One fan and a physical security lock complete a 32.74 W chassis.
Ideal For
Singapore campuses, hotels, hospitals and production facilities aggregating a floor or building's worth of 10G links, and IT teams that need redundant power and hardware inter-VLAN routing in the wiring centre. Supplied by SourceIT with local Singapore warranty, GST invoice and project pricing on request.
SX3016F Datasheet — Technical Specifications
General
| Model | SX3016F |
| Official Product Name | Omada 16-Port 10GE SFP+ L2+ Managed Switch |
| Brand | TP-Link Omada |
| Warranty | 5 Years Local Warranty (Singapore) |
Hardware

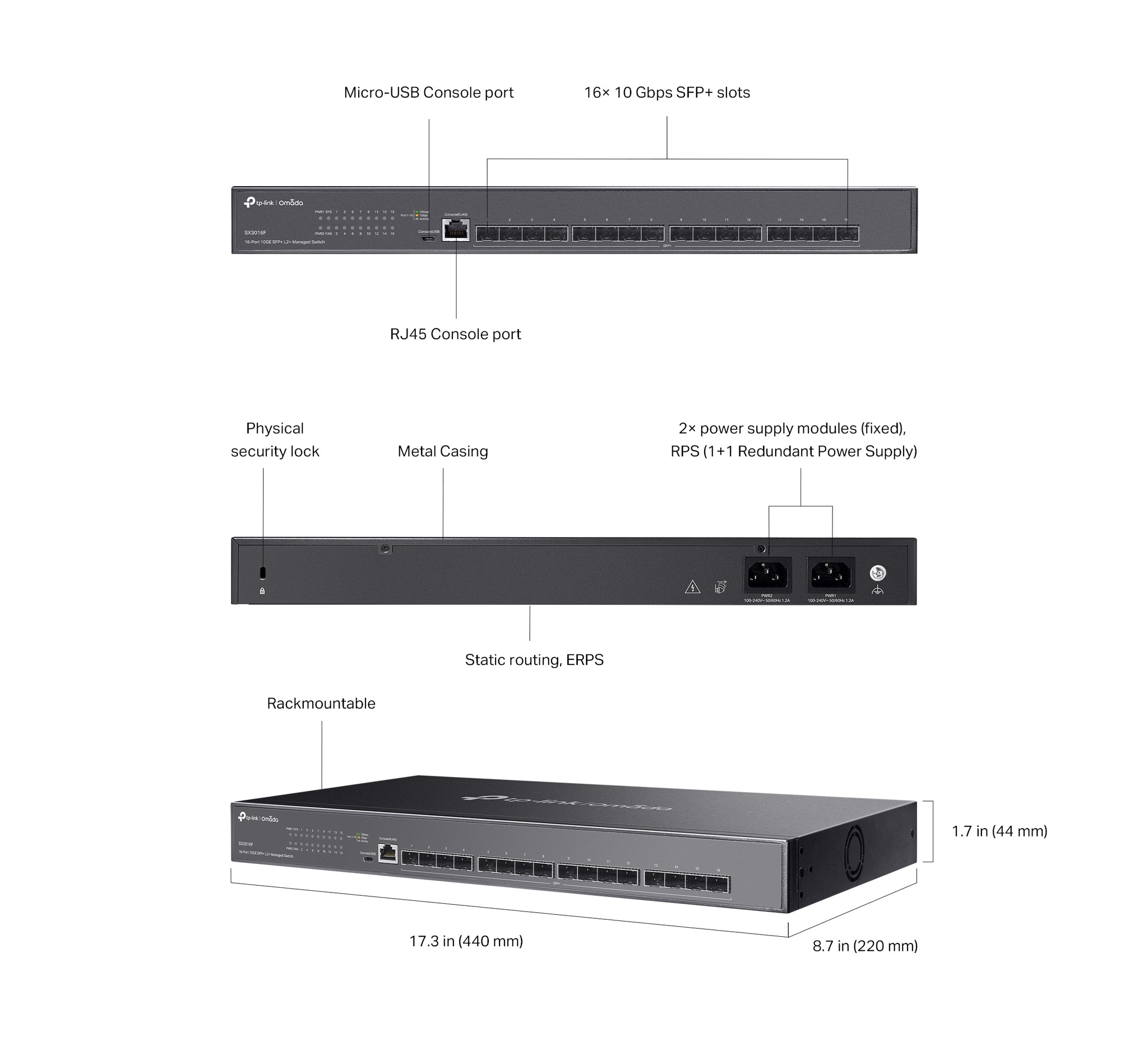

| Interface | 16x 10G SFP+ Slots, 1x RJ45 Console Port, 1x Micro-USB Console Port |
| Fan Quantity | 1 |
| Physical Security Lock | Yes |
| Power Supply | Dual Redundant Power Supplies, 100-240 V AC ~ 50/60 Hz |
| Dimensions (W x D x H) | 17.3 x 8.7 x 1.7 in (440 x 220 x 44 mm) |
| Mounting | Rack Mountable |
| Max Power Consumption | 32.74 W (220 V / 50 Hz) |
| Max Heat Dissipation | 111.71 BTU/hr (220 V / 50 Hz) |
Performance
| Switching Capacity | 320 Gbps |
| Packet Forwarding Rate | 238.08 Mpps |
| MAC Address Table | 32 K |
| Packet Buffer Memory | 24 Mbit |
| Jumbo Frame | 9 KB |
Software Features (L2+)
| Quality of Service | 8 priority queues; 802.1p CoS/DSCP priority; SP/WRR/SP+WRR scheduling; bandwidth control |
| L2 / L2+ Features | 128 IP Interfaces; static routing (48 IPv4/IPv6 routes); DHCP Server/Relay; link aggregation; Spanning Tree; loopback detection |
| L2 Multicast | 1,000 IGMP groups; IGMP Snooping; MLD Snooping; multicast filtering |
| VLAN | 4K VLAN groups; MAC VLAN (30 entries); protocol VLAN; QinQ; Voice VLAN |
| Access Control | Time-based ACL; MAC / IP / IPv6 / packet content ACLs with mirroring, redirect and rate-limit policies |
| Security | IP-MAC-Port Binding (512 entries); 802.1X; AAA / TACACS+; port isolation; storm control; HTTPS / SSH / SSL |
| IPv6 | Dual IPv4/IPv6; MLD Snooping; IPv6 ACL; DHCPv6; Ping6; Tracert6 |
| Advanced | Automatic device discovery, batch configuration and batch firmware upgrading (controller-dependent); ERPS; DDM; L2PT; OAM |
Management
| Centralized Management | Omada Cloud-Based, Hardware or Software Controller |
| Omada App | Yes — requires an Omada Controller |
| Cloud Access | Yes — requires an Omada Controller |
| Zero-Touch Provisioning | Yes — requires the Omada Cloud-Based Controller |
| Management Methods | Web GUI; CLI; SNMP v1/v2c/v3; RMON; LLDP; DHCP Auto Install |
Environment & Certification
| Operating Temperature | 0–45 °C (32–113 °F) |
| Storage Temperature | -40–70 °C (-40–158 °F) |
| Operating Humidity | 10–90% RH, non-condensing |
| Storage Humidity | 5–90% RH, non-condensing |
| Certification | CE, FCC, RoHS |
Compatibility & Software Support
The SX3016F is part of the Omada ecosystem: gateways, switches and access points are managed together from one controller, under one set of policies, with one view of the network. Cloud and app features require the device to be adopted into an Omada Controller.
| Omada SDN Controller | Supported — Omada Cloud-Based Controller, Omada Software Controller or Omada Hardware Controller |
| Omada App | Supported — requires an Omada Controller |
| Omada Cloud Access | Supported — requires an Omada Controller |
| Zero-Touch Provisioning | Supported — requires the Omada Cloud-Based Controller |
| Standalone Mode | Supported — Web GUI, CLI and SNMP without a controller |
| Optics | Accepts 10G SFP+ transceivers and DAC cables; specify optics separately |
Package Contents & Ordering Information
Package Contents

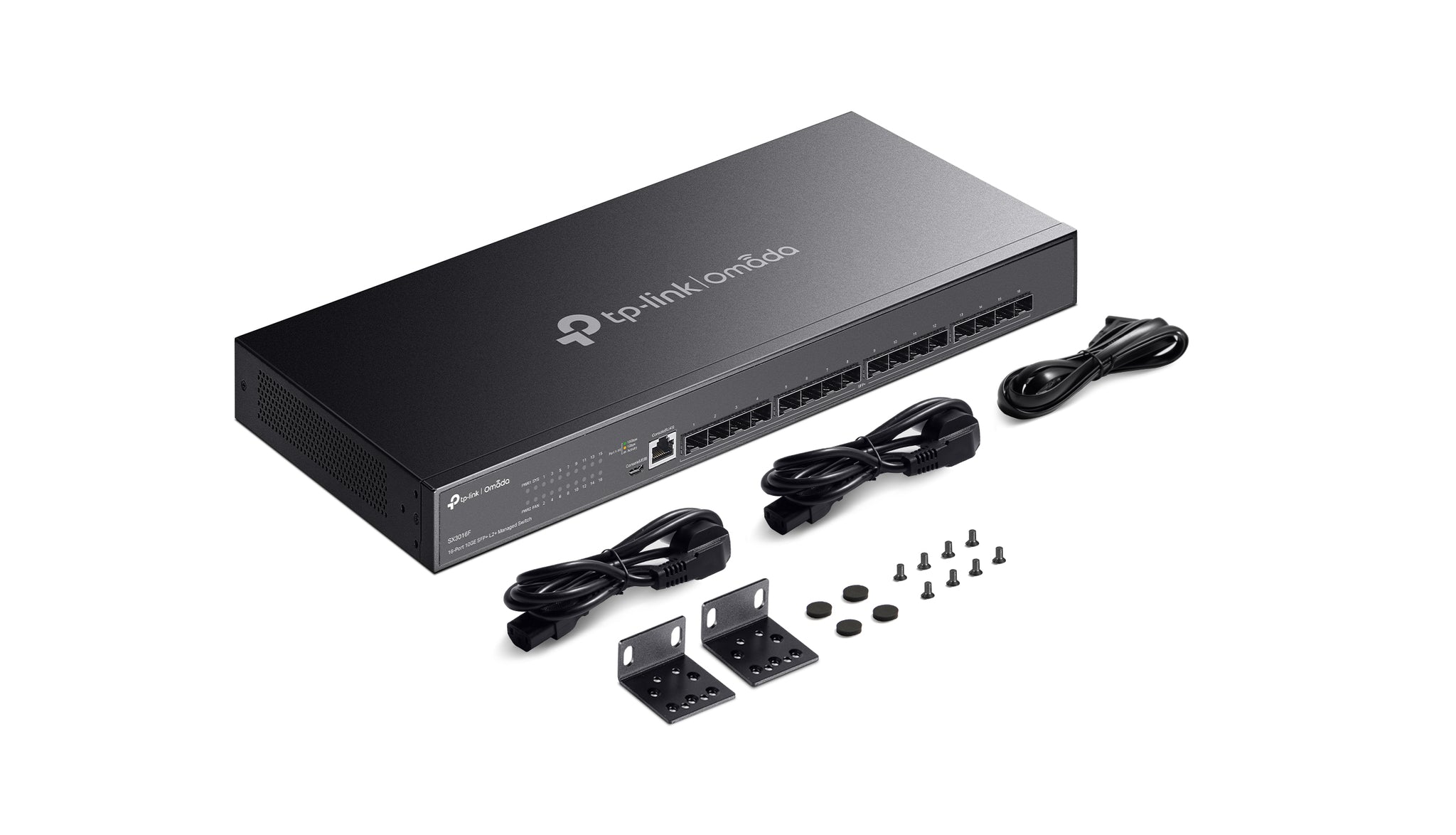

| In the Box | SX3016F Switch, 2x Power Cords, Quick Installation Guide, Rackmount Kit, Rubber Feet |
SFP+ transceivers and DAC cables are not included and are ordered separately.
Ordering Information
| Model | SX3016F |
| Form Factor | 1U rack mountable, dual redundant PSU |
| Warranty | 5 Years Local Warranty (Singapore) |
Datasheet & Downloads
Frequently Asked Questions — SX3016F
Does the SX3016F have redundant power?
Yes. Omada specifies dual redundant power supplies accepting 100-240 V AC, and two power cords are supplied in the box.
Can it route between VLANs?
Yes. It supports 128 IP interfaces with static routing across 48 IPv4 and IPv6 routes, plus DHCP server and relay, so inter-VLAN traffic can be routed at the aggregation layer rather than at the firewall.
How does it differ from the SX3032F?
The SX3032F doubles the port count to 32 SFP+ slots with a 640 Gbps fabric, two fans and a deeper 330 mm chassis. The SX3016F is 16 slots, 320 Gbps, one fan and 220 mm deep.
Are transceivers included?
No. SFP+ optics and DAC cables are ordered separately — tell SourceIT the distances and fibre type and we will specify them with the switch.
What warranty does SourceIT provide?
Five years local Singapore warranty. Every SX3016F sold by SourceIT comes with a GST invoice.
Can SourceIT quote this for a project or tender?
Yes. Send the bill of materials and we will quote the whole Omada build — controller, gateway, switching, access points and optics — with local warranty and support.
