TP-Link Omada 10G PoE++ Injector with 90 W Output

TP-Link Omada PoE++ Injector (POE380S) - 5 Years Local Warranty

The POE380S is the top of Omada's injector line: a single-port 802.3bt PoE++ unit that delivers up to 90 W over a link running as fast as 10 Gbps. Both RJ45 ports negotiate 10 Gbps, 5 Gbps, 2.5 Gbps, 1 Gbps, 100 Mbps or 10 Mbps, so it adds power to a multi-gigabit run without capping it. It is the part for a Wi-Fi 7 access point or a PTZ camera on a switch with no PoE.

90 W of 802.3bt PoE++ From a Single Port

The POE380S is built to IEEE 802.3af, 802.3at and 802.3bt, and its output is auto-determined up to a maximum of 90 W. That is the full PoE++ budget — enough for the devices that 30 W PoE+ cannot run: Wi-Fi 7 and high-end Wi-Fi 6E access points, PTZ cameras with heaters and wipers, and PoE-powered displays or thin clients. An auto-sensing algorithm identifies the connected powered device and supplies only what it requests, so an 802.3af device draws af-class power from the same injector.

10 Gigabit Data Path, Not a Gigabit Bottleneck

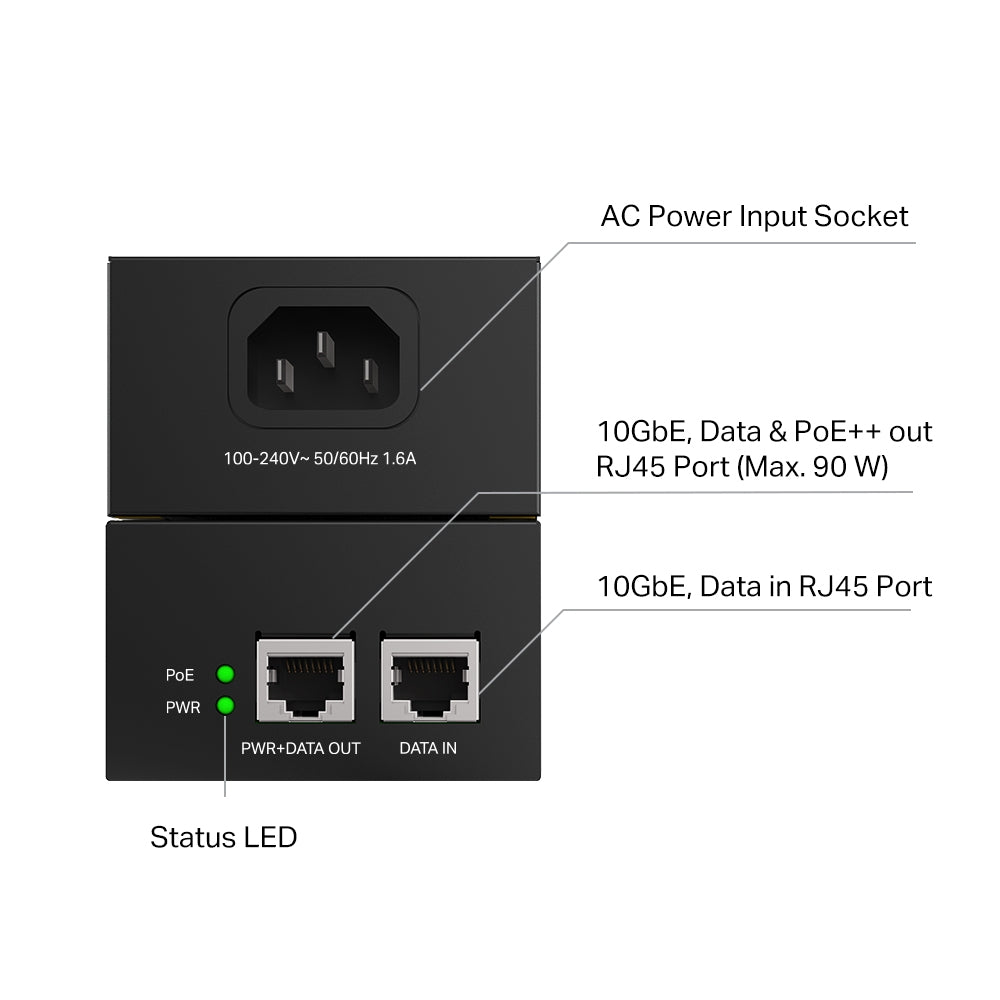

Both ports — the RJ45 data-in and the RJ45 power-and-data-out — run at up to 10 Gbps, stepping down through 5 Gbps, 2.5 Gbps, 1 Gbps, 100 Mbps and 10 Mbps as the link negotiates. This is what separates the POE380S from the rest of the line: the devices that need 90 W are usually the same devices that need more than a Gigabit of throughput, and an injector that powered them at 1 Gbps would simply move the bottleneck. Cabling follows the usual rules, to 100 m on Cat5e or better.

Adds PoE to a Switch That Does Not Have It

An injector sits between an existing non-PoE switch port and the powered device, taking data from the switch and mains power from the wall, and combining them onto one outgoing Ethernet run. That avoids replacing a working switch to power one or two demanding devices, and it avoids running a separate mains circuit to a ceiling or a pole. For a single high-power access point on an existing network, it is the least invasive option available.

Plug-and-Play, Wall or Desktop Mounted

There is nothing to configure: connect the switch, connect the powered device, apply mains, and the Power and PoE LEDs report state. The unit accepts 100–240 V at 50/60 Hz, so it works on Singapore mains directly with the supplied cord, and it mounts on a wall or sits on a desk or shelf at 155 × 70 × 42 mm. Operating range is 0 to 45 °C — comfortable for a comms cupboard, though not for an unventilated outdoor enclosure.

Ideal For

Singapore sites running Wi-Fi 7 or Wi-Fi 6E access points, PTZ cameras or other 802.3bt devices off switches that have no PoE, and multi-gigabit links where a Gigabit injector would throttle the device it powers. Supplied by SourceIT with local Singapore warranty, GST invoice and project pricing on request.
