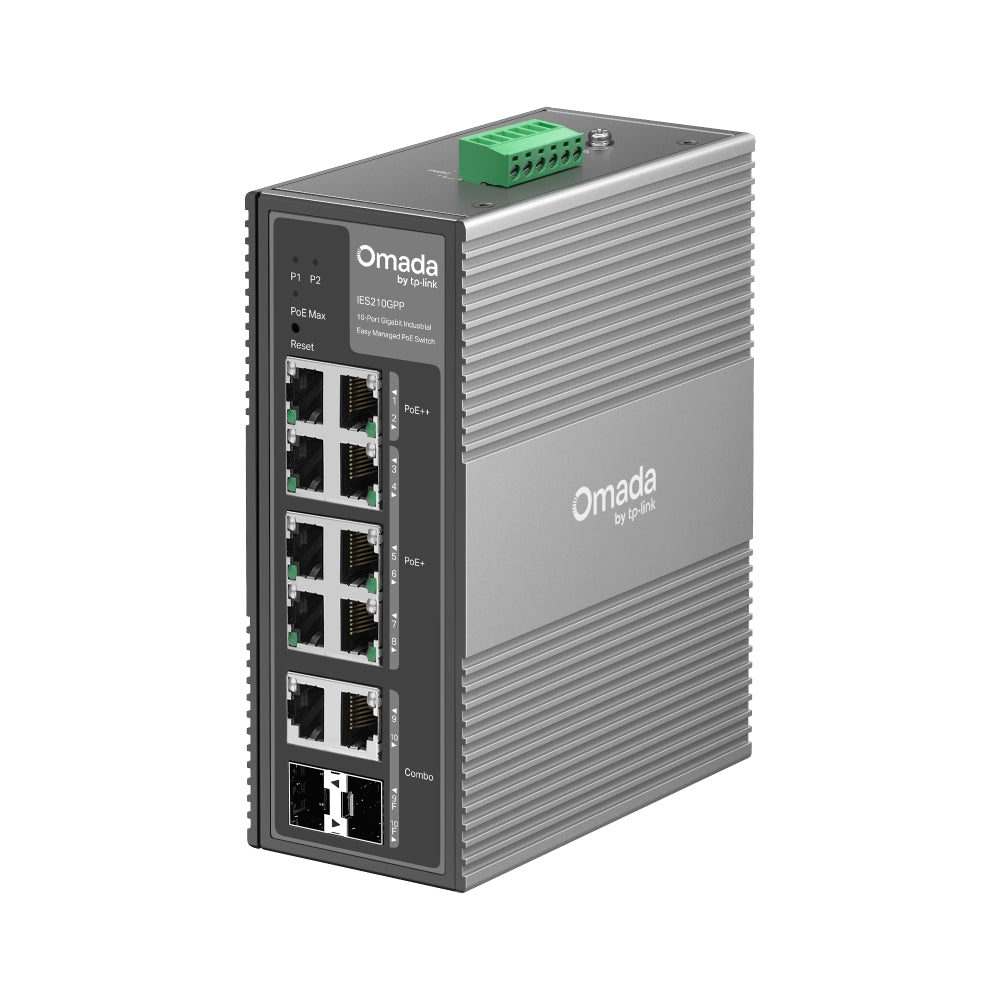

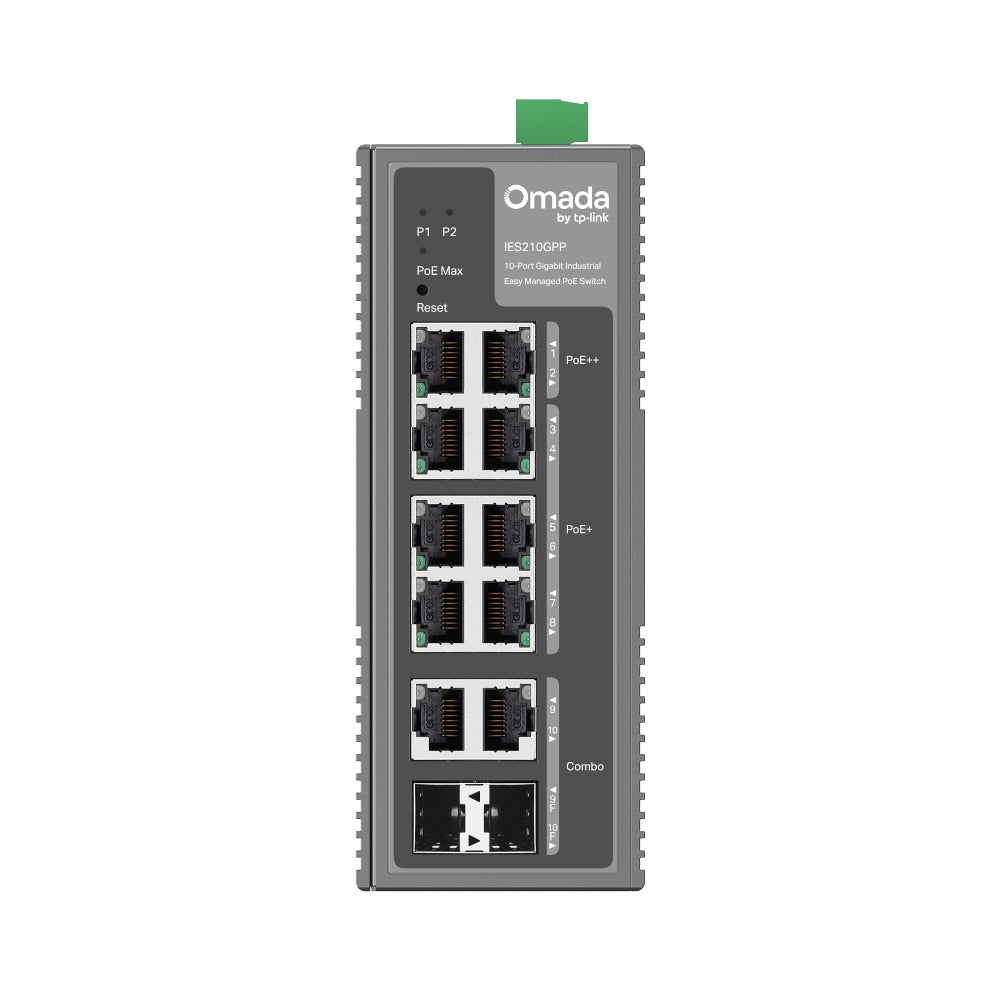

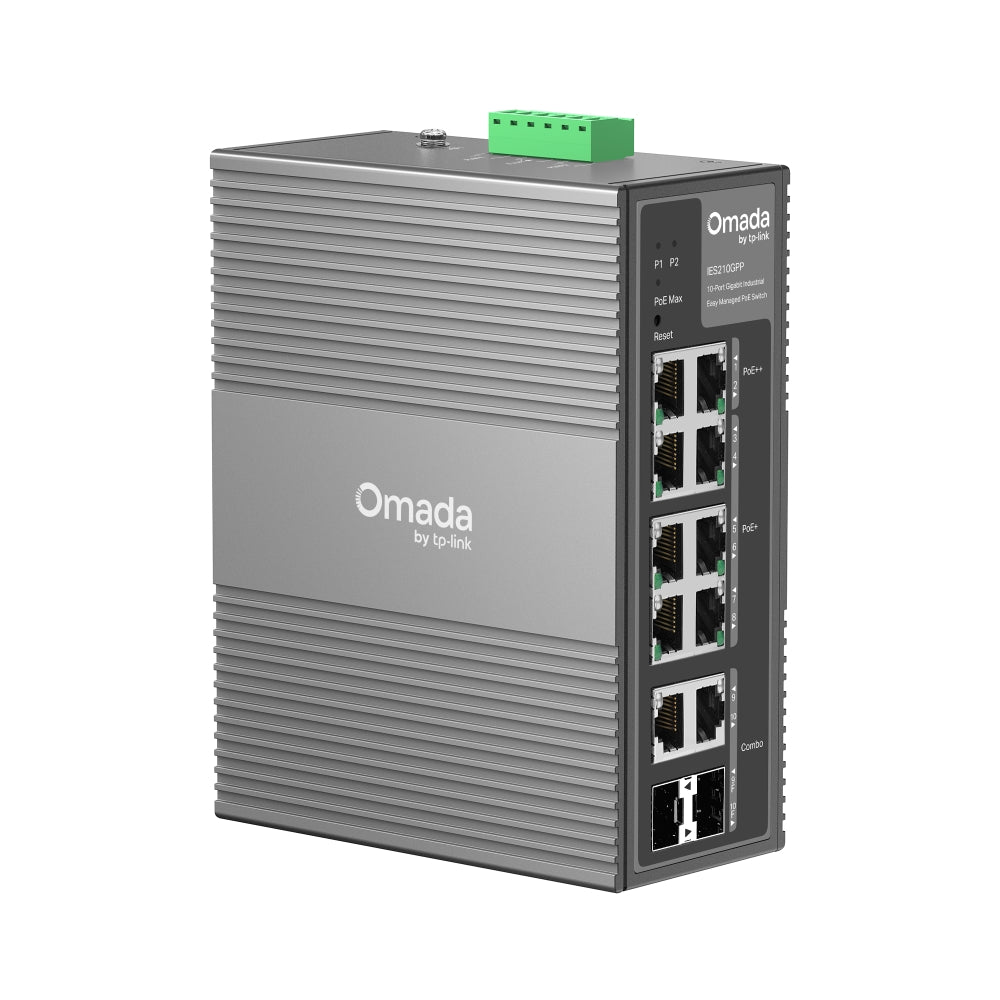

TP-Link Omada 10-Port Gigabit Industrial Easy Managed Switch with 6-Port PoE+ and 2-Port PoE++

TP-Link Omada 10-Port Gigabit Industrial Easy Managed Switch with 6-Port PoE+ and 2-Port PoE++ (IES210GPP) - 5 Years Local Warranty

The IES210GPP is Omada's 10-port industrial Easy Managed PoE switch: two Gigabit PoE++ ports at up to 60 W, six Gigabit PoE+ ports at up to 30 W, and two Gigabit SFP/RJ45 combo slots, in a fanless IP40 aluminium DIN-rail housing rated from -40°C to 75°C. Total PoE budget scales up to 240 W depending on the DC supply feeding it.

Industrial-Grade Protection for Harsh Environments

The switch is rated for -40°C to 75°C operation (storage to 85°C) and 5%–95% non-condensing humidity, sits in an IP40 industrial-grade aluminium casing, and is fanless. Surge protection is ±6 kV in common mode on the Ethernet ports and ±4 kV in common mode on the DC power inputs — TP-Link's "6kV lightning protection" — for outdoor cabinets, factory floors, car parks and transport sites.

2 PoE++ and 6 PoE+ Ports, up to 240 W Total

Two 802.3af/at/bt PoE++ ports deliver up to 60 W each for PTZ cameras, outdoor access points and other high-power devices, while six 802.3af/at PoE+ ports deliver up to 30 W each. The PoE budget depends on the input voltage: 60 W at 12–21 V input, 120 W at 21–46 V and 240 W at 46–57 V*, so size the DC supply to the load.

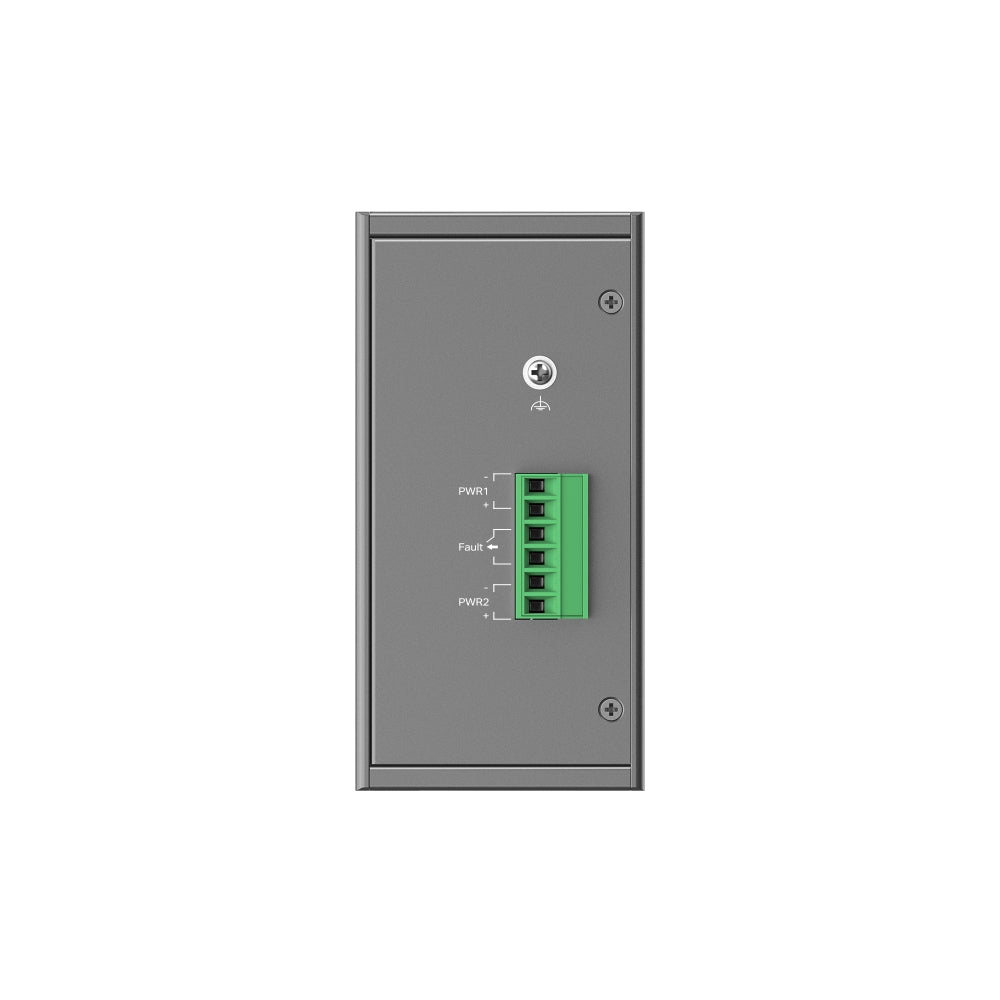

Redundant 12–57 V DC Power Input

Dual DC inputs operate as 1+1 redundant power across a wide 12–57 V range, so the switch stays up if one supply or feed fails. A power adapter is not included; pair it with a DIN-rail supply matched to the PoE budget you need.

Two Combo Uplinks and L2 Easy Managed Features

Two Gigabit SFP/RJ45 combo slots give copper or fibre uplinks for long cable runs on industrial sites. Switching capacity is 20 Gbps (14.88 Mpps), with an 8K MAC table and 15 KB jumbo frames. L2 features include static link aggregation (up to 4 groups, up to 6 ports per group), STP/RSTP, loopback detection, port mirroring, LLDP, IGMP v1/v2/v3 snooping and 802.1Q VLANs (max 32 groups, 4K VID).

Easy Operation with Free Omada Cloud Management

TP-Link describes the IES range as plug-and-play with simple configuration, and offers free centralised cloud management via Omada Central Essentials. Adopted into an Omada Cloud-Based, Hardware or Software Controller, the switch gains the Omada App, cloud access, automatic device discovery, batch configuration, batch firmware upgrading and unified configuration†, with Zero-Touch Provisioning via the Cloud-Based Controller. Cable diagnostics and Digital Diagnostic Monitoring (DDM) for optics are built in.

Ideal For

System integrators and facilities teams deploying IP cameras, outdoor access points and IoT devices in roadside or outdoor cabinets, factories, warehouses, car parks and transport sites, where a commercial desktop switch would not survive the heat or electrical environment. Supplied by SourceIT with local Singapore warranty, GST invoice and project pricing on request.
