TP-Link Omada 10-Port Gigabit Easy Smart Switch with 8-Port PoE+ 123W

TP-Link 10-Port Gigabit Easy Smart Switch with 8-Port PoE+ (TL-SG1210MPE) - 5 Years Local Warranty

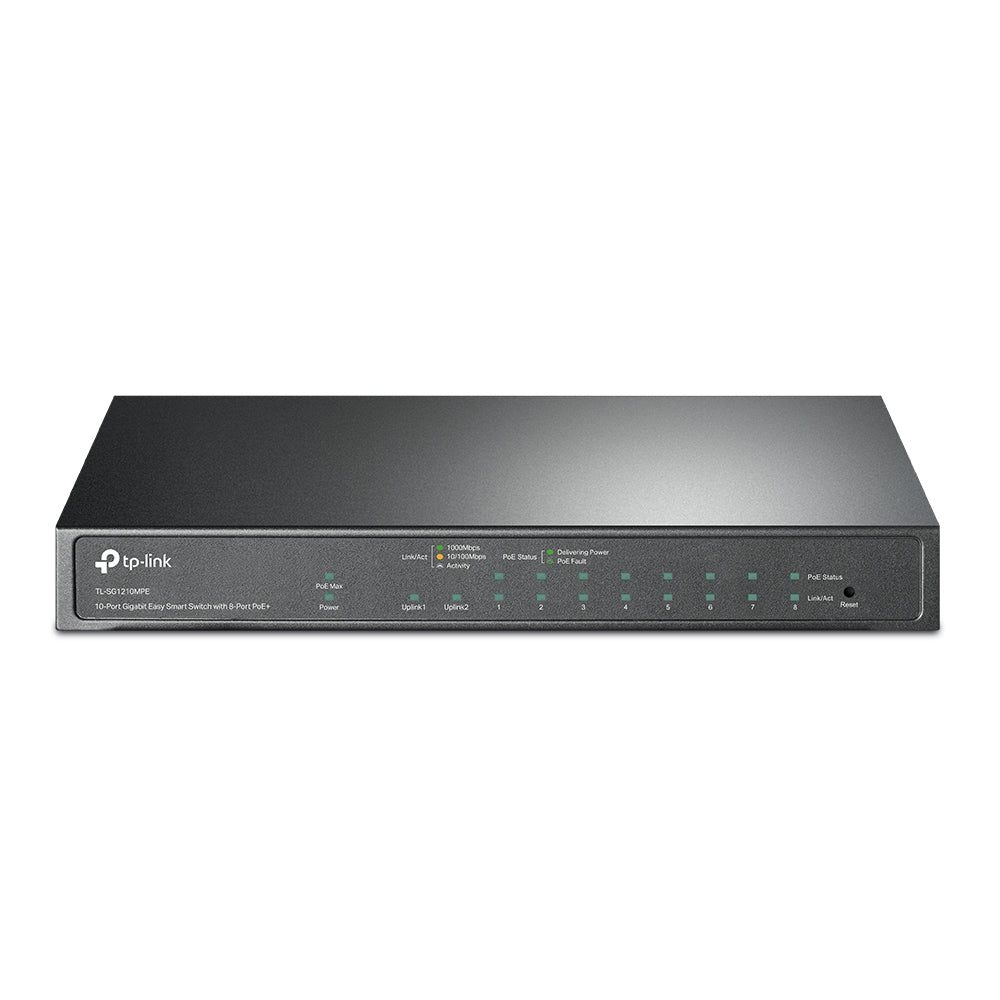

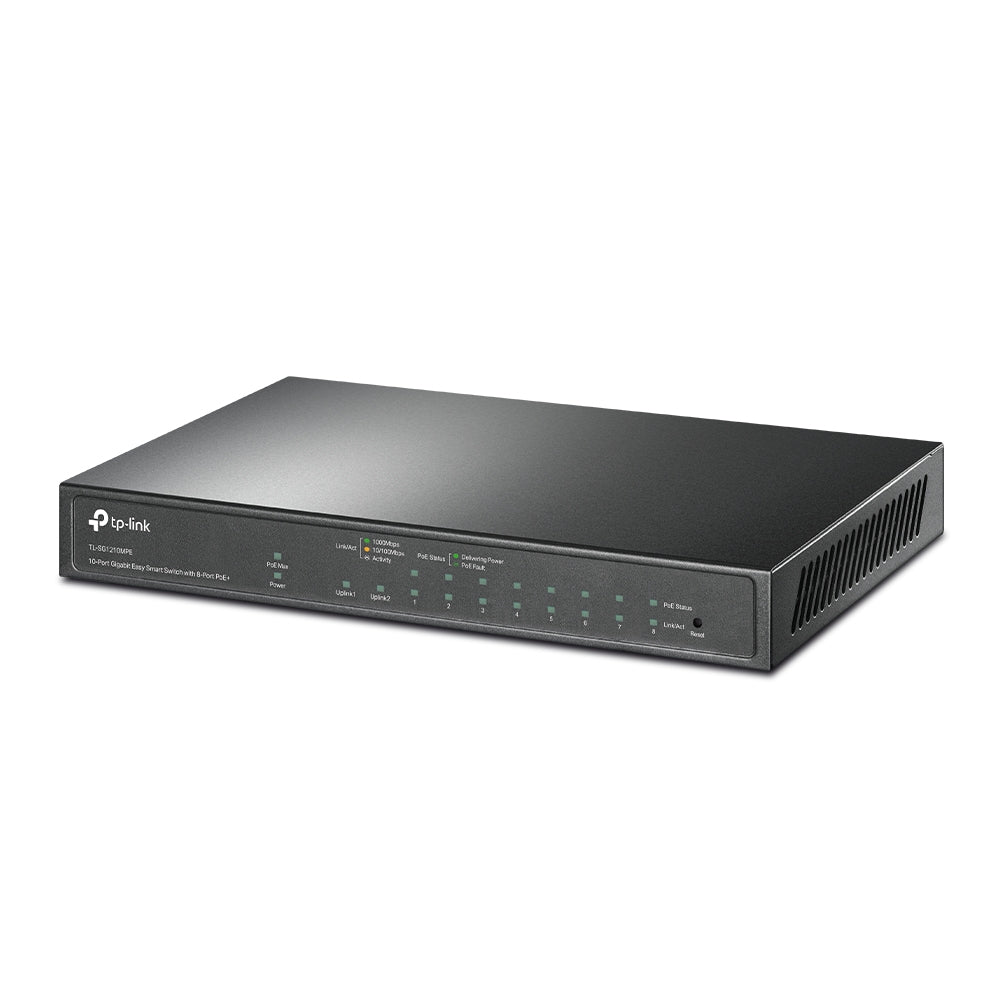

The TL-SG1210MPE gives eight 802.3af/at PoE+ ports a 123 W budget, adds a combo SFP uplink for a fibre run, and keeps the whole thing fanless in a 209 mm desktop case. It is the Easy Smart switch for a small floor of access points or cameras that also needs to reach the comms room over fibre.

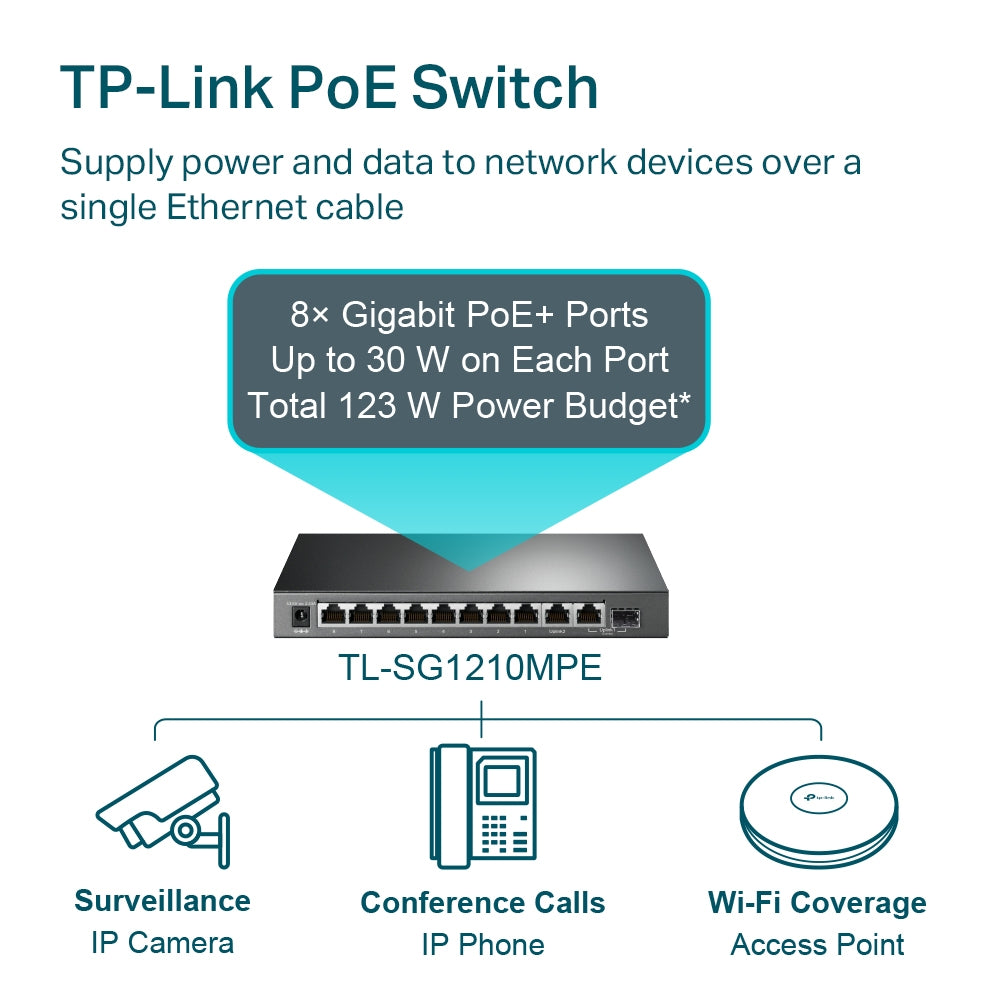

Eight PoE+ Ports With a 123 W Budget

Ports 1-8 are 802.3af and 802.3at compliant with a shared 123 W budget — the most generous allocation in the compact Easy Smart range, and enough for four PoE+ access points at full draw or eight lighter devices. Power comes from an external 53.5 V DC/2.43 A adapter. The switch draws 7.66 W with nothing powered and 141.54 W at a full 123 W PoE load.

A Combo SFP Port for the Fibre Uplink

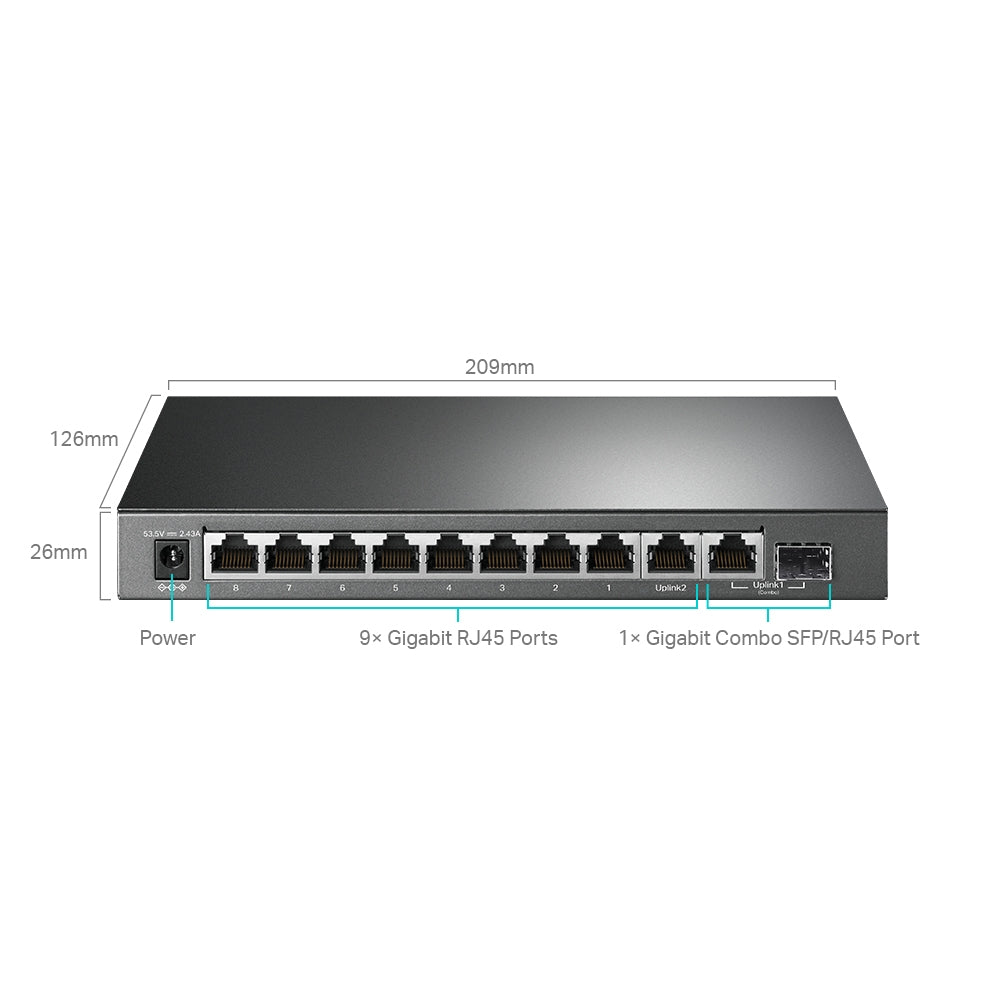

Alongside nine 10/100/1000 Mbps RJ45 ports the TL-SG1210MPE carries one 1000 Mbps combo SFP/RJ45 port. That matters when the switch sits at the far end of a building and the uplink has to be fibre — for distance, for electrical isolation between blocks, or simply because the copper run would exceed 100 m. You use either the SFP or its paired RJ45, not both at once.

Extend Mode and PoE Auto Recovery for Unattended Devices

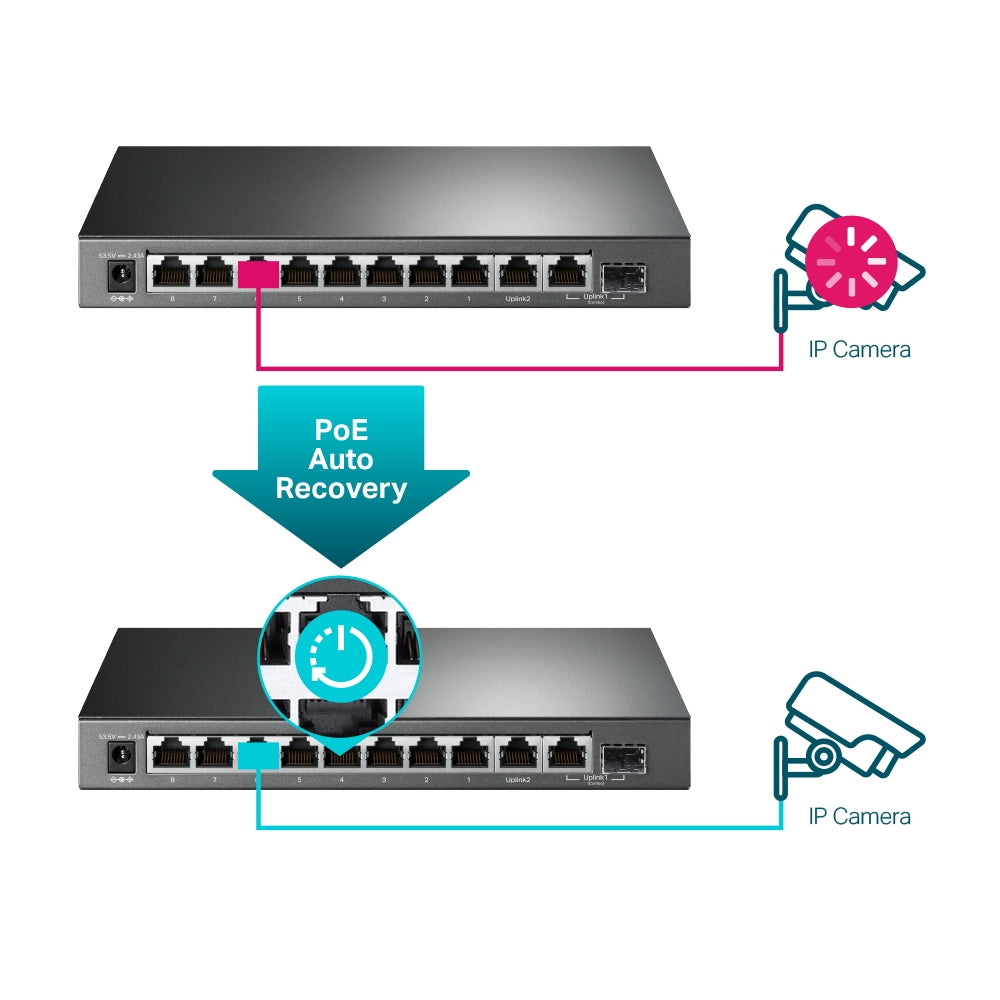

Extend Mode pushes PoE delivery past the usual 100 m limit at reduced speed, which recovers the camera position that sits just out of reach. PoE Auto Recovery power-cycles a port whose powered device has stopped responding, so a frozen access point or camera restarts itself. Between them these two features remove most of the routine site visits a small PoE installation would otherwise generate.

VLANs, QoS and Multicast Control From a Browser

Up to 32 simultaneous VLANs are available from the full 4K VLAN ID range in MTU, port-based and 802.1Q tag-based modes. QoS covers port-based, 802.1p and DSCP priority across four queues with rate limiting and storm control. IGMP Snooping v1/v2/v3 confines multicast to the ports that asked for it. Static link aggregation, port mirroring, cable diagnostics and loop prevention complete the set, all configured from the web GUI or the Easy Smart Configuration Utility. Switching capacity is 20 Gbps at 14.88 Mpps with a 4K MAC table and 16 KB jumbo frames.

Ideal For

Singapore offices, schools, warehouses and multi-block sites powering up to eight PoE devices with a fibre uplink back to the core, and integrators who need PoE distance and fault recovery in a fanless desktop unit. Supplied by SourceIT with five years local Singapore warranty, GST invoice and project pricing on request.
