TP-Link Omada 10-Port Gigabit Easy Managed Switch with 8-Port PoE+ 63W

TP-Link Omada 10-Port Gigabit Easy Managed Switch with 8-Port PoE+ (ES210GP) - 5 Years Local Warranty

The ES210GP is the entry point of Omada's 10-port Easy Managed PoE+ line: eight PoE+ ports, one Gigabit RJ45 and one Gigabit SFP/RJ45 combo uplink, running on a 63 W power budget. It shares its port layout, 20 Gbps fabric and feature set with the higher-powered ES210GMP, and the PoE budget is the distinction - 63 W here against 123 W there. Fanless, metal-cased and controller-ready.

Eight PoE+ Ports on a 63 W Budget for Small Camera and AP Sites

All eight Gigabit access ports deliver 802.3af/at PoE+ with up to 30 W available to any single port, drawn from a 63 W system budget fed by the supplied 53.5 V/1.31 A adapter. That figure is the number to plan against: it comfortably carries a handful of fixed IP cameras or a pair of access points plus accessories, but a site loading every port heavily wants the 123 W ES210GMP instead. Power is allocated from the shared pool, so a single 30 W PTZ and several low-draw bullet cameras coexist happily.

250 m Extend Mode Reaches Cameras Beyond the 100 m Limit

Enabling Extend Mode pushes PoE and data up to 820 ft (250 m) over standard copper, well past the 100 m Ethernet ceiling, which gets power and video to gate, car park and perimeter positions without an intermediate cabinet. The trade-off is explicit in Omada's own specification: the affected port drops to 10 Mbps. That is ample for a single standard-definition or lightly compressed camera feed but not for 4K, so it is a per-port tool for awkward runs rather than a site-wide setting.

Remote Camera Reboot and Loop Prevention Cut Out Site Visits

Under an Omada controller the ES210GP can power-cycle a connected camera remotely, clearing the most common cause of a dead feed without anyone climbing to the device. Automatic loop prevention with loopback detection independently handles the other classic failure: a patch lead accidentally looped back into the switch, which would otherwise saturate the segment with broadcast traffic. Cable diagnostics round this out, letting you test a suspect run from the interface and distinguish a faulty cable from a faulty endpoint before dispatching anyone.

20 Gbps Switching, VLANs and Eight-Queue QoS

The fabric provides 20 Gbps switching capacity and 14.88 Mpps forwarding, full line rate for ten Gigabit ports, with an 8K MAC table, a 4 Mbit packet buffer and 15 KB jumbo frame support. Segmentation runs from simple MTU VLAN and port-based VLAN up to 802.1Q tag VLAN with a maximum of 32 groups and 4K VIDs. QoS can classify by port, 802.1p or DSCP into eight priority queues scheduled weighted round robin, while port-based rate limiting and multi-mode storm control keep any one device from monopolising the uplink.

Copper or Fibre Uplink via the Gigabit Combo Port

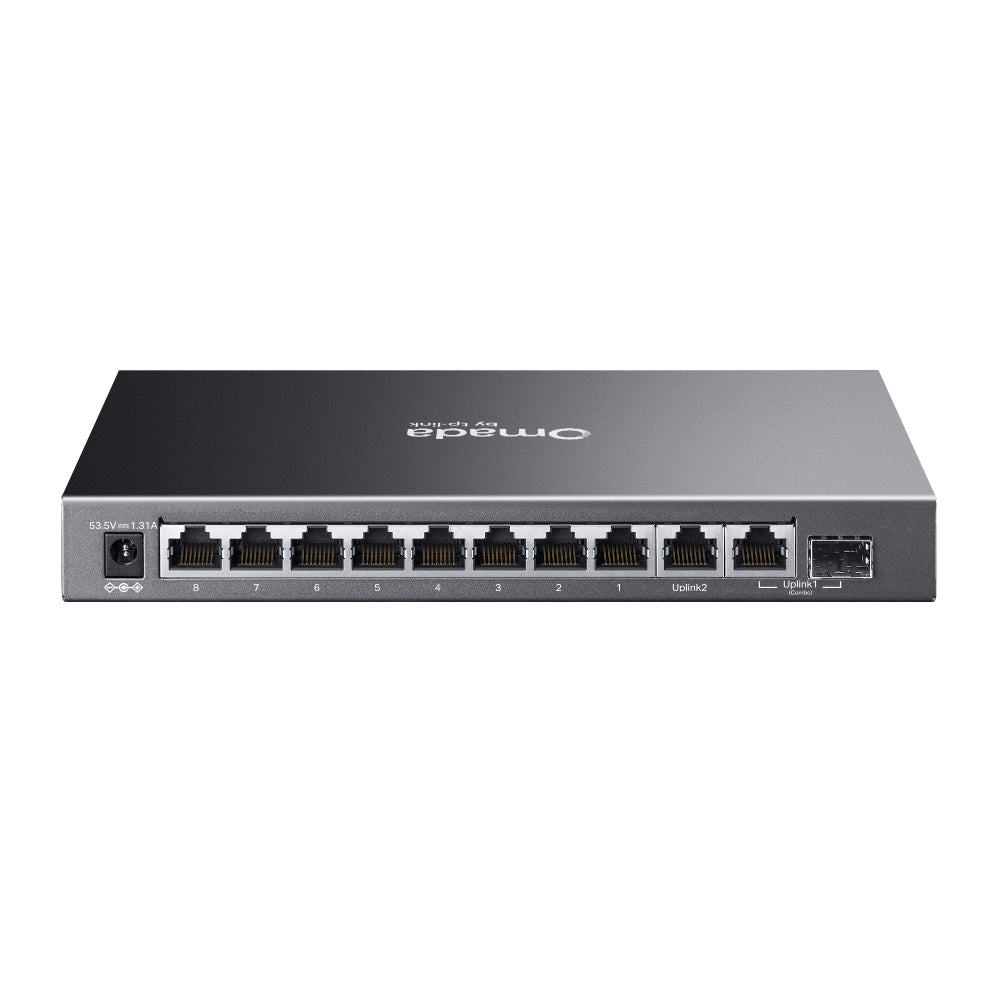

Beyond the eight PoE+ ports, the ES210GP adds a plain Gigabit RJ45 port and a Gigabit SFP/RJ45 combo slot. The combo gives you a fibre option for the uplink where distance, lightning exposure or electrical interference rules out copper, and a copper option where it does not, without paying for a port you will never use. IGMP snooping v1/v2/v3 with fast leave and 802.3x flow control keep multicast and congestion behaviour sane on that uplink; LLDP and port mirroring assist with topology discovery and troubleshooting.

Fanless Metal Build With Web GUI or Omada Controller Management

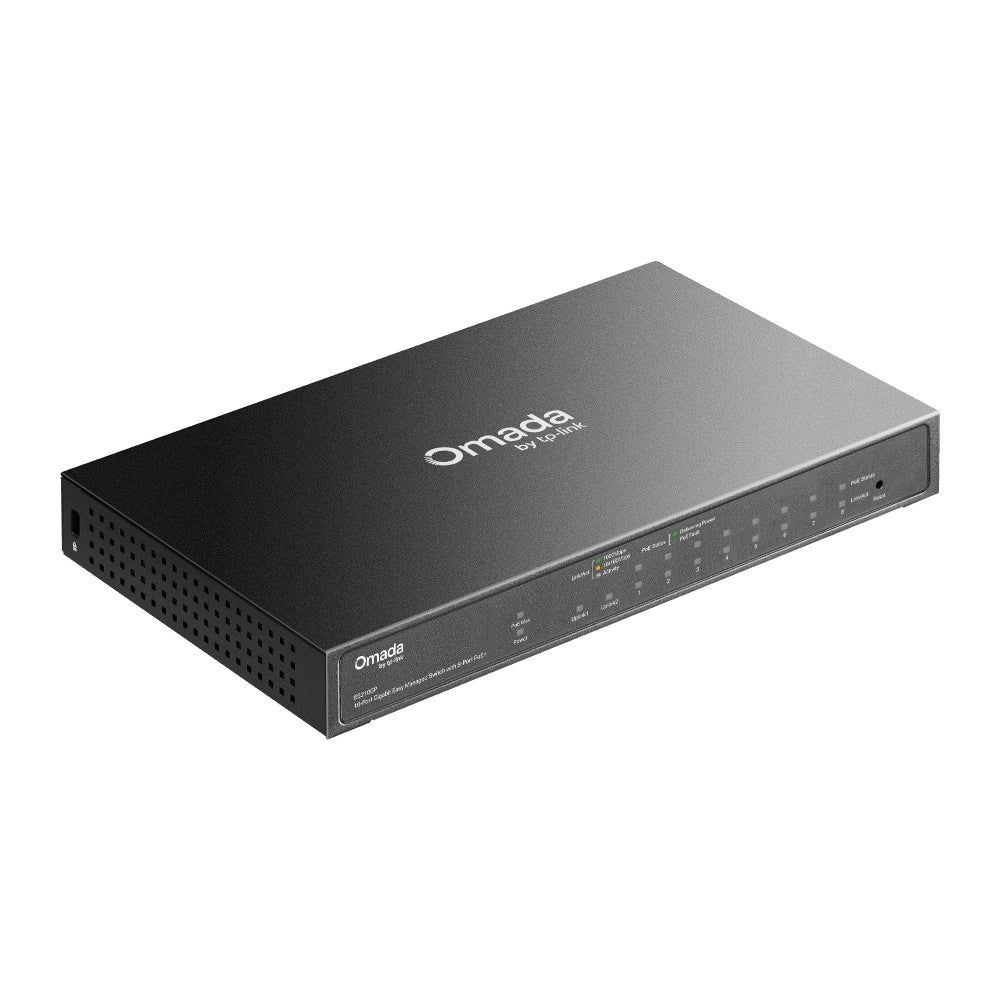

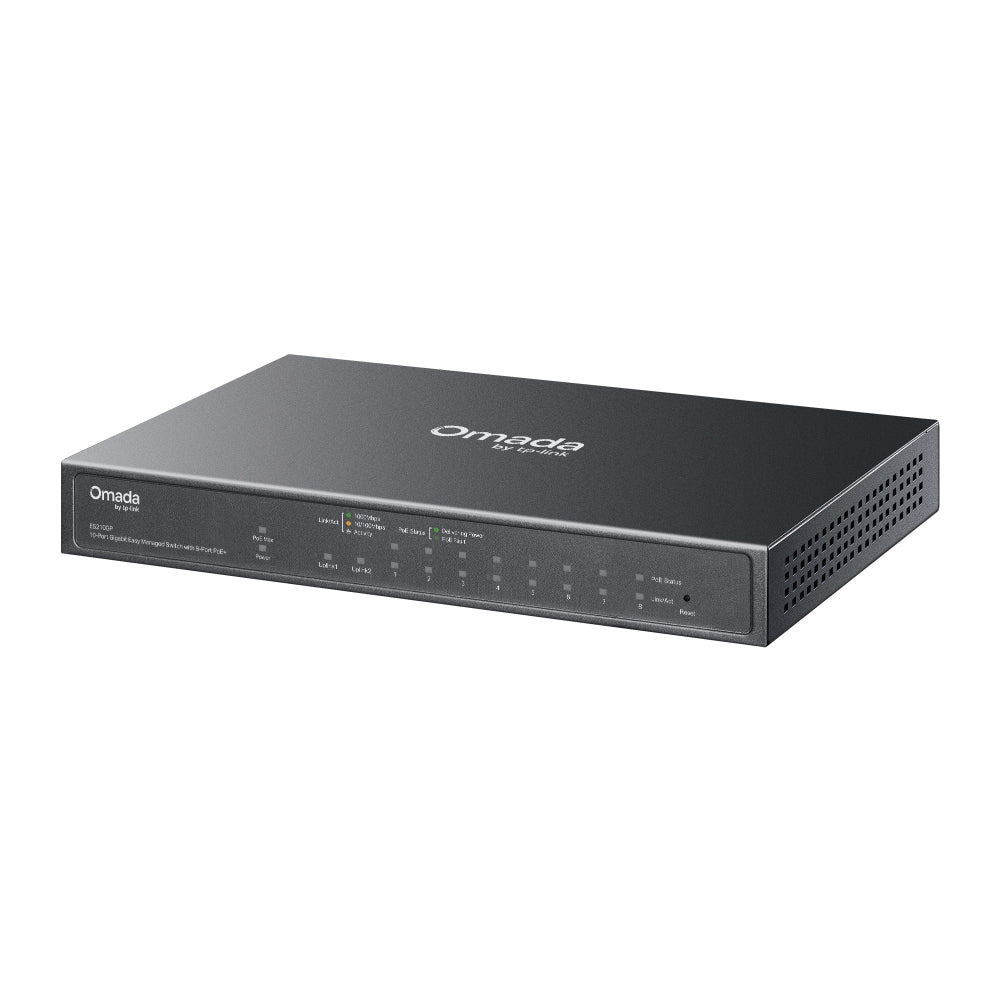

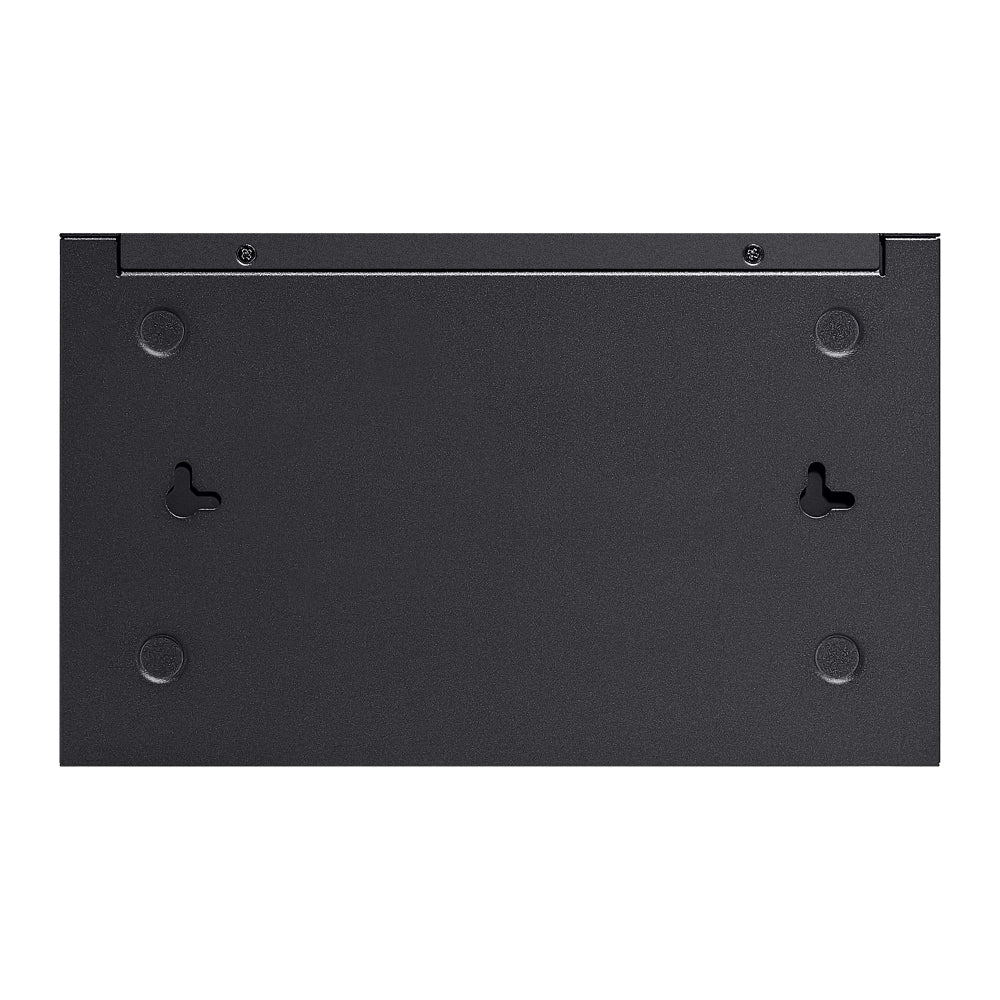

The chassis is a fanless metal enclosure at 209 x 126 x 26 mm with desktop and wall-mount options, rated 0 to 40 degrees C and protected to plus/minus 6 kV surge - silent enough for a reception area, robust enough for a comms cupboard. Management is standalone via web GUI, or centralised by adopting the switch into an Omada Cloud-Based, Hardware or Software Controller for browser and Omada app access, automatic device discovery, batch configuration and unified firmware upgrades. Zero-Touch Provisioning requires Omada Central.

Ideal For

Singapore businesses, schools, hotels and managed-service providers building on Omada, and IT teams that want a switch they can adopt, monitor and update centrally rather than box by box. Supplied by SourceIT with local Singapore warranty, GST invoice and project pricing on request.
