TP-Link Omada 16-Port Gigabit Smart Switch with 8-Port PoE+
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
TP-Link Omada 16-Port Gigabit Smart Switch with 8-Port PoE+ (SG2016P) - 5 Years Local Warranty

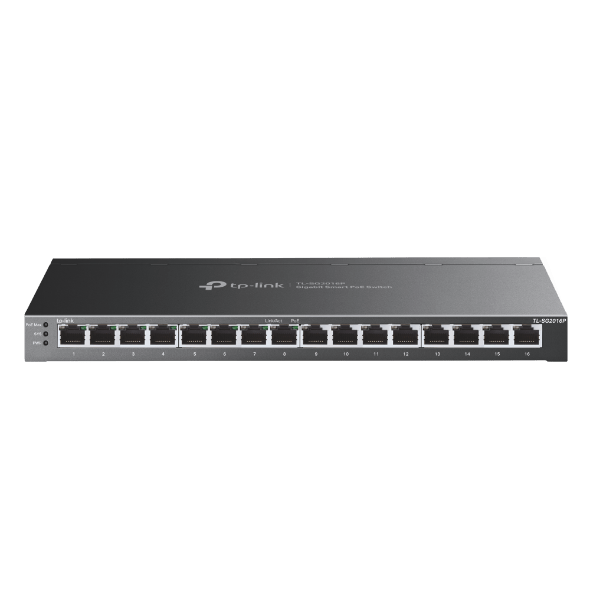

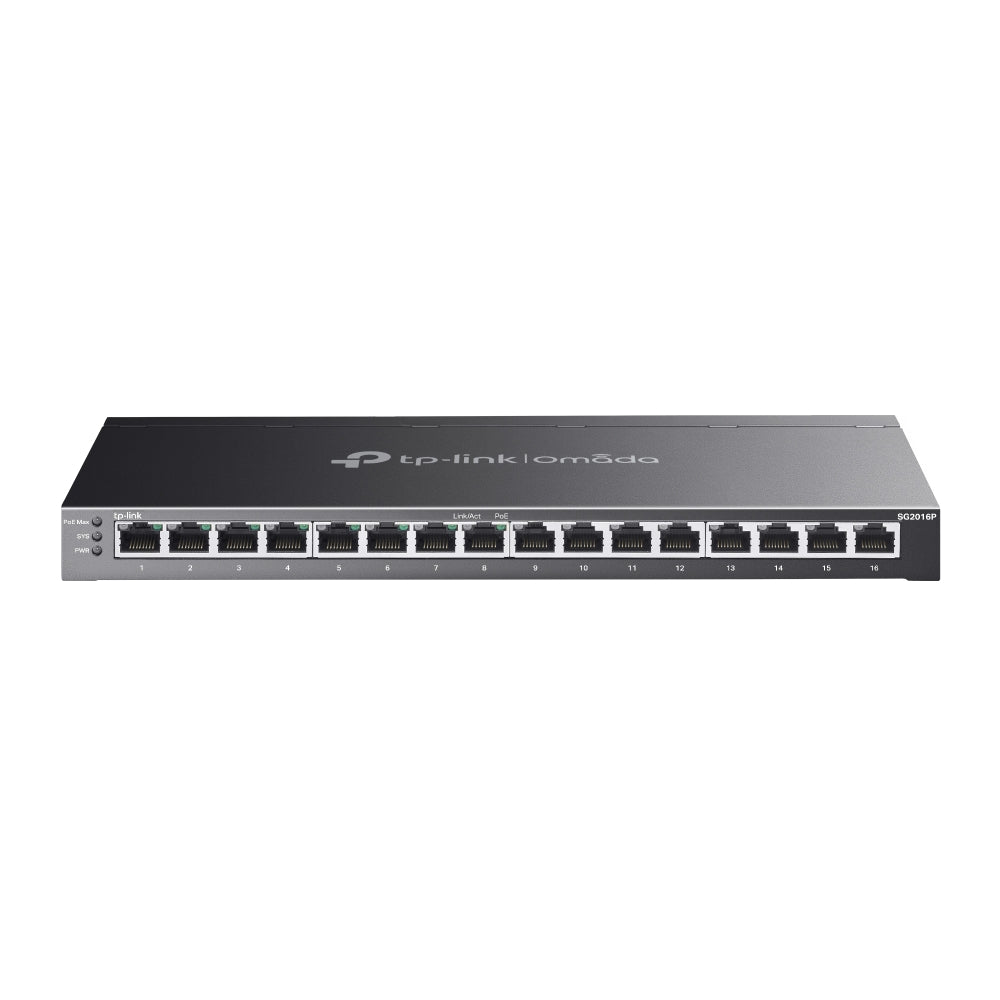

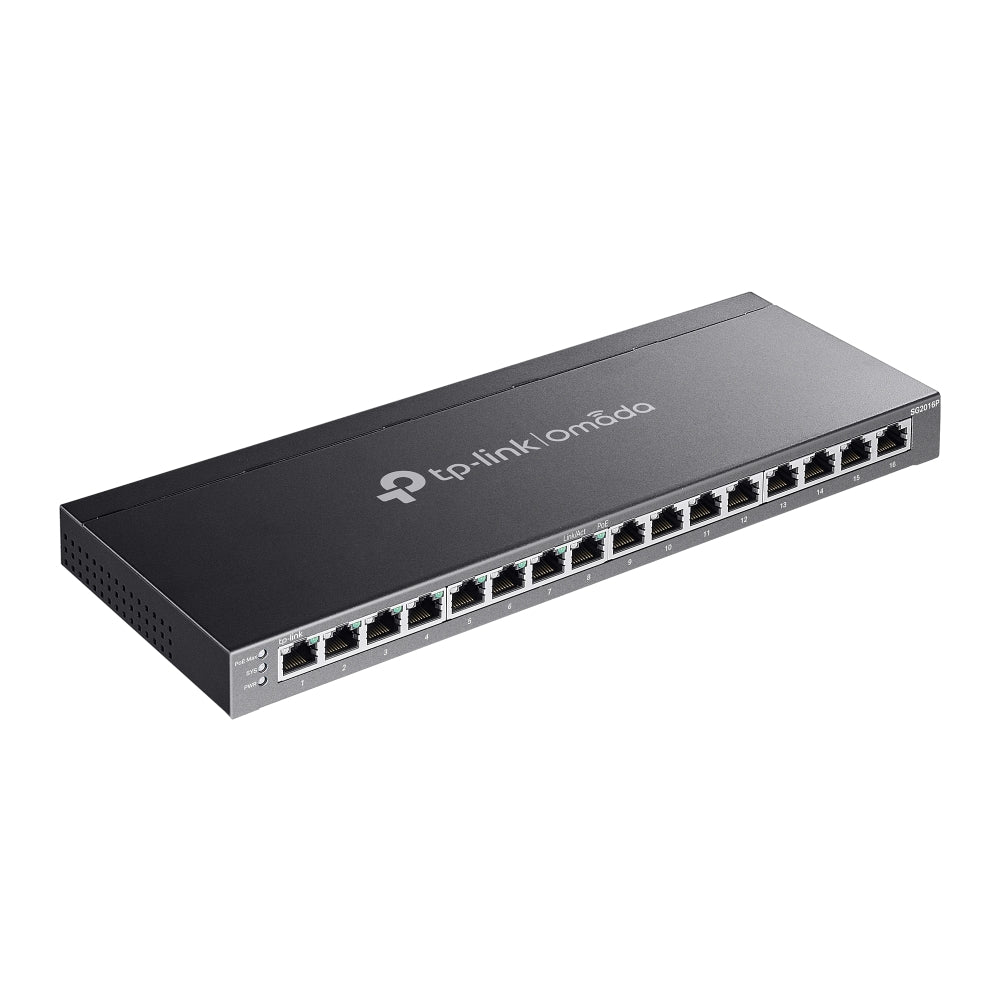

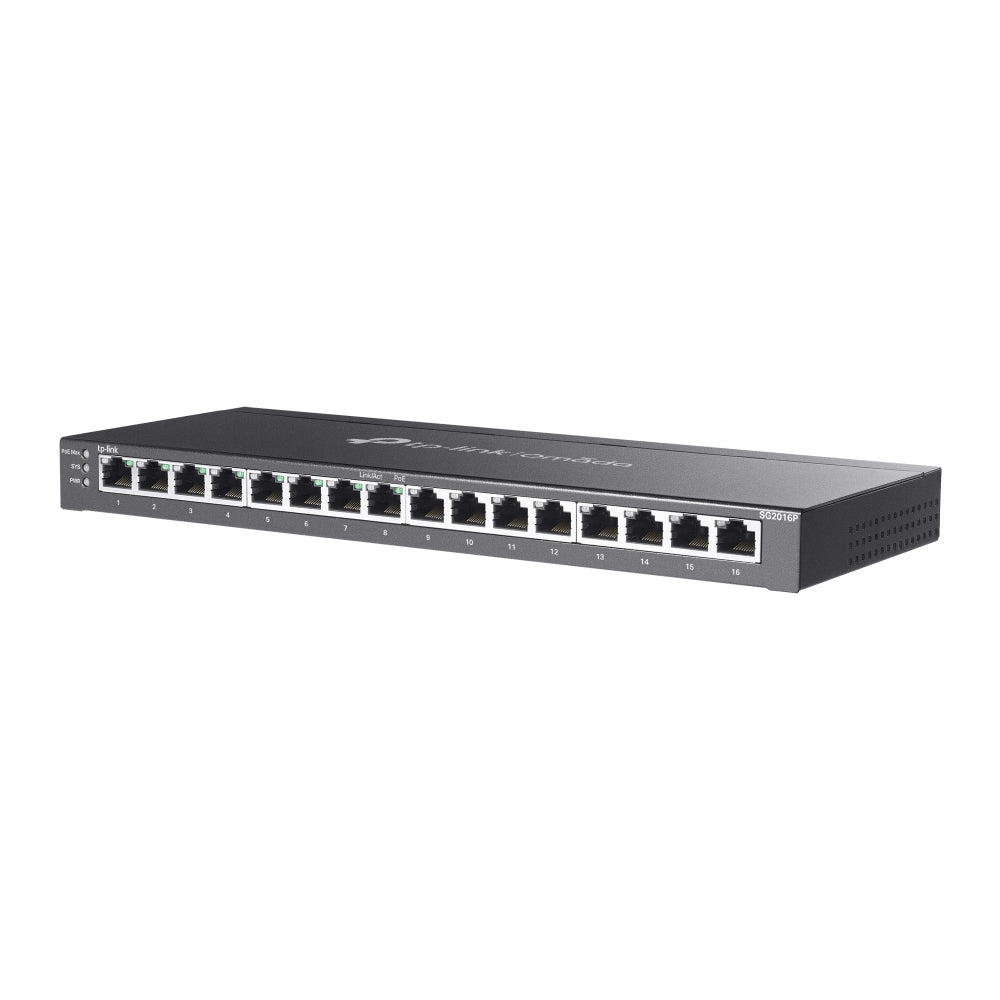

The SG2016P gives a small floor or branch office sixteen managed Gigabit ports with a 120 W PoE+ budget across the first eight, in a fanless desktop or wall-mounted chassis. It is the PoE member of the sixteen-port Omada smart-switch line and is adopted, configured and monitored from an Omada Controller alongside the rest of the network.
Sixteen Gigabit Ports, Eight of Them PoE+
Ports 1 to 8 are 802.3af/at PoE+ and share a 120 W budget; ports 9 to 16 are standard Gigabit. That split suits the usual small-site mix - a handful of Wi-Fi access points, IP phones and cameras drawing power, with printers, desktops and an uplink on the remaining ports. All sixteen run at 10/100/1000 Mbps with auto-negotiation and Auto MDI/MDIX, so nothing has to be patched in a particular order for the link to come up correctly.
120 W PoE+ Budget From a Fanless Chassis

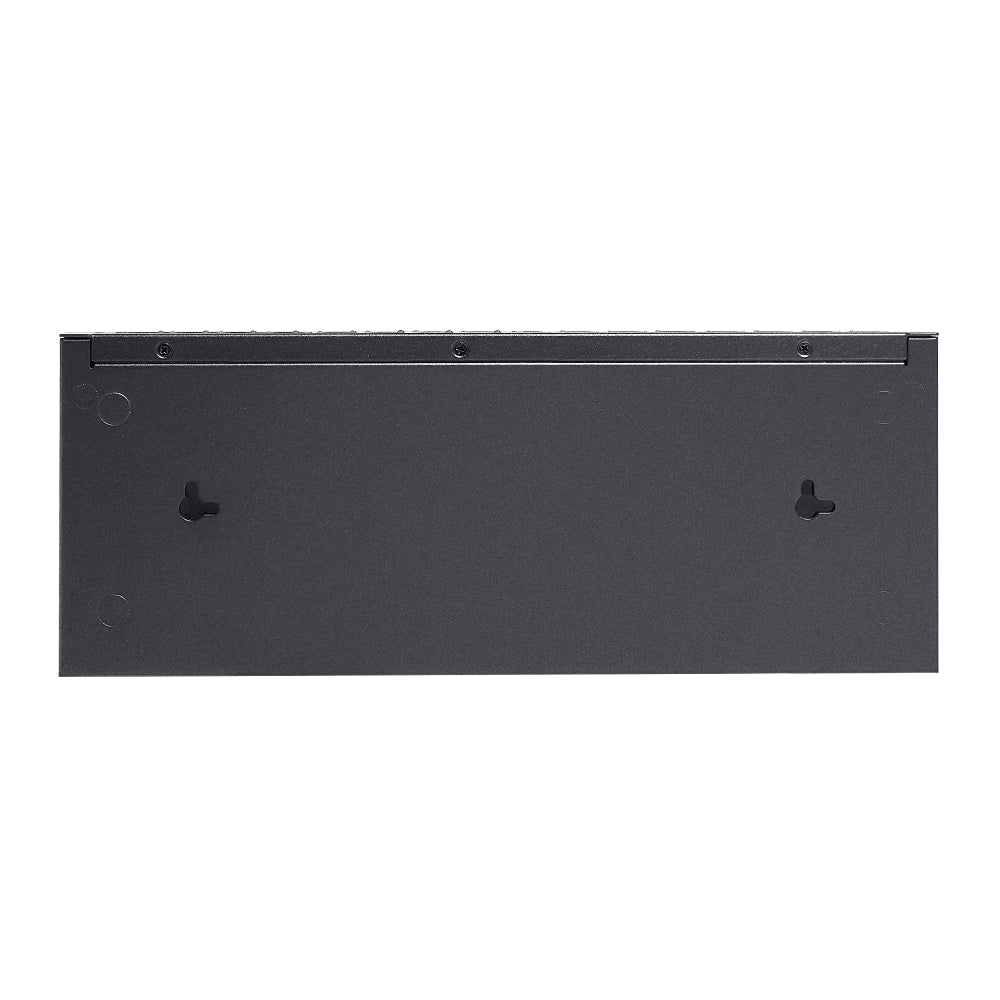

The 53.5 VDC/2.43 A external adapter supports the full 120 W PoE budget while the switch itself stays fanless, so there is no moving part and no noise - it can sit in a reception area, a classroom or an open-plan office rather than a comms room. Maximum draw is 146.5 W with a full 120 W of powered devices attached. The 286 x 111.7 x 25.4 mm chassis mounts on a desktop or a wall and carries a physical security lock point.
32 Gbps Fabric With a Full L2+ Feature Set
A 32 Gbps switching capacity and 23.81 Mpps forwarding rate cover all sixteen ports running full duplex at once. The software is the complete Omada smart-switch stack: 16 IPv4/IPv6 interfaces, 32 static routes, DHCP server and relay, DHCP L2 relay, static, proxy and gratuitous ARP, link aggregation, spanning tree, loopback detection, DLDP and 802.1ab LLDP/LLDP-MED. A 4.1 Mbit packet buffer and 9 KB jumbo frames handle bursty file and backup traffic.
VLANs, Eight-Queue QoS and a 230-Entry ACL Engine
802.1Q tagging supports up to 4K VLAN groups, with MAC VLAN, protocol VLAN, GVRP and voice VLAN on top - enough to keep staff, guest, voice, CCTV and IoT traffic properly separated on a single switch. QoS classifies by 802.1p CoS or DSCP into eight priority queues with strict-priority or weighted round-robin scheduling, plus port and flow-based rate limiting and storm control. The ACL engine holds up to 230 time-based MAC, IP, IPv6 or combined rules bound by port or VLAN.
Central Management and Zero-Touch Provisioning
Adopted into the Omada Cloud-Based, Hardware or Software Controller, the SG2016P gains automatic device discovery, batch configuration, batch firmware upgrading, intelligent network monitoring, abnormal event warnings and reboot scheduling. Zero-Touch Provisioning through the Cloud-Based Controller lets a unit be shipped to a branch and brought online without a technician on site. It also runs standalone through its own web GUI, CLI over Telnet, or SNMP v1/v2c/v3 with RMON.
Ideal For
Singapore offices, schools, clinics and retail sites powering access points, IP phones and cameras from one managed switch, and IT teams standardising on Omada for single-controller management. Supplied by SourceIT with local Singapore warranty, GST invoice and project pricing on request.
SG2016P Datasheet — Technical Specifications
General
| Model | SG2016P |
| Official Product Name | Omada 16-Port Gigabit Smart Switch with 8-Port PoE+ |
| Hardware Version | V1.2 |
| Brand | TP-Link Omada |
| Warranty | 5 Years Local Warranty (Singapore) |
Hardware
| Interface | 16× 10/100/1000 Mbps RJ45 Ports (Ports 1–8 support 802.3at/af PoE+); Auto-Negotiation/Auto MDI/MDIX |
| PoE Standard | 802.3af/at compliant |
| PoE Ports | 8 Ports |
| PoE Power Budget | 120 W |
| Fan | Fanless |
| Physical Security Lock | Yes |

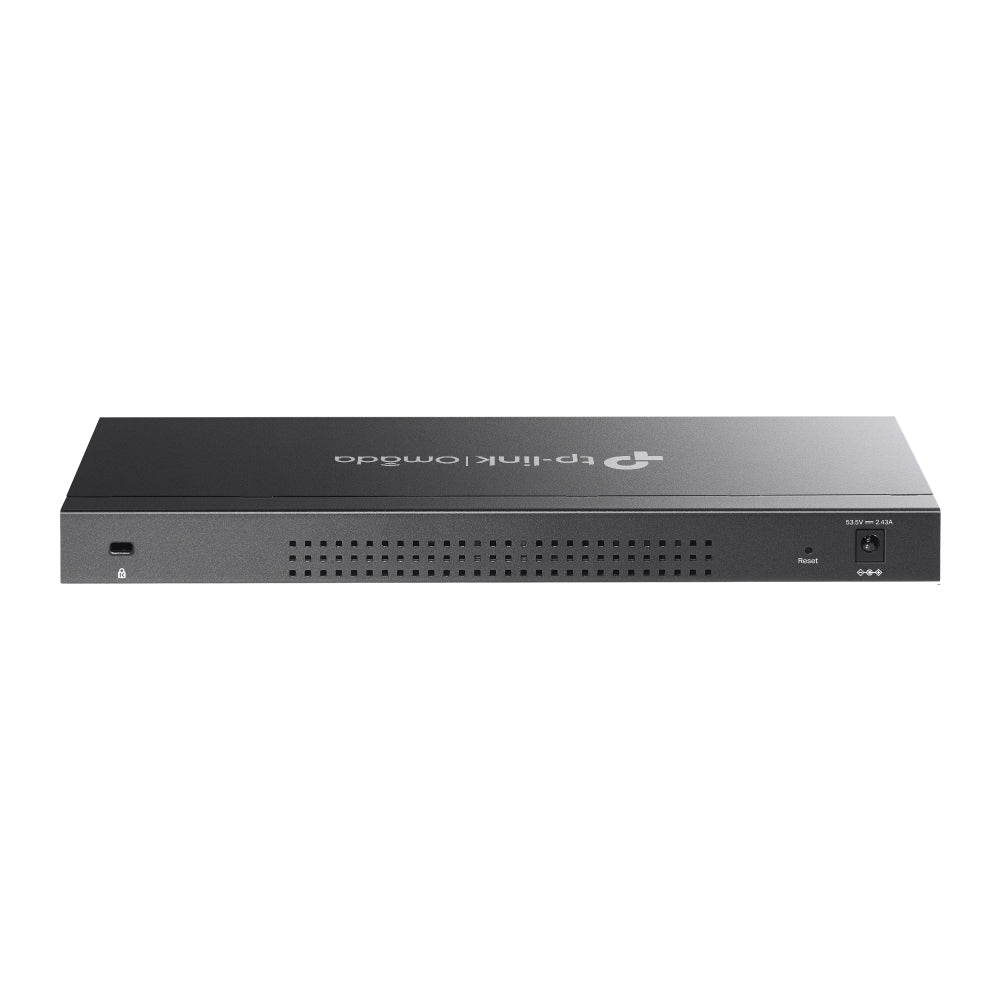

| Power Supply | External Power Adapter (Output: 53.5 VDC / 2.43 A) |
| Dimensions (W x D x H) | 11.3 × 4.4 × 1.0 in (286 × 111.7 × 25.4 mm) |
| Mounting | Desktop / Wall-Mounting |
| Max Power Consumption | 146.5 W (110 V/60 Hz) with 120 W PD connected |
| Max Heat Dissipation | 499.98 BTU/hr (110 V/60 Hz) with 120 W PD connected |
Performance
| Switching Capacity | 32 Gbps |
| Packet Forwarding Rate | 23.81 Mpps |
| MAC Address Table | 8K |
| Packet Buffer Memory | 4.1 Mbit |
| Jumbo Frame | 9 KB |
Software
| L2 and L2+ Features | 16 IP Interfaces (IPv4/IPv6); 32 IPv4/IPv6 Static Routes; DHCP Server; DHCP Relay (Interface and VLAN); DHCP L2 Relay; Static/Proxy/Gratuitous ARP; Link Aggregation; Spanning Tree Protocol; Loopback Detection; 802.3x Flow Control; Mirroring; DLDP; 802.1ab LLDP/LLDP-MED |
| VLAN | Max 4K VLAN Groups; 802.1Q tag VLAN; MAC VLAN (12 entries); Protocol VLAN; GVRP; Voice VLAN |
| L2 Multicast | 511 IPv4/IPv6 shared multicast groups; IGMP Snooping; MVR; Multicast Filtering; Limited IP Multicast (256 profiles, 16 entries per profile) |
| Quality of Service | 802.1p CoS/DSCP priority; 8 priority queues; SP and WRR scheduling; queue weight config; port/flow-based rate limit; storm control (kbps/ratio) for broadcast, multicast and unknown-unicast |
| Access Control List | Up to 230 entries; time-based ACL; MAC/IP/IPv6/combined ACL; permit and deny rules; mirroring, redirect, rate limit and QoS remark actions; port and VLAN binding |
| Security | IP-MAC-Port Binding; AAA; 802.1X (port-based and MAC-based, PAP/EAP-MD5, MAB, Guest VLAN, RADIUS); IP/IPv6-MAC Binding (512 entries); DHCP/DHCPv6 Snooping; ARP Inspection; ND Detection; IP Source Guard (253 entries); IPv6 Source Guard (183 entries); DoS Defend; Port Security (up to 64 MAC per port); storm control; port isolation; HTTPS with SSLv3/TLS 1.2; SSH v1/v2; IP/Port/MAC access control |
| IPv6 | Static routing and ACL; dual IPv4/IPv6; IPv6 interface; MLD Snooping; ND; Path MTU discovery; ICMPv6; TCPv6/UDPv6; DHCPv6 Client; Ping6; Tracert6; Telnet(v6); SNMP/SSH/SSL/HTTP/HTTPS/TFTP over IPv6 |
| MIBs | MIB II (RFC1213); Bridge MIB (RFC1493); P/Q-Bridge MIB (RFC2674); RADIUS MIBs (RFC2620, RFC2618); Remote Ping/Traceroute MIB (RFC2925); TP-Link private MIBs; RMON MIB (RFC1757, groups 1, 2, 3, 9) |
| Management | Web-based GUI; CLI over Telnet; SNMP v1/v2c/v3; SNMP Trap/Inform; RMON (groups 1, 2, 3, 9); SDM Template; DHCP/BOOTP Client; Dual Image and Dual Configuration; CPU Monitoring; Cable Diagnostics; EEE; SNTP; System Log |
Environment & Compliance
| Certification | CE, FCC, RoHS |
| Operating Temperature | 0–40 °C (32–104 °F) |
| Storage Temperature | -40–70 °C (-40–158 °F) |
| Operating Humidity | 10–90% RH non-condensing |
| Storage Humidity | 5–90% RH non-condensing |
Compatibility & Software Support
The SG2016P is part of the Omada ecosystem: gateways, switches and access points are managed together from one controller, under one set of policies, with one view of the network. Cloud and app features listed below require the device to be adopted into an Omada Controller.
| Omada SDN Controller | Supported — Omada Cloud-Based Controller, Omada Hardware Controller or Omada Software Controller |
| Omada App | Supported — requires an Omada Controller |
| Omada Cloud Access | Supported — requires an Omada Controller |
| Zero-Touch Provisioning | Supported via the Omada Cloud-Based Controller |
| Standalone Mode | Supported — web GUI, CLI over Telnet and SNMP v1/v2c/v3 |
| System Requirements | Windows 98SE/NT/2000/XP/Vista/7/8/10/11, macOS, NetWare, UNIX or Linux |
Package Contents & Ordering Information
In the Box

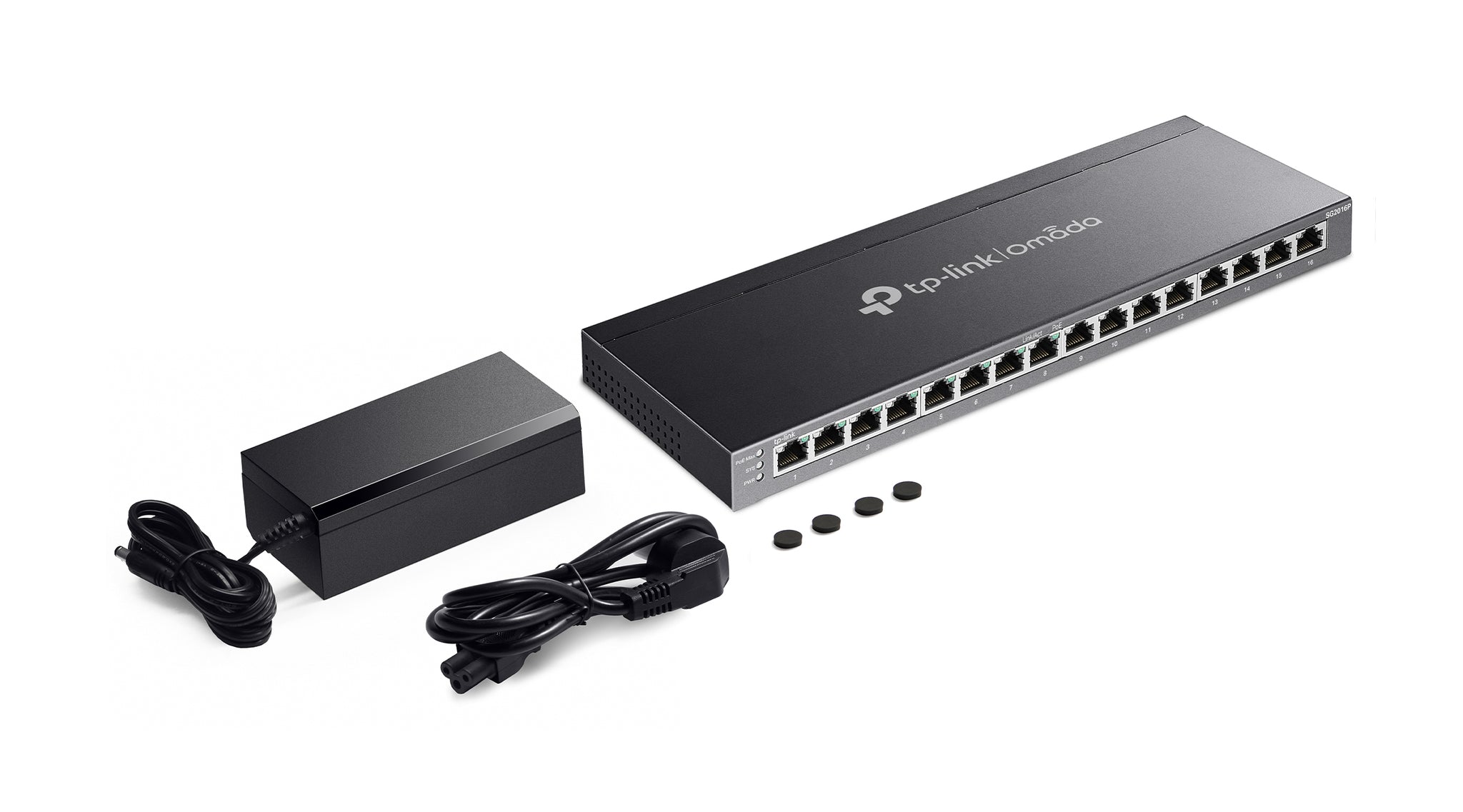

| Contents | SG2016P switch; Power Adapter; Installation Guide; Rubber Feet |
Ordering Information
| Model | SG2016P |
| Hardware Version | V1.2 |
| Local Warranty (Singapore) | 5 Years |
Datasheet & Downloads
Frequently Asked Questions — SG2016P
How many devices can the 120 W PoE budget actually power?
It depends on the class of each device. A PoE+ (802.3at) port can deliver up to 30 W, so eight fully loaded PoE+ devices would exceed the budget; typical Wi-Fi access points and IP phones draw far less, and most small sites run six to eight devices comfortably within 120 W. Send us your device list and we will work the budget out with you.
Which ports supply PoE?
Ports 1 to 8 only. Ports 9 to 16 are standard Gigabit data ports with no power.
Does the SG2016P need an Omada Controller?
No. It runs standalone through its own web interface, CLI or SNMP. Adopting it into an Omada Software, Hardware or Cloud-Based Controller is what unlocks central configuration, monitoring, firmware management and cloud/app access across every Omada device on site.
What warranty does SourceIT provide?
Five years local Singapore warranty, with a GST invoice on every unit. Send us your bill of materials and we will quote the whole Omada build — controller, gateway, switching, access points and optics.
