TP-Link InSight S655I 5MP IR Fisheye Network Camera
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
TP-Link VIGI 5MP IR Fisheye Network Camera (InSight S655I) - 5 Years Local Warranty

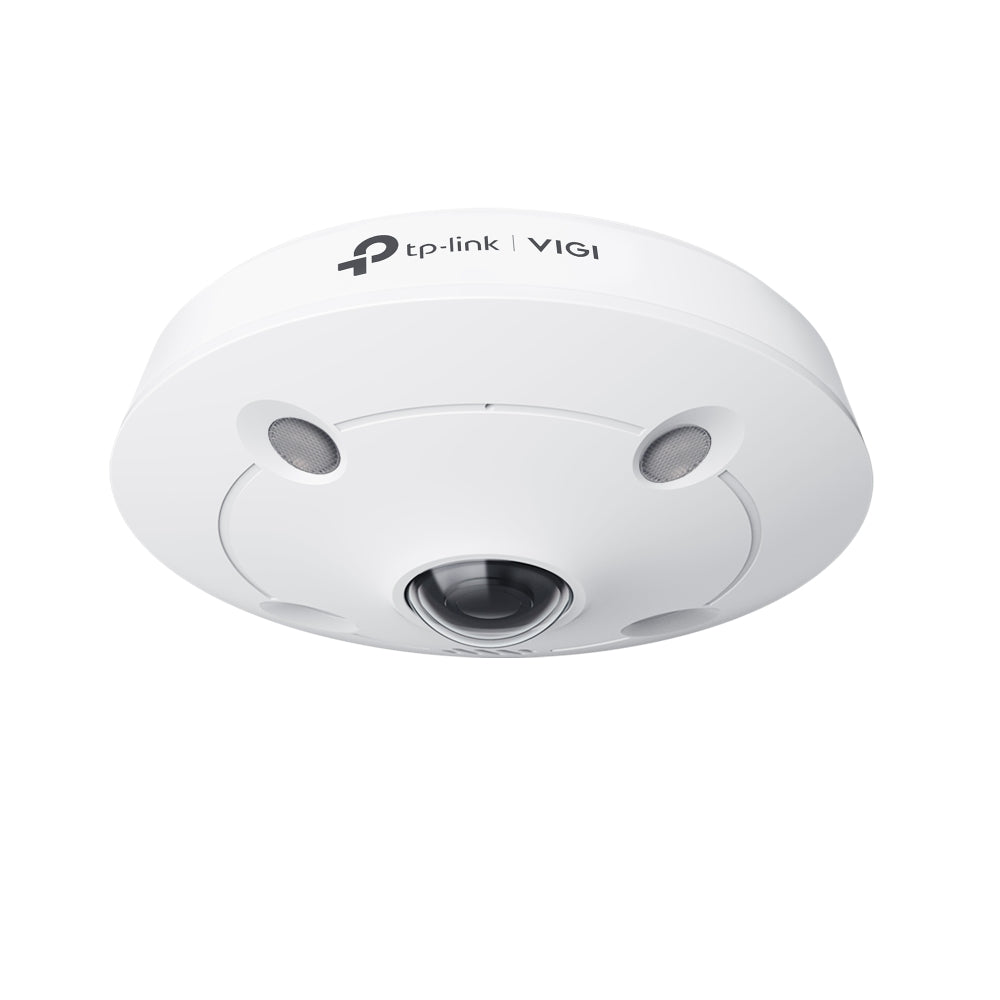

The TP-Link VIGI InSight S655I is a 5MP (2560 x 1920) fisheye camera with a 1.44 mm F2.0 lens giving a 180° field of view, for ceiling, wall or pendant mounting. It adds four 850 nm IR LEDs, 120 dB WDR, two-way audio and microSD recording in an IP67, IK10 metal housing, powered by PoE (802.3af/at) or 12V DC.
360° Monitoring From One Camera

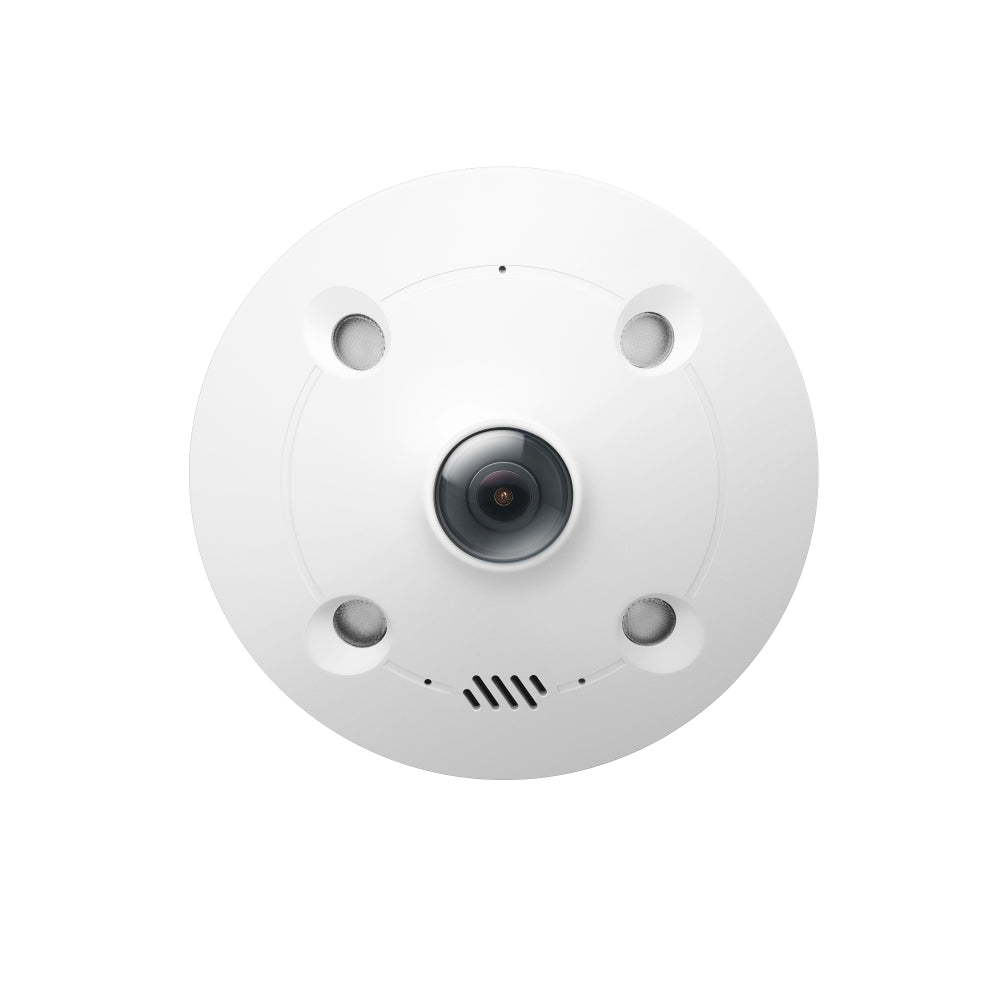

The 1.44 mm fisheye lens covers 180° horizontally, vertically and diagonally, so a single ceiling-mounted unit can watch a whole room.
Multiple Display Modes
Ceiling mount supports fisheye, AR dewarp, 180 panorama, 360 panorama cylinder and a range of PTZ split views; wall mount supports fisheye, 360 panoramic unwrap and multi-PTZ layouts.
IR Night Vision & Smart Detection
Four IR LEDs reach 30 m and colour imaging works down to 0.01 Lux. Intrusion, line-crossing, region entering/exiting and abnormal sound detection trigger push messages, email, alarm upload, FTP capture, memory card recording or an audible warning.
Two-Way Audio, Onboard Storage & Rugged Build

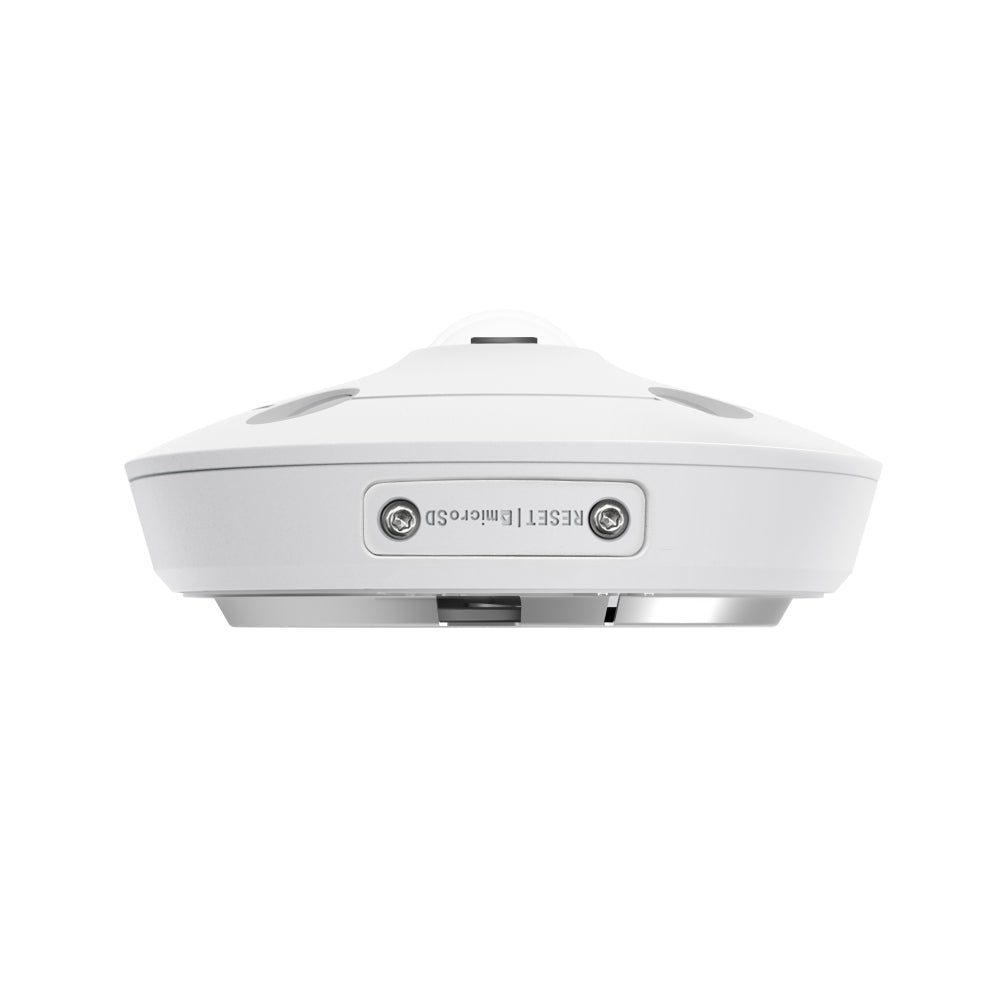

A built-in microphone and speaker allow two-way audio, a microSD slot takes cards up to 512 GB, and the metal housing is rated IP67 weatherproof and IK10 vandal proof.
Ideal For
Open-plan offices, retail floors, lobbies, classrooms, warehouses and car park ramps where one camera should cover a whole area, recording to a VIGI NVR, VIGI VMS or a local microSD card. Supplied by SourceIT with local Singapore warranty and GST invoice.
InSight S655I Datasheet — Technical Specifications
General
| Model | InSight S655I |
| Official Product Name | VIGI 5MP IR Fisheye Network Camera |
| Brand | TP-Link |
| Warranty | 5 Years Local Warranty (Singapore) |
Camera
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Minimum Illumination | Color: 0.01 Lux; 0 Lux with IR light |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified/ Scheduled/ Auto |
Lens
| Type | Fixed Focal Lens |
| Focal Length | 1.44 mm |
| Aperture | F2.0 |
| FOV | Horizontal FOV: 180°, Vertical FOV: 180°, Diagonal FOV: 180° |
| Lens Mount | M12*P0.5 |
| DORI Distance | Detect: 28.8 m (94 ft), Observe: 12 m (39 ft), Recognize: 5.7 m (19 ft), Identify: 2.8 m (9 ft) |
| Angle Adjustment (Manual) | N/A |
Fisheye Display
| Installation | Ceiling Mount; Wall Mount; Pendant Mount§ |
| Display Mode - Ceiling Mount | Fisheye, AR Dewarp, 180 Panorama, 360 Panorama Cylinder, 2PTZ, 4PTZ, Fisheye + 8PTZ, Fisheye + 3PTZ, 360 Panorama + 8PTZ, 360 Panorama + 6PTZ, 360 Panorama + PTZ |
| Display Mode - Wall Mount | Fisheye, 360 Panoramic Unwrap, 360 Panoramic Unwrap+3PTZ, 360 Panoramic Unwrap+8PTZ, 4PTZ, Fisheye + 3PTZ, Fisheye + 8PTZ |
Illuminator
| IR LED | Quantity: 4, Range: 30m, Wavelength: 850nm |
| White LED | N/A |
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
Video
| Max. Resolution | 2560 x 1920 |
| Main Stream | Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps; 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps. Resolution: 2560 x 1920, 2256 x 1696, 2048 x 1536, 1280 x 960. Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. If WDR is on, the frame rate only supports up to 15fps. |
| Sub-Stream | Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps; 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps. Resolution: 640 x 480, 320 x 240. Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. If WDR is on, the frame rate only supports up to 15fps. |
| Bit Rate Control | CBR, VBR |
| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264; Sub-Stream: H.265/H.264 |
| H.264 Type | High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| Video Bit Rate | Main Stream: 256 Kbps to 6 Mbps; Sub-Stream: 64 Kbps to 512 Kbps |
| Image Settings | Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software |
| Image Enhancement | BLC/3D DNR/HLC/SmartIR |
| Wide Dynamic Range | 120dB |
| SNR | ≥ 52 dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 1 Region |
| OSD Setting | Yes |
Audio
| Audio Communication | Two-Way Audio |
| Audio Input | Yes |
| Audio Output | Yes |
| Audio Compression | Yes |
| Audio Sampling Rate | 8KHz |
| Environment Noise Filtering | Yes |
| Audio Bit Rate | 64 Kbps (G.711 alaw) |
Network
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP |
| ONVIF | Yes |
| API | Open Network Video Interface (Profile S/T/G) |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| Client | Utility, VIGI App, Web UI, VIGI VMS |
| Web Browser | Google Chrome 57 and above, Firefox 52 and above, Safari 11 and above, Microsoft Edge 91 and above |
| Cloud | Yes |
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
Alarm and Event Management
| Smart Event | Intrusion Detection, Line-Crossing Detection, Region Entering Detection, Region Exiting Detection, Abnormal Sound Detection |
| Basic Event | Motion Detection, Video Tampering Detection, Exception (Illegal Login) |
| Alarm Linkage | Memory Card Video Recording, Message Push, Audible Warning |
| Output Notification | Message Push, Email, Alarm Upload, Capture to FTP |
Interfaces
| Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
| Alarm | N/A |
| Reset Button | Yes |
| Power | DC Power Port |
| On-board Storage | Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB§ |
| Built-in Microphone | Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera |
| Built-in Speaker | Yes |
Physical & Environment
| Operating Temperature | -30-60 °C |
| Storage Temperature | -40-60 °C |
| Operating Humidity | 95% or Less (Non-Condensing) |
| Storage Humidity | 95% or Less (Non-Condensing) |
| Material | Metal |
| Net Weight | 0.44 Kg (without Mounting Accessories); 0.48 Kg (with Mounting Accessories) |
| Power Supply | 12V DC ± 5%, Max. 11.76 W, 5.5mm Coaxial Power Plug; PoE: 802.3af/at, class 0, Max. 12.14W |
| Protection | IP67 Weatherproof, IK10 Vandal Proof |

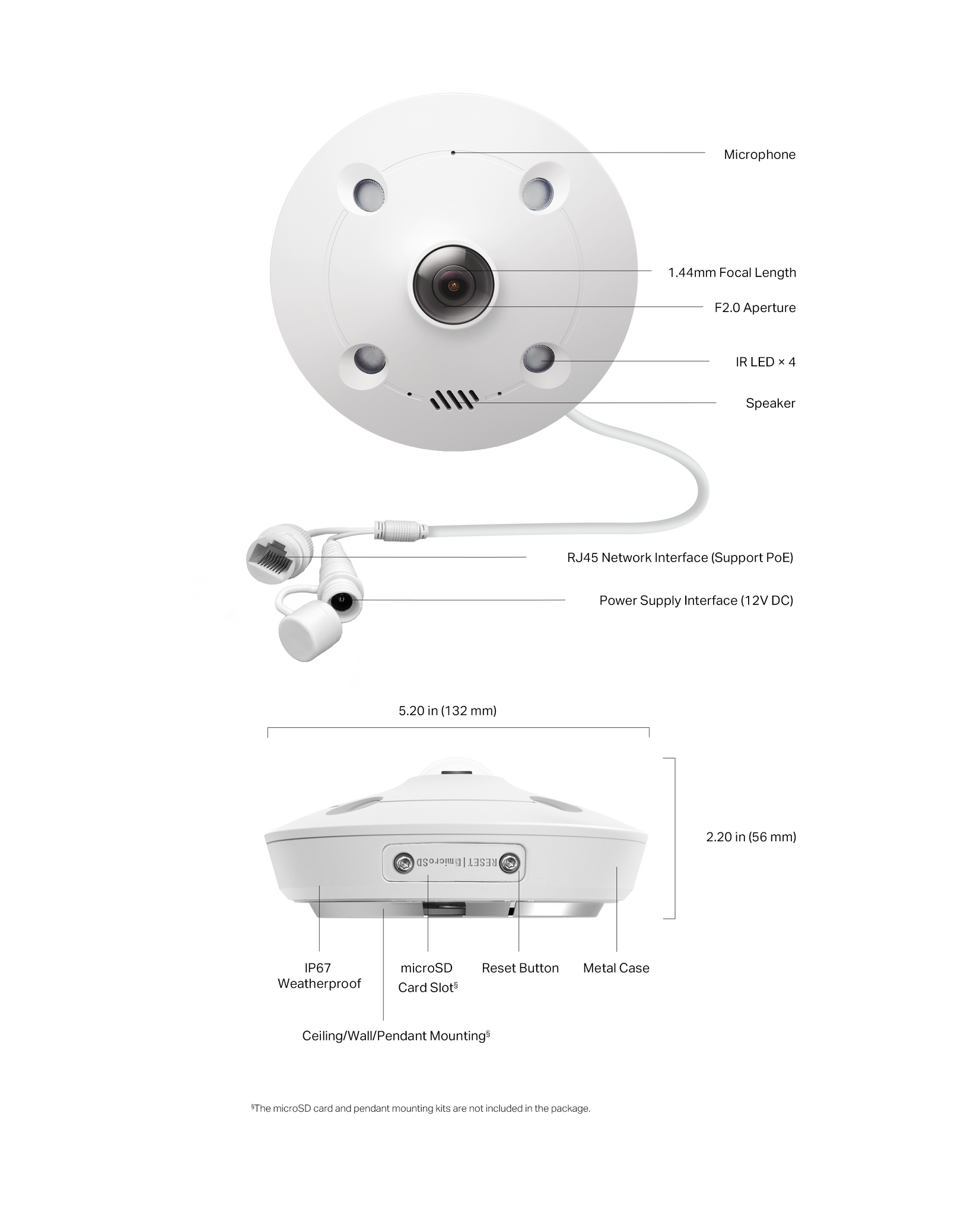

| Product Dimensions (L x W x H) | 132 x 132 x 56 mm (5.2 x 5.2 x 2.2 in) |
| Certifications | CE; NTRA; KC; FCC; VCCI; BSMI; ONVIF |
§ The microSD card and pendant mounting kits are not included in the package.
TP-Link does not publish a gross weight for the InSight S655I.
Compatibility & Software Support
| Management | Utility, VIGI App, Web UI, VIGI VMS |
| Cloud | Yes |
| NVR / VMS integration | ONVIF (Profile S/T/G) |
| Web Browser | Google Chrome 57+, Firefox 52+, Safari 11+, Microsoft Edge 91+ |
| Local Storage | MicroSD card up to 512 GB (card not included) |
Package Contents & Ordering Information
Package Contents
| Item 1 | VIGI Network Camera |
| Item 2 | Quick Start Guide |
| Item 3 | Waterproof Cable Attachments |
| Item 4 | Mounting Accessories |
The pendant mounting kit and microSD card are not included.
Ordering Information
| Model | InSight S655I |
| SKU | InSight S655I |
| Warranty | 5 Years Local Warranty (Singapore) |
Datasheet & Downloads
Frequently Asked Questions — InSight S655I
How should the InSight S655I be mounted?
TP-Link lists ceiling mount, wall mount and pendant mount (pendant kit not included). The available display modes differ between ceiling and wall installation, as shown in the specifications.
Is it suitable for outdoor or exposed locations?
TP-Link rates the housing IP67 weatherproof and IK10 vandal proof, with an operating temperature of -30 °C to 60 °C.
How is it powered?
Either by PoE (802.3af/at, class 0, max. 12.14 W) or by a 12V DC supply through a 5.5 mm coaxial plug (max. 11.76 W).
What warranty does SourceIT provide?
SourceIT supplies the InSight S655I with 5 years local warranty in Singapore, together with a GST invoice.
Can SourceIT quote this for an office or a project?
Yes. SourceIT prepares quotations for offices, retail sites and multi-camera projects, including VIGI cameras, NVRs, PoE switches and hard drives. Send the quantities and site details to sales@sourceit.com.sg for a formal quote with GST invoice.
