TP-Link VIGI 8MP IR Panoramic Turret Network Camera (InSight S485PI) - 5 Years Local Warranty

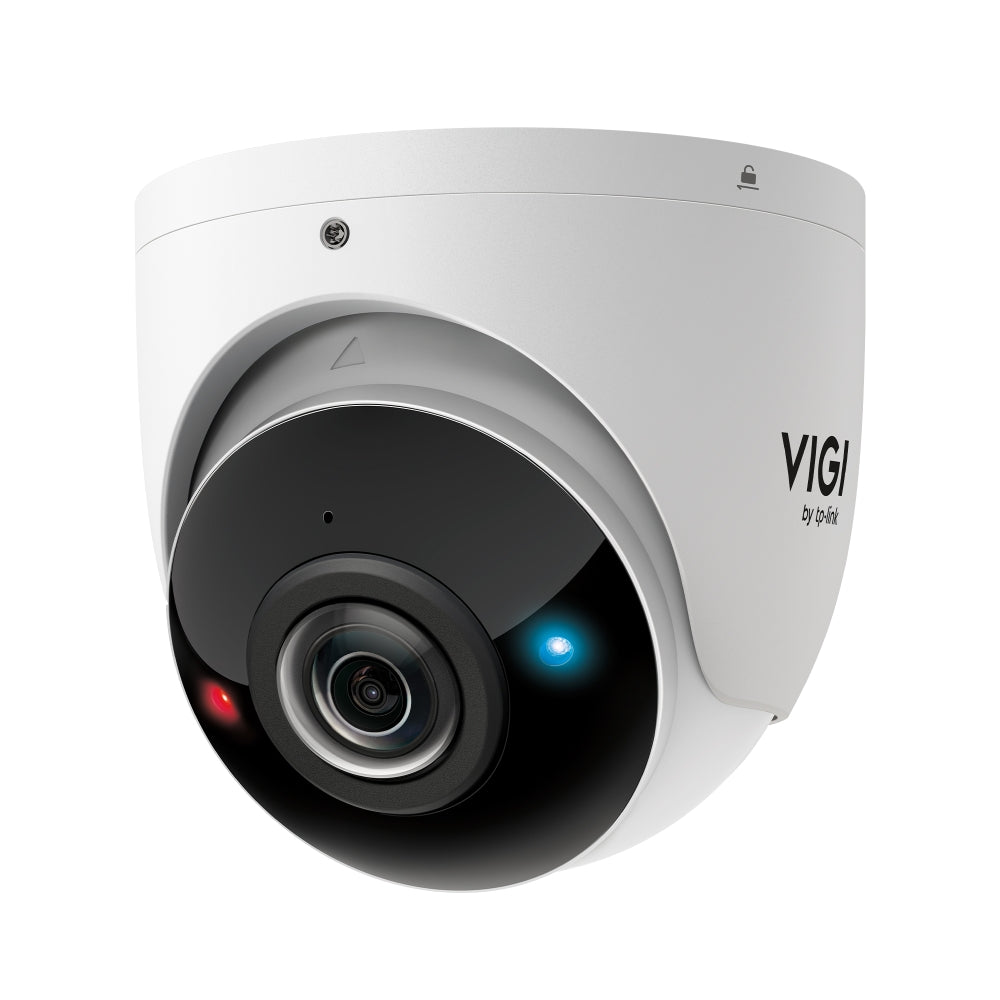

The TP-Link InSight S485PI is an 8MP (3840 x 2160) panoramic turret camera from the VIGI InSight series. A 1.65 mm lens gives a 180° horizontal view, four 850 nm IR LEDs reach 20 m, and red-blue warning lights, two-way audio and alarm in/out interfaces add active deterrence in an IP67, IK10 metal housing.
180° Panoramic View
The fixed 1.65 mm F2.0 lens covers 180° horizontally and 86° vertically, so one camera can watch a wide area that would otherwise need several.
4K Resolution with 20 m IR
A 1/2.7" progressive scan CMOS sensor records at up to 3840 x 2160, with 120 dB WDR, Smart IR and 3D DNR, and IR night vision up to 20 m.
Red-Blue Warning Lights and Two-Way Audio
Red-blue warning lights, sound alarms and a built-in speaker and microphone let the camera deter and speak to intruders on site.
Alarm and Audio Interfaces
1 alarm in, 1 alarm out, 1 audio in and 1 audio out connect external sensors, sirens and audio devices.
Ideal For
Shopfronts, open-plan offices, warehouse aisles, car park entrances and building corners where one panoramic camera replaces several narrow views. Supplied by SourceIT with local Singapore warranty and GST invoice.
InSight S485PI Datasheet — Technical Specifications
General
| Model | InSight S485PI |
| Official Product Name | VIGI 8MP IR Panoramic Turret Network Camera |
| Brand | TP-Link |
| Warranty | 5 Years Local Warranty (Singapore) |
Camera
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Minimum Illumination | 0.005 Lux; 0 Lux with IR light |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified/ Scheduled/ Auto |
Lens
| Type | Fixed Focal Lens |
| Focal Length | 1.65 mm |
| Aperture | F2.0 |
| FOV | Horizontal FOV: 180° Vertical FOV: 86° Diagonal FOV: 180° |
| Lens Mount | M12 |
| DORI Distance | Detect: 144.36 ft (44 m) Observe: 60.15 ft (18.33 m) Recognize: 28.87 ft (8.8 m) Identify: 14.44 ft (4.4 m) |
Angle Adjustment (Manual)
| Range | Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360° |
Illuminator
| IR LED | Quantity: 4 Range: 65.62 ft (20 m) Wavelength: 850 nm |
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
Video
| Max. Resolution | 3840x2160 |
| Main Stream | Frame Rate 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps Frame Rate 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 3840x2160, 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Sub-Stream | Frame Rate 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps Frame Rate 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 848x480, 704x576, 640x480, 640x360, 352x288, 320x240 |
| Bit Rate Control | CBR, VBR |
| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264 |
| H.264 Type | High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| Video Bit Rate | Main Stream: 256 Kbps to 8 Mbps Sub-Stream: 64 Kbps to 1024 Kbps |
| Image Settings | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software |
| Image Enhancement | BLC/3D DNR/HLC/SmartIR |
| Wide Dynamic Range | 120 dB |
| SNR | ≥ 52 dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 4 Region |
| OSD Setting | Yes |
Audio
| Audio Communication | Two-Way Audio |
| Audio Input | Built-in Microphone Audio In Interface |
| Audio Output | Built-in Speaker Audio Out Interface |
| Audio Compression | Yes |
| Audio Sampling Rate | 8 KHz |
| Environment Noise Filtering | Yes |
| Audio Bit Rate | 64 Kbps (G.711 alaw) |
Network
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP |
| ONVIF | Yes |
| API | Open Network Video Interface (Profile S/T/G) |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
Alarm and Event Management
| Smart Event | Intrusion Detection, Line-Crossing Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection, Loitering Detection, People Detection, Vehicle Detection, Abnormal Sound Detection, Scene Change Detection |
| Basic Event | Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts), Video Tampering Detection, Exception (Illegal Login), Alarm Input Device |
| Alarm Linkage | Memory Card Video Recording, Upload to FTP Server, Alarm Output Device, Push Notifications, Send to Alarm Server, Active Defence-Sound Alarm, Active Defence-Light Alarm, Email Alarm |
Deep Learning Function
| People & Vehicle Analytics | Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.*3 |

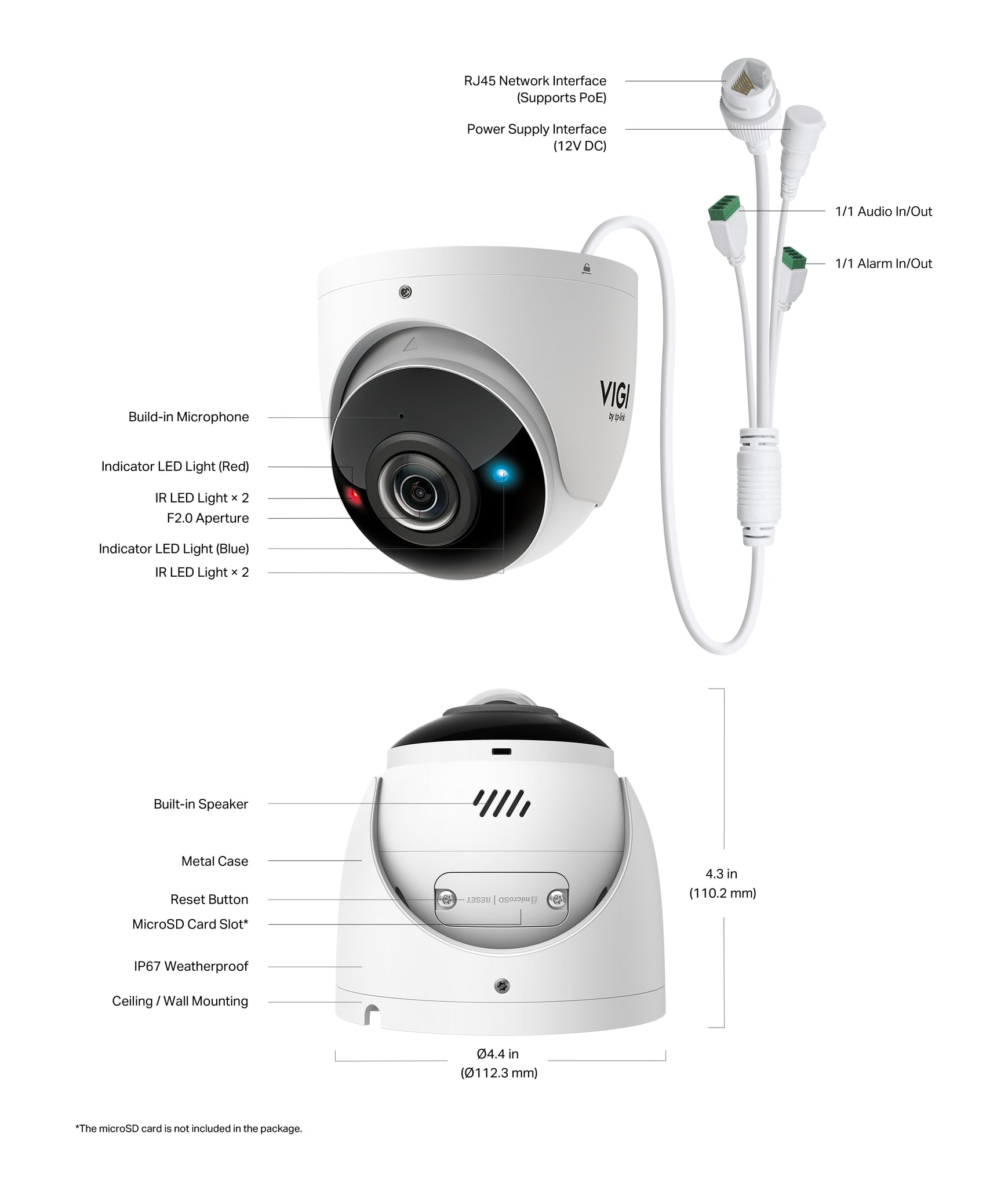

Interfaces
| Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
| Alarm | 1 Alarm In, 1 Alarm Out Red-Blue Warning Lights |
| Reset Button | Yes |
| Power | DC Power Port |

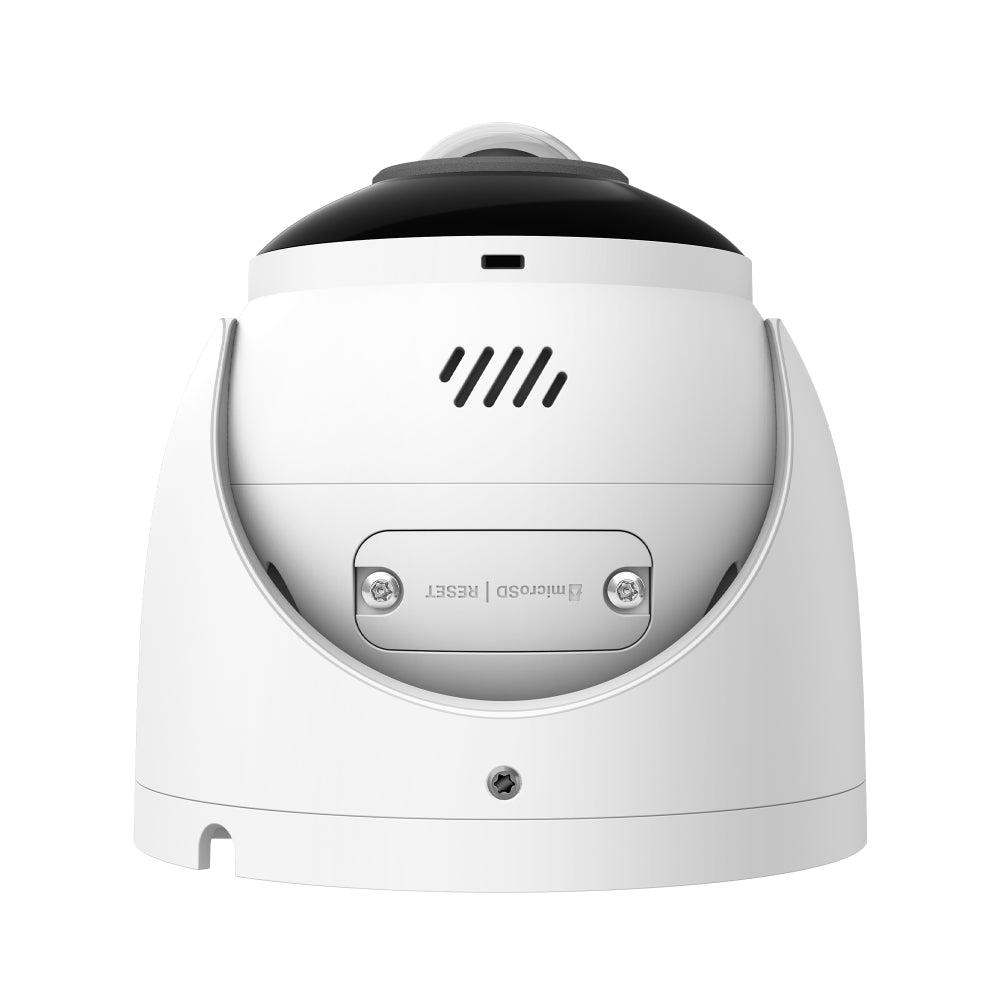

| On-board Storage | Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB*5 |
| Built-in Microphone | Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera |
| Built-in Speaker | Yes |
| Audio | 1 Audio In, 1 Audio Out |
Power
| Power Supply | 12V DC ± 5%, Max. 18 W, 5.5 mm Coaxial Power Plug PoE: 802.3at, class 4, Max. 21 W |
Physical & Environment
| Operating Temperature | -30 to 60 °C |
| Storage Temperature | -40 °C to 60 °C |
| Operating Humidity | 95% or Less (Non-condensing) |
| Storage Humidity | 95% or Less (Non-condensing) |
| Protection | IP67 Waterproof, IK10 Vandal Proof |
| Material | Metal |
| Product Dimensions (L x W x H) | 4.4 x 4.4 x 4.3 in (112.3 x 112.3 x 110.2 mm) |
| Net Weight | 0.76 Kg |
| Certifications | CE, NTRA, KC, FCC, VCCI, BSMI, ONVIF, IP67, IK10 |
*3 AI-trigger notification supports playback of specific event clips, notifications triggered by external alarm devices only support live view.
*5 The microSD card and pole mounting kits are not included in the package.
TP-Link does not publish a gross (packed) weight for the InSight S485PI.
Compatibility & Software Support
| Management Clients | VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS |
| Web Browser | Google Chrome® 57 and above Firefox® 52 and above Safari® 11 and above Microsoft® Edge 91 and above |
| Cloud | Yes |
| Third-Party Integration | ONVIF Profile S/T/G |
| On-Camera Storage | microSD, up to 512 GB (card not included) |
| External Devices | 1 alarm in, 1 alarm out, 1 audio in, 1 audio out |
Package Contents & Ordering Information

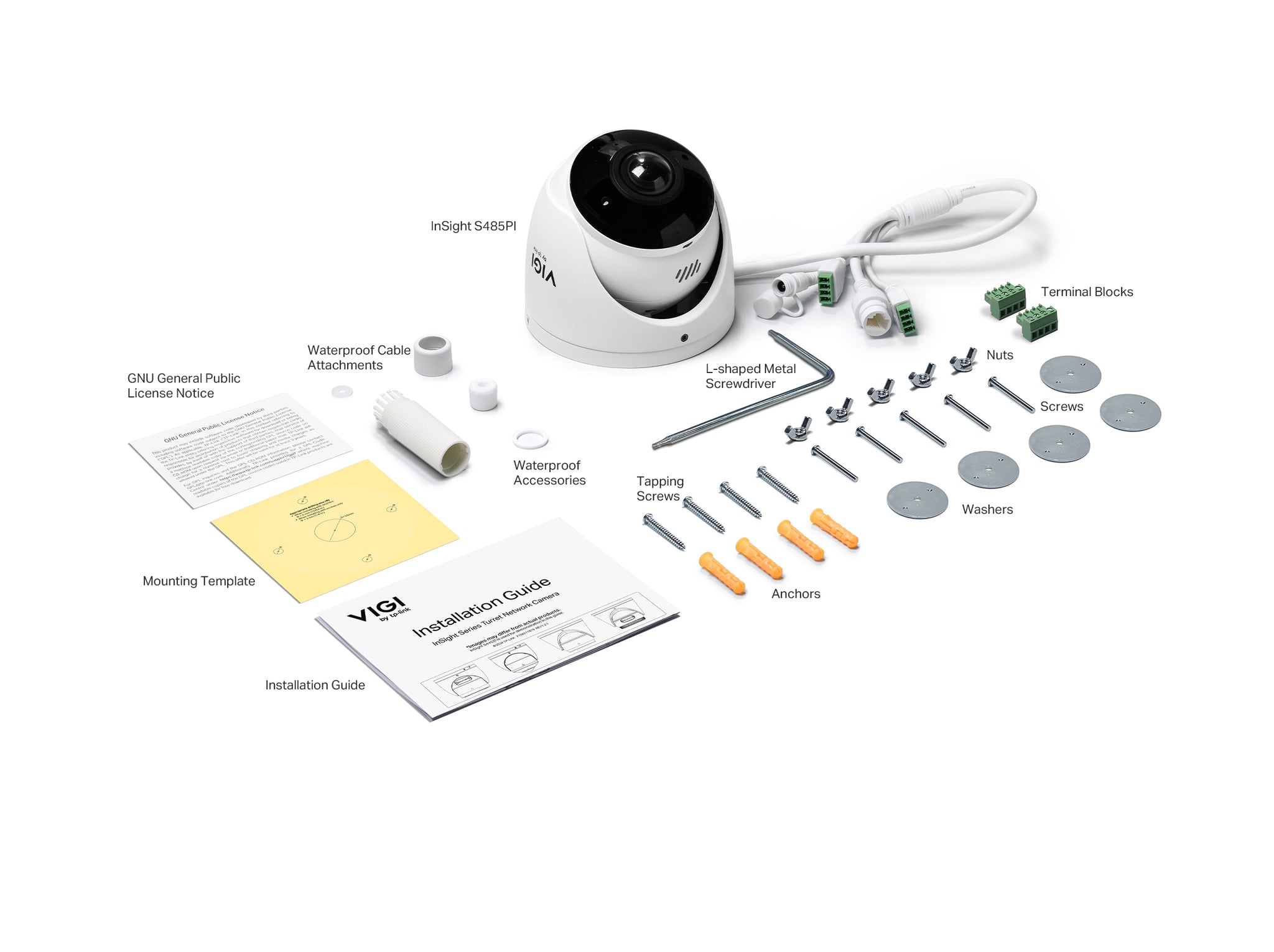

Package Contents
| VIGI Network Camera | Included |
| Quick Start Guide | Included |
| Waterproof Cable Attachments | Included |
| Mounting Accessories | Included |
microSD card and pole mounting kits are not included.
Ordering Information
| Model | InSight S485PI |
| SKU | InSight S485PI |
| Warranty | 5 Years Local Warranty (Singapore) |
Datasheet & Downloads
Frequently Asked Questions — InSight S485PI
How wide is the view?
The 1.65 mm lens gives a 180° horizontal, 86° vertical and 180° diagonal field of view.
Does it need a PoE+ switch?
Over PoE it needs 802.3at (class 4), drawing up to 21 W. It can also run from a 12V DC supply (max. 18 W).
Can I connect an external siren or sensor?
Yes. It has 1 alarm input and 1 alarm output, plus 1 audio in and 1 audio out, alongside its built-in red-blue warning lights, microphone and speaker.
What warranty does SourceIT provide?
The InSight S485PI is supplied with a 5-year local warranty in Singapore, handled under TP-Link's replacement warranty policy. Keep the GST invoice as proof of purchase.
Can SourceIT quote this for an office or a project?
Yes. SourceIT quotes VIGI cameras together with VIGI NVRs, PoE switches and storage for offices, shops, warehouses and multi-site projects, with a GST invoice for every order.
