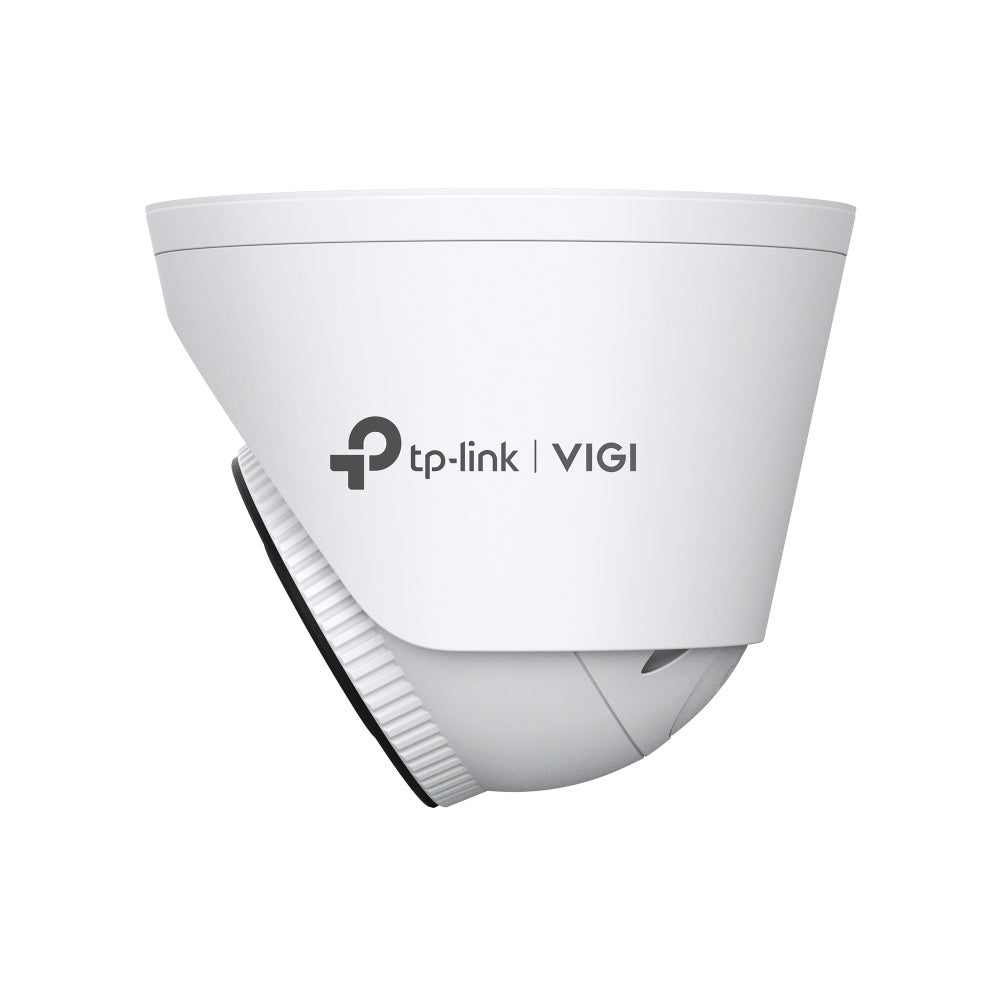

TP-Link InSight S455 5MP Full-Color Turret Network Camera, 4mm Lens
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
TP-Link VIGI 5MP Full-Color Turret Network Camera (InSight S455 4mm) - 5 Years Local Warranty

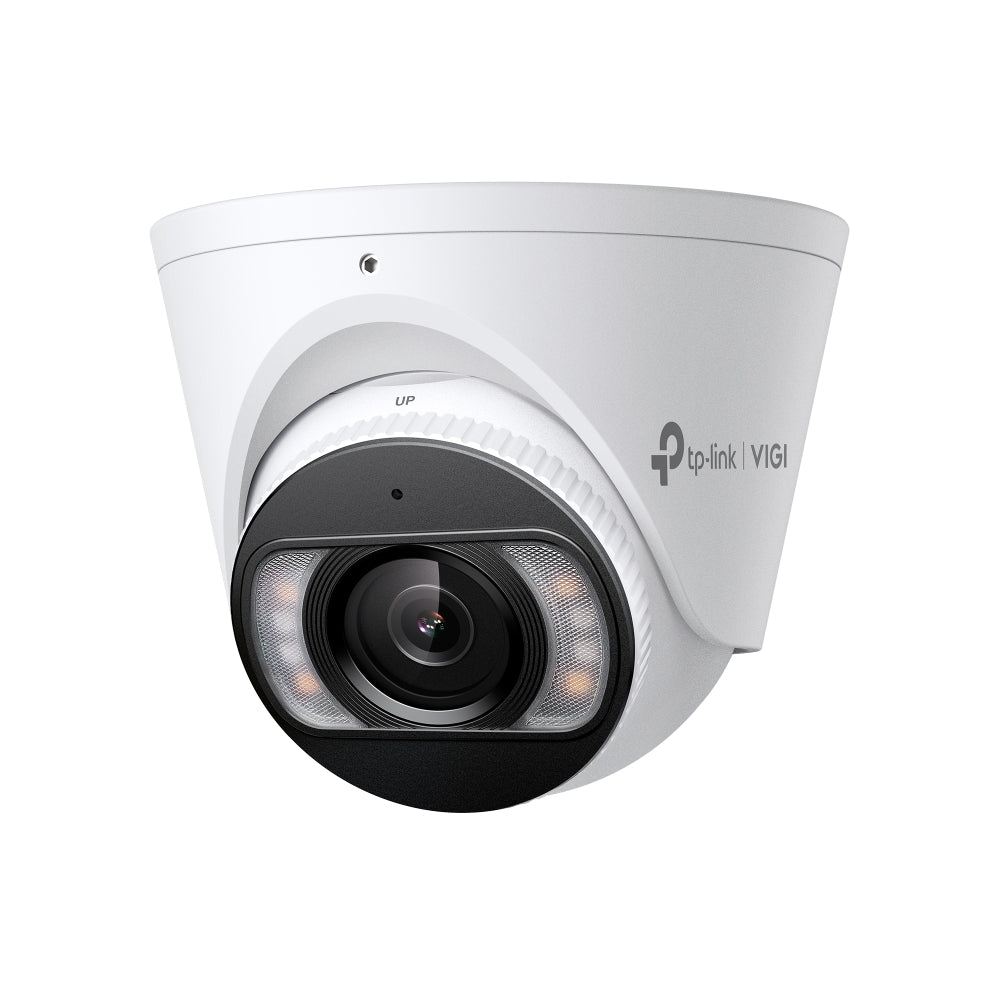

The TP-Link InSight S455 is a 5MP full-colour turret network camera with a 4 mm F1.6 fixed lens, white-light and IR illumination, People & Vehicle Analytics, two-way audio and an IP67 metal housing. It runs on PoE or 12V DC and records to a microSD card or a VIGI NVR.
5MP Full-Colour Imaging
A 1/2.7" progressive scan CMOS sensor with an F1.6 aperture records at up to 2880 x 1620. Four white LEDs and four 850 nm IR LEDs each have a stated range of 30 m, so night footage can be kept in colour or switched to IR.
4 mm Fixed Lens
The 4 mm lens is the narrower of the two S455 versions (88° horizontal) with longer DORI distances, suited to entrances, driveways and building perimeters.
People & Vehicle Analytics and Active Defence
Human and vehicle classification reduces false alerts, and People & Vehicle Analytics lets you search recorded footage by attribute when used with VIGI specified software. Alarm linkage includes an audible warning and white light flashing, and two-way audio is supported through the built-in microphone and speaker.
IP67 Metal Housing with Local Recording
The metal turret housing is rated IP67, with an operating range of -30 to 60 °C. A microSD slot takes cards up to 512 GB (card not included), and the camera runs on 802.3af/at PoE or 12V DC.
Ideal For
Retail shops, offices, warehouses, clinics and building entrances that need colour night footage and attribute search, with management through the VIGI app, VIGI Security Manager, VIGI VMS or VIGI Cloud VMS. Supplied by SourceIT with local Singapore warranty and GST invoice.
InSight S455 4mm Datasheet — Technical Specifications
General
| Model | InSight S455(4mm) |
| Official Product Name | VIGI 5MP Full-Color Turret Network Camera |
| Brand | TP-Link |
| Warranty | 5 Years Local Warranty (Singapore) |
Camera
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Minimum Illumination | 0.005 Lux; 0 Lux with IR/White light |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified/ Scheduled/ Auto |
Lens
| Type | Fixed Focal Lens |
| Focal Length | 4 mm |
| Aperture | F1.6 |
| FOV | Horizontal FOV: 88°, Vertical FOV: 46°, Diagonal FOV: 105.4° |
| Lens Mount | M12*P 0.5 |
| DORI Distance | Detect: 80 m (262 ft) Observe: 33 m (108 ft) Recognize: 16 m (52 ft) Identify: 8 m (26 ft) |
Angle Adjustment (Manual)
| Range | Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360° |
Illuminator
| IR LED | Quantity: 4 Range: 30m Wavelength: 850nm |
| White LED | Quantity: 4 Range: 30m |
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
Video
| Max. Resolution | 2880 x 1620 |
| Main Stream | Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 2880x1620, 2688x1520, 2304x1296, 2048x1280, 1920x1080, 1280x720 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Sub-Stream | Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 848x480, 704x576, 640x480, 640x360, 352x288, 320x240 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Bit Rate Control | CBR, VBR |
| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264 |
| H.264 Type | High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| Video Bit Rate | Main Stream: 256 Kbps to 6 Mbps Sub-Stream: 64 Kbps to 512 Kbps |
| Image Settings | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software |
| Image Enhancement | BLC/3D DNR/HLC/SmartIR |
| Wide Dynamic Range | 120 dB (Note: When People & Vehicle Analytics is enabled, only DWDR is supported.) |
| SNR | ≥ 52 dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 1 Region |
| OSD Setting | Yes |
Audio
| Audio Communication | Two-Way Audio |
| Audio Input | Yes |
| Audio Output | Yes |
| Audio Compression | Yes |
| Audio Sampling Rate | 8KHz |
| Environment Noise Filtering | Yes |
| Audio Bit Rate | 64 Kbps (G.711 alaw) |
Network
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP |
| ONVIF | Yes |
| API | ONVIF Profile S/T/G |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| Client | VIGI App, VIGI Security Manager, Web UI, VIGI VMS, VIGI Cloud VMS |
| Web Browser | Google Chrome® 57 and above Firefox® 52 and above Safari® 11 and above Microsoft® Edge 91 and above |
| Cloud | Yes |
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
Alarm and Event Management
| Smart Event | Intrusion Detection Line-Crossing Detection Region Entering Detection Region Exiting Detection Object Abandoned Detection Object Removal Detection Loitering Detection People Detection Vehicle Detection Abnormal Sound Detection Scene Change Detection |
| Basic Event | Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts) Video Tampering Detection Exception (Illegal Login) |
| Alarm Linkage | Memory Card Video Recording Message Push Audible Warning White Light Flashing |
| Linkage Method | N/A |
| Output Notification | Message Push |
Deep Learning Function
| People & Vehicle Analytics | Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier. (This function must be used with VIGI specified software.) |
Interfaces
| Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
| Alarm | N/A |
| Reset Button | Yes |
| Power | DC Power Port |

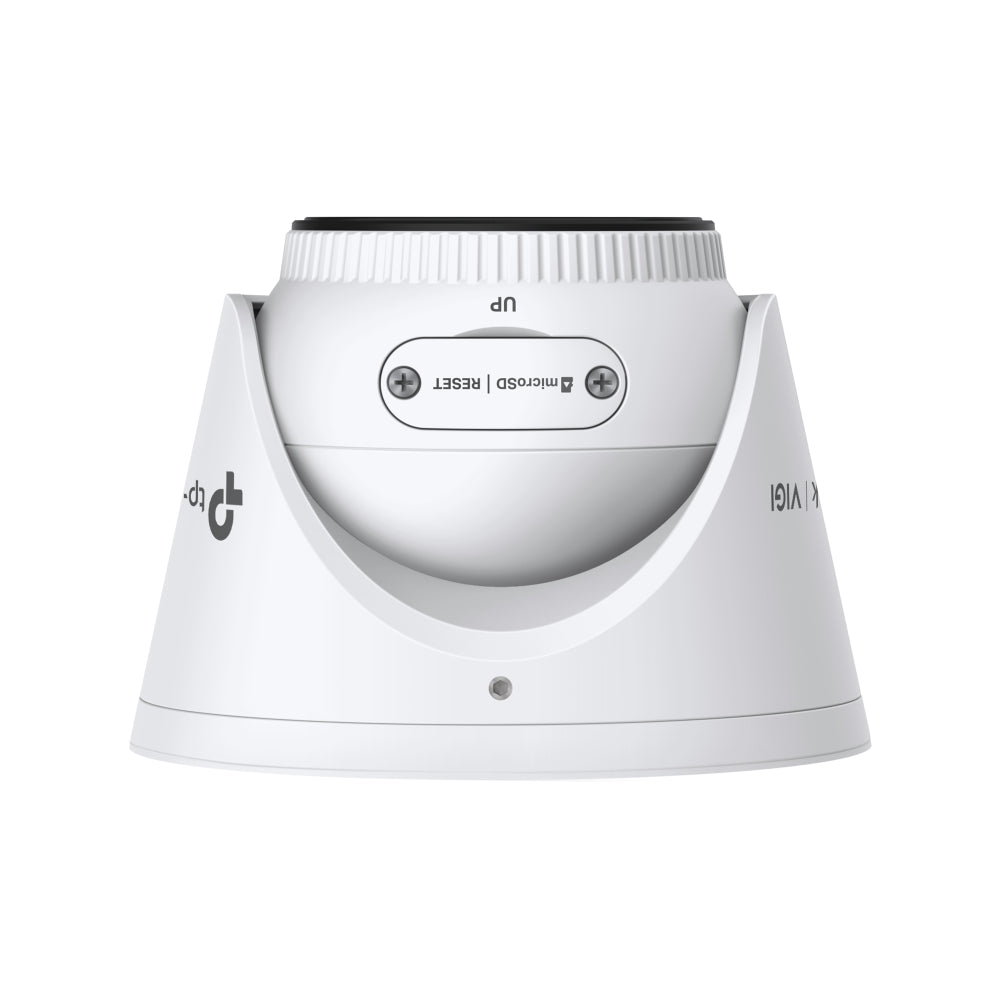

| On-board Storage | Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB (SD card is not included in the package.) |
| Built-in Microphone | Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera |

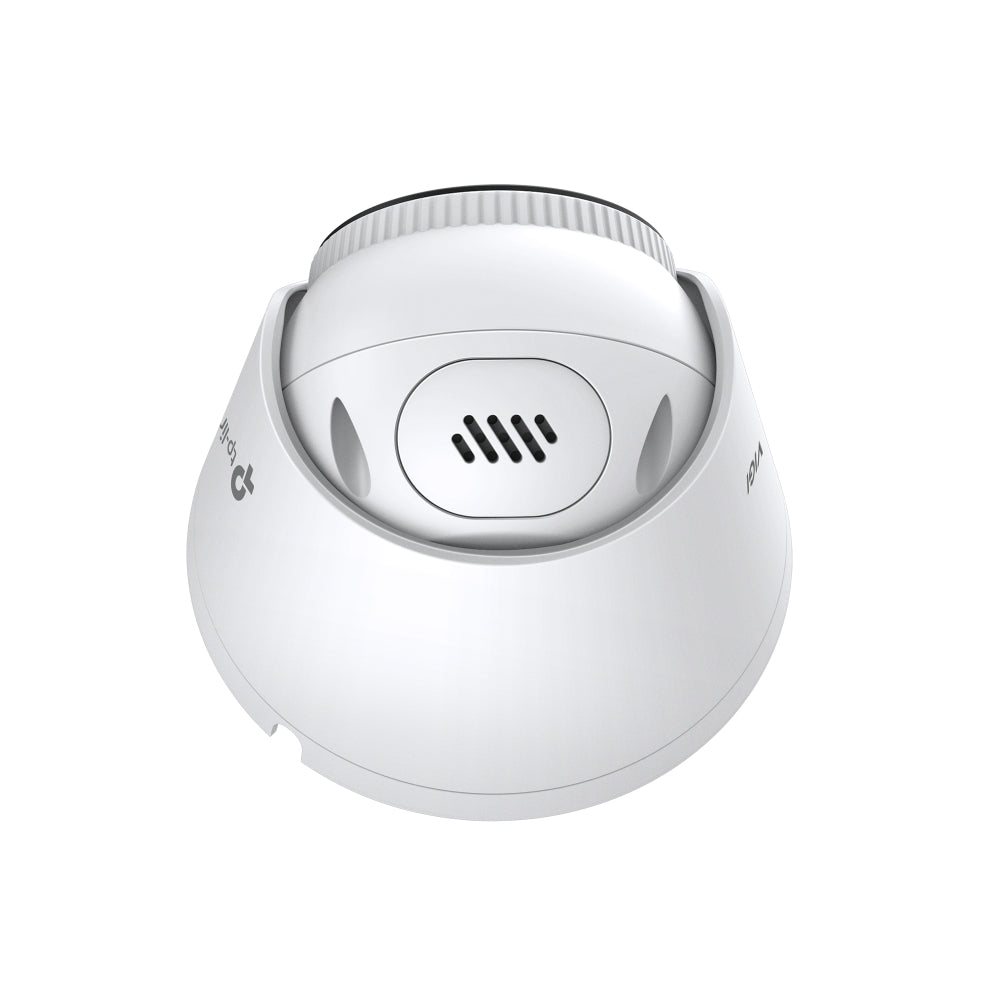

| Built-in Speaker | Yes |
| Audio | N/A |
General
| Operating Temperature | -30–60 °C |
| Storage Temperature | -40–60 °C |
| Operating Humidity | 95% or Less (Non-Condensing) |
| Storage Humidity | 95% or Less (Non-Condensing) |
| Material | Metal |
| Net Weight | 0.48 Kg |
| Power Supply | 12V DC ± 5%, Max. 11 W, 5.5 mm Coaxial Power Plug PoE: 802.3af/at, class 0, Max. 12 W |
| Protection | IP67 |
| Product Dimensions (L x W x H) | 4.4 x 4.4 x 3.3 in (111 x 111 x 83.7 mm) |
| Certifications | CE, NTRA, VCCI, KC, BSMI, FCC, IC |
TP-Link lists the field of view and DORI distances separately for the 2.8 mm and 4 mm versions; only the figures for this lens are shown above. TP-Link publishes no gross weight for the InSight S455.
Compatibility & Software Support
| Client | VIGI App, VIGI Security Manager, Web UI, VIGI VMS, VIGI Cloud VMS |
| ONVIF | Yes — ONVIF Profile S/T/G |
| Cloud | Yes |
| People & Vehicle Analytics | Must be used with VIGI specified software |
| Web Browser | Google Chrome® 57 and above, Firefox® 52 and above, Safari® 11 and above, Microsoft® Edge 91 and above |
| Local Storage | microSD card up to 512 GB (not included) |
| Power | 802.3af/at PoE (class 0, max. 12 W) or 12V DC ± 5% (max. 11 W) |
Package Contents & Ordering Information
Package Contents
| 1 | VIGI Network Camera |
| 2 | Quick Start Guide |
| 3 | Waterproof Cable Attachments |
| 4 | Mounting Accessories |
A microSD card is not included.
Ordering Information
| Model | InSight S455(4mm) |
| SKU | InSight S455(4mm) |
| Warranty | 5 Years Local Warranty (Singapore) |
| Other focal lengths in this range | InSight S455(2.8mm) |
Datasheet & Downloads
Frequently Asked Questions — InSight S455
Does the InSight S455 record in colour at night?
Yes. It has four white LEDs as well as four IR LEDs, each with a stated range of 30 m, and TP-Link lists a minimum illumination of 0.005 Lux (0 Lux with IR/white light).
Can it record without an NVR?
Yes. The built-in slot takes a microSD card up to 512 GB (not included), and memory card recording is one of the listed alarm linkage actions. It can also record to a VIGI NVR.
Is it suitable for outdoor use?
Yes. TP-Link rates the metal housing IP67 with an operating temperature of -30 to 60 °C, and waterproof cable attachments are included.
What is needed for People & Vehicle Analytics?
TP-Link states the function must be used with VIGI specified software. When it is enabled, only DWDR is supported rather than 120 dB true WDR.
What warranty does SourceIT provide?
The InSight S455 is supplied with a 5 Years Local Warranty (Singapore). Keep your SourceIT invoice as proof of purchase.
Can SourceIT quote this for an office or a project?
Yes. SourceIT supplies the InSight S455 for single sites and multi-camera projects in Singapore. Send the quantity, focal lengths and any matching VIGI recorder or PoE switch you need, and SourceIT will return a quotation with a GST invoice.
